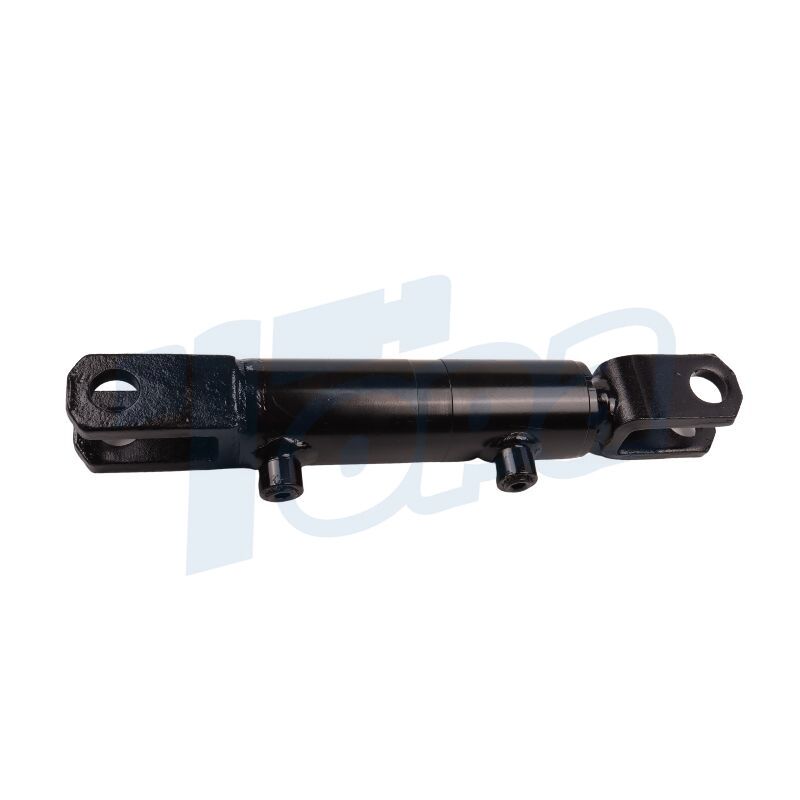

Tilt Trailer Hydraulic Cylinder

Barrel: The main body of the cylinder that holds the piston and the hydraulic fluid.

Piston: Moves back and forth inside the barrel under hydraulic pressure, creating a tilting motion.

Piston Rod: This rod is attached to the piston and is telescopic, translating the piston’s movement to the trailer.

Seal: Ensures that the hydraulic fluid stays inside the cylinder, preventing leakage and allowing for efficient operation.

Rod Section: Located at the end of the cylinder, it holds the piston rod in place and contains seals to prevent fluid leakage.

End Cap: Seals the end of the cylinder to maintain internal hydraulic pressure.

Ports: Inlet and outlet for hydraulic fluid to control piston movement.


Tilt Trailer Hydraulic Cylinders are typically cylindrical in shape with a polished or painted finish. Cylinders are usually made of high-grade steel or aluminum. The choice of this material ensures that the cylinders are able to withstand a wide range of environmental conditions, maintaining their integrity and functionality over time.

In terms of operation, the cylinder can hydraulically extend and retract the piston rod. The pressure range of these cylinders varies greatly, but they are generally designed to work effectively at high pressures, often up to thousands of PSI. stroke length, which is the range of motion of the piston, can be customized to meet the specific requirements of the tilt trailer to ensure optimal performance under varying loads and size requirements.


Durability: Crafted from high-grade materials, these cylinders withstand rigorous use and harsh conditions.

Precision Control: Advanced engineering ensures smooth and accurate operation, crucial for precise tilting movements.

Customization: We offer cylinders tailored to specific needs, including variable stroke lengths and pressure capacities.

Efficiency: Designed for optimal hydraulic fluid use, these cylinders deliver efficient performance, reducing operational costs.


Construction: Used in tilt trailers for transporting heavy machinery and building materials.

Agriculture: Ideal for trailers in farming operations, aiding in the transport and handling of agricultural goods.

Waste Management: Employed in waste disposal trailers for efficient loading and unloading of waste materials.

Landscaping: Useful in transporting heavy landscaping materials like stones and soil.

Automotive Industry: Assists in the transport of vehicles on car haulers, providing stability and controlled movement.

Topa's Customized Services

The process of customizing hydraulic cylinders for tilt trailers at Topa is customer-focused, ensuring that each cylinder meets specific operational needs:

Customer Consultation: We begin by understanding the customer’s specific requirements, including the tilt trailer application, load capacity and environmental conditions.

Design and Engineering: Our experienced engineers then design to these specifications.

Material Selection: We use high-grade steel or aluminum to increase durability and efficiency and to ensure that the cylinders can withstand harsh conditions.

Sample Development: Before mass production, we create a sample. This step allows for real-world testing and necessary adjustments to the design.

Manufacturing: We produce cylinders using specialized manufacturing techniques. At this stage, precision is key to ensuring quality and performance.

Quality Testing: Each customized cylinder undergoes rigorous testing, including pressure tests and operational checks, to ensure compliance with our high standards.

At Topa, we are committed to providing customized solutions to precisely meet your tilt trailer needs. Contact us today to begin your customization project and experience the Topa difference.

Tilt Trailer Hydraulic Cylinder

At Topa, we start by carefully selecting materials to ensure durability and wear resistance. Subsequently, components including cylinder barrels, pistons and piston rods are precision machined to exact specifications.

Next, each component is carefully fitted together. Once assembled, each cylinder undergoes a series of rigorous tests. These tests check for leaks, ensure proper operation over a wide range of pressures, and verify the overall performance of the cylinder.

We are committed to making sure that the product you receive can meet your expectations. Contact us today and let us improve the efficiency and performance of your tilt trailer.
