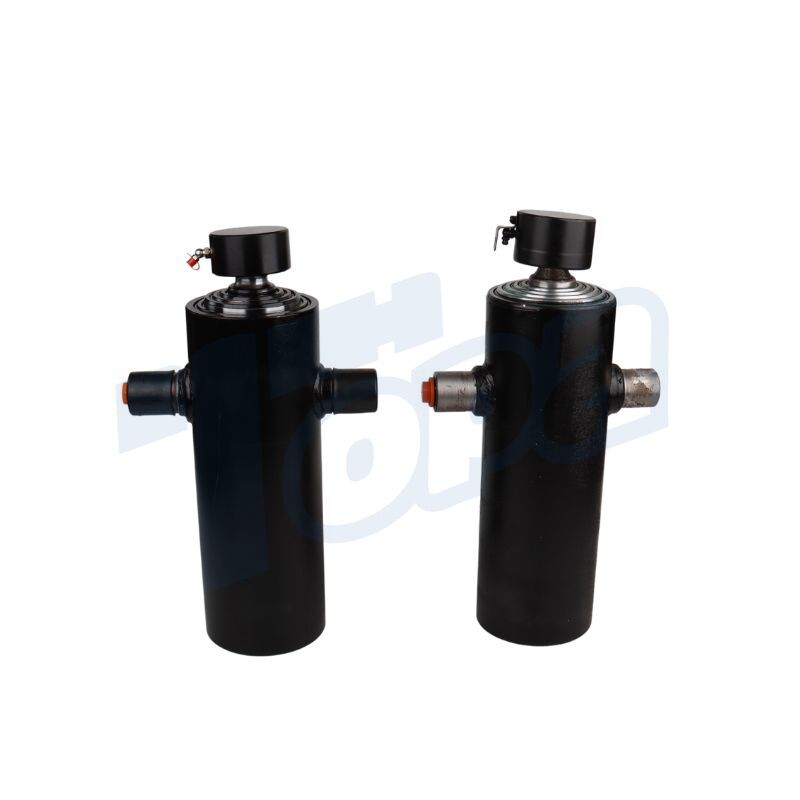

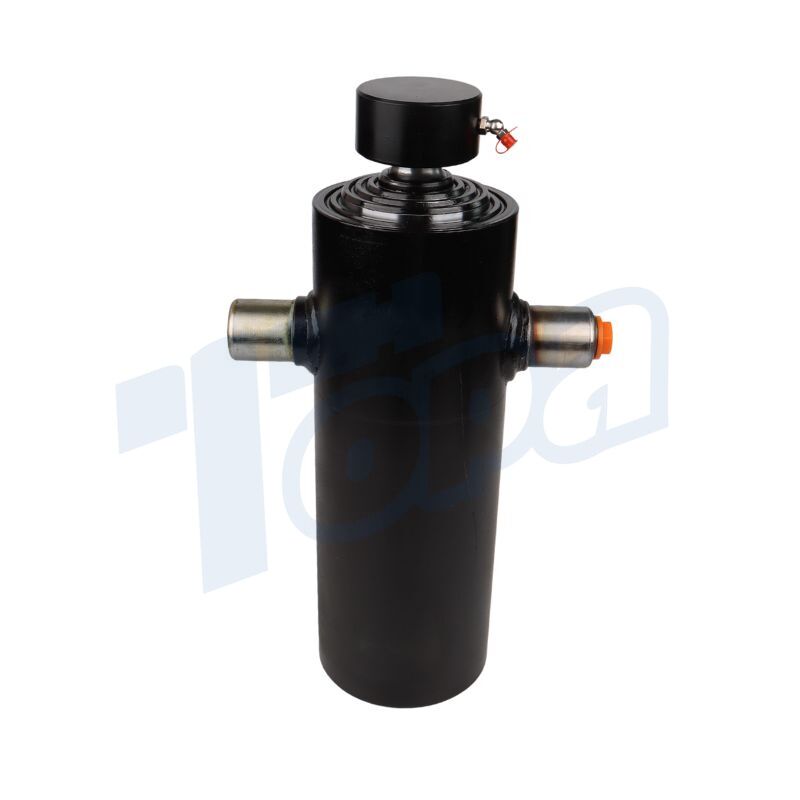

Telescopic Hydraulic Cylinder for Dump Trailer

Stages
The cylinder consists of multiple tubes, called stages, nested within one another. Each stage is a cylinder, with its own piston and sealing elements.

Piston and Seals
Each stage has a piston attached to its base, and the piston moves within the cylinder stage to extend or retract it. High-quality seals prevent any hydraulic fluid leakage between the stages and between the piston and the cylinder wall.

Ports
Hydraulic fluid is supplied to the cylinder through ports, usually located at the base of the outermost stage. The fluid pushes the pistons, causing the cylinder to extend.

Material
The cylinder is typically made of high-strength steel for durability and to withstand the high pressures encountered during operation.

Mountings
Various mounting options are available, such as trunnion mounts, clevis mounts, or direct mounts, to suit different dump truck configurations.

Description

A telescopic hydraulic cylinder is a specialized type of hydraulic cylinder designed for applications that require a long stroke length while maintaining a compact retracted size. This makes it particularly well-suited for dump trailers, which often need to lift heavy loads over a significant distance but have limited space for equipment.

Applications

Dump Trailers
The primary application is in dump trailers used in construction, waste management, and material handling industries.

Agricultural Equipment
In the agricultural sector, these cylinders are used in equipment like grain trailers to facilitate the efficient unloading of produce.

Mining Operations
In mining, they are used in off-road dump trucks and other heavy machinery to manage the movement of earth and ore.

Material Handling
In warehouses and docks, telescopic hydraulic cylinders can be used in lifting equipment to manage heavy or bulky loads over a vertical distance.

Specialized Vehicles
They are also found in specialized vehicles like fire trucks and rescue vehicles, where space is limited but a long reach is required.

Advantages

Space Efficiency
The telescopic design allows for a long stroke length while maintaining a compact retracted size. This is crucial for dump trailers where space is often limited.

High Lifting Capacity
These cylinders are designed to handle heavy loads, making them ideal for lifting the large and often uneven loads commonly found in dump trailers.

Versatility
The various mounting options, such as trunnion mounts, clevis mounts, or direct mounts, make it adaptable to different dump trailer configurations.

Topa's Customized Services

At Topa, we understand that every customer and project has unique needs and challenges. That’s why we offer a full range of customization services to meet your specific needs for hydraulic cylinders and hydraulic accessories. Here are some highlights of our customization services:

Customized Design
Our engineering team will work closely with you to understand your specific needs and application scenarios.
We can customize our services to meet your specifications and requirements.

Material Selection
Depending on your application needs, we can recommend the most suitable material, such as high-strength steel, stainless steel or special alloys.
We use high quality seals and hydraulic fluids to ensure long term stability and durability of our products.

Manufacturing and Quality Control
Our manufacturing process follows strict ISO quality standards.
Each customized product undergoes rigorous quality testing, including pressure testing, dimensional checks and performance verification.

Telescopic Hydraulic Cylinder for Dump Trailer

At Topa, the process of manufacturing a Telescopic Hydraulic Cylinder for Dump Trailers begins with a comprehensive consultation with the client. Our engineering team collaborates closely with you to understand your specific requirements, including load capacity, stroke length, and mounting options. High-quality materials like high-strength steel are selected to withstand the rigorous demands of heavy lifting and long-term use.

Once the design is finalized, the manufacturing phase kicks in. Our state-of-the-art facility adheres to ISO quality standards, ensuring each cylinder undergoes stringent quality control measures. This includes pressure tests, dimensional checks, and performance validations. The use of advanced machinery and skilled professionals ensures that each telescopic hydraulic cylinder is built to the highest standards of quality and durability.

Contact Topa now, and we will give you the best hydraulic solution!
