Tie Rod Type Hydraulic Cylinder

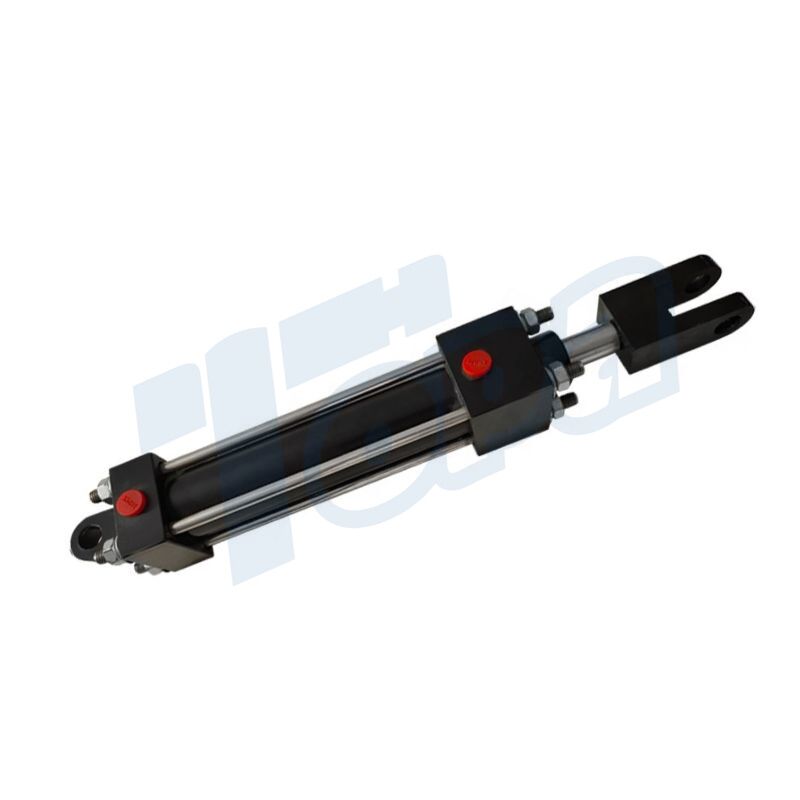

Earring Connection Tie Rod Type Hydraulic Cylinder

Earring Connection: Features unique earring connections at both ends for easy and secure mounting to various machinery or structures.

Cylindrical Shape: The cylinder is generally cylindrical, providing a streamlined design for efficient operation.

Tie Rods: Reinforced with tie rods that run along the length of the cylinder, adding extra stability and structural integrity.

Double-Acting Functionality: Houses a piston that allows for double-acting operation, exerting force in both extending and retracting directions.

High-Strength Steel Barrel: The cylinder barrel is typically made from high-strength steel to withstand high pressures and ensure durability.

Quality Seals: Utilizes seals made from materials like polyurethane or rubber to prevent hydraulic fluid leakage, ensuring efficient and reliable operation.


The earring connection tie rod type hydraulic cylinder is distinctively designed with earring connections at both ends, facilitating easy and secure mounting. The cylinder is cylindrical in shape and features tie rods running along its length, which not only add to its aesthetic appeal but also provide structural stability. These tie rods are usually visible and are a hallmark of its robust design.

This type of cylinder is double-acting, capable of exerting force in both extending and retracting directions. It operates within a broad pressure range, often between 250 to 6000 PSI. The cylinder’s dimensions can be customized to fit specific needs, and it is typically constructed from high-strength steel for the barrel and tie rods, ensuring durability. Quality seals, often made from polyurethane or rubber, are used to prevent hydraulic fluid leakage, adding to its reliability and efficiency.


Easy Mounting: The earring connections at both ends allow for quick and secure mounting, reducing installation time.

Structural Stability: The tie rods running along the length of the cylinder provide additional stability, making it robust and durable.

Versatile Pressure Range: Capable of operating within a broad pressure range, from 250 to 6000 PSI, allowing it to be used in various industrial settings.

Leak-Proof Design: Quality seals made from materials like polyurethane or rubber ensure that the hydraulic fluid remains contained, enhancing


Construction Machinery: Ideal for use in heavy-duty equipment like excavators and bulldozers where secure mounting and high pressure are required.

Manufacturing Lines: Can be used in automated assembly lines for tasks that require precise linear motion.

Agricultural Equipment: Suitable for use in tractors and other farming machinery for operations like lifting and plowing.

Material Handling: Commonly used in forklifts, conveyors, and other material handling systems where stability and efficiency are paramount.

Topa's Customized Services

At Topa, we understand that every client has unique requirements, and our customization services are designed to meet those specific needs.

Initial Consultation: A thorough discussion to understand your specific requirements and project intricacies.

Design Phase: Skilled engineers draft a design tailored to your specifications, including material selection and dimensions.

Quality Testing: Rigorous testing protocols to ensure the product meets high-quality standards.

Quick Turnaround: Efficient processes to ensure your customized cylinder is ready in a timely manner.

Attention to Detail: Every aspect of the customization is meticulously planned and executed.

Quality Assurance: High-quality materials and testing ensure durability and operational efficiency.

Expert Team: A team of 20 skilled professionals to guide you through the customization process.

Choose Topa for a truly personalized and reliable hydraulic solution.

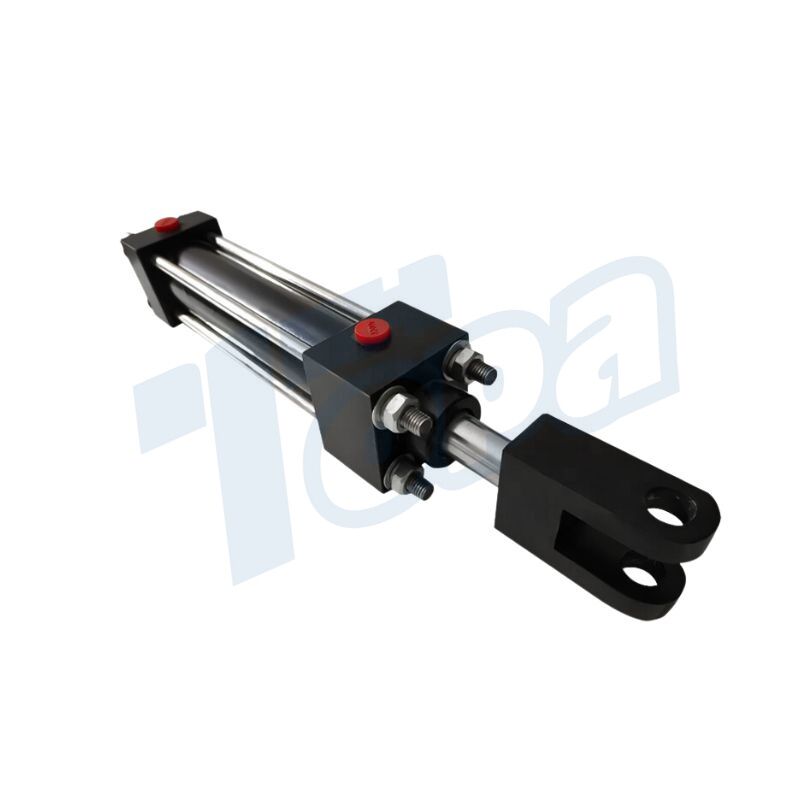

Earring Connection Tie Rod Type Hydraulic Cylinder

Topa uses only high-strength steel and quality seals to ensure durability and efficient operation.

Once the design is complete, the production phase begins. Our factory is equipped with state-of-the-art machinery for precision cutting, welding and assembly. Each cylinder undergoes a series of rigorous tests. These include pressure tests and leakage tests to ensure compliance with our stringent quality standards.

With our careful design, cutting-edge manufacturing equipment and stringent quality checks, Topa has become a leading company in the hydraulic industry. We invite you to experience the unrivaled quality and efficiency of our hydraulic cylinders.

Contact us today to place your order and make Topa your trusted partner.
