Description

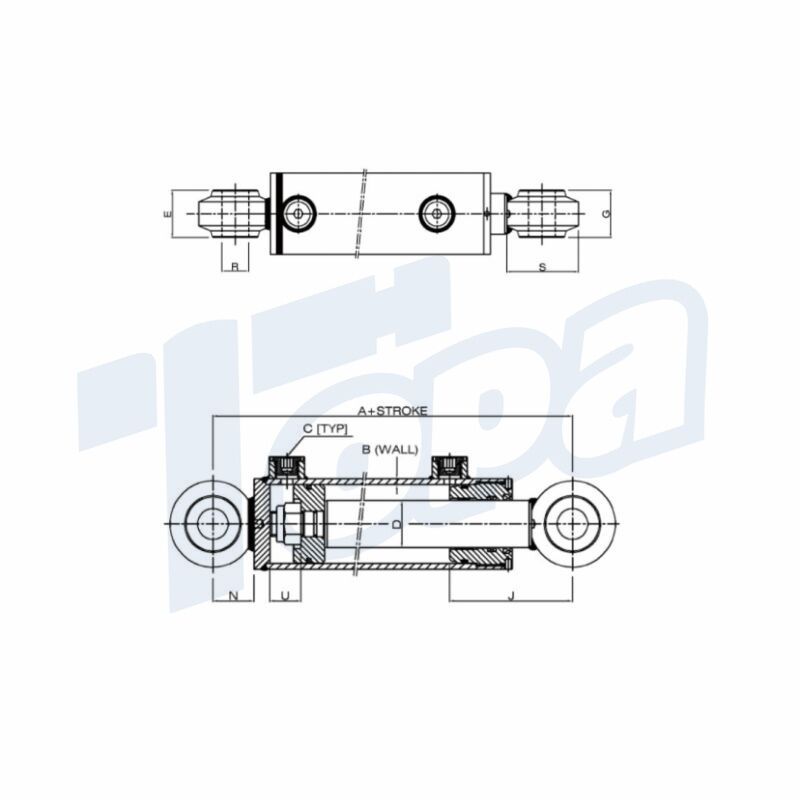

| BORE | A* | B | C | D | E | G | J | N | R | S | U |
| 1 | 6 | 0.2 | SAE 6 | 0.63 | 1 | 1 | 1.5 | 1 | 0.5 | 2 | 0.75 |
| -25.4 | -152.4 | -5.08 | -16 | -25.4 | -25.4 | -38.1 | -25.4 | -12.7 | -50.8 | -19.05 | |
| 1.5 | 7.25 | 0.195 | SAE 6 | 1 | 1 | 1 | 2.25 | 1 | 0.76 | 2 | 1 |
| -38.1 | -184.1 | -4.95 | -25.4 | -25.4 | -25.4 | -57.15 | -25.4 | -19.3 | -50.8 | -25.4 | |
| 2 | 7.5 | 0.187 | SAE 8 | 1.25 | 1.75 | 1.75 | 2.11 | 1.36 | 1 | 2.72 | 1 |
| -50.8 | -190.5 | -4.74 | -31.75 | -44.45 | -44.45 | -53.59 | -34.54 | -25.4 | -69.08 | -25.4 | |
| 2.5 | 7.5 | 0.187 | SAE 8 | 1.5 | 1.75 | 1.75 | 2.11 | 1.36 | 1 | 2.75 | 1 |
| -63.5 | -190.5 | -4.74 | -38.1 | -44.45 | -44.45 | -53.59 | -34.54 | -25.4 | -69.85 | -25.4 | |
| 3 | 8.25 | 0.187 | SAE 8 | 1.5 | 1.75 | 1.75 | 2.47** (62.73) | 1.56 | 1 | 3.12 | 1 |
| -76.2 | -209.5 | -4.74 | -38.1 | -44.45 | -44.45 | -39.62 | -25.4 | -79.24 | -25.4 | ||
| 1″ BORE CYLINDERS | |||||||||||
| PART NO | BORE | ROD DIA | STROKE | RETRACTED | COLUMN LOAD | PORT SIZE | BALL END OD | BALL END WIDTH | PIN DIA | SHIP WT. | |
| WSE-1004 | 1″ | 5/8″ | 4″ | 10″ | 2350 lbs. | SAE 6 | 2″ | 1″ | 1/2″ | 5 | |
| WSE-1006 | 1″ | 5/8″ | 6″ | 12″ | 2350 lbs. | SAE 6 | 2″ | 1″ | 1/2″ | 5 | |
| WSE-1008 | 1″ | 5/8″ | 8″ | 14″ | 2350 lbs. | SAE 6 | 2″ | 1″ | 1/2″ | 6 | |
| 1.5″ B1.5″ BORE CYLINDERSORE CYLINDERS | |||||||||||
| PART NO | BORE | ROD DIA | STROKE | RETRACTED | COLUMN LOAD | PORT SIZE | BALL END OD | BALL END WIDTH | PIN DIA | SHIP WT. | |
| WSE-1504 | 1.5″ | 1″ | 4″ | 11 1/4″ | 5300 lbs. | SAE 6 | 2″ | 1″ | 3/4″ | 6 | |
| WSE-1506 | 1.5″ | 1″ | 6″ | 13 1/4″ | 5300 lbs. | SAE 6 | 2″ | 1″ | 3/4″ | 7 | |
| WSE-1508 | 1.5″ | 1″ | 8″ | 15 1/4″ | 5300 lbs. | SAE 6 | 2″ | 1″ | 3/4″ | 9 | |
| 2″ BORE CYLINDERS | |||||||||||
| PART NO | BORE | ROD DIA | STROKE | RETRACTED | COLUMN LOAD | PORT SIZE | BALL END OD | BALL END WIDTH | PIN DIA | SHIP WT. | |
| WSE-2006 | 2″ | 1 1/4″ | 6″ | 13 1/2″ | 9420 lbs. | SAE 8 | 2 3/4″ | 1 3/4″ | 1″ | 15 | |
| WSE-2008 | 2″ | 1 1/4″ | 8″ | 13 1/2″ | 9420 lbs. | SAE 8 | 2 3/4″ | 1 3/4″ | 1″ | 16 | |
| WSE-2010 | 2″ | 1 1/4″ | 10″ | 17 1/2″ | 9420 lbs. | SAE 8 | 2 3/4″ | 1 3/4″ | 1″ | 17 | |
| WSE-2012 | 2″ | 1 1/4″ | 12″ | 19 1/2″ | 9420 lbs. | SAE 8 | 2 3/4″ | 1 3/4″ | 1″ | 19 | |
For any further inquiries or assistance with weld swivel eye hydraulic cylinders or other hydraulic products, feel free to contact Topa. They are dedicated to providing hydraulic solutions that meet and exceed your expectations.

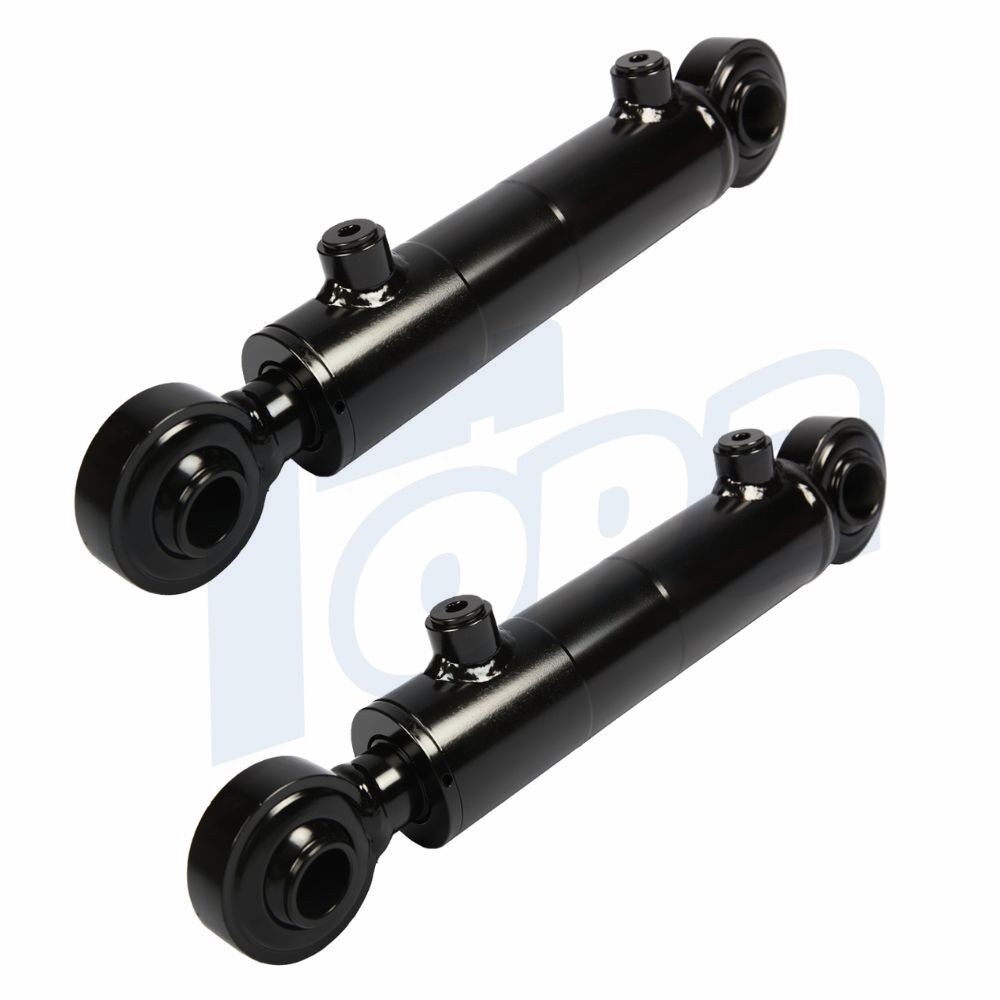

WSE - Welded Swivel Ball Hydraulic Cylinder Topa

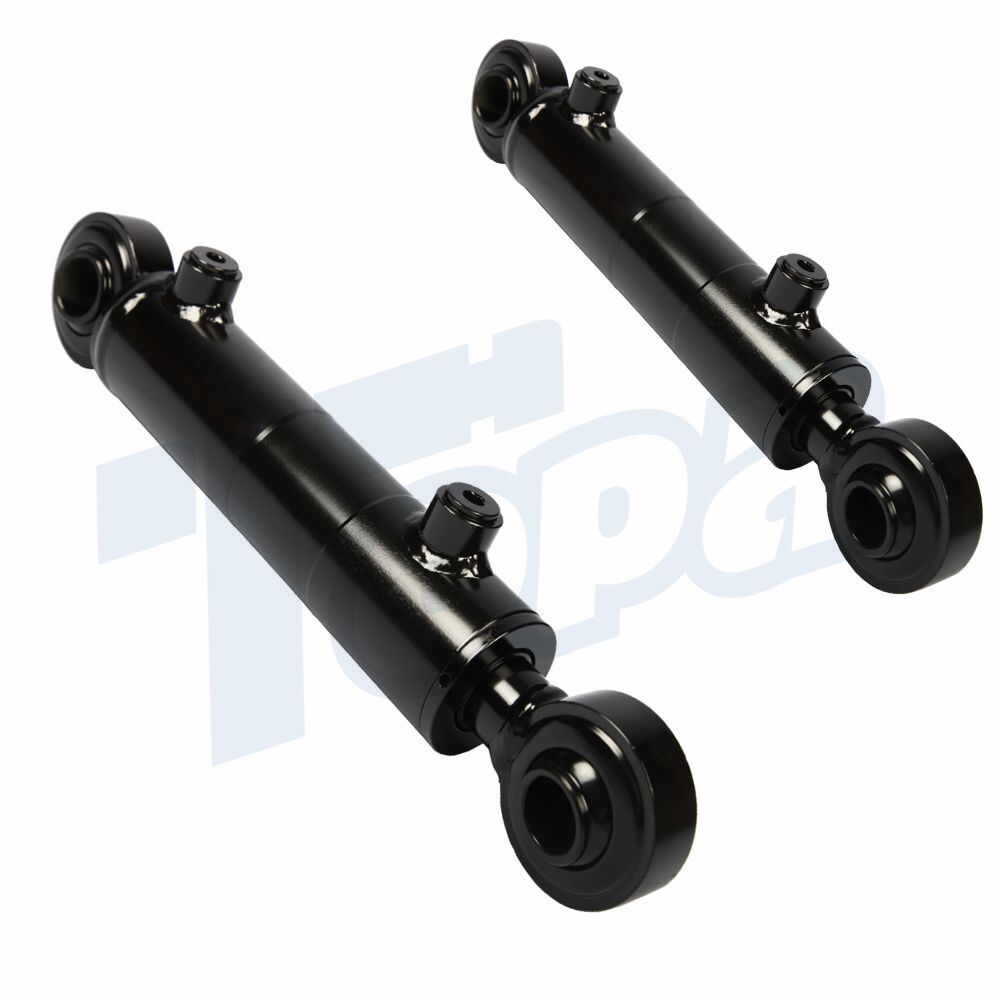

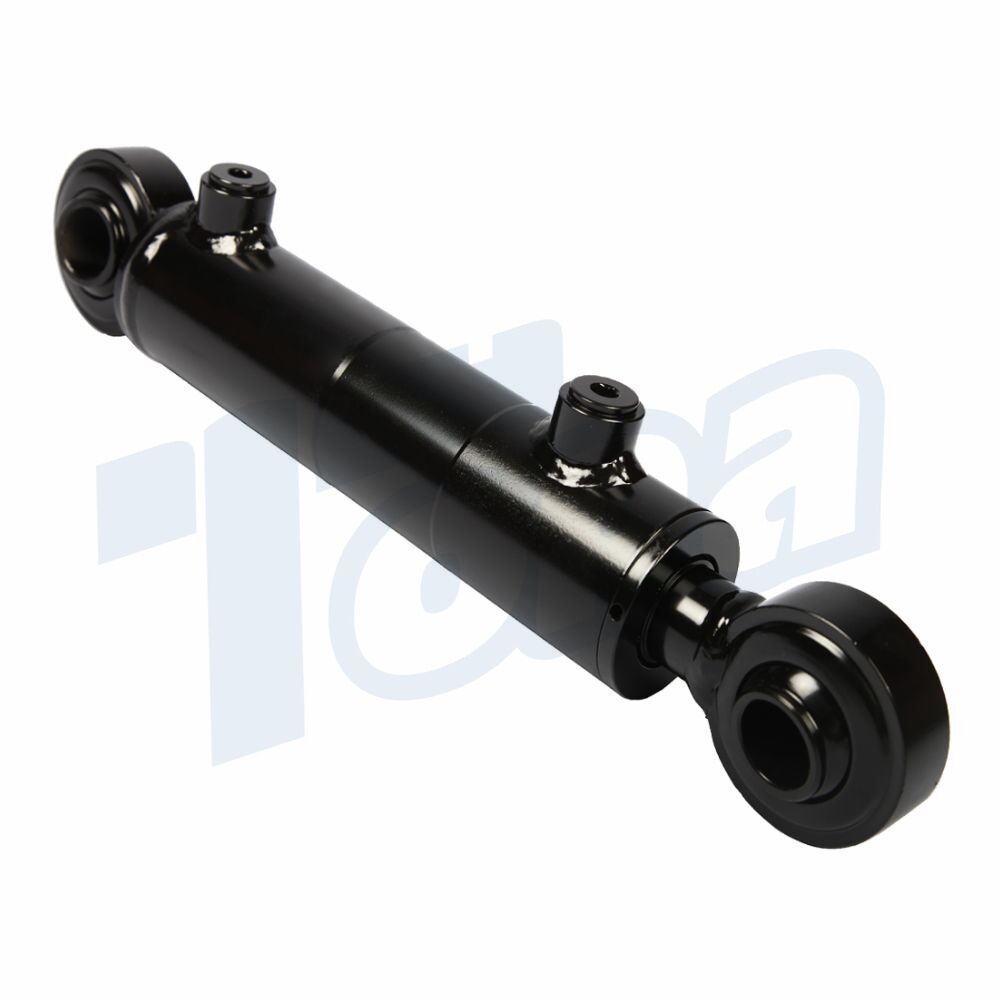

Weld swivel ball hydraulic cylinders are distinguished by their cylindrical design with a swivel ball end. They typically consist of a durable steel body, a piston, and a rod. The swivel ball end allows for versatile movement and positioning.
These cylinders find a wide range of applications in industries where flexibility in hydraulic systems is crucial. They are commonly used in construction, manufacturing, material handling, and agricultural equipment.
To ensure longevity and reliability, weld swivel ball hydraulic cylinders are constructed from high-quality materials, often featuring robust steel components. The choice of materials enhances their resistance to wear and corrosion.
Advantages of Hydraulic Cylinders From Topa
Exceptional Quality: Topa’s state-of-the-art manufacturing facilities in China ensure that their hydraulic cylinders are built to last, even in demanding conditions. Clients can rely on their durability and performance.
Versatility and Flexibility: Weld swivel ball hydraulic cylinders offer the advantage of versatile movement and positioning, which is vital in industries requiring adaptable hydraulic systems.
Customization Expertise: Topa understands that unique applications require tailored solutions. They excel in customizing weld swivel ball hydraulic cylinders to precise specifications, ensuring they meet specific equipment needs.
Global Reach: With a presence on international platforms like Google and participation in exhibitions and trade shows, Topa ensures that its products reach clients worldwide, including the United States, Canada, Australia, and many more.
