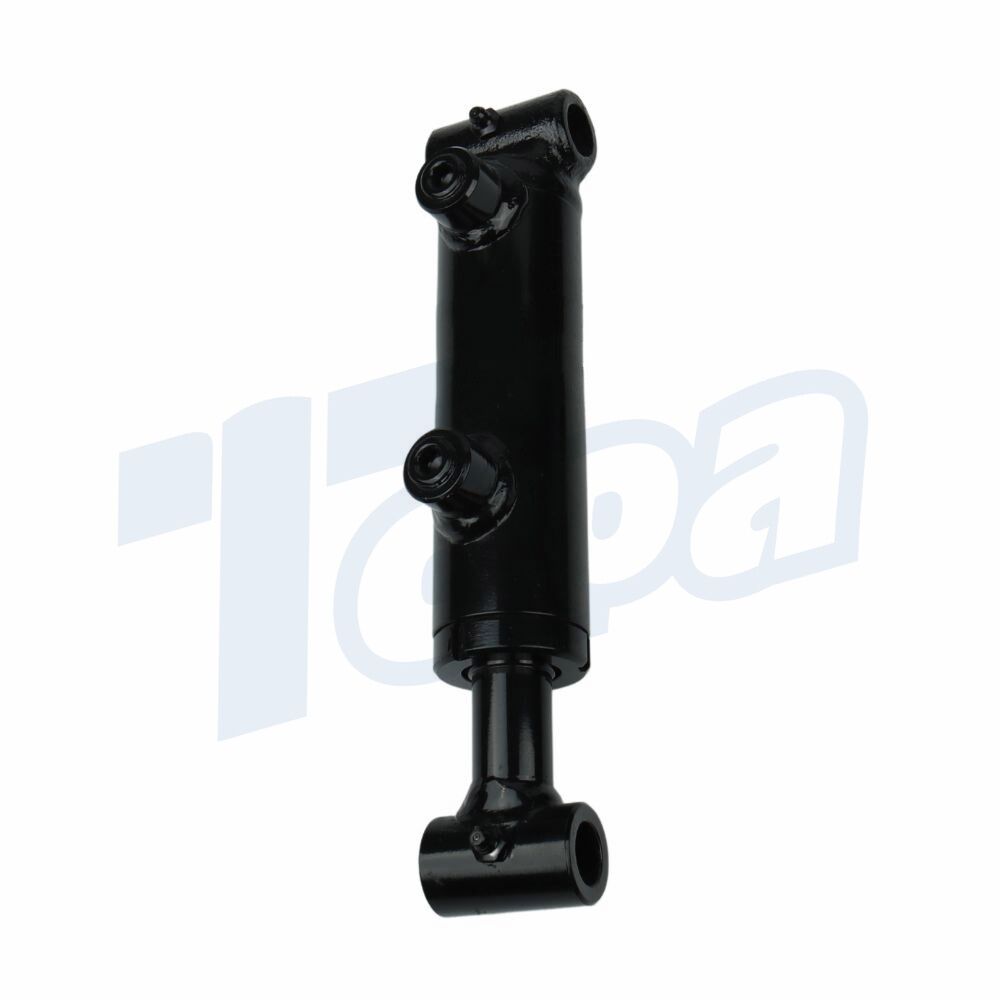

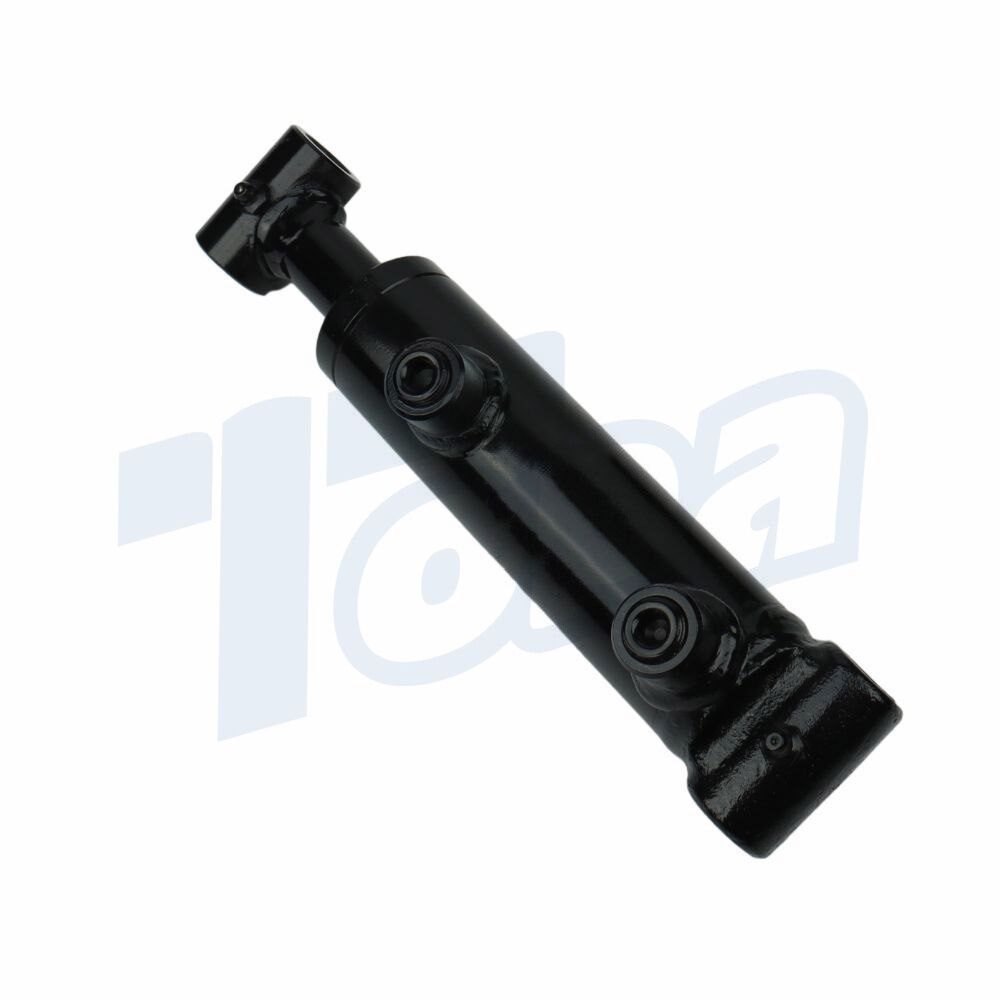

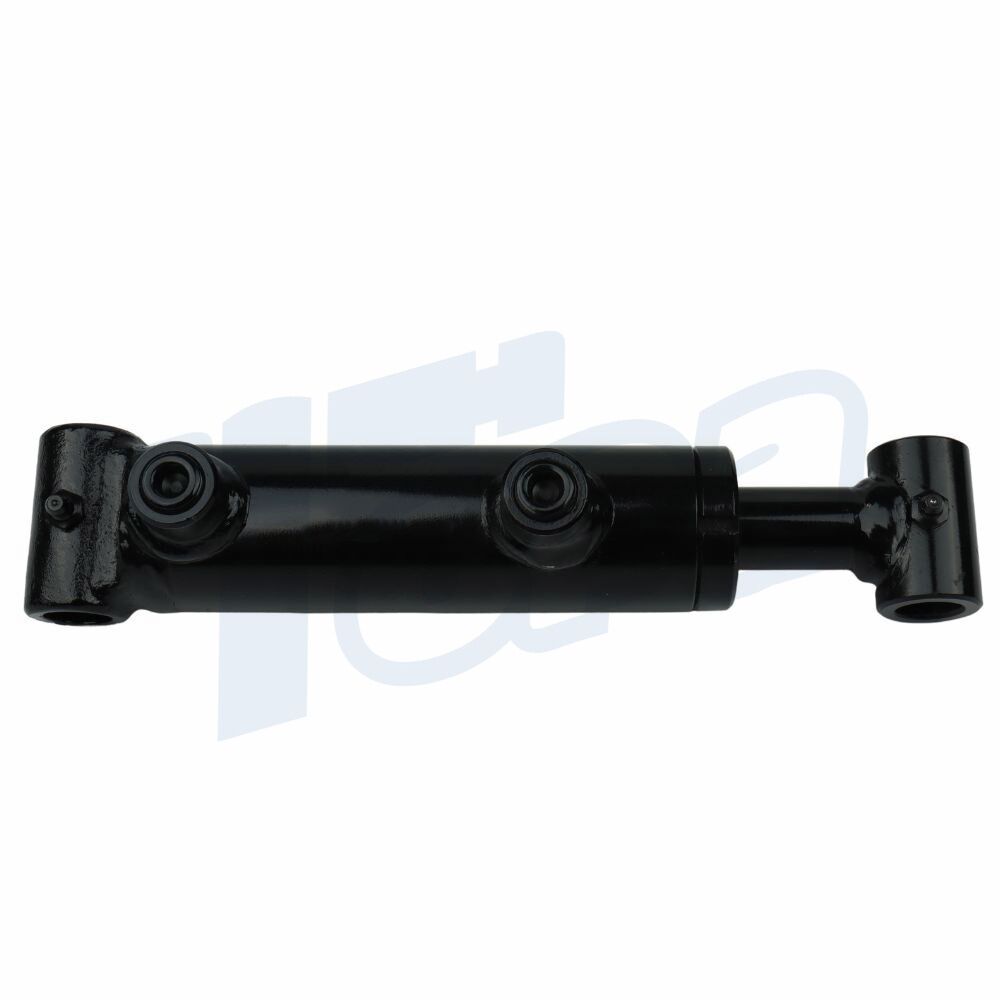

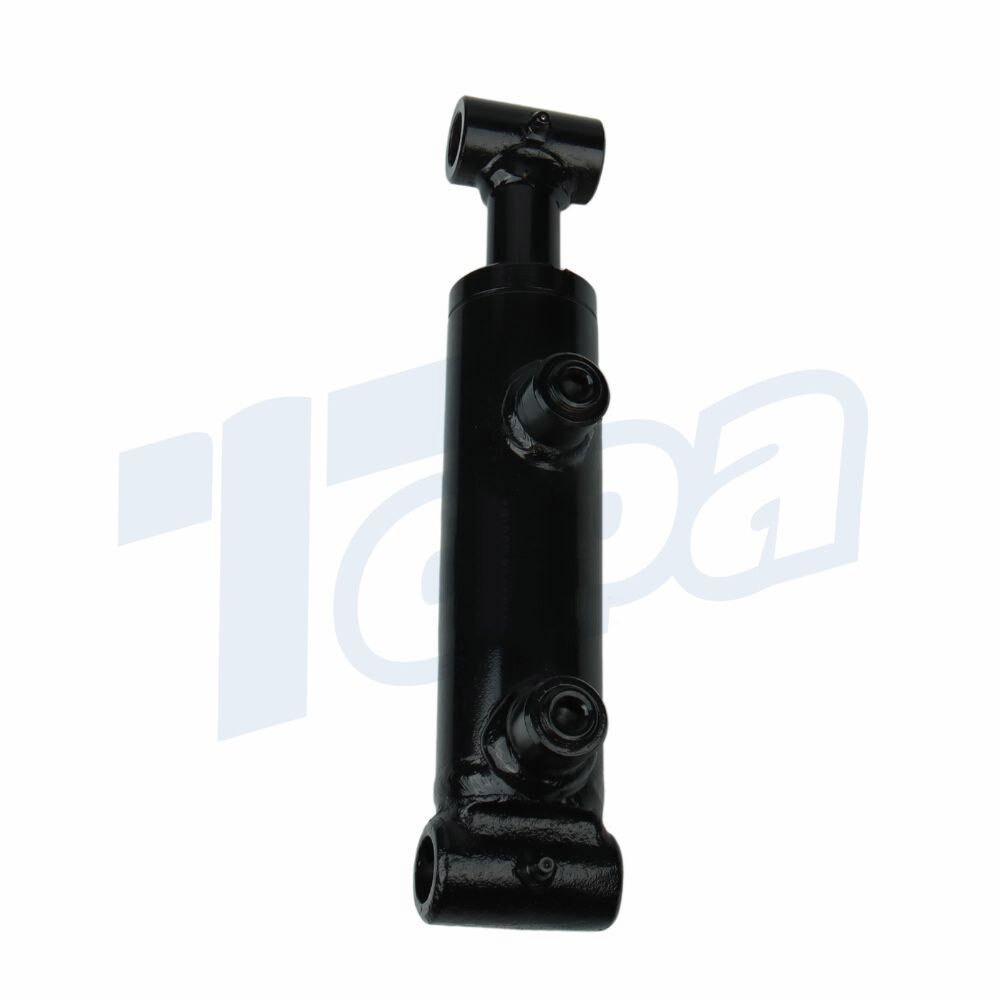

Welded Rod Hydraulic Cylinder

MWL – Mechicaical Welded Cylinders

  • 2500 and 3000 PSI double-acting cylinders
  • 4″ Bore =3000 PSI,5″ Bore = 2500 PSI Honed tubing
  • Heavy-duty welded construction
  • Chromed, polished & ground piston rod
  • Cast iron piston & gland
  • Pin eye mounting
  • Loaded u-seal & urethane wiper in gland
  • O-ring/backup washers & u-seals for piston seals
  • Threaded gland retainer
  • Standard color is black, we also offer custom colors

Whether you need it for construction, agriculture, or other industrial purposes, the MWL Welded Rod Hydraulic Cylinder is designed to meet your hydraulic system needs effectively. If you require more specific information or have customization inquiries, please don’t hesitate to reach out to us at Topa.

Description

TRL light duty hydraulic cylinders Specifications

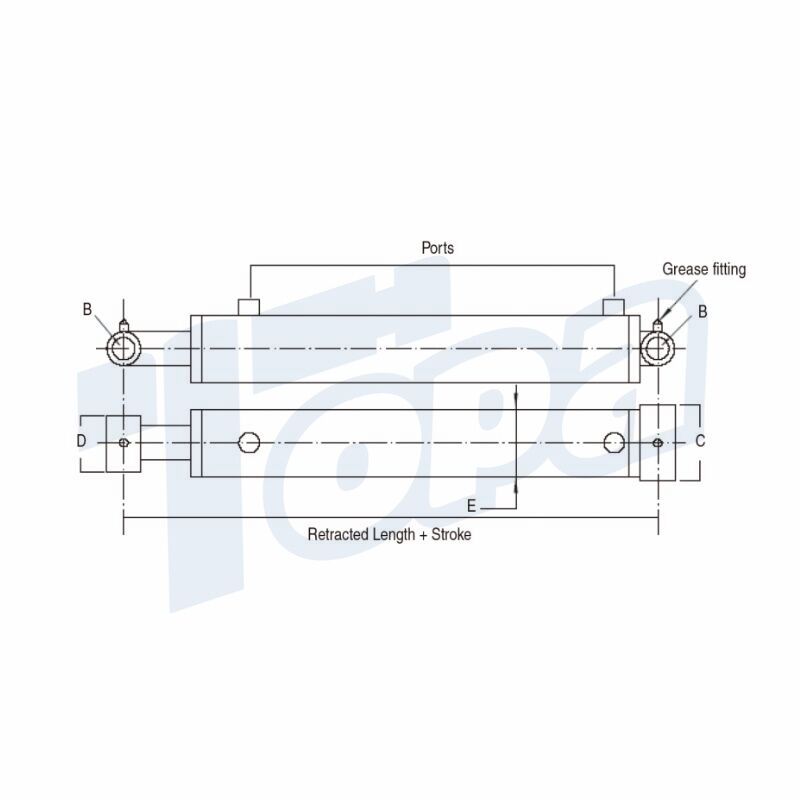

PART NUMBERBORESTROKE (INCH)ROD DIA (INCH)PIN CENTERS RETRACTED (INCH)PIN CENTERS EXTENDED (INCH)
MWL-15041.541″1216
MWL-15061.561″1420
MWL-15081.581″1624
MWL-15101.5101″1828
MWL-2008281-1/4″1624
MWL-20102101-1/4″1828
MWL-20122121-1/4″2032
MWL-20142141-1/4″2236
MWL-20162161-1/4″2440
MWL-20182181-1/4″2644
MWL-20202201-1/4″2848
MWL-20242241-1/4″3256
MWL-20282281-1/4″3664
MWL-20302301-1/4″3868
MWL-20322321-1/4″4072
MWL-20362361-1/4″4480
MWL-20402401-1/4″4888
MWL-20482481-1/4″56104
MWL-25082.581-1/2″1624
MWL-25102.5101-1/2″1828
MWL-25122.5121-1/2″2032
MWL-25142.5141-1/2″2236
MWL-25162.5161-1/2″2440
MWL-25182.5181-1/2″2644
MWL-25202.5201-1/2″2848
MWL-25242.5241-1/2″3256
MWL-25282.5281-1/2″3664
MWL-25302.5301-1/2″3868
MWL-25322.5321-1/2″4072
MWL-25362.5361-1/2″4480
MWL-25402.5401-1/2″4888
MWL-25482.5481-1/2″56104
MWL-3008381-1/2″1624
MWL-30103101-1/2″1828
MWL-30123121-1/2″2032
MWL-30143141-1/2″2236
MWL-30163161-1/2″2440
MWL-30183181-1/2″2644
MWL-30203201-1/2″2848
MWL-30243241-1/2″3256
MWL-30283281-1/2″3664
MWL-30303301-1/2″3868
MWL-30323321-1/2″4072

Tailoring the cylinder to your needs is easy. Topa offers customization options, allowing you to specify the details such as mounting style and other requirements to suit your equipment perfectly.

MWL - Hydraulic Mechicaical Welded Cylinders

The MWL Welded Rod Hydraulic Cylinder features a sturdy and robust exterior. Its welded construction ensures durability and long-lasting performance even in demanding environments.

Constructed using high-quality materials, this cylinder is built to withstand wear, corrosion, and harsh conditions. The choice of materials ensures reliability and longevity.

The cylinder boasts a clean and polished finish. While standard colors may vary, customization options often include a choice of color to match your equipment or preference.

In summary, Topa Mechanical Welded Hydraulic Cylinder is characterized by its robust exterior, high-quality materials, versatility in size and application, suitability for challenging environments, customization options, and precise engineering.

Advantages of Hydraulic Cylinders From Topa

  • Global Expertise: With clients worldwide, we have a deep understanding of international hydraulic needs and standards.

  • Quality Assurance: Our commitment to quality ensures that you receive dependable products every time.

  • Responsive Support: Our team is always ready to assist you with inquiries, support, and guidance.

  • Competitive Prices: We offer competitive pricing to meet your budgetary requirements.

  • Tailored Solutions: Customization options and a wide product range cater to your specific needs.

  • Reliable Delivery: We ensure prompt and reliable delivery to keep your projects on schedule.
