Small Hydraulic Lift Cylinders

Cylinder Barrel: The main body of the cylinder that houses the piston and other internal components.

Piston: The piston is housed in the cylinder barrel and moves up and down as hydraulic fluid is pumped in and out, facilitating the lifting action.

Piston Rod: Extends from the piston through the top of the cylinder, converting piston movement directly into lifting force.

Seals: Used to maintain internal pressure and prevent fluid leakage, they are installed around the piston and at the rod inlet.

End Caps: Located at each end of the drum, these end caps contain the hydraulic fluid inlets and outlets and provide structural integrity.

Mounting Brackets: Used to secure the cylinder to the scissor lift frame, ensuring stability and alignment during operation.

Hydraulic Ports: Allow hydraulic fluid in and out of the cylinder, which is critical to cylinder operation.

Bushings: Located at the pivot point to minimize friction and wear during cylinder movement.


Scissor Lift Small Hydraulic Lift Cylinders are retractable for easy vertical movement of the scissor lift platform. This mechanism allows for smooth lifting and lowering of loads, making it ideal for applications such as warehouse operations, construction sites, and maintenance tasks.

These cylinders operate within a specific pressure range calibrated to support the operating weight of the scissor lift. This range ensures efficient power transfer without overburdening the system. The materials used in these cylinders, such as the high-grade steel used for the barrels and piston rods, are selected for their strength and durability.


Durability: Constructed with high-grade steel, these cylinders are built to last, even under rigorous use.

Precision Control: They offer precise control of lifting movements, crucial for the safe and effective operation of scissor lifts.

Compact Design: Their small size is ideal for the limited space in scissor lifts, without compromising on power.

High Efficiency: These cylinders operate efficiently, ensuring optimal performance with minimal energy consumption.


Warehouse Operations: Used in scissor lifts for stacking, loading, and unloading goods.

Construction Sites: Aid in lifting materials and equipment to different heights on construction projects.

Maintenance Work: Ideal for lifts used in maintenance tasks, such as in facilities management and utility services.

Automotive Repair: Often used in automotive workshops for lifting vehicles for repair and inspection.

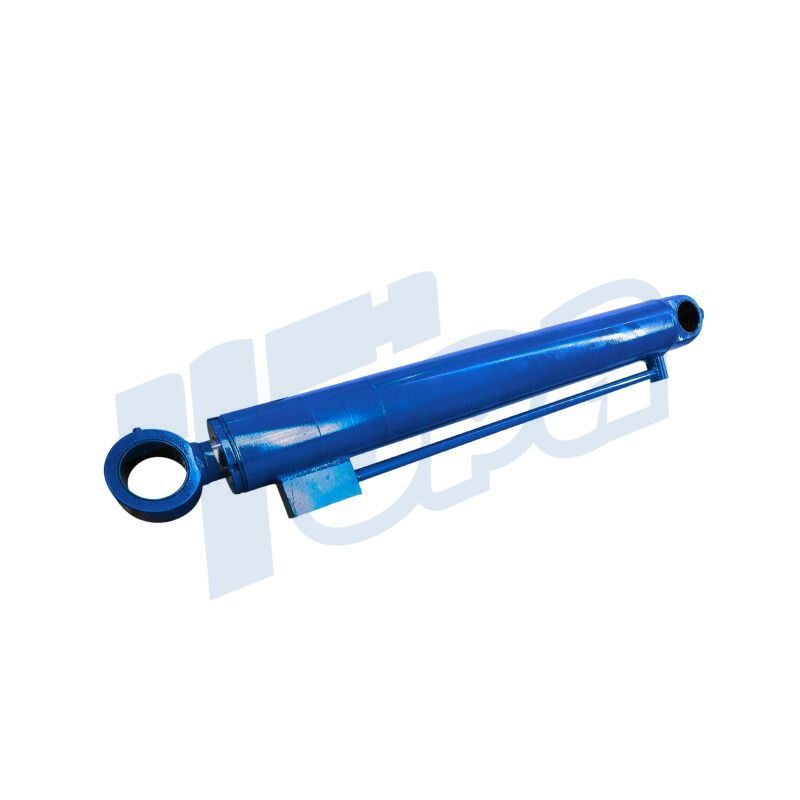

Small Hydraulic Lift Cylinders for Scissor Lift

At Topa, we manufacture cylinder barrels and piston rods from high-grade steel to ensure strength and durability. This is followed by precision machining to create components to exacting dimensions to ensure a perfect fit and smooth operation. During assembly, seals and end caps receive special attention to ensure they have a safe and leak-proof construction.

Quality inspection is an important part of our production process. After assembly, each cylinder goes through a rigorous testing phase. We perform pressure tests to ensure that the cylinders will operate efficiently within the specified pressure range. We also perform leakage tests to ensure that the seals maintain their integrity under pressure. In addition, we conduct operational tests that simulate real-world conditions to ensure that each cylinder provides consistent and reliable performance.

If you are looking for hydraulic lift cylinders that have been professionally manufactured and rigorously tested, Topa is your best choice.

Topa's Customized Services

At Topa, we start by understanding your specific needs, such as lift capacity, operating environment and size limitations. Our engineering team then designs cylinders based on these requirements, focusing on ideal dimensions, stroke length and pressure capacity. During the manufacturing process, we utilize precision technology to ensure that each component meets exact specifications for optimal performance.

Topa Scissor Lift Advantages:

Tailored Performance: Customization ensures that the cylinders are optimized for your specific scissor lift, increasing its efficiency and functionality.

Durablity: These cylinders are made from premium materials for durability and reliable operation in a variety of conditions.

Compact and efficient design: The customized cylinders are designed to be compact yet powerful, making them ideal for the limited space of a fork lift.

Precision and safety: Our focus on precision manufacturing results in safer and more controlled lifting operations.

Reduced Maintenance Requirements: Customized for your specific application, these cylinders typically require less maintenance, saving time and money.

Whether it’s a construction project or a repair job, our customized cylinders are designed to meet your specific needs. Contact us at Topa to discuss a professional hydraulic solution.
