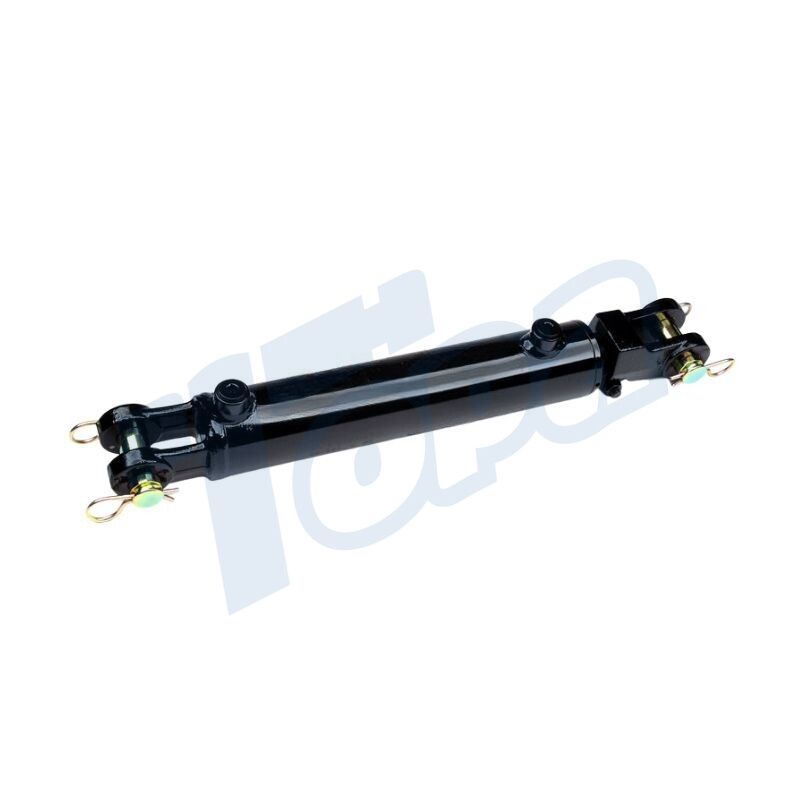

Hydraulic Lift Cylinders

Cylinder Barrel: This is the main body of the cylinder and is designed to withstand high pressures and harsh operating conditions.

Piston: Located inside the cylinder barrel, the piston moves back and forth to create the lifting and digging action.

Piston Rod: This is a moving part that extends from the piston to one end of the cylinder.

Seals: High-quality seals are essential to prevent fluid leaks and maintain the hydraulic pressure needed for smooth operation.

Rod Sections: These are located at the head of the cylinder and hold the piston rod in place as it moves in and out.

End caps: They are attached to the ends of the cylinder and help contain the hydraulic fluid. They also serve as mounting points for the cylinder.

Ports: Hydraulic fluid enters and exits through these ports, which are controlled by valves to regulate the movement of the piston.

Bushings: These are usually used at the pivot point to minimize friction and wear, thereby extending the life of the cylinder.


Hydraulic lift cylinders for arms and buckets are important components of heavy machinery. They provide the necessary force to move the arm, boom and bucket components of these machines. These cylinders convert hydraulic pressure into mechanical force for precise control and powerful movement, which is essential for improving the efficiency and effectiveness of construction and mining operations.

Moving arm bucket hydraulic cylinders are designed to operate under high-pressure conditions, typically ranging from hundreds to thousands of PSI To withstand these conditions, cylinders are made from robust materials, such as hardened steel for the barrel and piston rod, to ensure durability, resistance to abrasion, and resistance to pressure. High-quality seals are used to maintain hydraulic pressure and prevent fluid leakage, which is critical to maintaining performance and safety.


High Strength: Constructed with tough materials to withstand rigorous use in heavy machinery operations.

Precision Control: Allows for precise movement of machinery arms and buckets, essential for detailed work.

High Load Capacity: Designed to handle heavy loads, making them suitable for various lifting and digging tasks.

Efficient Operation: Converts hydraulic power to mechanical force efficiently, ensuring smooth operation of machinery.


Excavators: Used for controlling the arm and bucket movements, essential for digging and earth moving.

Backhoe Loaders: Integral in the lifting and moving of materials in construction and landscaping.

Front-End Loaders: Play a key role in lifting and dumping materials in construction and agricultural settings.

Cranes: Used in the boom mechanisms for lifting heavy loads in construction sites and ports.

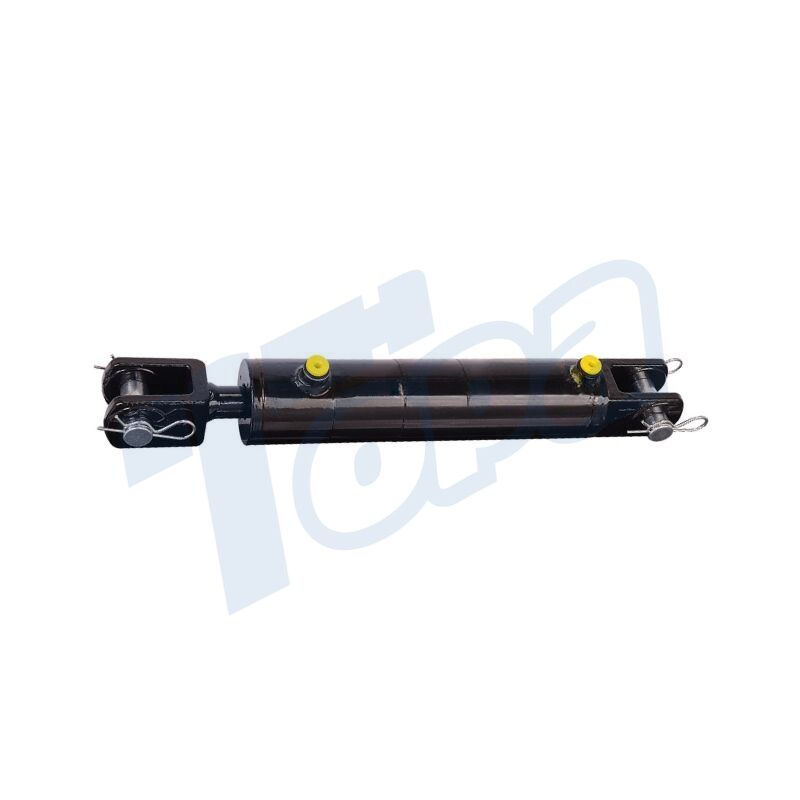

Arm Boom Bucket Hydraulic Lift Cylinders

The manufacturing process for boom  bucket hydraulic lift cylinder is meticulous and precise. It begins with the selection of high-grade materials such as hardened steel. Then, every component, from the cylinder barrel to the piston rod, is machined to exact specifications. During the assembly process, careful inspections are made to ensure that each component is properly installed to ensure the overall integrity and functionality of the cylinder.

Quality control is critical in the production of these hydraulic lift cylinders. Each cylinder undergoes rigorous testing to ensure that it meets exacting standards. This includes pressure testing to verify that the cylinders can withstand and operate under the high pressures required by heavy machinery. Leak tests are also performed to ensure the integrity of seals and joints. In addition, operational tests are conducted to simulate real-world conditions to ensure that each cylinder performs its intended function reliably and efficiently.

Topa's Customized Services

polish Hydraulic Cylinder Topa

Customization Process of Arm Boom Bucket Hydraulic Lift Cylinder:

Client Consultation: The process begins with a detailed discussion with the client to understand specific needs, including the type of machinery, operational requirements, and environmental conditions.

Design and Engineering: Based on the client’s specifications, our engineering team designs the cylinder. This includes customizing the size, stroke length, bore diameter, and pressure capacity to suit the specific application.

Material Selection: We choose materials that are best suited for the client’s needs, focusing on durability and performance. High-grade steel is commonly used for its strength and resistance to wear and stress.

Precision Manufacturing: The components of the cylinder are then precisely machined to the specified dimensions. This step is crucial to ensure a perfect fit and smooth operation within the machinery.

Assembly and Testing: After machining, the cylinder is assembled. It then undergoes rigorous testing, including pressure tests and operational simulations, to ensure it meets the required standards and performs reliably in its intended application.

If you need a hydraulic cylinder tailored to your specific requirements, reach out to us. We’re here to provide you with high-quality, customized hydraulic solutions.
