Loader Hydraulic Cylinders

CE Industrial Crawler Loader Hydraulic Cylinders

Cylinder Barrel: The barrel is the main body of the hydraulic cylinder and is typically made from high-strength steel tubes.

Cylinder Base or Cap: The base or cap closes one end of the cylinder barrel and can be welded or screwed on, depending on the design.

Cylinder Head: The head is mounted on the other end of the barrel and includes a dynamic seal through which the piston rod travels.

Piston: Inside the barrel, the piston separates the two sides of the cylinder and moves back and forth under hydraulic pressure.

Wiper Seal: Located at the external end of the cylinder, the wiper seal cleans the rod as it retracts, preventing contaminants from entering the cylinder.

Ports and Fittings: Hydraulic fluid enters and exits the cylinder through ports, which are connected to the hydraulic system via fittings.

Mounting Features: Depending on the application, the cylinder may have various mounting options.

Cushions: Some cylinders may include cushions at the ends of the stroke to absorb impact and reduce noise and wear.


The primary role of a CE industrial crawler loader hydraulic cylinder is to convert hydraulic energy into mechanical force, enabling precise control over the loader’s movements. This includes lifting, tilting, and maneuvering the bucket or other attachments for various operations such as excavation, material handling, and earthmoving.

Industrial crawler hydraulic loader cylinders exhibit a robust and functional design, characterized by a sturdy cylindrical shape with a gleaming finish on the piston rod, often complemented by a painted or coated barrel for corrosion resistance.


Enhanced Durability:
Made with high-quality materials and coatings, these cylinders are built to last, resisting wear and corrosion even in harsh working conditions.

High Efficiency:
Precision engineering allows for optimal hydraulic energy conversion, leading to better fuel economy and operational efficiency of the crawler loaders.

Superior Sealing Technology:
Advanced sealing systems prevent leaks and contamination, reducing maintenance needs and prolonging the cylinder’s life.

Impact Resistance:
Design features like cushioning at the stroke ends absorb shocks, minimizing the impact on the cylinder and the loader during rigorous tasks.


In construction, these cylinders are used for tasks like grading, trenching, and material handling, providing the necessary power for crawler loaders to move earth and debris.

Hydraulic cylinders in mining crawler loaders are essential for heavy lifting and material transport in the excavation and processing of minerals.

Crawler loaders equipped with these cylinders are used in forestry for land clearing, stacking logs, and other heavy lifting operations.

In agriculture, they are used for land preparation, such as plowing and leveling fields, making them versatile tools for modern farming.

These cylinders provide the controlled and powerful movements required for demolition tasks, helping to dismantle structures safely and efficiently.

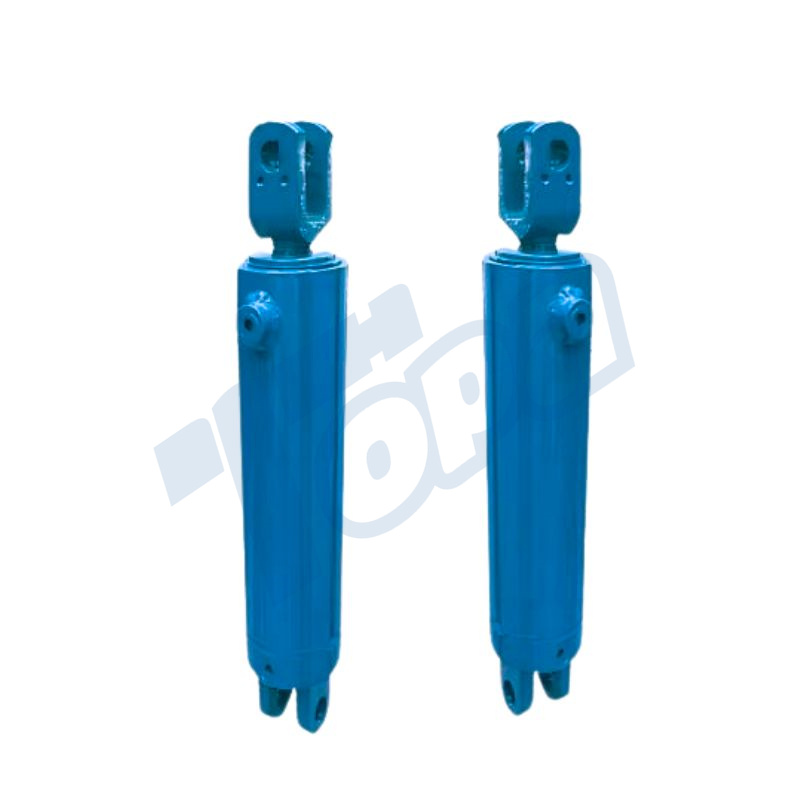

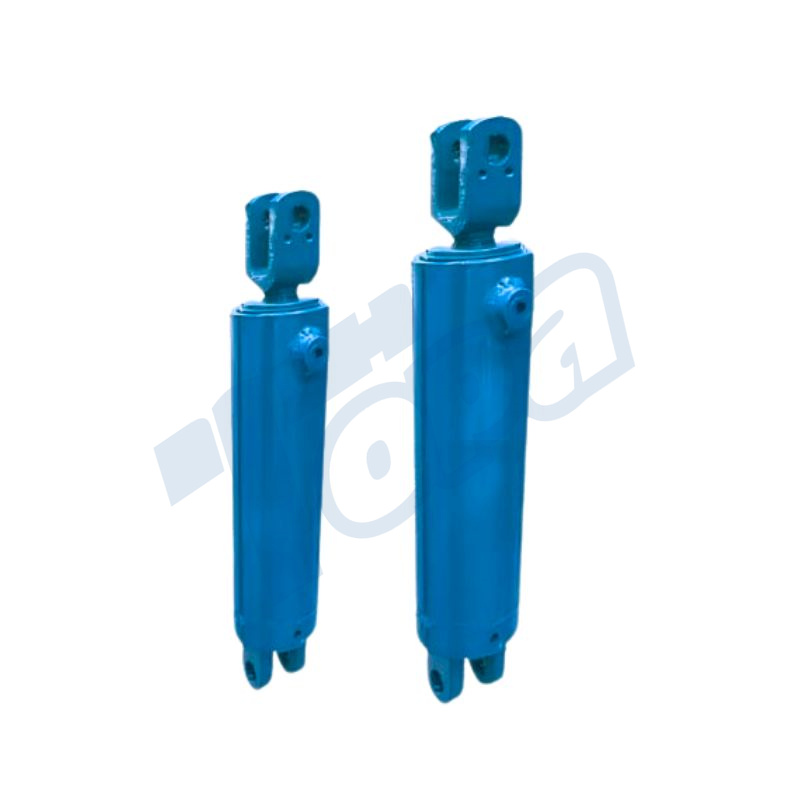

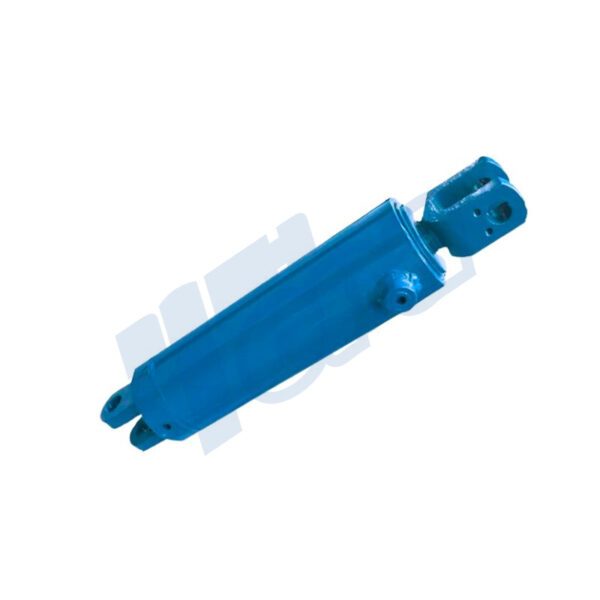

CE Industrial Crawler Loader Hydraulic Cylinder

Topa Hydraulics’ CE industrial track loader cylinders undergo a rigorous quality assurance process. This process includes careful material selection, precision machining and assembly in a controlled environment. Each cylinder undergoes comprehensive testing, including pressure testing, leakage testing and performance evaluation to verify durability, reliability and safety.

Topa’s CE certified hydraulic cylinders for industrial track loaders offer multiple advantages. Their rugged design emphasizes strength and longevity, reducing the need for frequent maintenance. Their precision construction allows for seamless integration with a wide range of loader models, ensuring efficient operation. In addition, Topa’s cylinders are known for their superior sealing technology, which minimizes the risk of fluid leakage and contamination, thereby safeguarding the integrity of the hydraulic system and the stable performance of the loader.

Topa's Customized Services

Topa offers a highly flexible customization service for hydraulic cylinders for CE Industrial track loaders. Our engineering team works closely with our customers to understand your operational requirements, including load capacity, environmental conditions and space constraints. We then design and manufacture cylinders with the appropriate bores, rod diameters, stroke lengths and mounting options.

The main advantage of Topa Customized Hydraulic Cylinders is the ability to perfectly match a customer’s specific needs, resulting in increased machine efficiency and productivity. Our cylinders are not only rugged and durable, but also utilize advanced sealing technology to withstand the rigors of industrial applications. Topa’s customized solutions not only allow customers to benefit from the suitability of hydraulic cylinders, but also help to extend their service life and improve the cost-effectiveness of their operations.

If you have any needs of loader hydraulic cylinders, contact Topa and we will help you!

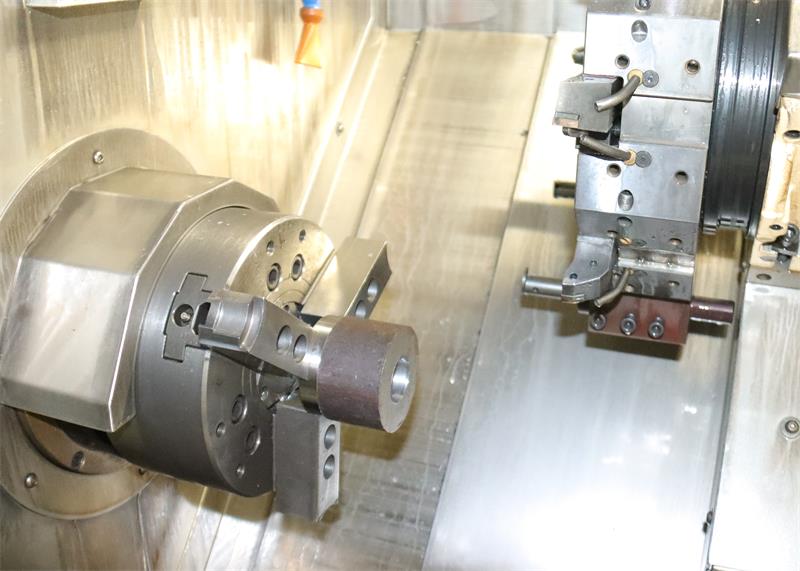

Topa hydraulic cylinder CNC process factory
