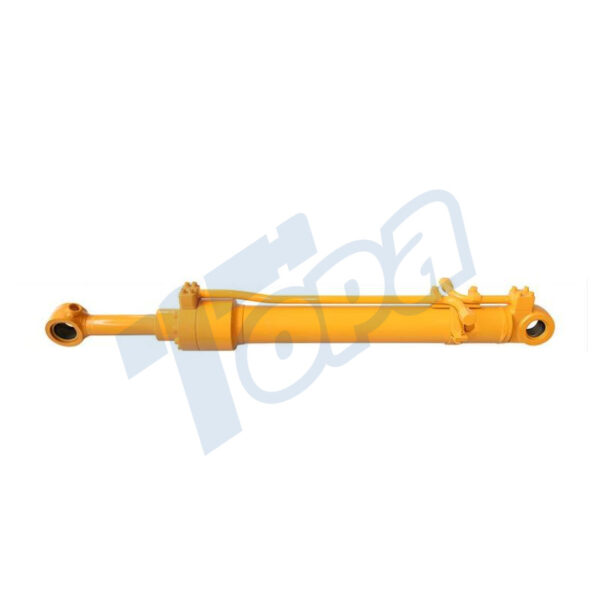

Hydraulic Loader Cylinders

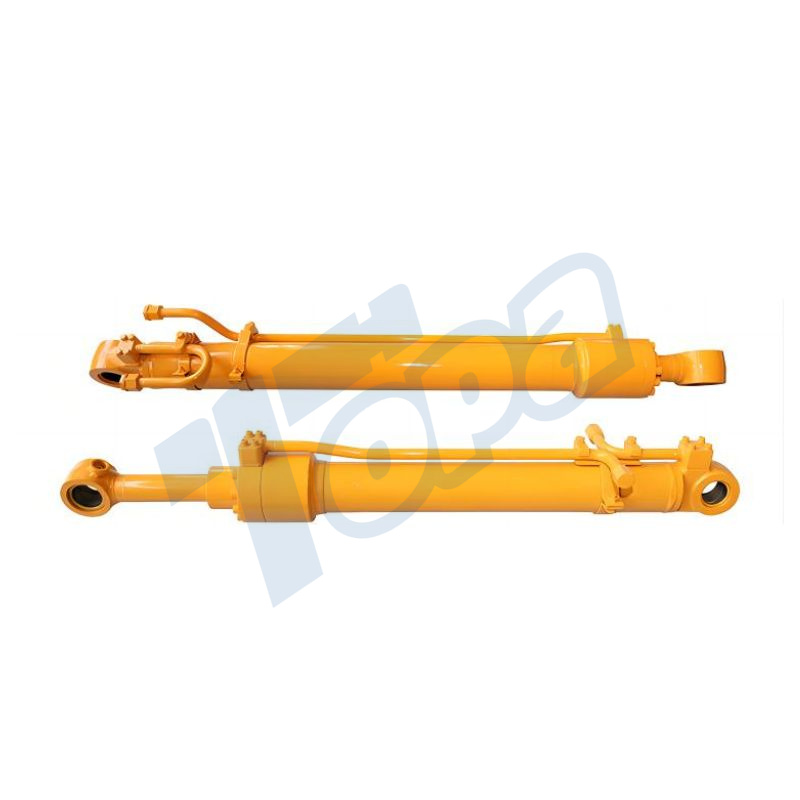

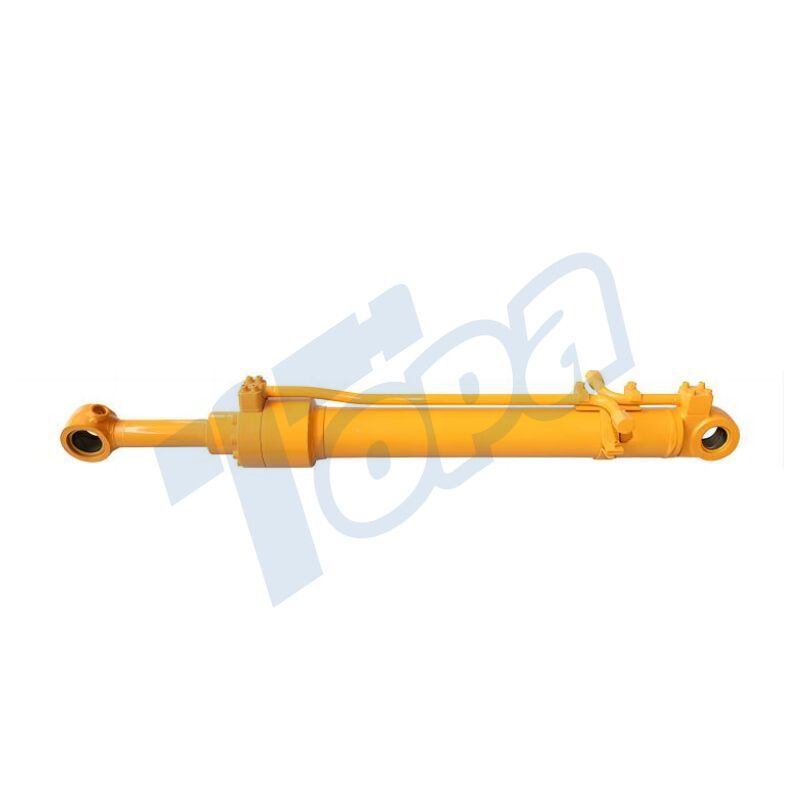

Wheel Bucket Boom Arm Hydraulic Loader Cylinders

Cylinder Cylinder:
The body of a hydraulic cylinder is used to hold hydraulic fluid.

Located inside the cylinder barrel to produce a lifting action.

Piston rod:
Attached to the piston and extending outside the barrel, transmits force to the boom or bucket.

Piston Rod Seal:
Prevents hydraulic fluid leakage as the piston rod moves in and out of the cylinder barrel.

Wiper Seal:
Located at the outer end of the cylinder to clean the piston rod as it retracts and prevent contaminants from entering the system.

Cylinder Head:
The part of the cylinder where the piston rod leaves the cylinder barrel.

Bushings or Bearings:
These devices reduce friction when the piston rod and bracket pivot and move.

An optional part at the end of the stroke that absorbs shock and reduces noise.


Bucket Moving Arm Hydraulic Loader Cylinders are designed to be strong, efficient, and accommodate the power of hydraulic fluids. These cylinders are an integral part of the loader arm and bucket mechanism. They provide the controlled force needed to lift, tilt and dump material with the moving arm and bucket. The outer surfaces of the cylinders are usually coated with industrial grade paints or coatings to prevent corrosion and wear.

The cylinder barrel and piston of these cylinders are made of high-strength steel. The piston rods are usually chrome-plated to withstand the intense pressure and environmental challenges of loader operations. The dimensions of the cylinders, including cylinder bore, piston rod diameter and overall length, are precisely calculated. Stroke lengths are specifically designed to provide the necessary range of motion for the bucket or boom for optimum reach and movement.


Power and Precision:
These cylinders deliver the necessary power to lift heavy loads while allowing for precise control of the loader’s arm and bucket.

Designed for tough conditions, they are made with materials and seals that withstand extreme environments and repetitive use.

The efficient conversion of hydraulic power to mechanical force results in faster cycle times and increased productivity.

Ease of Maintenance:
Commonly designed for easy access to seals and wear parts, these cylinders can be serviced quickly to minimize downtime.


Material Handling:
These cylinders are crucial in the operation of wheel loaders used for moving and loading materials like soil, sand, and gravel in construction, landscaping, and mining.

They enable the precise movement required for digging, grading, and leveling ground in construction and road building.

In agriculture, they are used in loaders for tasks such as moving hay bales, cleaning stalls, and loading agricultural products.

Snow Removal:
They are also fitted onto loaders for snow plowing and removal in municipal and residential areas during winter seasons.

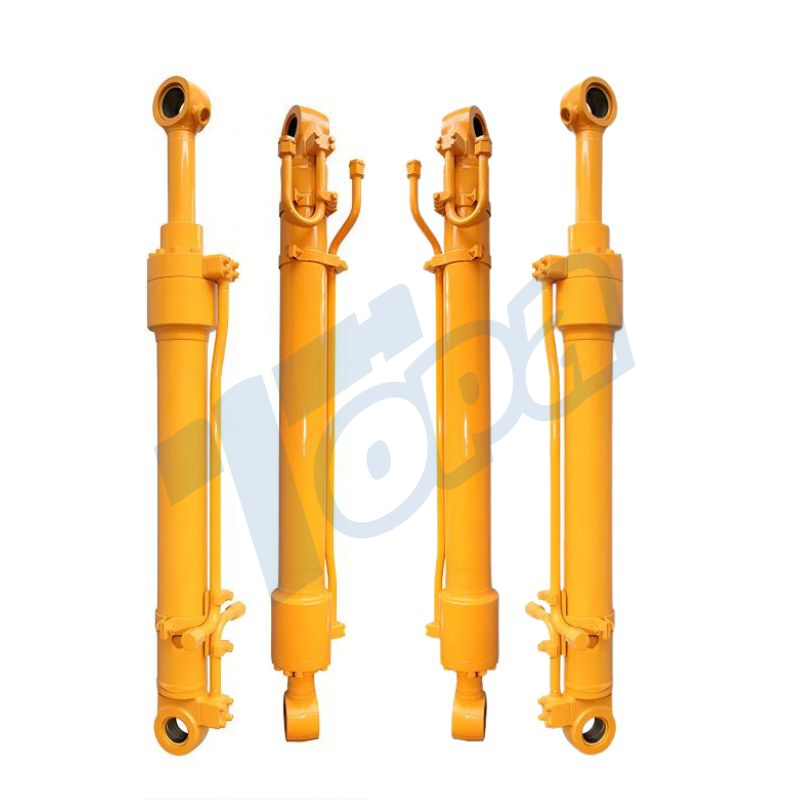

Wheel Bucket Boom Arm Hydraulic Loader Cylinders

Topa starts with the selection of quality steel and each cylinder is carefully crafted to ensure structural integrity and the ability to withstand high pressure conditions. Components such as the cylinder, piston and piston rod are precision machined before being assembled in a clean environment to prevent contamination. Before leaving the factory, each cylinder is tested under simulated operating conditions to ensure trouble-free operation.

Topa’s wheel-bucket arm hydraulic loader cylinders are designed to provide the perfect combination of strength and flexibility, giving the loader both power and precision. The use of advanced sealing technology minimizes the risk of leakage and extends maintenance intervals, ensuring that the loader stays up and running for a long time.

If you have any needs of hydraulic cylinders, contact Topa now!

Topa's Customized Services

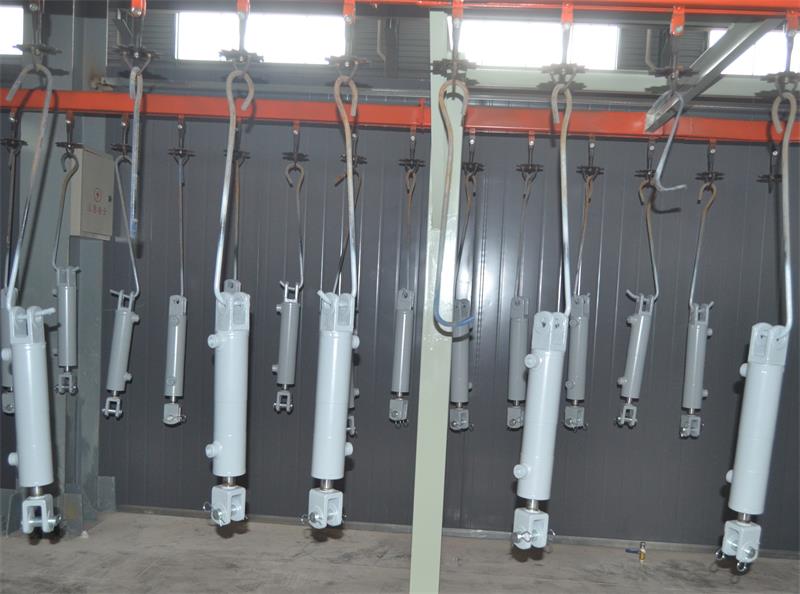

Topa hydraulic cylinder Products Topa

Topa’s process for customizing hydraulic loader cylinders for bucket arms is centered on the specific needs of the customer. It begins with a detailed consultation to understand the unique requirements of the loader’s operating environment. Based on this, Topa engineers design a cylinder that precisely matches the loader’s specifications. Taking into account factors such as load capacity, arm geometry and environmental challenges, Topa builds cylinders that are not only perfectly matched, but also optimized for optimal performance.

The advantages of choosing Topa’s custom hydraulic loader cylinders are many.Topa’s cylinders are synonymous with durability and reliability, with features such as superior sealing designs that are built to withstand heavy-duty use. In order to produce quality cylinders, we focus on every detail of customization to ensure that the cylinders can satisfy all customers.

Topa is more than willing to serve our customers and produce the products you need. So if you have any concerns or needs, please contact us!
