Hydraulic Tilt Cylinder

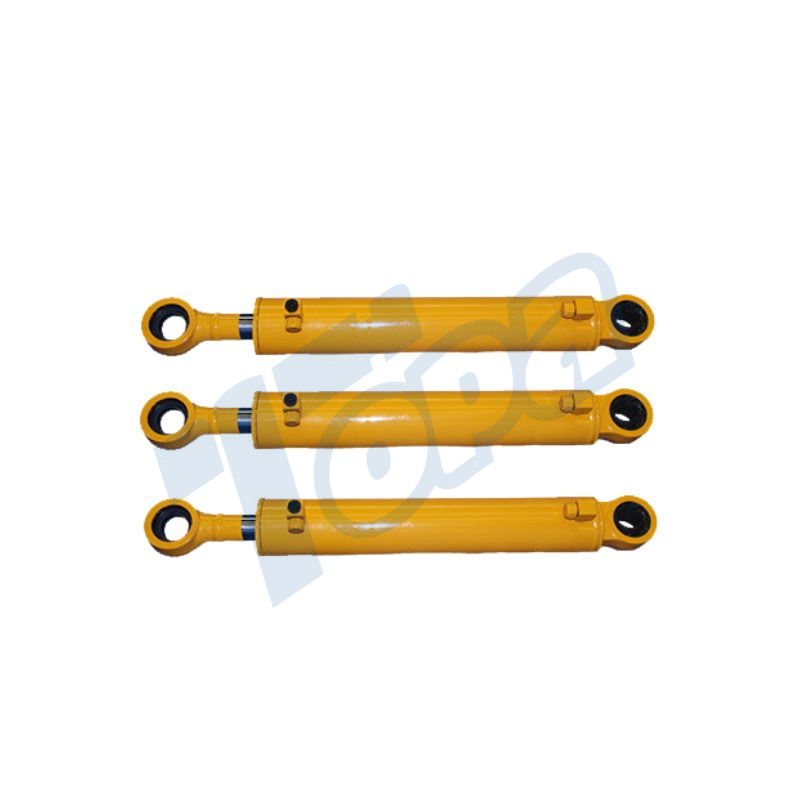

Wheel Loader Hydraulic Tilt Cylinder

Cylinder Barrel: The main body of the cylinder that contains the hydraulic fluid and withstands the internal pressure.

Piston: Fits snugly within the barrel and moves back and forth to convert hydraulic pressure into mechanical force.

Piston Rod: Connects the piston to the loader bucket, transmitting the force necessary for the tilting action.

Rod Seal: Ensures that hydraulic fluid does not escape from the cylinder barrel along the piston rod.

Head Gland: The component at the rod end of the cylinder contains the rod seal and often includes a wiper to clean the rod.

Ports and Fittings: Allow for the flow of hydraulic fluid into and out of the cylinder barrel to control the piston’s movement.

Cushions: Optional components that can be included at the end of the stroke to absorb shock and reduce noise.

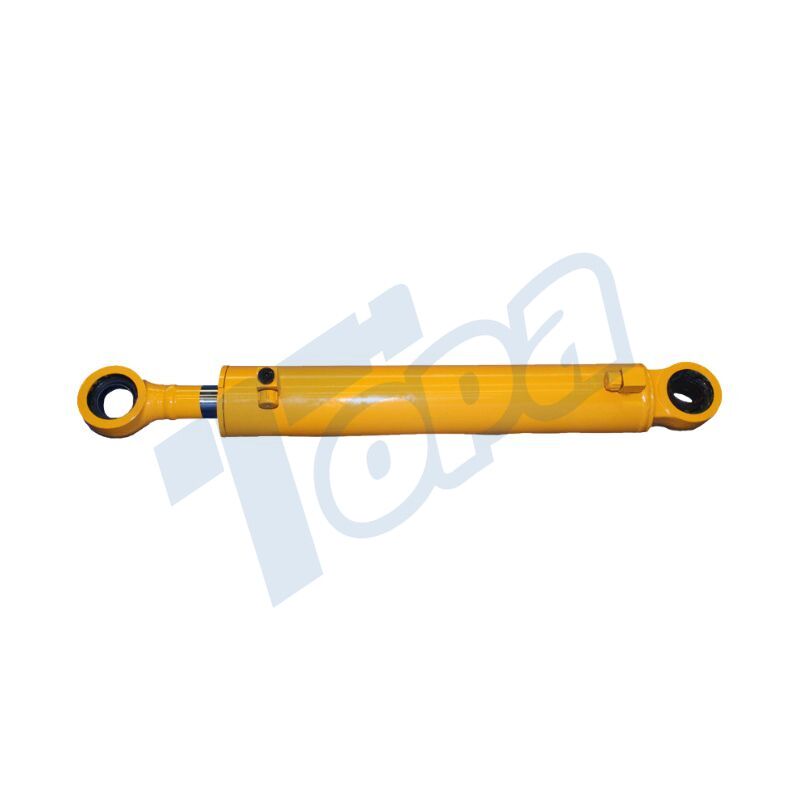

A wheel loader hydraulic tilt cylinder is a rugged and durable component. Typically it is a double-acting cylinder attached to the loader bucket mechanism. It has a smooth, heavy-duty steel cylinder with a polished, chrome-plated rod protruding from one end, designed to withstand the abrasive conditions of construction and mining sites. The purpose of this cylinder is to precisely control the angle of the loader’s bucket so that it can be tilted to efficiently scoop and dump material.

Cylinder dimensions, including bore size and rod diameter, are proportional to the size of the loader and the weight of the material being handled, ensuring effective power transmission and control. Stroke lengths are carefully calibrated to provide the necessary range of motion for the bucket’s tilting action, resulting in smooth, efficient operation in a variety of tasks.


Enhanced Productivity:
These cylinders enable quick and precise bucket positioning, which translates to faster cycle times and more material moved per hour.

Improved Operator Control:
The hydraulic tilt cylinder allows for fine adjustments to the bucket’s angle, giving operators greater control over material handling and placement.

Robust Construction:
Made with high-quality steel and designed to withstand high pressure, these cylinders are built for durability and can endure the rigors of heavy-duty use.

Low Maintenance:
The design often includes features that minimize wear and tear, such as chrome-plated rods and high-quality seals, reducing the frequency of maintenance.


Construction Sites:
Used in wheel loaders for tasks such as site preparation, material distribution, and loading of debris.

Mining Operations:
Essential for the precise movement of ore and overburden in various phases of mining activities.

Agricultural Activities:
Facilitates the handling of bulk materials like feed, manure, and harvest products in farming operations.

Landscaping Projects:
Assists in the sculpting of landforms, moving of earth, and preparation of beds for planting.

Wheel Loader Hydraulic Tilt Cylinder

Topa’s quality inspection process for hydraulic dump cylinders for wheel loaders is rigorous and thorough. Starting with material inspection, we test raw materials for integrity and strength. Components are then meticulously inspected during assembly to ensure precise fit and clearance. After assembly, the cylinders undergo a series of function tests.

The advantage of Topa’s rigorous quality checks is peace of mind for our customers. The fact that our hydraulic tipping cylinders for wheel loaders undergo such a comprehensive quality assurance process reduces maintenance costs over the life of the equipment. In addition, the reliability of Topa cylinders helps maintain a high level of safety and efficiency on the jobsite.

Contact Topa today, we can help you to solve your problem and give you best quality cylinders!

Topa's Customized Services

Topa hydraulic cylinder factory raw material cutting

Topa can custom hydraulic loader cylinders:

Tailored Performance: Custom cylinders are engineered to meet the specific performance requirements of the loader, ensuring optimal force, speed, and control for the application at hand.

Perfect Fit: A customized tilt cylinder can be designed to fit the exact dimensions and mounting configurations of the loader, eliminating the need for modifications to the equipment.

Material Selection: Depending on the operating environment and the nature of the materials being handled, the cylinder can be constructed with specialized materials to resist wear, corrosion, and other forms of degradation.

Enhanced Durability: Custom cylinders can include design features that enhance durability, such as thicker barrel walls, reinforced mounting brackets, and advanced seal technologies to withstand harsh conditions.

Integrated Technologies: Incorporating the latest in hydraulic technology, custom tilt cylinders can offer improved efficiency, smoother operation, and better energy savings.
