Description:

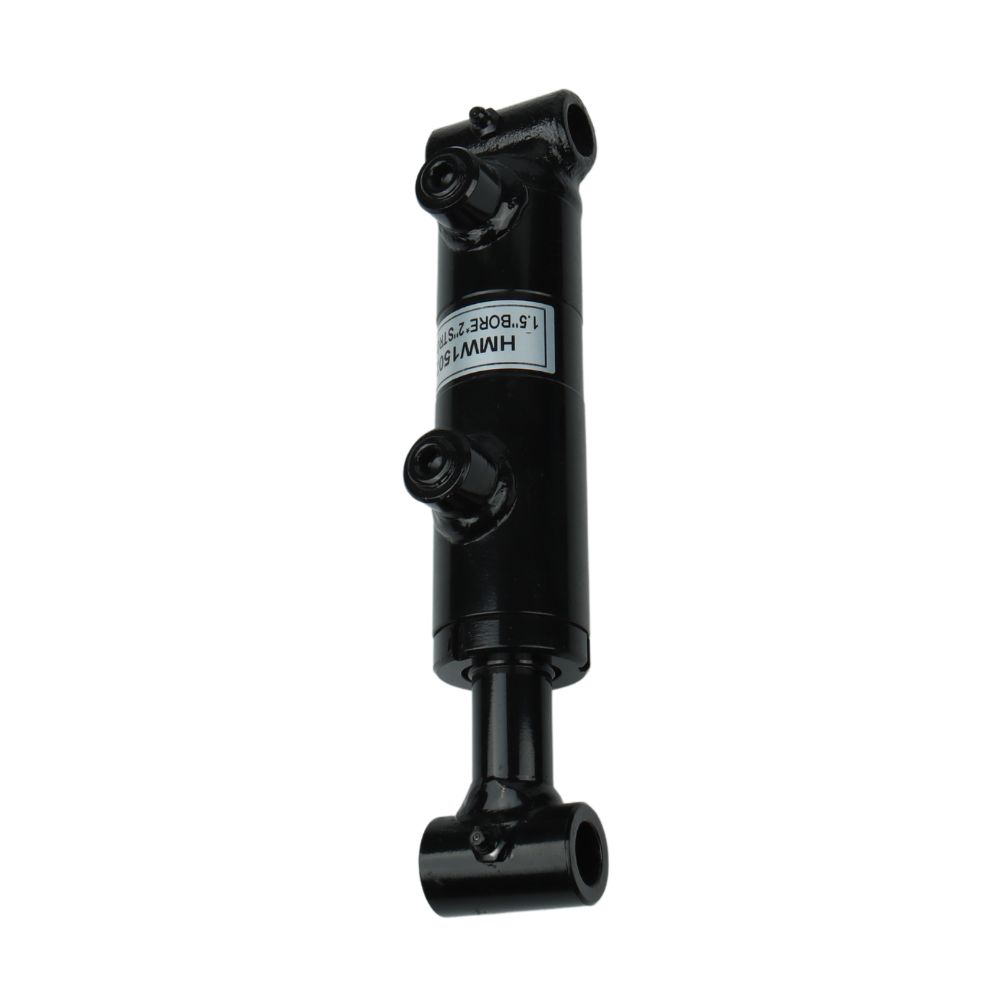

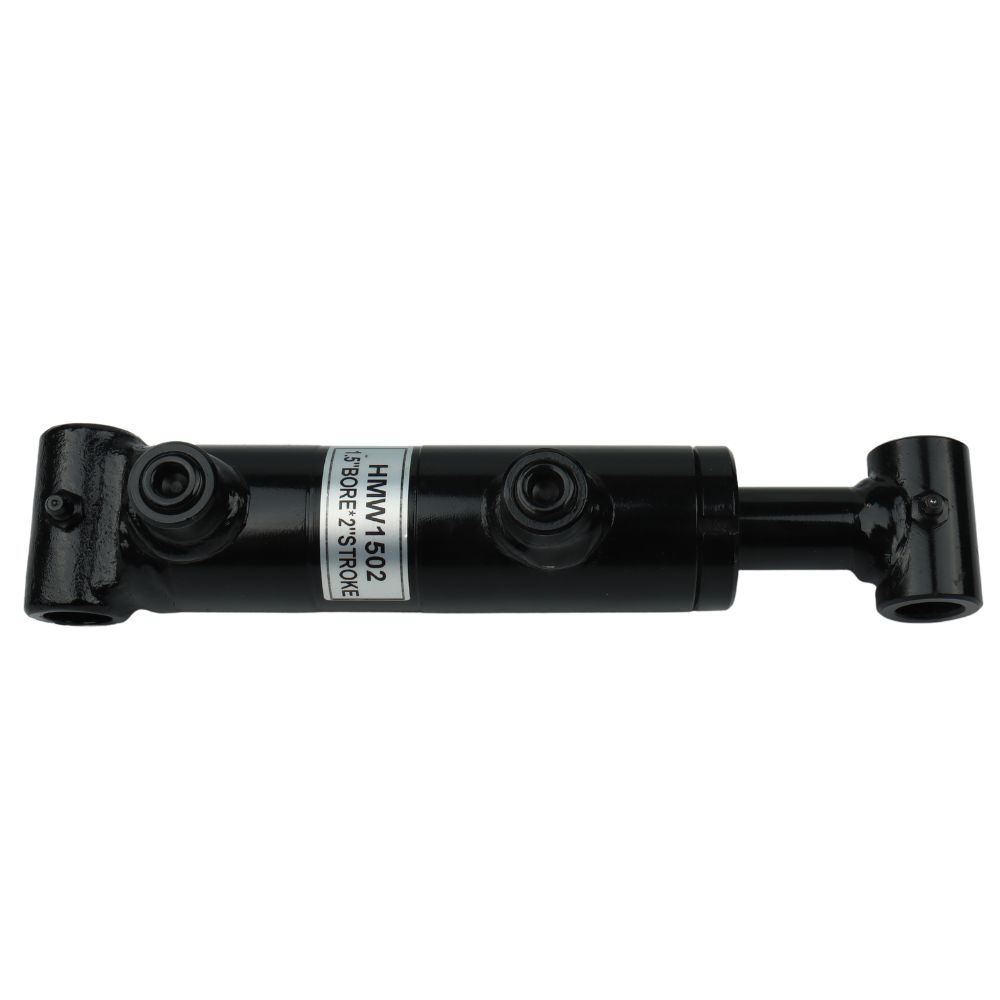

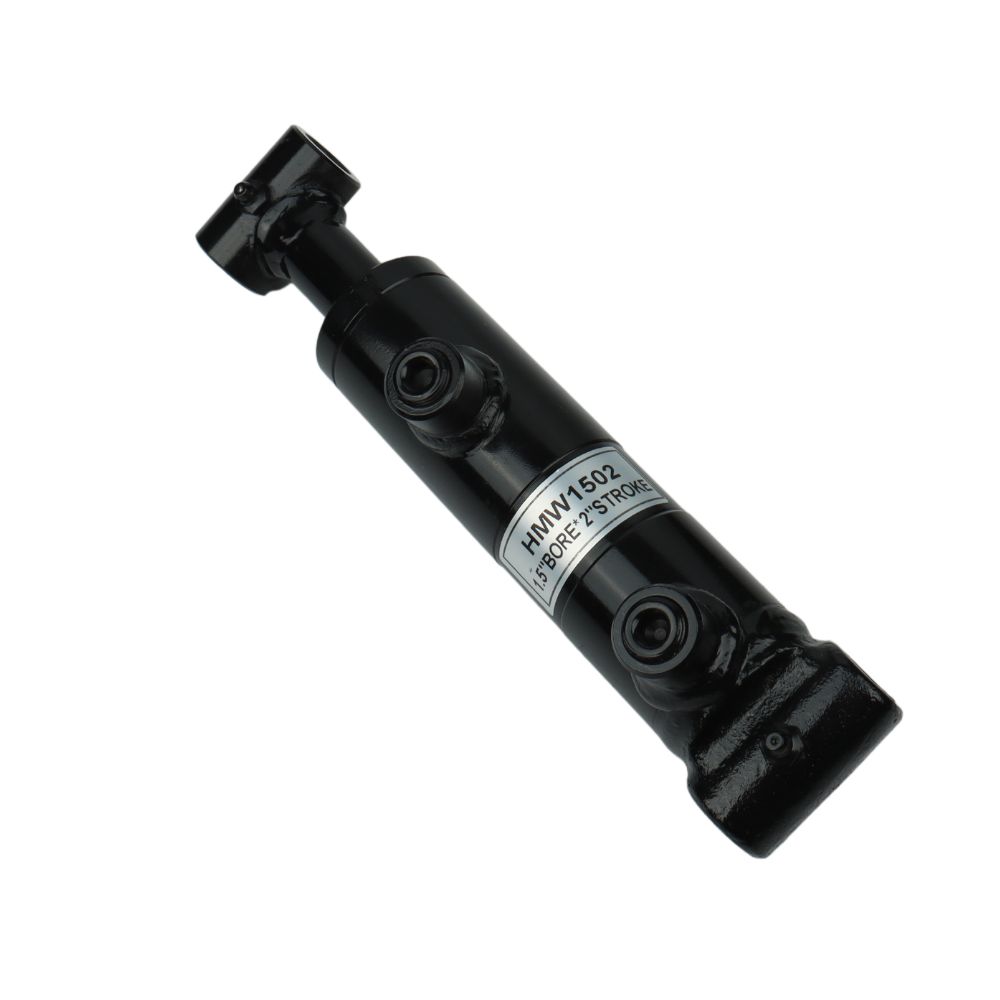

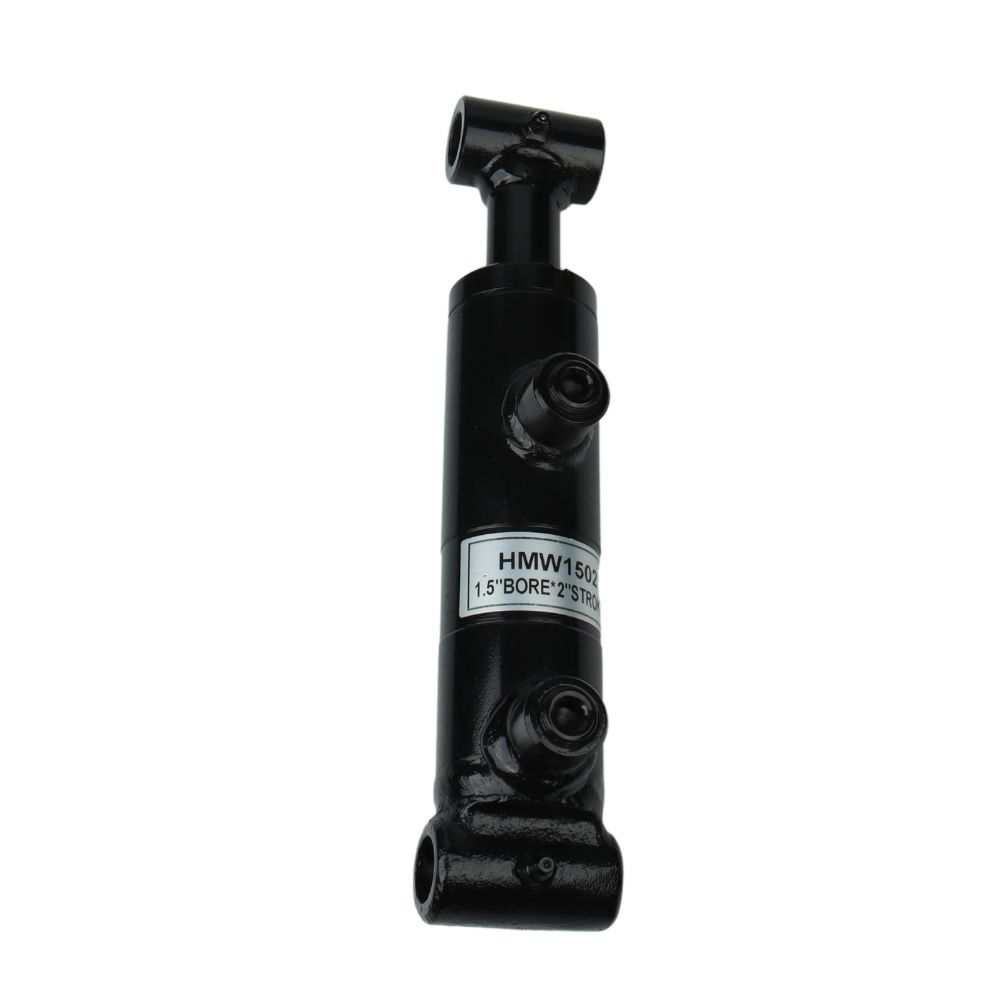

HMW-Mechanical welded hydraulic cylinders operate well at high pressures and lengthy strokes due to tie rod strain.
The market for mobile hydraulic equipment is dominated by welded hydraulic cylinders. Welded design cylinders are used in construction equipment such as excavators, bulldozers, and road graders.
We also can supply the 3000 psi hydraulic cylinder or other products. If you have needs, please contact us.
Features and Benefits:
Categories: Hydraulic cylinder, HMW
PART NUMBER | BORE | STROKE (INCH) | ROD DIA (INCH) | PIN CENTERS RETRACTED (INCH) | PIN CENTERS EXTENDED (INCH) | WEIGHT LBS |
HMW-1504 | 1.50 | 4 | 1″ | 12.00 | 16.00 | 9.04 |
HMW-1506 | 1.50 | 6 | 1″ | 14.00 | 20.00 | 10.14 |
HMW-1508 | 1.50 | 8 | 1″ | 16.00 | 24.00 | 11.47 |
HMW-1510 | 1.50 | 10 | 1″ | 18.00 | 28.00 | 12.79 |
HMW-2008 | 2.00 | 8 | 1-1/4″ | 16.00 | 24.00 | 13.45 |
HMW-2010 | 2.00 | 10 | 1-1/4″ | 18.00 | 28.00 | 15.21 |
HMW-2012 | 2.00 | 12 | 1-1/4″ | 20.00 | 32.00 | 16.98 |
HMW-2014 | 2.00 | 14 | 1-1/4″ | 22.00 | 36.00 | 18.74 |
HMW-2016 | 2.00 | 16 | 1-1/4″ | 24.00 | 40.00 | 20.51 |
HMW-2018 | 2.00 | 18 | 1-1/4″ | 26.00 | 44.00 | 22.27 |
HMW-2020 | 2.00 | 20 | 1-1/4″ | 28.00 | 48.00 | 24.03 |
HMW-2024 | 2.00 | 24 | 1-1/4″ | 32.00 | 56.00 | 27.56 |
HMW-2028 | 2.00 | 28 | 1-1/4″ | 36.00 | 64.00 | 31.09 |
HMW-2030 | 2.00 | 30 | 1-1/4″ | 38.00 | 68.00 | 32.85 |
HMW-2032 | 2.00 | 32 | 1-1/4″ | 40.00 | 72.00 | 34.84 |
HMW-2036 | 2.00 | 36 | 1-1/4″ | 44.00 | 80.00 | 38.37 |
HMW-2040 | 2.00 | 40 | 1-1/4″ | 48.00 | 88.00 | 41.90 |
HMW-2048 | 2.00 | 48 | 1-1/4″ | 56.00 | 104.00 | 48.95 |
HMW-2508 | 2.50 | 8 | 1-1/2″ | 16.00 | 24.00 | 19.85 |
HMW-2510 | 2.50 | 10 | 1-1/2″ | 18.00 | 28.00 | 21.83 |
HMW-2512 | 2.50 | 12 | 1-1/2″ | 20.00 | 32.00 | 24.03 |
HMW-2514 | 2.50 | 14 | 1-1/2″ | 22.00 | 36.00 | 26.24 |
HMW-2516 | 2.50 | 16 | 1-1/2″ | 24.00 | 40.00 | 28.44 |
HMW-2518 | 2.50 | 18 | 1-1/2″ | 26.00 | 44.00 | 30.65 |
HMW-2520 | 2.50 | 20 | 1-1/2″ | 28.00 | 48.00 | 32.85 |
HMW-2524 | 2.50 | 24 | 1-1/2″ | 32.00 | 56.00 | 37.26 |
HMW-2528 | 2.50 | 28 | 1-1/2″ | 36.00 | 64.00 | 41.45 |
HMW-2530 | 2.50 | 30 | 1-1/2″ | 38.00 | 68.00 | 43.66 |
HMW-2532 | 2.50 | 32 | 1-1/2″ | 40.00 | 72.00 | 45.86 |
HMW-2536 | 2.50 | 36 | 1-1/2″ | 44.00 | 80.00 | 50.27 |
HMW-2540 | 2.50 | 40 | 1-1/2″ | 48.00 | 88.00 | 54.68 |
HMW-2548 | 2.50 | 48 | 1-1/2″ | 56.00 | 104.00 | 63.28 |
HMW-3008 | 3.00 | 8 | 1-1/2″ | 16.00 | 24.00 | 24.70 |
HMW-3010 | 3.00 | 10 | 1-1/2″ | 18.00 | 28.00 | 27.12 |
HMW-3012 | 3.00 | 12 | 1-1/2″ | 20.00 | 32.00 | 29.55 |
HMW-3014 | 3.00 | 14 | 1-1/2″ | 22.00 | 36.00 | 31.97 |
HMW-3016 | 3.00 | 16 | 1-1/2″ | 24.00 | 40.00 | 34.40 |
HMW-3018 | 3.00 | 18 | 1-1/2″ | 26.00 | 44.00 | 36.82 |
HMW-3020 | 3.00 | 20 | 1-1/2″ | 28.00 | 48.00 | 39.25 |
HMW-3024 | 3.00 | 24 | 1-1/2″ | 32.00 | 56.00 | 44.10 |
HMW-3028 | 3.00 | 28 | 1-1/2″ | 36.00 | 64.00 | 48.95 |
HMW-3030 | 3.00 | 30 | 1-1/2″ | 38.00 | 68.00 | 51.38 |
HMW-3032 | 3.00 | 32 | 1-1/2″ | 40.00 | 72.00 | 53.58 |
HMW-3036 | 3.00 | 36 | 1-1/2″ | 44.00 | 80.00 | 58.43 |
HMW-3040 | 3.00 | 40 | 1-1/2″ | 48.00 | 88.00 | 63.28 |
HMW-3048 | 3.00 | 48 | 1-1/2″ | 56.00 | 104.00 | 72.99 |
HMW-3508 | 3.50 | 8 | 1-3/4″ | 18.00 | 26.00 | 32.63 |
HMW-3510 | 3.50 | 10 | 1-3/4″ | 20.00 | 30.00 | 35.72 |
HMW-3512 | 3.50 | 12 | 1-3/4″ | 22.00 | 34.00 | 38.81 |
HMW-3514 | 3.50 | 14 | 1-3/4″ | 24.00 | 38.00 | 41.67 |
HMW-3516 | 3.50 | 16 | 1-3/4″ | 26.00 | 42.00 | 44.76 |
HMW-3518 | 3.50 | 18 | 1-3/4″ | 28.00 | 46.00 | 47.63 |
HMW-3520 | 3.50 | 20 | 1-3/4″ | 30.00 | 50.00 | 50.72 |
HMW-3524 | 3.50 | 24 | 1-3/4″ | 34.00 | 58.00 | 56.67 |
HMW-3528 | 3.50 | 28 | 1-3/4″ | 38.00 | 66.00 | 62.62 |
HMW-3530 | 3.50 | 30 | 1-3/4″ | 40.00 | 70.00 | 65.71 |
HMW-3532 | 3.50 | 32 | 1-3/4″ | 42.00 | 74.00 | 68.80 |
HMW-3536 | 3.50 | 36 | 1-3/4″ | 46.00 | 82.00 | 74.75 |
HMW-3540 | 3.50 | 40 | 1-3/4″ | 50.00 | 90.00 | 80.70 |
HMW-3548 | 3.50 | 48 | 1-3/4″ | 58.00 | 106.00 | 92.61 |
HMW-4008 | 4.00 | 8 | 2″ | 18.00 | 26.00 | 40.79 |
HMW-4010 | 4.00 | 10 | 2″ | 20.00 | 30.00 | 44.54 |
HMW-4012 | 4.00 | 12 | 2″ | 22.00 | 34.00 | 48.29 |
HMW-4014 | 4.00 | 14 | 2″ | 24.00 | 38.00 | 51.82 |
HMW-4016 | 4.00 | 16 | 2″ | 26.00 | 42.00 | 55.57 |
HMW-4018 | 4.00 | 18 | 2″ | 28.00 | 46.00 | 59.09 |
HMW-4020 | 4.00 | 20 | 2″ | 30.00 | 50.00 | 62.84 |
HMW-4024 | 4.00 | 24 | 2″ | 34.00 | 58.00 | 70.12 |
HMW-4028 | 4.00 | 28 | 2″ | 38.00 | 66.00 | 77.40 |
HMW-4030 | 4.00 | 30 | 2″ | 40.00 | 70.00 | 81.14 |
HMW-4032 | 4.00 | 32 | 2″ | 42.00 | 74.00 | 84.67 |
HMW-4036 | 4.00 | 36 | 2″ | 46.00 | 82.00 | 91.95 |
HMW-4040 | 4.00 | 40 | 2″ | 50.00 | 90.00 | 99.23 |
HMW-4048 | 4.00 | 48 | 2″ | 58.00 | 106.00 | 114.00 |
HMW-5008 | 5.00 | 8 | 2-1/2″ | 20.00 | 28.00 | 71.88 |
HMW-5010 | 5.00 | 10 | 2-1/2″ | 22.00 | 32.00 | 76.07 |
HMW-5012 | 5.00 | 12 | 2-1/2″ | 24.00 | 36.00 | 80.48 |
HMW-5014 | 5.00 | 14 | 2-1/2″ | 26.00 | 40.00 | 84.67 |
HMW-5016 | 5.00 | 16 | 2-1/2″ | 28.00 | 44.00 | 89.08 |
HMW-5018 | 5.00 | 18 | 2-1/2″ | 30.00 | 48.00 | 93.49 |
HMW-5020 | 5.00 | 20 | 2-1/2″ | 32.00 | 52.00 | 97.68 |
HMW-5024 | 5.00 | 24 | 2-1/2″ | 36.00 | 60.00 | 106.28 |
HMW-5028 | 5.00 | 28 | 2-1/2″ | 40.00 | 68.00 | 115.10 |
HMW-5030 | 5.00 | 30 | 2-1/2″ | 42.00 | 72.00 | 119.29 |
HMW-5032 | 5.00 | 32 | 2-1/2″ | 44.00 | 76.00 | 123.70 |
HMW-5036 | 5.00 | 36 | 2-1/2″ | 48.00 | 84.00 | 132.30 |
HMW-5040 | 5.00 | 40 | 2-1/2″ | 52.00 | 92.00 | 140.90 |
HMW-5048 | 5.00 | 48 | 2-1/2″ | 60.00 | 108.00 | 158.10 |
This video is about the details of the HMW-Mechanical welded hydraulic cylinder.
The HMW-Mechanical welded hydraulic cylinder can be used in many applications. And this type of cylinder has different sizes and dimensions.
We also can provide marine hydraulic cylinder and other products. And if you want more information about hydraulic cylinders, please get in touch with us.
Looking for unbeatable prices, top-tier quality, or custom solutions that fit your exact needs? Contact Topa Now！
