Hydraulic Lifting Cylinders

Cylinder Barrel: This is the main body of the cylinder, which houses the internal components and is subjected to hydraulic pressure.

Piston: The piston is located inside the cylinder barrel and moves back and forth as hydraulic fluid is pumped into and out of the cylinder.

Piston Rod: The piston rod extends from the piston and translates the movement of the piston into the movement of the boom, allowing it to be raised or lowered.

Seals: High-quality seals are essential for maintaining hydraulic pressure and preventing fluid leakage.

End Caps: They help contain hydraulic fluids and often have fluid inlet and outlet ports.

Bushings: These parts are usually located where the piston rod leaves the cylinder and reduces friction and wear.


Hydraulic lifting cylinders are responsible for the movement and control of the boom, allowing attachments or loads to be lifted, lowered and positioned. Cylinders work by converting hydraulic pressure into mechanical force to smoothly and precisely control the movement of the moving arm.

They are typically made from high-strength materials such as steel to ensure durability in a variety of operating conditions. The pressure ranges of these cylinders are calibrated to match Bobcat’s operational requirements. They are capable of handling significant loads and performing a variety of tasks efficiently.


Durability: Built with rugged materials such as hardened steel to ensure long-term reliability even in harsh environments.

Precise Control: Enables Bobcat’s boom to operate accurately and smoothly, which is critical for tasks that require delicate maneuvers.

Powerful Lifting Capacity: Designed to handle heavy loads and suitable for a variety of heavy-duty applications.

Efficient Operation: Efficiently converts hydraulic energy into mechanical force, ensuring optimal performance of the Bobcat.

Low Maintenance: Durable and resistant to wear and tear, reducing the frequency and cost of repairs.


Construction: Used in lifting, moving, and positioning materials at construction sites.

Landscaping: Facilitates tasks like tree handling, soil preparation, and material transport in landscaping projects.

Agriculture: Aids in lifting and moving heavy agricultural materials and equipment.

Mining and Quarrying: Essential for material handling in mining operations.

Road Maintenance: Used in tasks such as lifting heavy objects during road repair and maintenance.

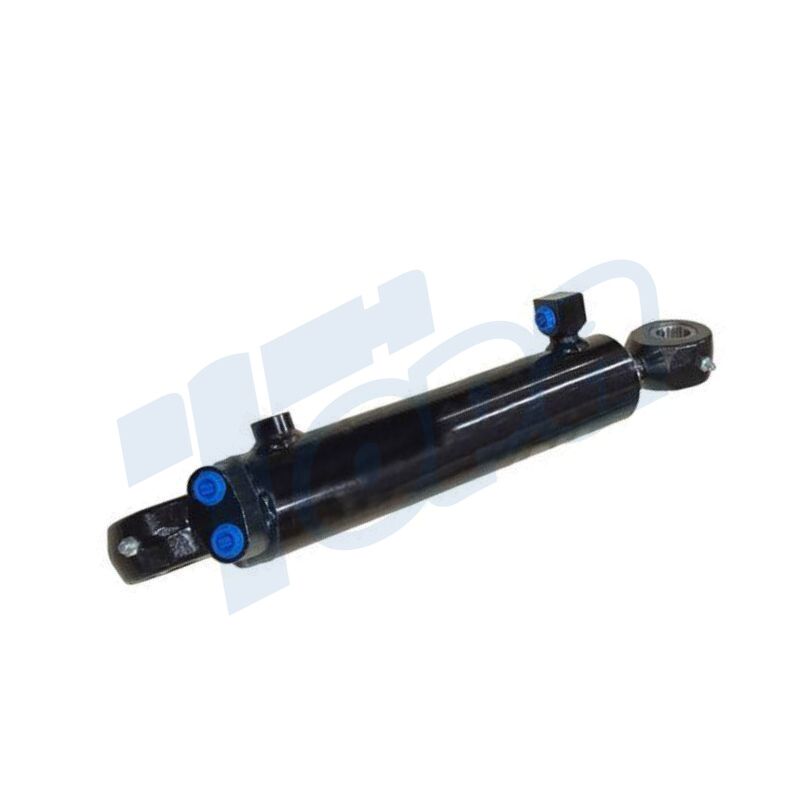

Hydraulic Lifting Cylinders for Bobcat

Topa’s production of Bobcat hydraulic moving arm lift cylinders begins with the selection of quality materials. Components such as cylinder barrels, pistons and piston rods are machined to precise specifications to ensure a perfect fit and smooth operation. Throughout the manufacturing process, each component is meticulously crafted and inspected to ensure compliance with the required standards.

Once assembled, each hydraulic boom lift cylinder undergoes a rigorous quality inspection process. This includes pressure testing, leakage testing. In addition, operational testing simulates the performance of the cylinder in the Bobcat to verify that it meets the precise controls of the machinery.

If you’re looking for reliable hydraulic cylinders for your Bobcat equipment, trust our expertly manufactured and rigorously tested products. Contact us to learn more about our hydraulic solutions.

Topa's Customized Services

Customization process of hydraulic boom lift cylinder for bobcat:

Client Consultation: The process begins with understanding your specific needs. We discuss the particular model of Bobcat you have and the tasks you intend to perform with it.

Design Tailoring: Based on the information gathered, our engineering team designs the cylinder. We focus on critical aspects like the cylinder’s size, stroke length, bore diameter, and pressure capacity, ensuring they align with your Bobcat’s requirements.

Precision Manufacturing: In this phase, each component of the cylinder is precisely machined to the specified dimensions. This step is crucial to ensure a perfect fit and smooth operation within the Bobcat’s hydraulic system.

Assembly and Rigorous Testing: After machining, the components are assembled with high-quality seals and fittings. The completed cylinder then undergoes a series of tests, including pressure tests and operational simulations, to ensure it meets our high standards of performance and reliability.

Final Quality Check and Delivery: Each custom-made cylinder undergoes a final inspection to ensure it meets all specifications and quality standards before being delivered to you.

In summary, our customized hydraulic boom lift cylinder for bobcat is crafted to meet your specific requirements, ensuring optimal performance and durability. If you need a hydraulic cylinder tailored to your Bobcat equipment, reach out to us.
