Description

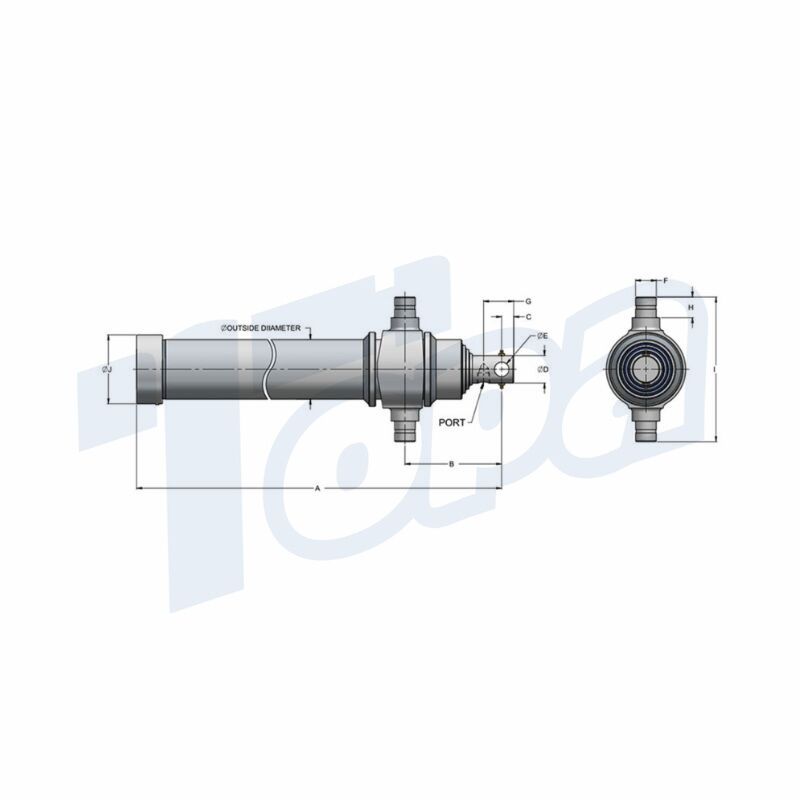

| 7 TONS INVERSE | |||||||||||||
| PART No. | STROKE | OUTSIDE DIAMETER | A | B | C | D | E | F | G | H | I | J | PORT |
| HTC-07833 | 78″ | 3.74″ | 35.5″ | 7.00″ | 1.00″ | 1.89″ | 1.015″ | 1.25″ | 2.10″ | 1.25″ | 9.00″ | 4.25″ | SAE #8 (3/4-16UNF) |
| HTC-09033 | 90″ | 3.74″ | 39.5″ | 7.00″ | 1.00″ | 1.89″ | 1.015″ | 1.25″ | 2.10″ | 1.25″ | 9.00″ | 4.25″ | |
| HTC-10833 | 108″ | 3.74″ | 45.5″ | 7.00″ | 1.00″ | 1.89″ | 1.015″ | 1.25″ | 2.10″ | 1.25″ | 9.00″ | 4.25″ | |
| 12 TONS INVERSE | |||||||||||||
| HTC-07843 | 78” | 4.49″ | 34.75” | 7.00″ | 1.00″ | 2.00” | 1.015″ | 1.50” | 2.10″ | 1.5” | 10.50” | 5.04″ | SAE #8 (3/4-16UNF) |
| HTC-09043 | 90” | 4.49″ | 38.75” | 7.00″ | 1.00″ | 2.00” | 1.015″ | 1.50” | 2.10″ | 1.5” | 10.50” | 5.04″ | |
| HTC-10843 | 108” | 4.49″ | 48.75” | 7.00″ | 1.00″ | 2.00” | 1.015″ | 1.50” | 2.10″ | 1.5” | 10.50” | 5.04″ | |
| HTC-12043 | 120” | 4.49″ | 48.75” | 7.00″ | 1.00″ | 2.00” | 1.015″ | 1.50” | 2.10″ | 1.5” | 10.50” | 5.04″ | |
| HTC-13243 | 132” | 4.49″ | 52.75” | 13.00″ | 1.00″ | 2.00” | 1.015″ | 1.50” | 2.10″ | 1.5” | 10.50” | 5.04″ | |
| HTC-14443 | 144” | 4.49″ | 56.75” | 13.00″ | 1.00″ | 2.00” | 1.015″ | 1.50” | 2.10″ | 1.5” | 10.50” | 5.04″ | |

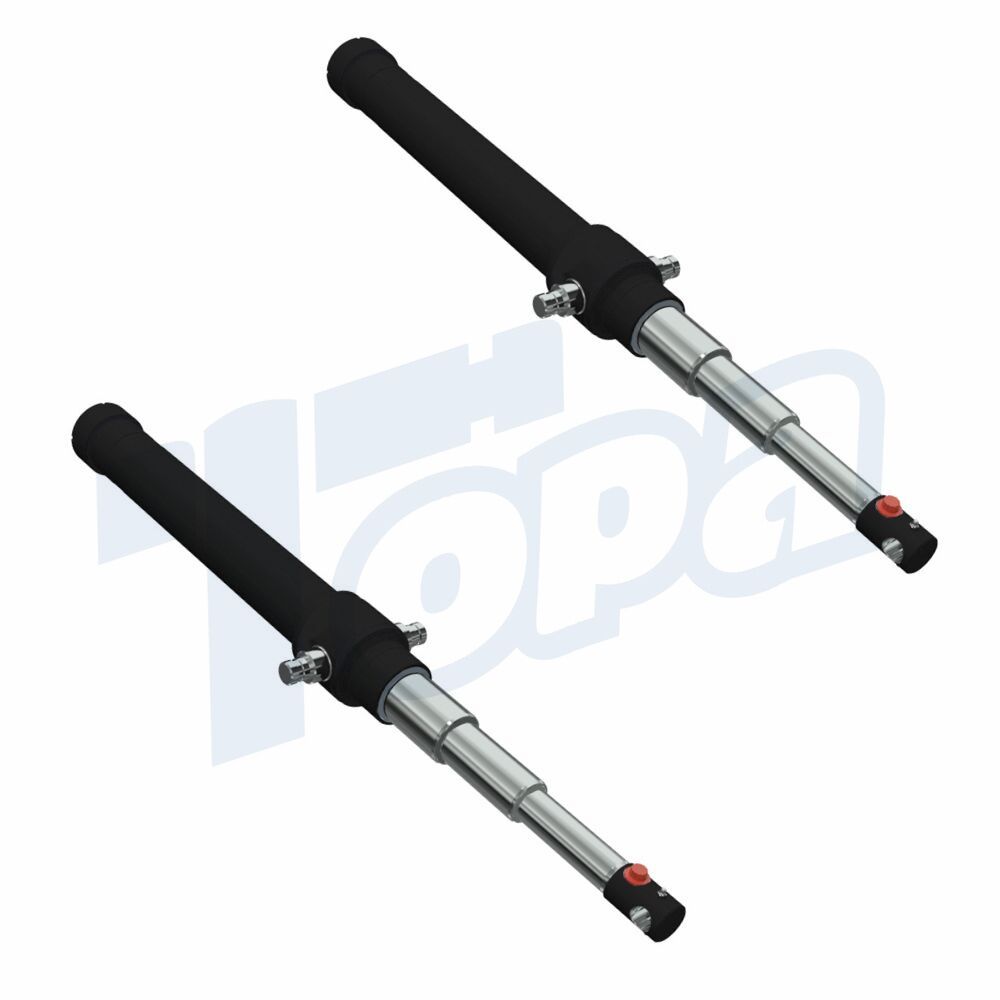

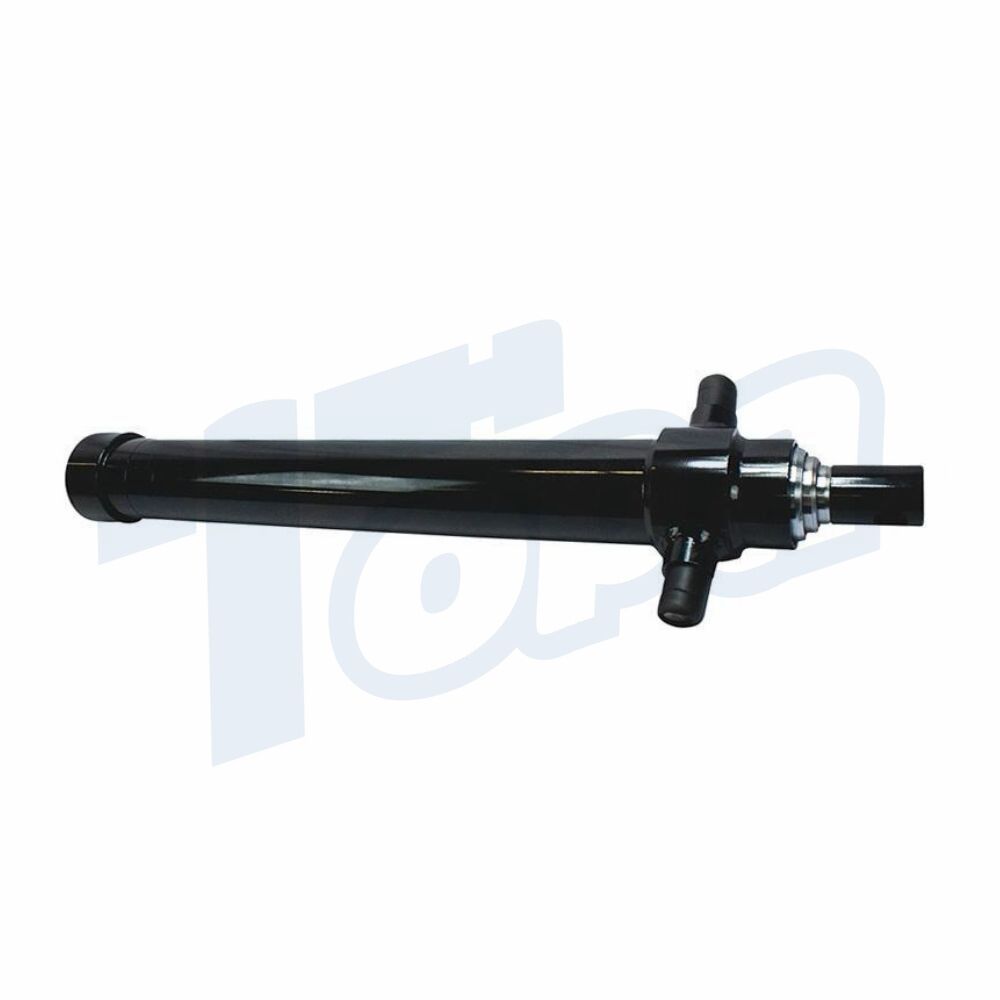

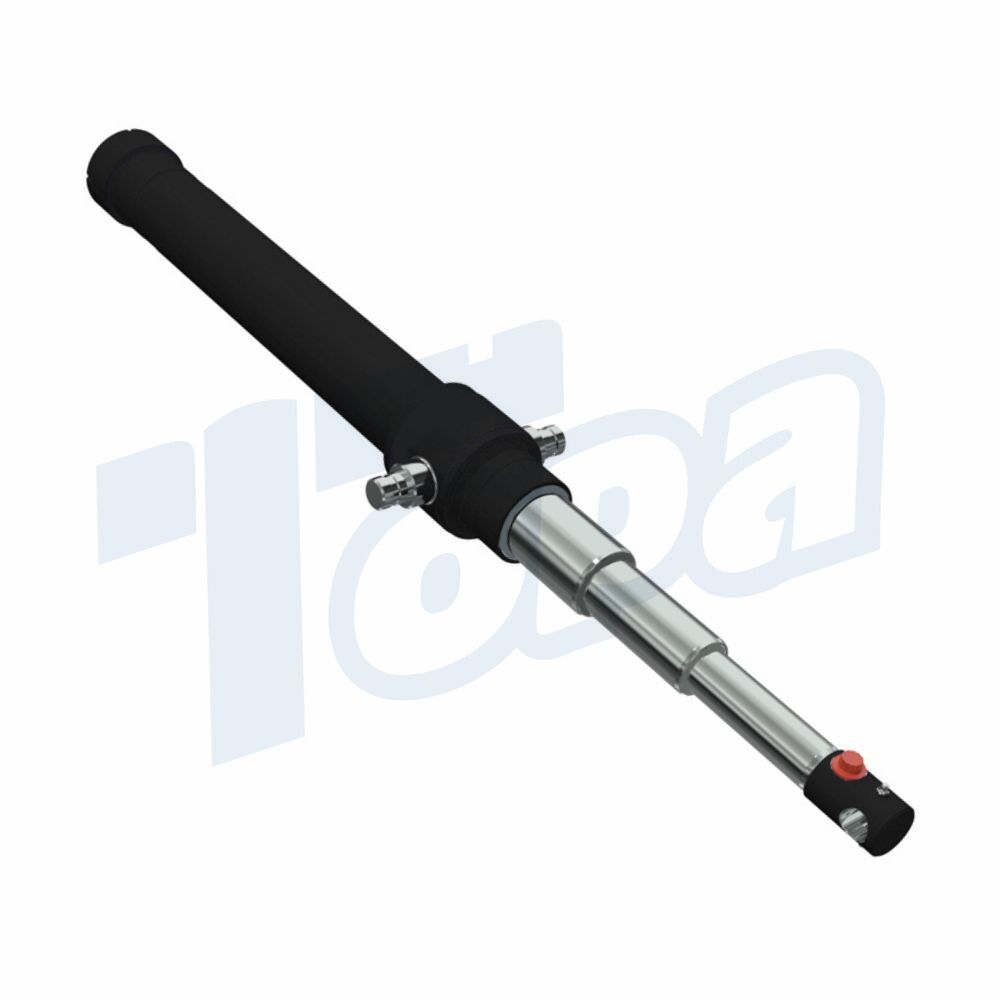

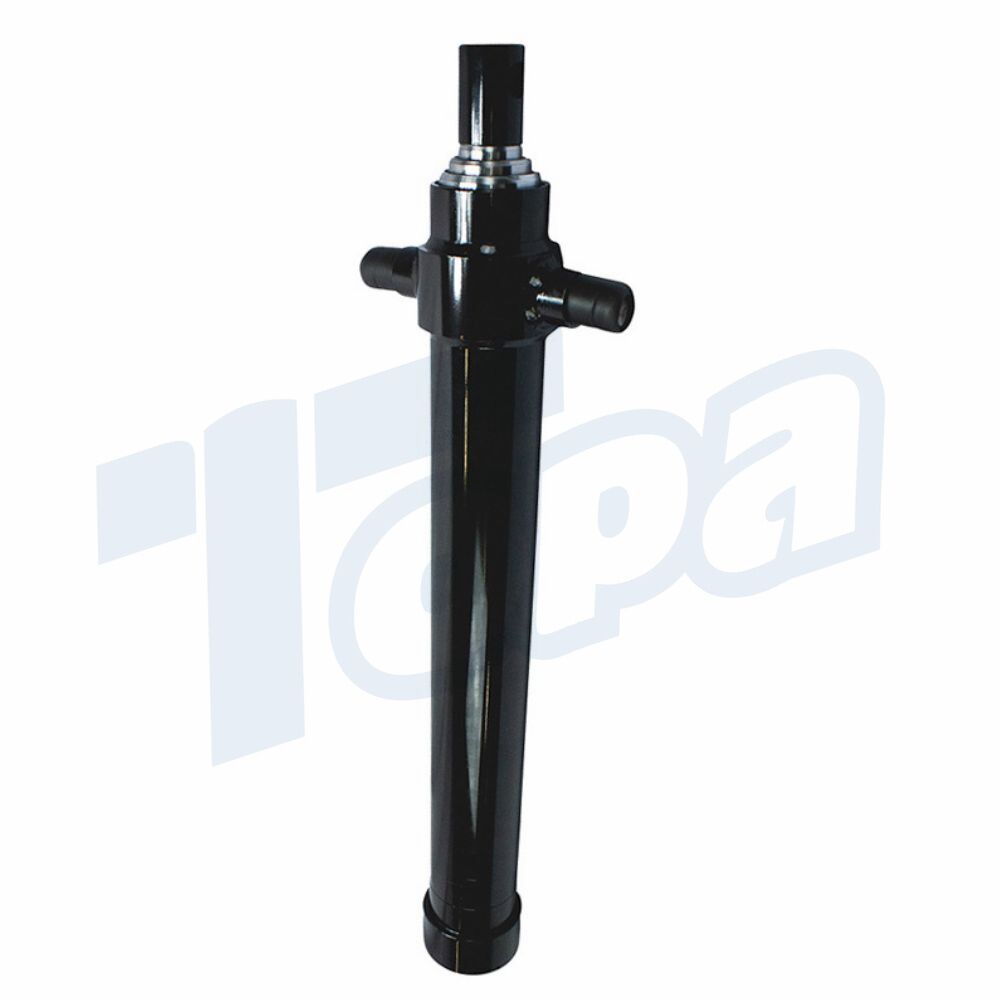

HTC - Telescopic Hydraulic Cylinders
Telescopic Hydraulic Cylinders, also known as multi-stage cylinders, feature an innovative design that allows for multiple stages or nested sleeves. This design enables the cylinder to achieve a long stroke length while maintaining a compact retracted length.
One of the key advantages of telescopic cylinders is their ability to provide a significantly longer stroke compared to traditional single-stage cylinders. This makes them ideal for applications where extended reach or lift is required.
Despite their extended stroke capabilities, telescopic cylinders retract to a compact length, which can be essential in applications with limited space. This compactness makes them versatile and suitable for various industries.
If you have specific inquiries or require further information, please don’t hesitate to reach out to us for your hydraulic product needs.
Advantages of Hydraulic Cylinders From Topa
1. Exceptional Reach and Lift Capability:
Topa HTC cylinders offer exceptional reach and lift capabilities, making them the perfect choice for applications that require extended stroke lengths. Whether you’re in construction, agriculture, or material handling, these cylinders excel at providing the necessary reach.
2. Space-Efficient Design:
One of the significant advantages of HTC cylinders is their space-efficient design. They can achieve long strokes while maintaining a compact retracted length, making them ideal for equipment with limited space.
3. Customization to Your Needs:
At Top, we understand that every application is unique. That’s why we offer customization options for HTC cylinders. You can choose the number of stages, bore sizes, and rod diameters to tailor the cylinder precisely to your specific requirements.
