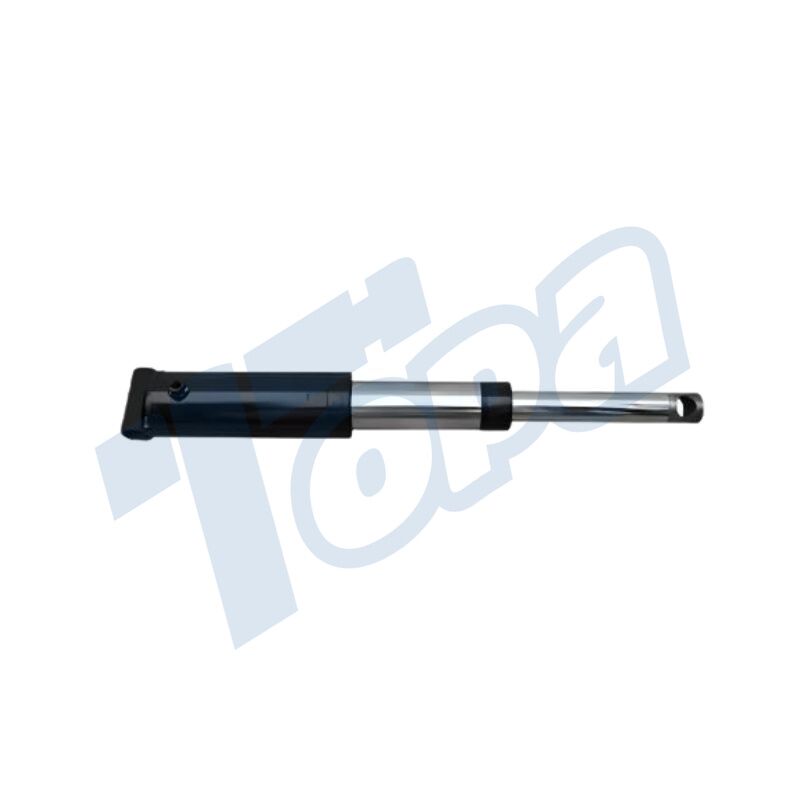

Telescopic 2 Stage Hydraulic Cylinder

Stages: The cylinder consists of two stages. Each stage is a cylinder barrel nested within a larger one. When activated, the innermost stage extends first, followed by the next outer stage.

Seals: Each stage has its own set of seals to prevent fluid leakage and maintain pressure integrity.

Piston Rods: Each stage has a piston rod connected to a piston. The rods are telescoped inside each other in the retracted state.

Base and Head: The base is where the hydraulic fluid enters and exits, while the head is typically at the opposite end and may have mounting provisions.

Ports: The design and location of these ports are critical for the sequential extension and retraction of the stages.

Bearings and Bushings: These components are essential for reducing friction between the moving parts and ensuring smooth operation.


Telescopic 2 stage hydraulic cylinder utilizes a multi-stage design for greater reach than standard hydraulic cylinders with the same closing length. Telescopic cylinders can be extended in two stages, allowing for longer reach. This is especially useful in applications where space is limited and the size of the cylinder is restricted when retracted.

When fully retracted, this cylinder is much shorter than when fully extended, making it ideal for applications where space is limited. Despite its compact size, it delivers a lot of power and is therefore efficient in heavy-duty applications.


Extended Reach with Compact Size: The telescopic design allows for a longer extension while maintaining a short retracted length.

Higher Power Density: These cylinders can generate high force relative to their size, which is crucial in heavy-duty operations.

Durability: Built to withstand tough conditions, these cylinders are reliable and long-lasting, even in harsh environments.

Efficiency: The ability to deliver significant power with minimal space requirement makes these cylinders highly efficient.

Versatility: They can be customized to fit specific requirements, including varying pressure ratings, materials, and sizes.

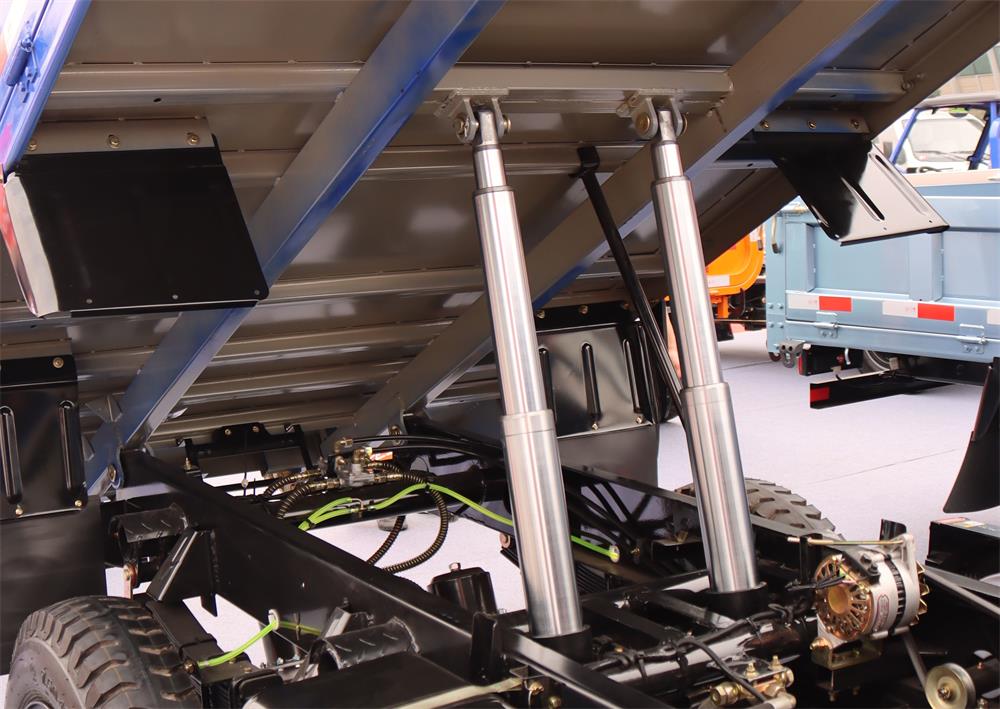

Transportation: Integral in the design of dump trucks and garbage trucks, where extended reach and compact design are crucial for loading and unloading.

Agricultural Machinery: Used in tractors and other farming equipment for tasks that require heavy lifting and extended reach.

Manufacturing and Industrial Applications: In factories and plants, these cylinders are used in automated machinery, presses, and lifting equipment.

Mining Equipment: In the mining industry, they are used in drilling rigs and other heavy-duty machinery.

Telescopic 2 Stage Hydraulic Cylinder

Topa specializes in the precision manufacturing of hydraulic cylinders, utilizing advanced CNC machining technology in the production process. This CNC technology ensures high precision and consistency in every component we produce. The manufacturing process begins with the selection of quality materials, which are then meticulously molded and machined using our advanced CNC equipment. This technology allows for precise control of dimensions and tolerances, resulting in parts that meet the highest standards of quality and performance.

From the initial design phase to final assembly, Topa’s skilled professionals oversee every detail to ensure that every hydraulic cylinder delivers superior performance. If you are looking for high quality, efficiently manufactured hydraulic cylinders, contact Topa. We are committed to providing top-notch hydraulic solutions that meet the specific needs of our customers in the hydraulics industry. Let us help you find the perfect hydraulic components to move your business forward.

Topa's Customized Services

Topa specializes in providing custom hydraulic cylinder services to meet the specific needs of customers in a variety of industries. Our customization services are designed to meet unique requirements, whether it be special dimensions, materials or performance specifications.

Customized Solutions: We specialize in designing and manufacturing hydraulic cylinders to meet our customers’ exact specifications and requirements.

Advanced Manufacturing Technology: We utilize the most advanced CNC machining to ensure the precision and quality of each customized product.

Premium Materials: We use only premium materials to ensure that each customized cylinder is rugged and able to withstand harsh conditions.

Expert Engineering Team: Our experienced engineers work closely with our customers to develop solutions. Not only do we meet our customers’ expectations in terms of performance and reliability, but we exceed them.

Rigorous Quality Control: Each customized cylinder undergoes rigorous testing and quality control to ensure that it meets international standards for cylinders.

Topa is your partner for customized hydraulic cylinder solutions. Whether you need a specific design for a unique application or a solution that is not available with standard products, we are here to serve you.
