Two Way Hydraulic Cylinder

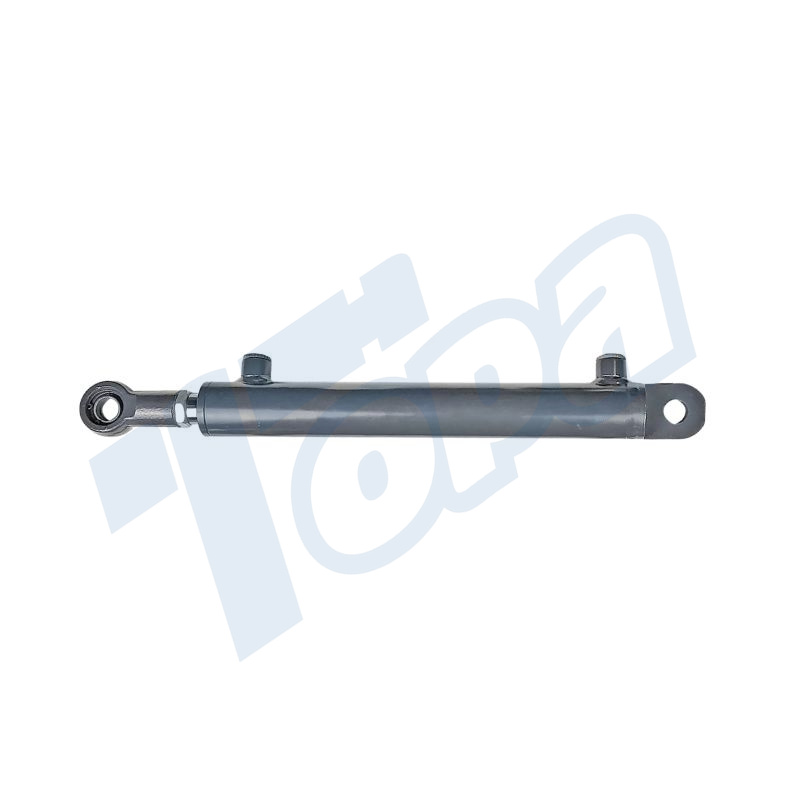

HSG40 Series Two Way Hydraulic Cylinder

Cylinder Barrel: The body of the cylinder that handles internal pressure and ensures smooth piston movement.

Piston Rod: A sturdy piston rod that moves within the cylinder barrel to transfer the force generated by the hydraulic fluid to the intended application.

Piston: This component divides the cylinder into two chambers and moves the piston back and forth as hydraulic fluid is pumped into the cylinder.

End Caps: Securely fastened to the ends of the cylinder barrel, these hold the internal components in place and prevent fluid leakage.

Seals: These seals are critical to maintaining the integrity of the cylinder, preventing hydraulic fluid leakage and keeping out contaminants.

Rod Seal: It is part of the end cap that guides the piston rod as it enters and exits and contains the piston rod seal.

Ports: Inlets and outlets for hydraulic fluid, carefully arranged to control the movement of the piston within the cylinder.


The HSG40 series of bi-directional hydraulic cylinders is a versatile and robust component of hydraulic systems with significant features and benefits.

The series is characterized by a double-acting design that allows for controlled movement during extension and retraction. The design is optimized for balance and efficiency to ensure smooth operation under varying pressure conditions.HSG40 cylinders are typically manufactured from high-strength steel to withstand the rigors of use. The rugged construction enhances durability and resistance to wear and tear, making them suitable for heavy-duty applications.

The precision-engineered components of these cylinders ensure smooth piston movement, minimizing friction and improving power transmission efficiency. And the HSG40 series is equipped with premium seals that prevent fluid leakage and maintain stable pressure. This helps to improve the overall efficiency and service life of the cylinder.


Dual-Action Performance: This series offers controlled extension and retraction, providing versatility and precision in various applications.

Durability: Made with high-quality materials, the HSG40 cylinders are built for longevity, resisting wear and tear even in demanding conditions.

High Efficiency: The precision engineering ensures minimal energy loss, translating to better efficiency in hydraulic systems.

Strong Sealing System: Quality seals prevent fluid leakage and contamination, enhancing reliability and lifespan.

Safety Features: Integrated safety components ensure secure operations, especially critical in high-pressure environments.


Construction Machinery: Used in excavators, bulldozers, and cranes for lifting, pushing, and moving heavy loads.

Manufacturing Equipment: Applied in presses and assembly machinery for controlled movement and force application.

Mining Equipment: Employed in drilling rigs and earth-moving machinery for robust and reliable operations.

Automotive Industry: Used in vehicle lifts and manufacturing systems for precise and safe operations.

Marine Applications: Suitable for use in marine environments, including on ships and docks for lifting and loading tasks.

HSG40 Series Two Way Hydraulic Cylinder

Topa’s quality inspection process for the HSG40 range of bi-directional hydraulic cylinders is thorough and meticulous, ensuring that every cylinder meets the highest standards. This begins with rigorous quality and durability testing of the raw materials. During the manufacturing process, each stage of the cylinder’s construction is closely monitored to check dimensional accuracy, structural integrity and correct assembly. Once assembled, the cylinders undergo a series of functional tests, including pressure, leakage and performance tests, to ensure that the cylinders operate efficiently and safely under real-world conditions.

The rigorous quality inspection process for Topa’s HSG40 range has enhanced Topa’s reputation in the marketplace, building customer trust and satisfaction. Finally, by ensuring that every cylinder meets precise specifications and performance standards, Topa is able to meet a wide range of industrial needs, thereby strengthening its position as a leader in hydraulic solutions.




Topa's Customized Services

Topa’s custom HSG40 Series Two Way Hydraulic Cylinders offer several advantages, making them a preferred choice for a range of applications:

Customized Designs: Topa specializes in providing cylinders that are tailored to specific requirements. Whether it’s a unique size, stroke length or special mounting needs, the HSG40 series can be customized.

Quality Materials: Topa utilizes quality materials in its cylinders to ensure durability and longevity. This choice of material allows the cylinders to withstand harsh operating conditions and minimizes wear and tear.

Advanced Manufacturing Technology: Topa utilizes state-of-the-art manufacturing processes to ensure that each customized HSG40 cylinder meets the highest standards of precision and quality, resulting in reliable, efficient performance.

Efficient Performance: Designed for optimum efficiency, these cylinders provide powerful and precise control in the extension and retraction movements necessary in many hydraulic systems.

These benefits make Topa’s custom HSG40 series bi-directional hydraulic cylinders an excellent choice for companies looking for a reliable, high quality and specialized custom hydraulic solution.
