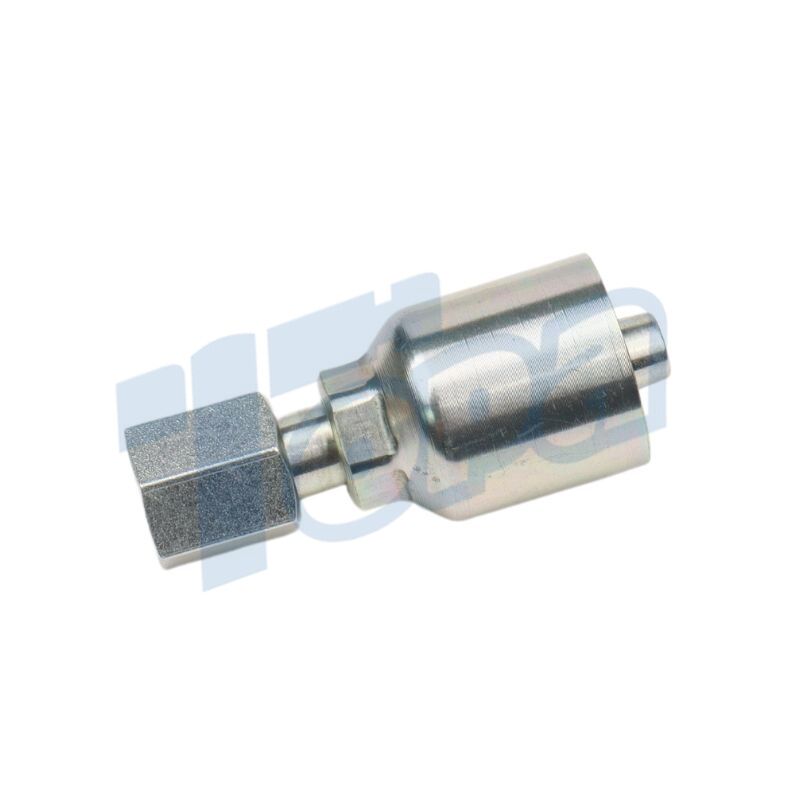

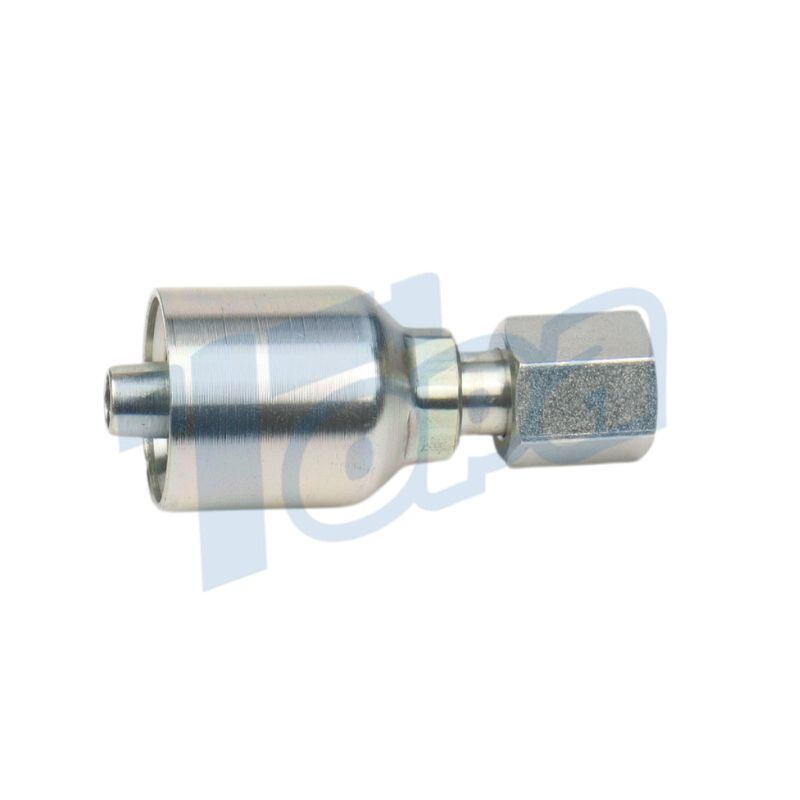

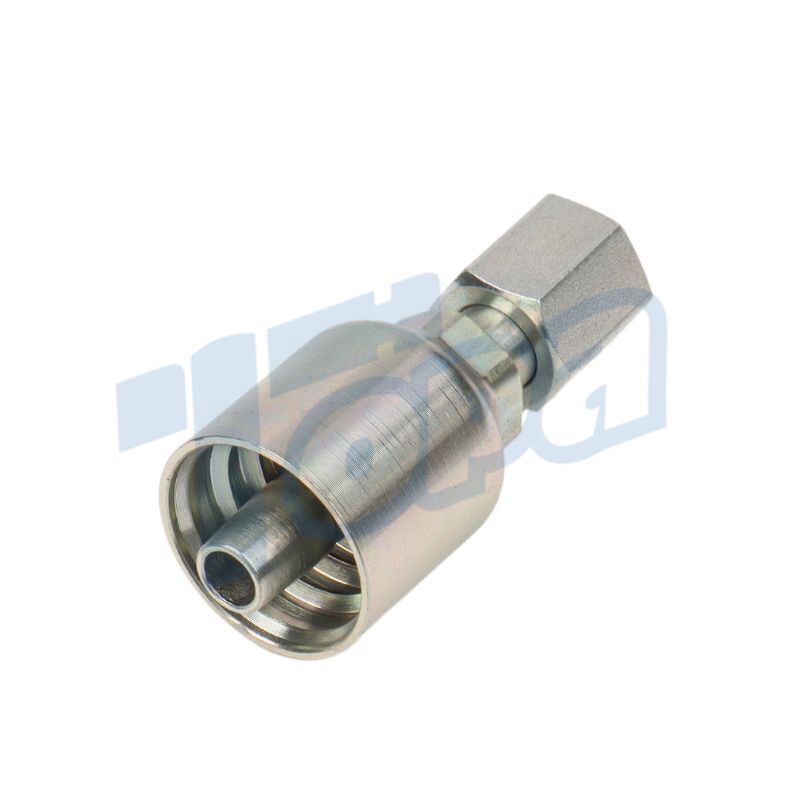

Description
| Part No. | Hose Bore | Thread | W- HEX | Dimensions | |||
| Size | Inch | DN | A(mm) | B(mm) | |||
| 04-04FJX | 4 | 1/4″ | 6 | 7/16″-20 | 14.2 | 41 | 21 |
| 04-05FJX | 4 | 1/4″ | 6 | 1/2″-20 | 14.2 | 42 | 22 |
| 04-06FJX | 4 | 1/4″ | 6 | 9/16″-18 | 17.4 | 42 | 22 |
| 05-05FJX | 5 | 5/16″ | 8 | 1/2″-20 | 14.2 | 44 | 22 |
| 05-06FJX | 5 | 5/16″ | 8 | 9/16″-18 | 17.4 | 44 | 22 |
| 06-06FJX | 6 | 3/8″ | 10 | 9/16″-18 | 17.4 | 50 | 23 |
| 06-08FJX | 6 | 3/8″ | 10 | 3/4″-16 | 22.2 | 50 | 23 |
| 06-10FJX | 6 | 3/8″ | 10 | 7/8″-14 | 25.4 | 50 | 23 |
| 08-08FJX | 8 | 1/2″ | 12 | 3/4″-16 | 22.2 | 54 | 23 |
| 08-10FJX | 8 | 1/2″ | 12 | 7/8″-14 | 25.4 | 55 | 24 |
| 10-10FJX | 10 | 5/8″ | 16 | 7/8″-14 | 25.4 | 63 | 25 |
| 10-12FJX | 10 | 5/8″ | 16 | 1.1/16″-12 | 31.7 | 65 | 27 |
| 12-12FJX | 12 | 3/4″ | 20 | 1.1/16″-12 | 31.7 | 66 | 27 |
| 16-16FJX | 16 | 1″ | 25 | 1.5/16″-12 | 34.9 | 78 | 33 |
| 16-20FJX | 16 | 1″ | 25 | 1.5/8″-12 | 50.8 | 80 | 34 |
| 20-20FJX | 20 | 1.1/4″ | 32 | 1.5/8″-12 | 50.8 | 82 | 35 |
| 24-24FJX | 24 | 1.1/2″ | 40 | 1.7/8″-12 | 53.9 | 102 | 43 |
| 32-32FJX | 32 | 2″ | 50 | 2.1/2″-12 | 73 | 126 | 55 |
10643 JIC Hydraulic One Piece Fittings Video
The 10643 JIC female hydraulic hose crimp fitting manufacturing process video gives you a better understanding of Topa’s factory and level of expertise.
As the video expands, you will see the entire process of hydraulic hose crimp fittings from raw material cutting to completion. We use the highest quality carbon and stainless steel and specialized automated processes to ensure our products meet your standards.
Ready to experience quality service? Visit Topa today to learn more about our line of quality hydraulic fittings. Let Topa help you make a better choice.
