What is a Hydraulic Cylinder ?

Table of Contents

A hydraulic cylinder is a mechanical actuator that plays an important role in many industrial applications. It is essentially a key part of a machine that provides unidirectional force through a one-way stroke. From construction equipment like bulldozers and excavators, to precision tools in manufacturing environments, the cylinder is key to these machines.

Parts of a Hydraulic Cylinder

The magic of the hydraulic cylinder is its ability to utilize the power of hydraulic fluid (oil-based or water-based solution) to produce linear motion. This motion powers the movement of heavy machinery and industrial equipment. Next let’s take a deeper look at the key components that make up a hydraulic cylinder:

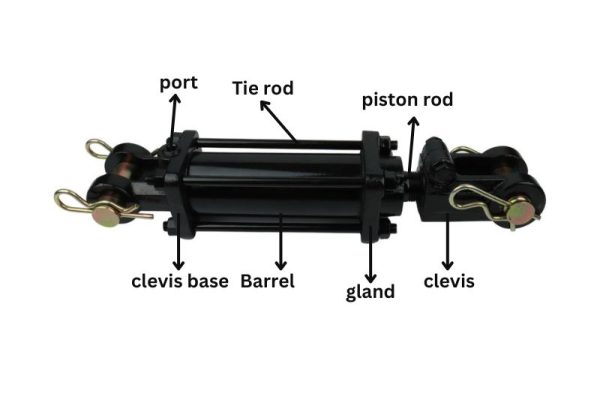

parts of a Hydraulic cylinder Topa


The barrel is the main body of the cylinder. It is usually made of sturdy materials such as steel or aluminum that can withstand high pressure. And the inside of the barrel is honed to reduce friction and wear on the piston.


This part moves back and forth inside the barrel. The piston divides the inside of the cylinder into two chambers. Piston movement is initiated by pressurizing one of the chambers with hydraulic fluid. The size and material of the piston is critical to the efficiency and longevity of the cylinder and can often be customized for specific applications.

Piston Rod

The piston rod extends from the piston and is the component that moves the load attached to the cylinder. It must be strong enough to withstand the forces exerted by the piston and is usually made of hard chrome-plated steel to prevent bending and corrosion.

Cylinder Heads

Cylinder heads and cylinder covers are mounted on the ends of the cylinder barrel and act as seals to ensure that the hydraulic fluid does not leak. These parts are also the mounting surface of the cylinder. The cylinder head contains a piston rod seal that prevents hydraulic fluid from leaking along the piston rod, which is critical to maintaining pressure in the cylinder.

Seals and Gaskets

Seals are critical in a hydraulic cylinder, ensuring that the hydraulic fluid does not leak and maintaining the pressure necessary for efficient operation. These seals are located around the piston, piston rod, and at the cylinder head and cap. Gaskets are also used to prevent leaks at the joints between different parts of the cylinder. These components are usually made from materials like polyurethane, rubber, or PTFE.


Some hydraulic cylinders are equipped with cushions at the ends of the stroke to slow down the piston, reducing impact and noise. This feature is especially important in high-speed applications where the sudden stop of the piston can cause damage and excessive wear.


The mounts are the points at which the hydraulic cylinder attaches to the machinery. There are various types of mounts, including flange mounts, foot mounts, and clevis mounts. The choice of mount depends on the application and the required range of motion.


Hydraulic cylinders have ports for the entry and exit of hydraulic fluid. These ports are strategically placed to facilitate the flow of fluid into and out of the cylinder chambers, controlling the movement of the piston. The design and placement of these ports are crucial for the cylinder’s performance and depend on the specific application of the cylinder.

In addition to these components, different cylinders have their own unique accessories. Each of these components plays a vital role in the performance, durability and efficiency of a hydraulic cylinder. Understanding their functions and interactions is critical for anyone involved in the design, operation or maintenance of hydraulic systems.

Hydraulic Cylinders Types

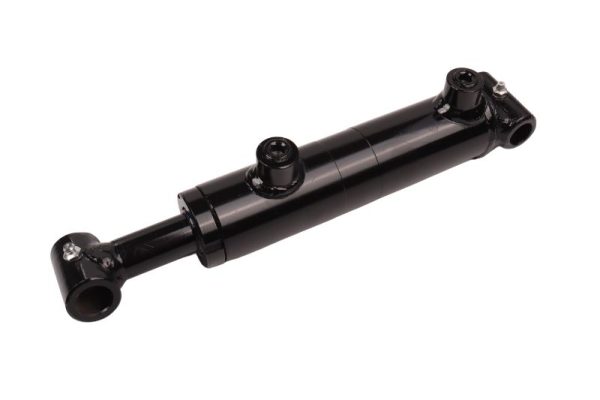

Single acting Hydraulic cylinder design Topa

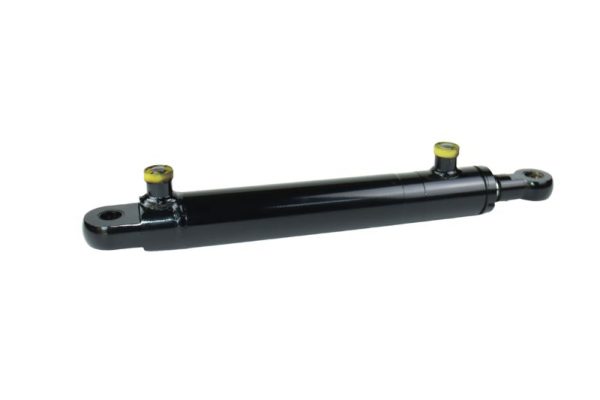

Double acting Hydraulic cylinder design Topa

Single-Acting and Double-Acting Hydraulic Cylinders

Single-Acting Cylinders: These cylinders use hydraulic pressure for movement in one direction, usually the outstroke, and rely on an external force, such as gravity or a spring, for the instroke. They’re simpler in design and often used in applications where space is limited and the work is straightforward, like in automotive jacks or small lifting devices.

Double-Acting Cylinders: These cylinders can exert force in both directions – outstroke and instroke – using hydraulic pressure. This makes them more versatile and suitable for a wider range of applications. Such as in earth-moving equipment, manufacturing machinery, and heavy lifting where control and power are essential in both directions.

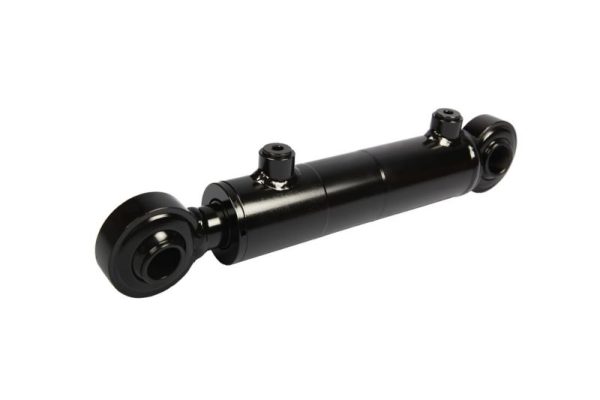

Welded Hydraulic Cylinders design Topa

Welded Hydraulic Cylinders

Design: Welded cylinders have a robust construction where the end caps are welded directly to the barrel. This design provides a compact and solid cylinder with fewer parts, reducing the chance of leakage.

Applications: Ideal for heavy-duty applications due to their strength and durability. Commonly found in construction equipment, large vehicles, and heavy machinery where reliability under high pressure and rugged conditions is key.

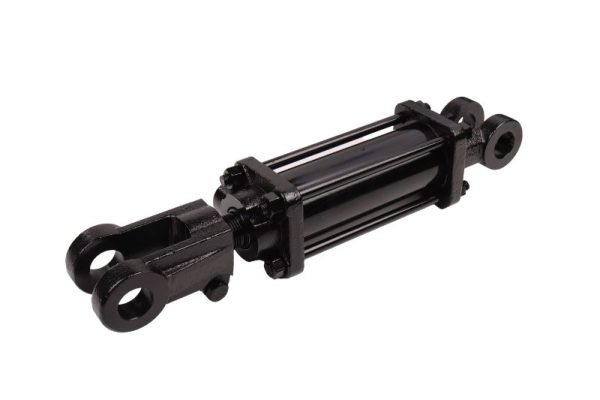

Tie-Rod Cylinders design Topa

Hydraulic Tie-Rod Cylinders

Construction: Characterized by the use of tie-rods to hold the end caps against the barrel. These rods can be tightened to maintain seal integrity and can be easily removed for maintenance and repair.

Advantages: They offer ease of service and maintenance, making them ideal for industrial and manufacturing settings where downtime needs to be minimized. Their modular design allows for easy customization and replacement of parts.

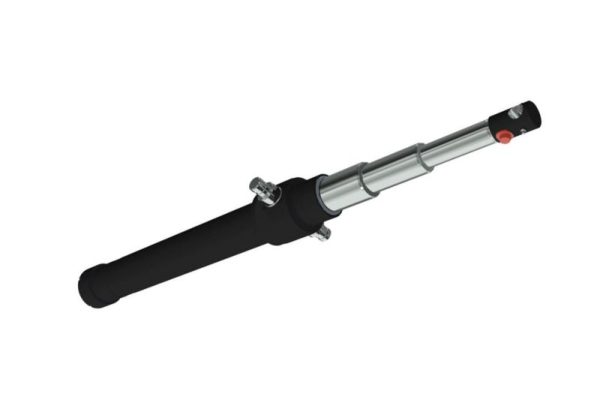

Telescopic Hydraulic Cylinders design Topa

Telescopic Hydraulic Cylinders

Functionality: These cylinders consist of a series of tubes, known as stages, which retract inside each other, allowing for a much longer extendable length compared to the collapsed length of the cylinder.

Applications: Widely used in applications requiring a long stroke but limited mounting space, such as in dump trucks, large loading docks, and material handling equipment.

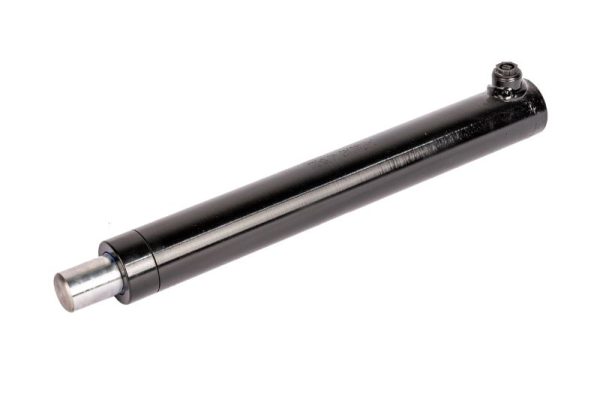

Ram Hydraulic Cylinders design Topa

Ram Hydraulic Cylinders

Design: Ram cylinders are characterized by a large diameter piston without a piston rod. The entire cylinder barrel extends to produce a pushing force.

Applications: Best suited for high force applications with limited space for cylinder installation. Commonly used in hydraulic presses, jacks, and in situations where a pushing force is needed, such as in earth-moving equipment and heavy lifting applications.

In addition to the standard types of hydraulic cylinders, there are tons of other hydraulic cylinder designs available to meet specific requirements and applications. The hydraulic cylinder industry is incredibly diverse, meeting a wide range of operational needs in a variety of industries. Whether it’s adapting to extreme environmental conditions, accommodating limited space, handling unusual loads, or meeting precise motion control, custom hydraulic cylinders offer solutions that standard hydraulic cylinders cannot.

Pneumatic Cylinder vs Hydraulic Cylinder

Hydraulic Cylinder

Operating Medium: Uses incompressible fluids, typically oil.

Force Generation: Capable of generating high force due to the incompressibility of the fluid.

Speed: Generally slower than pneumatic cylinders due to the viscosity of the hydraulic fluid.

High Power Density: Can generate significant force in a relatively compact size.

Precise Control: Offers excellent control over speed, position, and force.

Stability: Provides stable and constant force, ideal for lifting and holding heavy loads.

Suitable for Heavy-Duty Applications: Ideal for applications requiring substantial force, such as construction machinery and industrial presses.

Load Capacity: Excellent for applications with high load capacity requirements.

Tie-Rod Cylinders design Topa

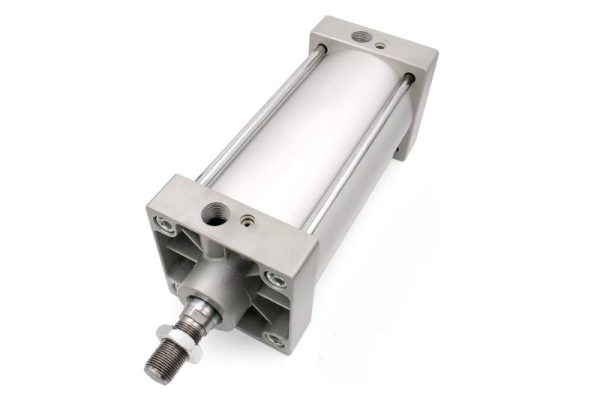

pneumatic cylinder Topa

Pneumatic Cylinder

Operating Medium: Uses compressed air or other gases.

Force Generation: Generates less force compared to hydraulic cylinders, limited by air pressure.

Speed: Capable of high-speed movements due to the low viscosity of air.

Rapid Movement: Ideal for applications requiring quick, repetitive motions.

Ease of Installation and Maintenance: Simpler systems that are easier and cheaper to install and maintain.

Clean Operation: Air is a clean medium, posing no contamination risks if leaked.

Environmentally Friendly: Air can be exhausted into the atmosphere without pollution concerns.

Hydraulic cylinders are characterized by high forces and precise control, making them ideal for heavy-duty applications where stability and power are critical.

Pneumatic cylinders excel in applications requiring speed and efficiency, and offer the benefits of cost-effectiveness, ease of maintenance and environmental friendliness.

The choice of hydraulic or pneumatic cylinders depends on the specific requirements of the application. This includes the need for force, accuracy, speed, cost and environmental impact.

Hydraulic Cylinder Usage

Construction Machinery: Used in excavators, bulldozers, backhoes, and other heavy equipment for digging, lifting, and moving materials.

Manufacturing Industry: Employed in pressing machines, injection molding machines, and conveyor systems for precise and powerful operations.

Agricultural Equipment: Integral to tractors, harvesters, and loaders, enabling efficient farming operations.

Automotive Industry: Utilized in car lifts, assembly lines, and in the manufacturing process of vehicle parts.

Material Handling: Essential in forklifts, pallet jacks, and cranes for lifting and transporting heavy materials.

Mining Equipment: Used in drilling rigs, earth movers, and conveyors for robust and reliable operations in challenging environments.

Aerospace and Aviation: Applied in the assembly and maintenance of aircraft, including wing flaps and landing gear mechanisms.

Marine Applications: Incorporated in steering mechanisms, hoists, and lifting equipment on ships and docks.

Civil Engineering: Used in bridge building, dam construction, and large-scale infrastructure projects for heavy lifting and positioning tasks.

Energy Sector: Employed in oil and gas drilling rigs, wind turbine adjustments, and in the maintenance of power generation equipment.

Waste Management: Used in garbage trucks and recycling equipment for compacting and handling waste materials.

How a Hydraulic Cylinder Works?

A hydraulic cylinder works by converting the energy stored in hydraulic fluid into mechanical force and motion. This process involves several key components and principles of fluid mechanics. Here’s a step-by-step explanation of how a hydraulic cylinder works:

Basic Components: The primary components of a hydraulic cylinder are the cylinder barrel, piston, piston rod, cylinder cap (or head), and cylinder base. The piston is fitted with seals and divides the inside of the cylinder into two chambers: the head end (cap end) and the rod end.

Hydraulic Fluid Power Source: The operation begins with a hydraulic pump, which provides a flow of hydraulic fluid under pressure from a reservoir.

Fluid Enters the Cylinder: When the hydraulic cylinder is activated, the hydraulic fluid is directed into one of the cylinder’s chambers. This is typically done via control valves that direct the flow of the fluid.

Piston Movement: As the fluid enters the chamber, it creates pressure and pushes against the piston, causing it to move. The movement of the piston will depend on which chamber the fluid is pumped into.

Single-Acting vs. Double-Acting Cylinders

In a single-acting cylinder, hydraulic fluid enters only one chamber, and the piston is returned to its original position by an external force like a spring or gravity.

In a double-acting cylinder, hydraulic fluid can enter either chamber. When it enters the rod end, the piston moves in one direction (retraction). And when it enters the head end, the piston moves in the opposite direction (extension). This allows for control of movement in both directions.

Piston Rod Movement: As the piston moves, it pushes or pulls the piston rod in tandem. This linear motion of the piston rod is then harnessed to do work, such as lifting heavy loads or pushing or pulling objects.

Releasing the Pressure: After the required action is completed, the hydraulic fluid is released or redirected, allowing the piston to return to its original position, either by the reversal of fluid flow or by an external force.

Controlling the Motion: The speed, force, and position of the piston rod can be precisely controlled by regulating the amount and pressure of the hydraulic fluid entering and leaving the cylinder, typically achieved through valves.

In summary, a hydraulic cylinder operates by using pressurized hydraulic fluid to produce linear force and motion. This mechanism is fundamental in many types of machinery and equipment, where high force and precise control are needed.

How to Choose Hydraulic Cylinder

Choosing the right hydraulic cylinder for a specific application involves considering various factors to ensure optimal performance, longevity, and safety. Here’s a guide on how to select a hydraulic cylinder:

Determine the Required Force: Calculate the force needed for your application. This depends on the load you need to move. The formula to determine the force is Force=Pressure × Area. Ensure the cylinder you choose can provide sufficient force for your task.

Select the Right Bore Size: The bore size of a cylinder determines the area on which the hydraulic fluid acts to generate force. A larger bore can exert more force, but it also requires more fluid. Choose a bore size that matches your force requirements and system’s fluid capacity.

Consider Stroke Length: The stroke length is the distance the piston travels in the cylinder. Ensure the stroke length is adequate for your application. Consider space constraints and the range of motion needed.

Choose Cylinder Type: Decide between single-acting and double-acting cylinders based on your application’s requirements.

Rod Diameter and Rod Material: The diameter and material of the piston rod are important for the cylinder’s strength and durability. Larger rods can withstand greater loads and are less prone to bending. The material should be chosen based on the environment.

Mounting Style: The mounting style affects the cylinder’s alignment, operation, and ease of maintenance. Common types include flange, clevis, foot, and trunnion mounts. Choose the one that best fits your mechanical design and operational needs.

Operating Pressure: Ensure the cylinder can operate at the required pressure without risk of failure. Higher pressure cylinders are more compact but may require stronger materials and construction.

Environmental Considerations: Consider the operating environment. If the cylinder is exposed to harsh conditions, you’ll need materials and seals that can withstand these conditions.

By carefully considering these factors, you can select a hydraulic cylinder that meets the specific needs of your application, ensuring efficient, reliable, and safe operation.

In short, hydraulic cylinders are essential components in a variety of industrial applications, providing unrivaled power and precision. They come in a variety of types, each suited to a specific task. Choosing the right cylinder depends on factors such as force, size and environment. Understanding the mechanics and applications of hydraulic cylinders is essential to achieve optimal use of machinery in various fields.

Hydraulic Cylinder Manufacturers

Topa Hydraulic is a supplier of hydraulic cylinders known for providing quality products that meet a variety of industrial and mechanical needs.

Topa offers a wide range of hydraulic cylinders, including single-acting, double-acting, telescopic, and other standard models and custom-designed cylinders. One of our strengths is our ability to customize hydraulic cylinders to meet unique specifications. Whether you need a cylinder for a special application, a special size, or a special material, Topa can provide you with a customized solution.

Topa is committed to using high-grade materials and following rigorous manufacturing processes. And our team of highly skilled professionals provides technical expertise in the design and application of hydraulic cylinders. This expertise is invaluable in ensuring that the right cylinder is selected for your specific needs.

As a direct sales factory, Topa is able to offer competitive pricing. This is a major advantage for companies looking to strike a balance between cost and quality. Furthermore, our cylinders are certified to international standards and can be used interchangeably with some international brand cylinders.

If you have any ordering needs, or have some doubts about the cylinders, be sure to contact us, we will give you the most professional answer.
