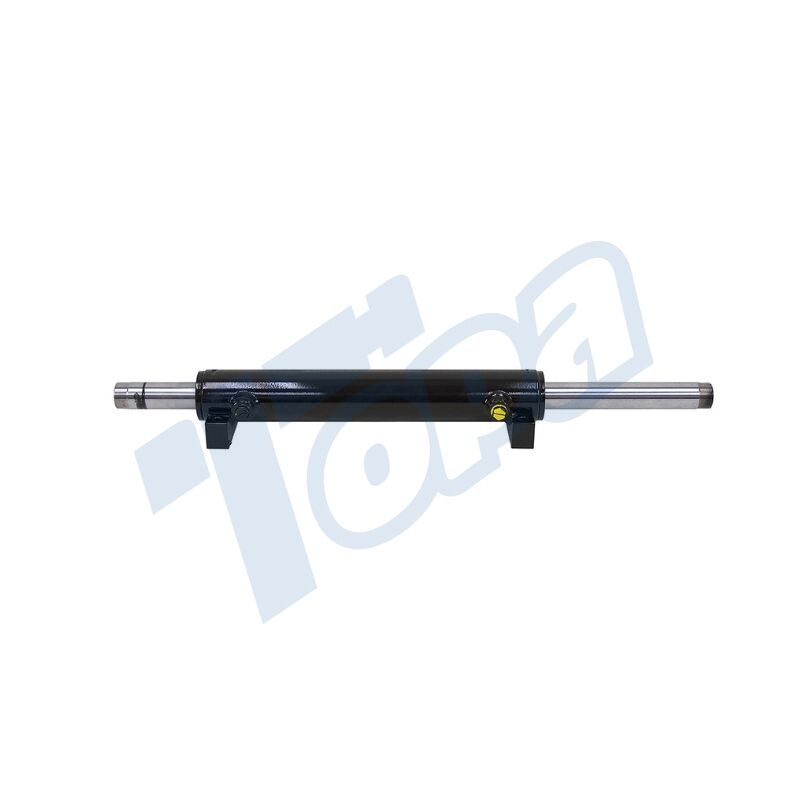

Double Rod Hydraulic Steering Cylinder

Double Rod Hydraulic Steering Cylinder

Cylinder Barrel: The main body of the cylinder, designed to contain the hydraulic fluid and withstand internal pressures.

Double Rods: This design features rods extending from both ends of the cylinder barrel. These rods provide balanced force and motion in opposite directions.

Piston: Located inside the barrel, the piston moves back and forth as hydraulic fluid is pumped into the cylinder.

Seals: High-quality seals are crucial in preventing fluid leaks and maintaining the efficiency of the cylinder.

End Caps: These are attached at both ends of the cylinder barrel and hold the internal components in place.

Ports: Hydraulic fluid enters and exits through these ports, located on the cylinder barrel. The fluid’s movement controls the extension and retraction of the rods.

Wear Rings: These components prevent direct metal-to-metal contact between the moving parts, reducing wear and extending the lifespan of the cylinder.

Description

Dual Rod Hydraulic Steering Cylinders are precision components in hydraulic systems that offer unique features and benefits for specific applications:

These hydraulic cylinders have connecting rods at each end to provide balanced forces and motion in opposite directions. This symmetry is critical for applications that require equal and opposite motion. As a double-acting cylinder, it provides controlled hydraulic power on both the extend and retract strokes, resulting in improved maneuverability and accuracy.

Steering cylinders are typically made of high-grade steel or similar rugged materials to withstand high pressures and harsh operating conditions. Cylinder components are precision engineered to ensure tight sealing and efficient movement, which is critical in steering applications. And these cylinders efficiently convert hydraulic energy into mechanical force, making them suitable for systems where energy efficiency is critical.

Advantages

Balanced Movement: The double rod design ensures symmetric force application, providing stability and precision in steering mechanisms.

Double-Acting Efficiency: These cylinders can exert force in both directions, making them more efficient and versatile compared to single-acting cylinders.

High Durability: Constructed from robust materials, they are designed to withstand high pressures and harsh operating conditions, ensuring longevity.

Uniform Load Distribution: The equalized pressure on both sides of the piston ensures uniform load handling, reducing wear and tear.

Compact Design: Despite their functionality, these cylinders are often compact, making them suitable for applications with limited space.

Applications

Industrial Machinery: Used in machines that require precise, balanced linear motion, such as manufacturing and processing equipment.

Automotive Systems: An integral part of advanced steering systems for large vehicles, providing balanced steering control.

Marine Applications: Used in boats and ships to provide reliable steering capability, especially where balanced forces are required for navigation.

Agricultural equipment: Used in tractors and other farm machinery for better control and maneuverability in a variety of field operations.

Construction Machinery: For bulldozers, excavators and other heavy construction vehicles for effective steering control.

Double Rod Hydraulic Steering Cylinder

The quality inspection process for dual piston rod hydraulic steering cylinders is thorough and multi-stage. It begins with raw material inspection, where we assess the strength and durability of the steel. During the manufacturing process, the precision of machining and assembly is closely monitored. Once assembled, each cylinder undergoes rigorous testing, including a pressure test, as well as a leakage test. The cylinders are also tested for response and balance of motion, which is critical to the cylinder’s steering function.

Topa’s cylinders are manufactured from high quality materials and are durable enough to withstand high pressures and harsh operating conditions. They are also typically designed for ease of maintenance, which offers significant advantages in minimizing downtime. These features make twin rod hydraulic steering cylinders the first choice for a wide variety of applications.

Topa's Customized Services

Topa’s customized twin rod hydraulic steering cylinders offer unique features and benefits to meet a variety of applications and customer needs:

Enhanced Precision and Balance: The customized twin rod design ensures precise, balanced steering control, which is critical for applications requiring high maneuverability.

More Durable: These cylinders are customized with high-grade materials for durability and resistance to wear and tear in harsh operating environments.

Application-specific design: These cylinders are tailored to specific applications to ensure optimal performance, whether in heavy machinery, industrial automation or marine systems.

Enhanced safety: Topa’s attention to customized detail extends to safety features that ensure reliable cylinder operation under all conditions.

Efficient Operation: The double-acting feature of these cylinders provides efficient and smooth operation, improving the overall performance of the steering system.

Topa’s customized twin rod hydraulic steering cylinders stand out for their precision, durability and adaptability. They are an excellent choice for customers seeking a customized hydraulic solution for complex steering systems.

Topa hydraulic cylinder CNC process factory
