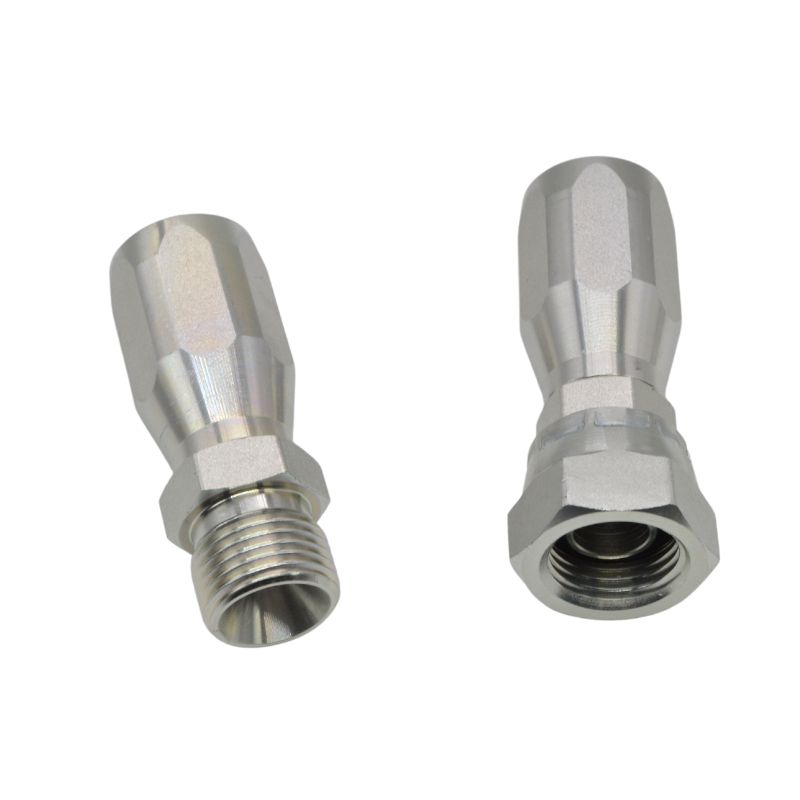

Ensuring the safety and efficiency of hydraulic systems hinges significantly on understanding the pressure rating of reusable hydraulic fittings. These fittings, integral to hydraulic systems, are designed to withstand specific pressure levels, ensuring that the system operates smoothly and safely. The pressure rating of a fitting is a critical specification that denotes the maximum pressure the fitting can safely handle. This rating is not merely a technical detail but a fundamental aspect of hydraulic system design and maintenance, as it directly impacts the system’s reliability and longevity.
The pressure rating of reusable hydraulic fittings is the maximum pressure a fitting can safely handle without risk of failure. It is crucial for ensuring the safe and efficient operation of hydraulic systems, preventing leaks and bursts. To determine the pressure rating, consult the manufacturer’s specifications, which detail the maximum operating pressure and material strength. Additionally, pressure ratings can be verified through testing methods such as hydrostatic and burst pressure tests. Selecting fittings with appropriate pressure ratings is essential to match the system’s requirements and maintain its integrity and performance. Always adhere to these ratings for optimal safety and functionality.
Pressure rating refers to the maximum pressure that a hydraulic fitting can endure without failing. This rating is crucial as it determines the suitability of a fitting for various hydraulic applications, ensuring system reliability and safety. It serves as a benchmark for selecting appropriate fittings that can handle the specific pressures encountered in a hydraulic system, thereby preventing leaks, bursts, and other failures that could compromise system integrity. Understanding the pressure rating helps in choosing fittings that are capable of withstanding the operational demands of hydraulic systems, thus maintaining optimal performance and avoiding potential system breakdowns.
The materials used in manufacturing fittings significantly impact their pressure ratings, playing a crucial role in determining the fitting’s overall strength, durability, and suitability for various hydraulic applications. High-strength materials, such as stainless steel, are often preferred for high-pressure systems due to their superior mechanical properties. Stainless steel, known for its excellent tensile strength and resistance to corrosion, typically offers higher pressure ratings compared to other materials. This makes it an ideal choice for demanding environments where fittings must endure extreme pressures and harsh conditions without compromising performance.
When selecting hydraulic fittings, it is essential to consider the specific requirements of the application, including the expected pressure levels, environmental conditions, and compatibility with the hydraulic fluid. By choosing fittings made from materials with appropriate strength and durability characteristics, engineers can ensure that the fittings will perform reliably under the system’s operating conditions, maintaining safety and efficiency.
The structural design of a hydraulic fitting is a critical factor influencing its pressure rating and overall performance in hydraulic systems. Key elements such as the thickness of the walls, the type of connection, and the overall geometry play vital roles in determining how well a fitting can withstand internal pressures and mechanical stresses without leaking or failing.
Fluctuations in temperature can significantly affect the pressure rating of a fitting. As materials expand or contract with temperature changes, their ability to withstand pressure may be compromised. For instance, high temperatures can weaken some materials, reducing their pressure tolerance, while low temperatures might make them more brittle and susceptible to failure.
Standards set by organizations such as the International Organization for Standardization (ISO) and the Society of Automotive Engineers (SAE) provide guidelines to ensure fittings meet minimum pressure requirements. These standards help standardize pressure ratings across different manufacturers and applications, ensuring consistency and safety in hydraulic systems. Adherence to these standards is crucial for maintaining the reliability and safety of hydraulic fittings.
Consulting the technical datasheets provided by manufacturers is essential for determining the pressure rating of reusable hydraulic fittings. These datasheets offer comprehensive information, including the maximum operating pressure, material specifications, and adherence to industry standards. Manufacturers conduct rigorous testing and provide these details to ensure users can select fittings that meet the required pressure capabilities for their specific applications. Reliance on these specifications ensures that the fittings are used within their designed limits, maintaining system safety and performance.
Hydrostatic testing is a widely used method to verify the pressure rating of hydraulic fittings. This test involves filling the fitting with water and pressurizing it to a specified level. The objective is to check for leaks or any signs of failure under pressure. During the test, the fitting is exposed to pressures beyond its typical operating range, creating a safety margin that helps confirm its reliability under various conditions. By identifying potential weaknesses or leaks, hydrostatic testing ensures that the fitting can withstand the operating pressures it will encounter in real-world applications. This method is crucial for validating the durability and integrity of the fitting, ensuring it can maintain its performance under normal and extreme conditions.
Burst pressure testing subjects the hydraulic fitting to increasing pressure until it bursts. This test is designed to determine the maximum pressure the fitting can endure before failure. The process involves gradually increasing the pressure applied to the fitting until it reaches a point where it can no longer contain the pressure and ruptures. Burst pressure testing provides critical data on the ultimate strength of the fitting, allowing engineers to establish a safe operating pressure that is significantly lower than the burst pressure. This ensures a substantial safety margin, helping to prevent failures during unexpected pressure spikes in the system. By understanding the burst pressure, engineers can select fittings that not only meet the required specifications but also provide additional safety and reliability in hydraulic systems. This method is essential for ensuring that the fittings used in hydraulic systems can handle both normal operating conditions and occasional pressure surges without catastrophic failure.
The pressure rating of a hydraulic fitting can be determined through calculation using the fundamental formula: Pressure (P) = Force (F) / Area (A). This formula requires knowledge of the force exerted on the fitting and the area over which it is applied. By applying this formula, users can estimate the fitting’s capacity to handle specific pressure levels, ensuring it is suitable for the intended application. This method provides a straightforward approach to assessing the pressure handling capabilities of hydraulic fittings based on their physical dimensions and the forces they encounter.
To illustrate how to use the basic formula, consider a fitting with an internal diameter of 0.5 inches and a force of 1000 pounds. The pressure rating can be calculated as follows:
Step 1: Calculate the Area (A)
Formula: Area (A) = π * (Diameter/2)^2
Calculation:
Diameter = 0.5 inches
Radius = Diameter / 2 = 0.5 / 2 = 0.25 inches
Area (A) = π * (0.25 inches)^2
Area (A) ≈ 3.14 * (0.25 inches)^2
Area (A) ≈ 3.14 * 0.0625 square inches
Area (A) ≈ 0.196 square inches
Step 2: Calculate the Pressure (P)
Formula: Pressure (P) = Force (F) / Area (A)
Calculation:
Force (F) = 1000 pounds
Area (A) = 0.196 square inches
Pressure (P) = 1000 pounds / 0.196 square inches
Pressure (P) ≈ 5102 psi
With a force of 1000 pounds applied to a fitting with an internal diameter of 0.5 inches, the calculated pressure rating is approximately 5102 psi. This value indicates the maximum pressure the fitting can handle under the given conditions. By using this method, engineers and technicians can quickly estimate the pressure rating of fittings based on their dimensions and the forces they need to withstand, aiding in the selection of appropriate fittings for various hydraulic applications.
Visual Inspection:
Routine Checks: Regularly inspect fittings for any signs of wear, corrosion, or damage. Look for visible defects such as cracks, pitting, or deformation, which can significantly compromise the pressure rating and overall integrity of the fittings.
Indicators of Damage: Pay attention to discoloration, rust, or any physical changes in the fittings, as these are often indicators of material degradation or stress.
Checking for Wear and Tear:
Seals and Threads: Ensure that all seals are intact and threads are not worn out or stripped. Worn seals and threads can lead to leaks and reduce the fitting’s ability to maintain the required pressure rating.
Regular Replacements: Replace seals and gaskets periodically to maintain optimal performance and pressure integrity.
Regular Inspection Schedules:
Scheduled Maintenance: Implement a structured maintenance schedule that includes routine checks of all hydraulic fittings. This proactive approach helps in the early detection of potential issues, ensuring fittings are always in good working condition.
Documentation: Keep detailed records of inspections, including dates and findings, to track the condition of fittings over time and plan for replacements or repairs.
Cleaning and Lubrication:
Cleanliness: Regularly clean fittings to remove dirt, debris, and contaminants that could interfere with their operation and pressure rating. Use appropriate cleaning solutions that do not damage the fitting material.
Lubrication: Properly lubricate fittings to prevent corrosion and ensure smooth operation. Use lubricants compatible with the fitting materials and the hydraulic fluid in the system.
Importance of Safety Margins:
Higher Ratings: Always select fittings with a pressure rating higher than the system’s maximum operating pressure. This safety margin accounts for unexpected pressure spikes and variations, ensuring the system operates within safe limits.
Standard Practice: A common practice is to choose fittings with a pressure rating at least 1.5 times the maximum system pressure, providing a buffer against potential overpressure situations.
Using Pressure Relief Valves:
Overpressure Protection: Install pressure relief valves in the system to protect against excessive pressure build-up. These valves automatically release pressure if it exceed the system’s safe operating limits, preventing damage to fittings and other components.
Regular Testing: Test pressure relief valves regularly to ensure they function correctly and provide the necessary protection.
Adhering to manufacturer guidelines is crucial for ensuring that hydraulic fittings are used within their specified pressure ratings. These guidelines provide essential information on the proper installation, maintenance, and usage of fittings, helping to prevent system failures and ensuring optimal performance.
Cross-Check with Datasheets: Always refer to and cross-check the manufacturer’s datasheets for detailed information on pressure ratings, installation procedures, and material compatibility. This ensures that fittings are used correctly and within their designed specifications.
Common Errors:
Improper Tightening: Over-tightening or under-tightening fittings can lead to leaks or damage, compromising the pressure rating.
Misalignment: Incorrect alignment during installation can cause undue stress on fittings, reducing their ability to maintain the specified pressure rating.
Avoidance Tip:
Follow Procedures and Use Proper Tools: Adhere to recommended installation procedures provided by the manufacturer. Use appropriate tools and torque settings to ensure fittings are tightened correctly and aligned properly, maintaining their integrity and pressure rating.
Impact:
Changes in system pressure or temperature can significantly affect the performance and integrity of hydraulic fittings. These changes can lead to fittings operating outside their specified pressure ratings, increasing the risk of failure.
Avoidance Tip:
Regularly Review System Specifications: Continuously monitor and review the system’s operating conditions, including pressure and temperature. Adjust or replace fittings as necessary to ensure they remain suitable for the system’s current specifications.
Determining the pressure rating of reusable hydraulic fittings is critical to ensure the safety and efficiency of hydraulic systems. The pressure capacity of a fitting can be accurately assessed by referring to the manufacturer’s technical data sheet, performing verification methods such as hydro testing and burst pressure testing, and using basic pressure formulas. Understanding and applying these methods will ensure that hydraulic systems operate within safe limits and extend equipment life.
The pressure rating of a reusable hydraulic fitting is the maximum pressure it can safely handle without failing. This rating is crucial for ensuring the fitting’s reliability and the overall safety of the hydraulic system.
Temperature variations can significantly impact the pressure rating. High temperatures can weaken materials, reducing their pressure tolerance, while low temperatures can make materials more brittle, increasing the risk of failure under pressure.
Manufacturer specifications provide detailed information on the maximum operating pressure, material properties, and compliance with industry standards, ensuring that fittings are used within their designed limits and maintaining system integrity.
You can verify the pressure rating through manufacturer datasheets, hydrostatic testing, and burst pressure testing. These methods help ensure that the fitting meets the required pressure capacity and performs reliably under operating conditions.
Consider the system’s maximum operating pressure, potential pressure spikes, material composition, design features, and the operating temperature range. Also, ensure the fitting complies with relevant industry standards and provides a suitable safety margin.
Hydraulic fittings should be inspected regularly as part of a routine maintenance schedule. Look for signs of wear, corrosion, or damage, and ensure seals and threads are intact to maintain the fitting’s pressure rating and prevent system failures.
