SAE Hydraulic Fittings

Description:

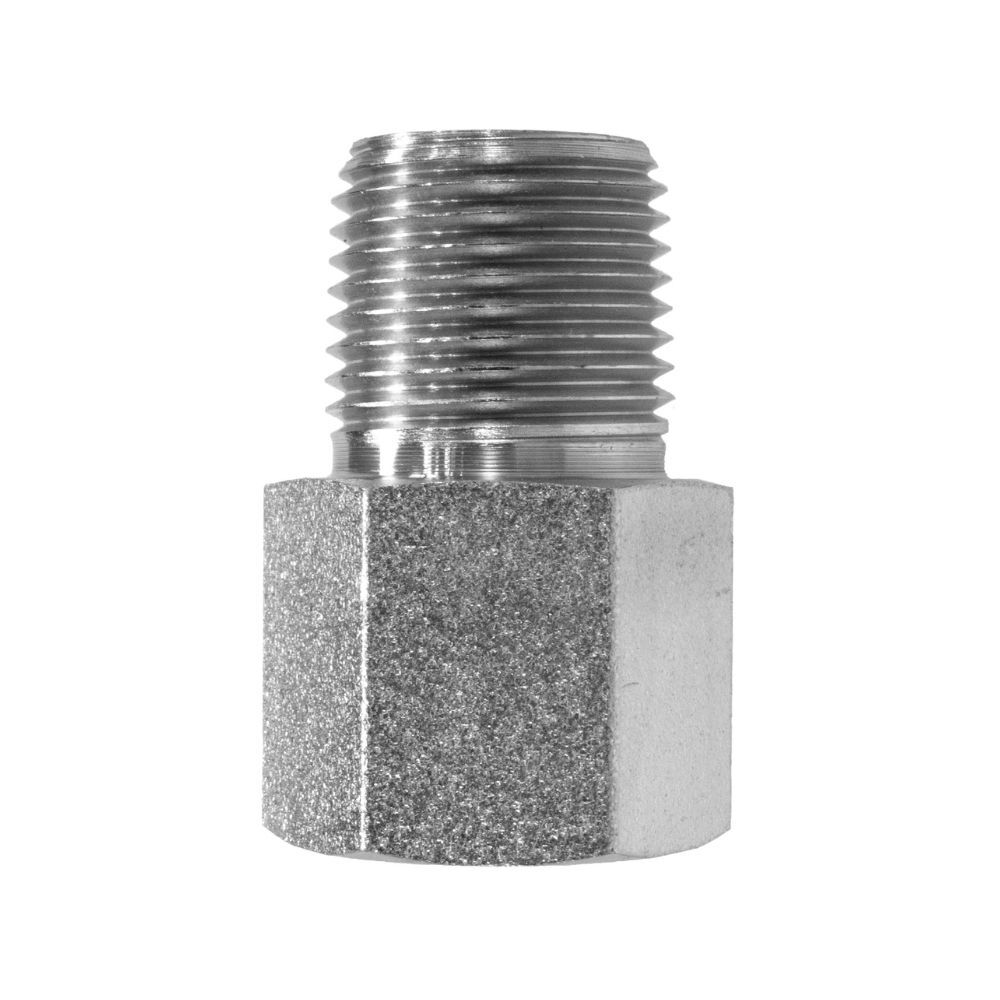

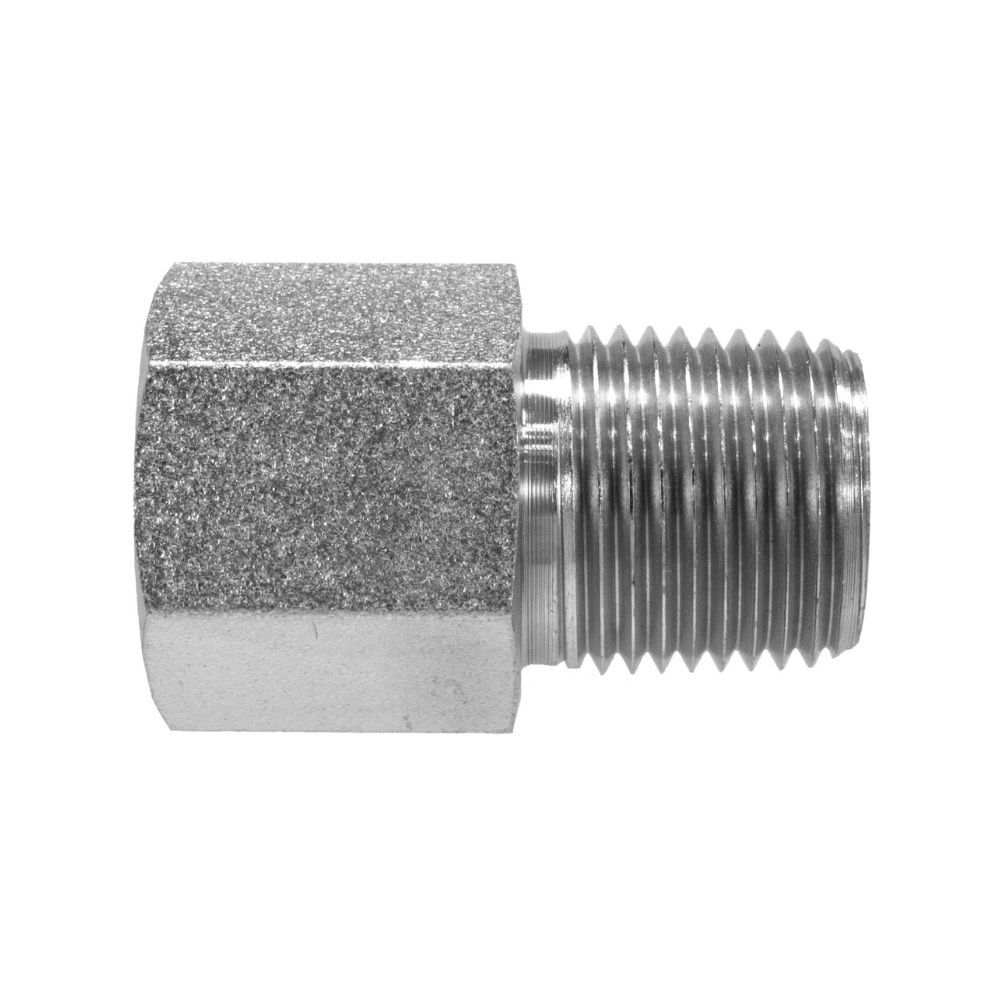

6404 female SAE × male NPTF hydraulic fittings are hybrid fittings with a male NPTF thread on one end and a male SAE ORB straight thread on the other end.

This type of connector is known for its excellent sealing properties, which can withstand high pressures and vibrations.

If you have any questions about NPT to SAE fittings, please contact us.

Features and Benefits:

• Standardization
• Leak prevention
• Versatility
• Customize

Description

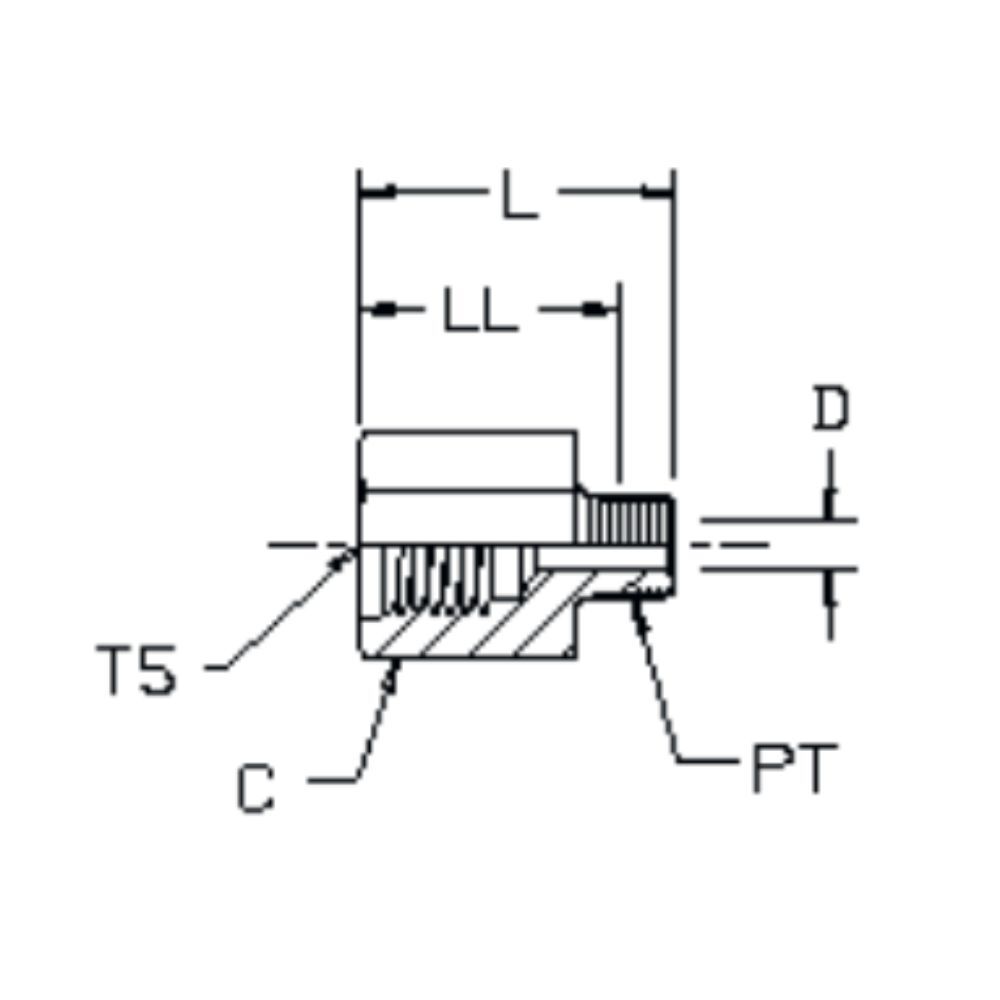

TUBE FITTING PART #	PT PORT THD NPTF	T5 PORT THD UN/UNF-2A	C HEX (inch)	D DRILL (inch)	L (inch)
6404-2-4	1/8-27	7/16-20	11/16	0.187	1.06
6404-2-5	1/8-27	1/2-20	3/4	0.187	1.09
6404-4-6	1/4-18	9/16-18	3/4	0.281	1.36
6404-6-8	3/8-18	3/4-16	1	0.391	1.50
6404-8-10	1/2-14	7/8-14	1 1/4	0.484	1.75
6404-12-8	3/4-14	3/4-16	1 1/8	0.672	1.13

6404 Male Pipe×Female SAE Hydraulic Fittings Video

This video shows information about 6404 female SAE to male NPTF fittings.

SAE hydraulic fittings have highly versatile, so they are typically found in a wide range of applications, such as: automotive, agriculture, industrial equipment and construction.

If you have any questions about SAE adapter fittings, please contact us.
