Description

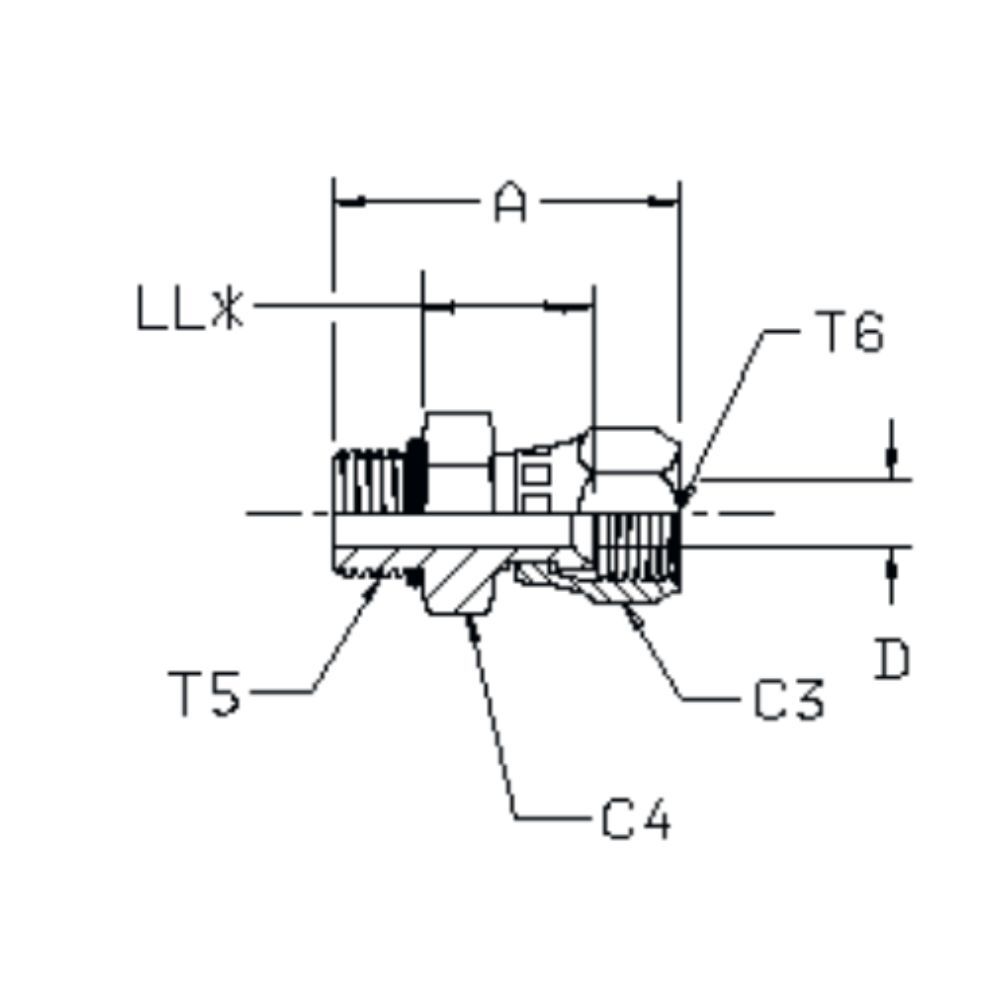

TUBE FITTING | TUBE O.D. | T5 UN/UNF-2A | T6 SWIVEL UN/UNF-2B | A | C3 | C4 | D | LL |
6402-4-4 | 1/4 | 7/16-20 | 7/16-20 | 1.31 | 9/16 | 9/16 | 0.172 | 0.56 |
6402-4-4 | 1/4 | 7/16-20 | 7/16-20 | 1.31 | 9/16 | 9/16 | 0.172 | 0.56 |
6402-6-6 | 5/16 | 1/2-20 | 1/2-20 | 1.35 | 9/16 | 9/16 | 0.172 | 0.56 |
6402-6-6 | 3/8 | 9/16-18 | 9/16-18 | 1.43 | 11/16 | 11/16 | 0.297 | 0.61 |
6402-8-6 | 3/8 | 3/4-16 | 9/16-18 | 1.50 | 11/16 | 7/8 | 0.297 | 0.62 |
6402-8-8 | 1/2 | 3/4-16 | 3/4-16 | 1.61 | 7/8 | 7/8 | 0.391 | 0.62 |
6402-6-8 | 1/2 | 9/16-18 | 3/4-16 | 1.54 | 7/8 | 1 3/16 | 0.297 | 0.73 |
6402-10-10 | 5/8 | 7/8-14 | 7/8-14 | 1.84 | 1 | 1 1/16 | 0.484 | 0.72 |
6402-12-12 | 3/4 | 1 1/16-12 | 1 1/16-12 | 2.07 | 1 1/4 | 1 1/4 | 0.609 | 0.76 |
6402-16-16 | 1 | 1 5/16-12 | 1 5/16-12 | 2.28 | 1 1/2 | 1 1/2 | 0.846 | 0.83 |
6402-16-16 | 1 | 1 5/16-12 | 1 5/16-12 | 2.28 | 1 1/2 | 1 1/2 | 0.846 | 0.83 |
6402-20-20 | 1 1/4 | 1 5/8-12 | 1 5/8-12 | 2.49 | 1 1/2 | 1 1/2 | 0.846 | 0.83 |
6402-20-20 | 1 1/4 | 1 5/8-12 | 1 5/8-12 | 2.49 | 2 | 2 | 1.078 | 1.01 |
6402 Femlae SAE JIC × Male SAE Fitting Video

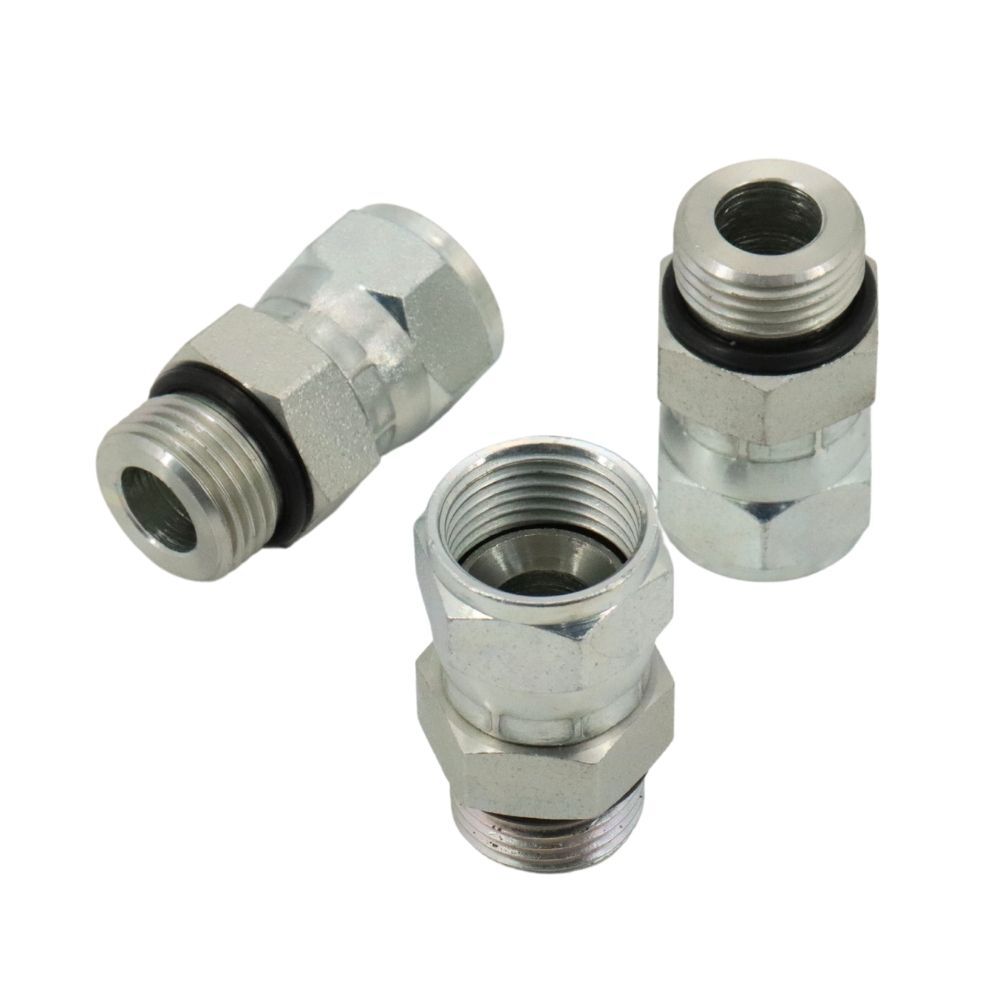

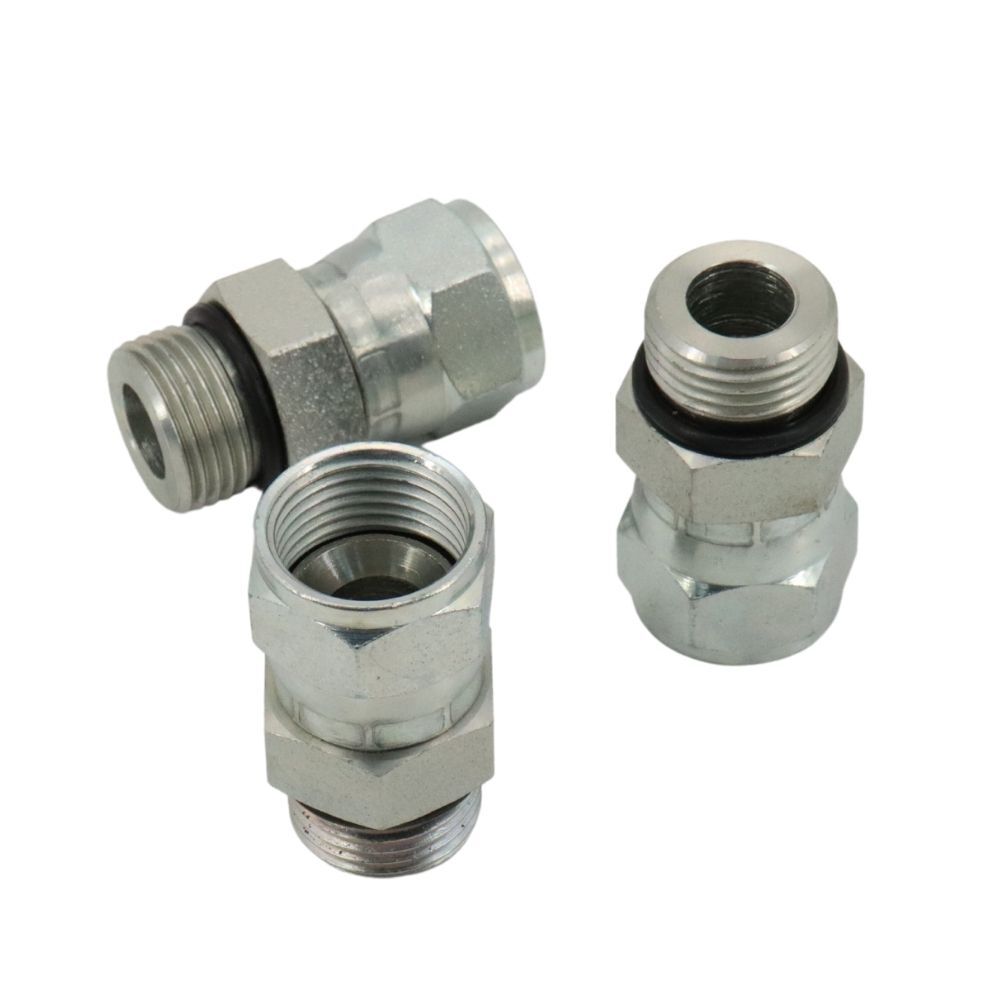

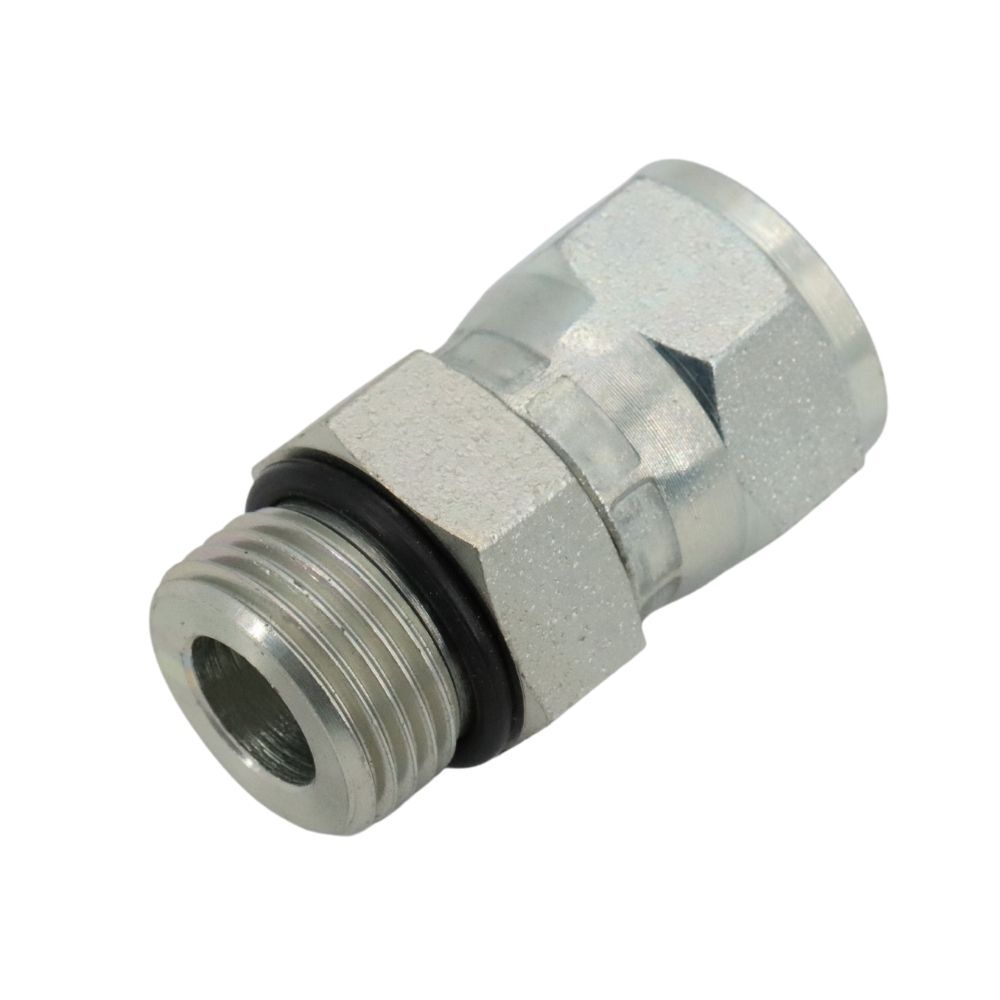

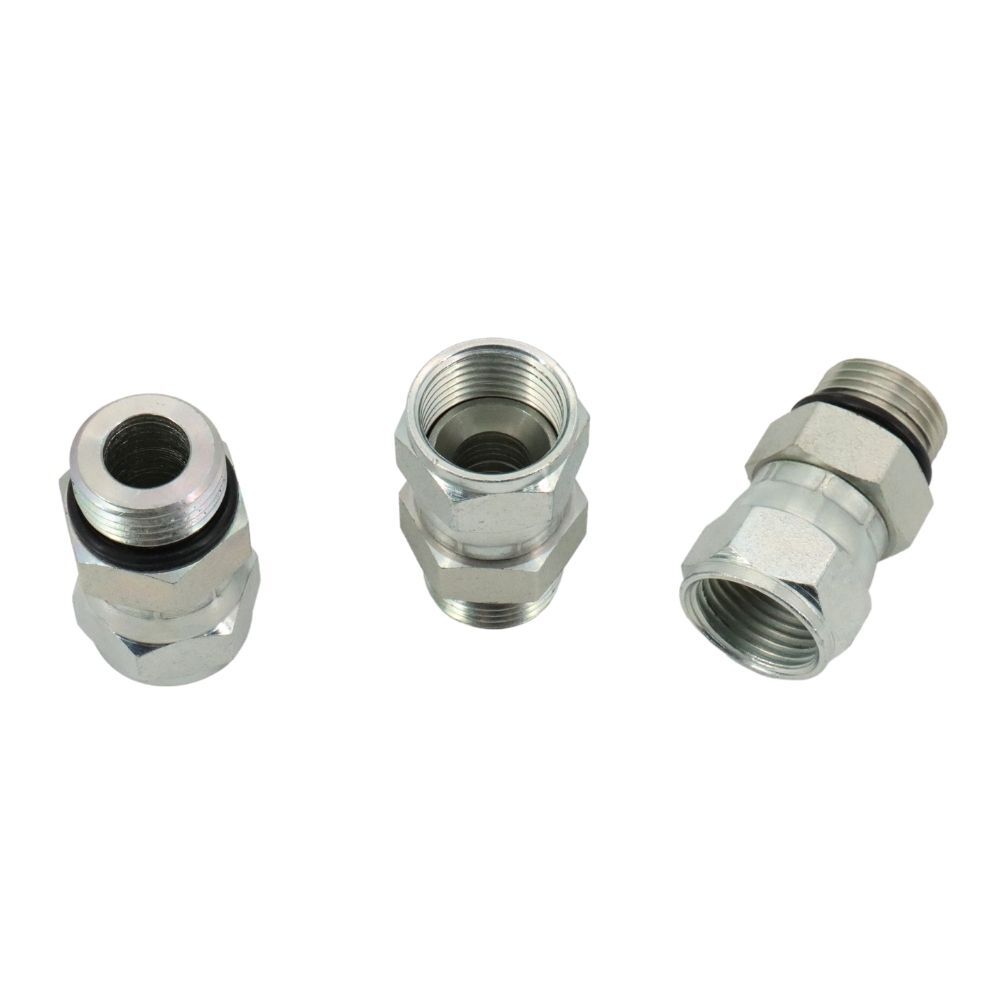

This video shows information about 6402 female SAE flare to male SAE ORB fittings.
SAE fitting has highly versatile, so they are typically found in a wide range of applications, such as: automotive, agriculture, and construction.
If you have any questions about SAE orb fittings, please contact us.
