Description

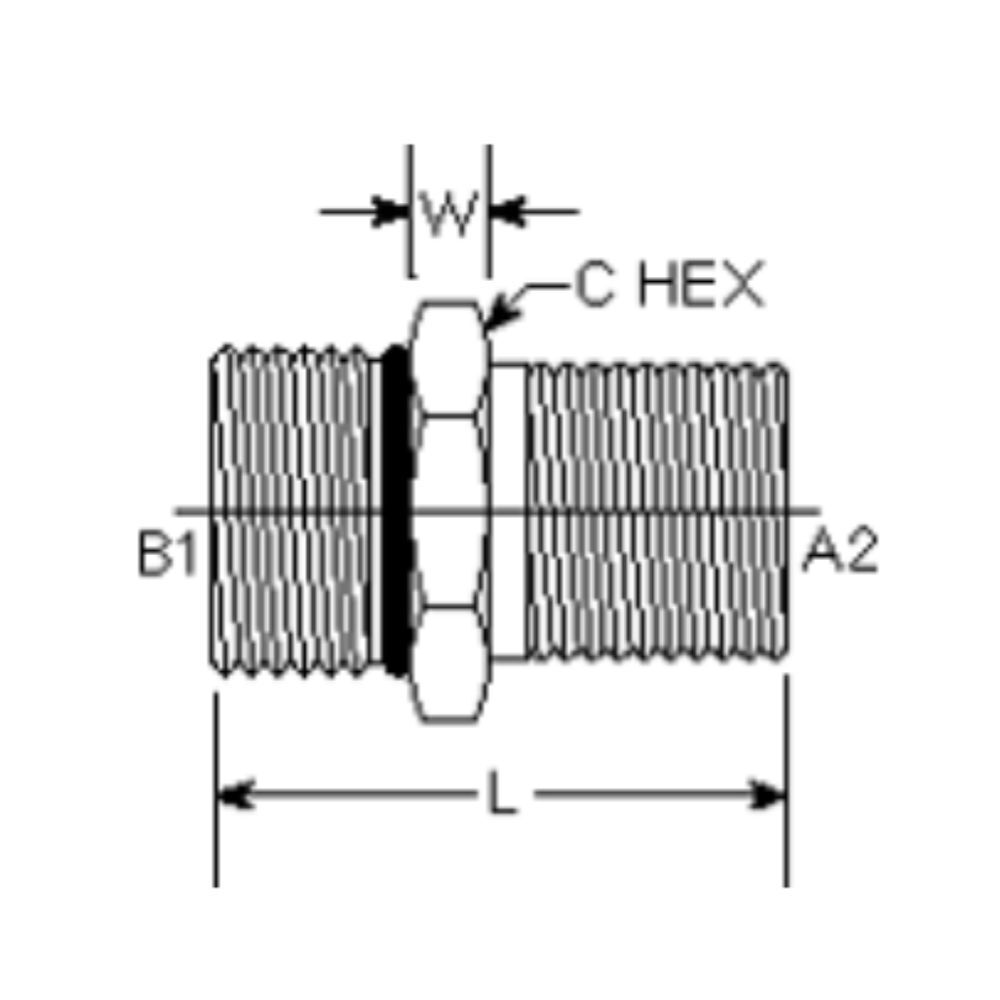

TUBE FITTING PART# | TUBE O.D. (inch) | B1 PORT THD UN/UNF-2A | A2 PORT THD NPTF | W WIDTH (inch) | C HEX (inch) |
6401-04-02 | 1/4 | 7/16-20 | 1/8-27 | 0.280 | 9/16 |
6401-04-04 | 1/4 | 7/16-20 | 1/4-18 | 0.310 | 9/16 |
6401-05-02 | 5/16 | 1/2-20 | 1/8-27 | 0.290 | 5/8 |
6401-05-04 | 5/16 | 1/2-20 | 1/8-27 | 0.210 | 5/8 |
6401-06-02 | 3/8 | 9/16-18 | 1/8-27 | 0.340 | 11/16 |
6401-06-04 | 3/8 | 9/16-18 | 1/4-18 | 0.310 | 11/16 |
6401-06-08 | 3/8 | 9/16-18 | 1/2-14 | 0.240 | 7/8 |
6401-08-04 | 1/2 | 3/4-16 | 1/4-18 | 0.240 | 7/8 |
6401-08-06 | 1/2 | 3/4-16 | 3/8-18 | 0.340 | 7/8 |
6401-08-08 | 1/2 | 3/4-16 | 1/2-14 | 0.410 | 7/8 |
6401-08-12 | 1/2 | 3/4-16 | 3/4-14 | 0.260 | 1 1/8 |
6401-10-04 | 5/8 | 7/8-14 | 1/4-18 | 0.400 | 1 |
6401-10-06 | 5/8 | 7/8-14 | 3/8-18 | 0.450 | 1 |
6401-10-08 | 5/8 | 7/8-14 | 1/2-14 | 0.410 | 1 |
6401-10-12 | 5/8 | 7/8-14 | 3/4-14 | 0.410 | 1 1/8 |
6401-12-06 | 3/4 | 1 1/16-12 | 3/8-18 | 0.500 | 1 1/4 |
6401-12-08 | 3/4 | 1 1/16-12 | 1/2-14 | 0.500 | 1 1/4 |
6401-12-12 | 3/4 | 1 1/16-12 | 3/4-14 | 0.380 | 1 1/4 |
6401-12-16 | 3/4 | 1 1/16-12 | 1-11 1/2 | 0.460 | 1 3/8 |
6401-14-12 | 7/8 | 1 3/16-12 | 3/4-14 | 0.490 | 1 3/8 |
6401-14-16 | 7/8 | 1 3/16-12 | 1-11 1/2 | 0.440 | 1 3/8 |
6401-16-12 | 1 | 1 5/16-12 | 3/4-14 | 0.540 | 1 1/2 |
6401-16-16 | 1 | 1 5/16-12 | 1-1 11/2 | 0.500 | 1 1/2 |
6401-16–20 | 1 | 1 5/16-12 | 1 1/4-11 1/2 | 0.540 | 1 3/4 |
6401-20-12 | 1 1/4 | 1 5/8-12 | 3/4-14 | 0.540 | 1 7/8 |
6401-20-20 | 1 1/4 | 1 5/8-12 | 1 1/4-11 1/2 | 0.580 | 1 7/8 |
6401-24-16 | 1 1/2 | 1 7/8-12 | 1-1 11/2 | 0.670 | 2 1/8 |
6401-24-20 | 1 1/2 | 1 7/8-12 | 1 1/4-11 1/2 | 0.670 | 2 1/8 |
6401-24-24 | 1 1/2 | 1 7/8-12 | 1 1/2-11 1/2 | 0.650 | 2 1/8 |
6401-32-32 | 2 | 2 1/2-12 | 2-11 1/2 | 0.810 | 2 3/4 |

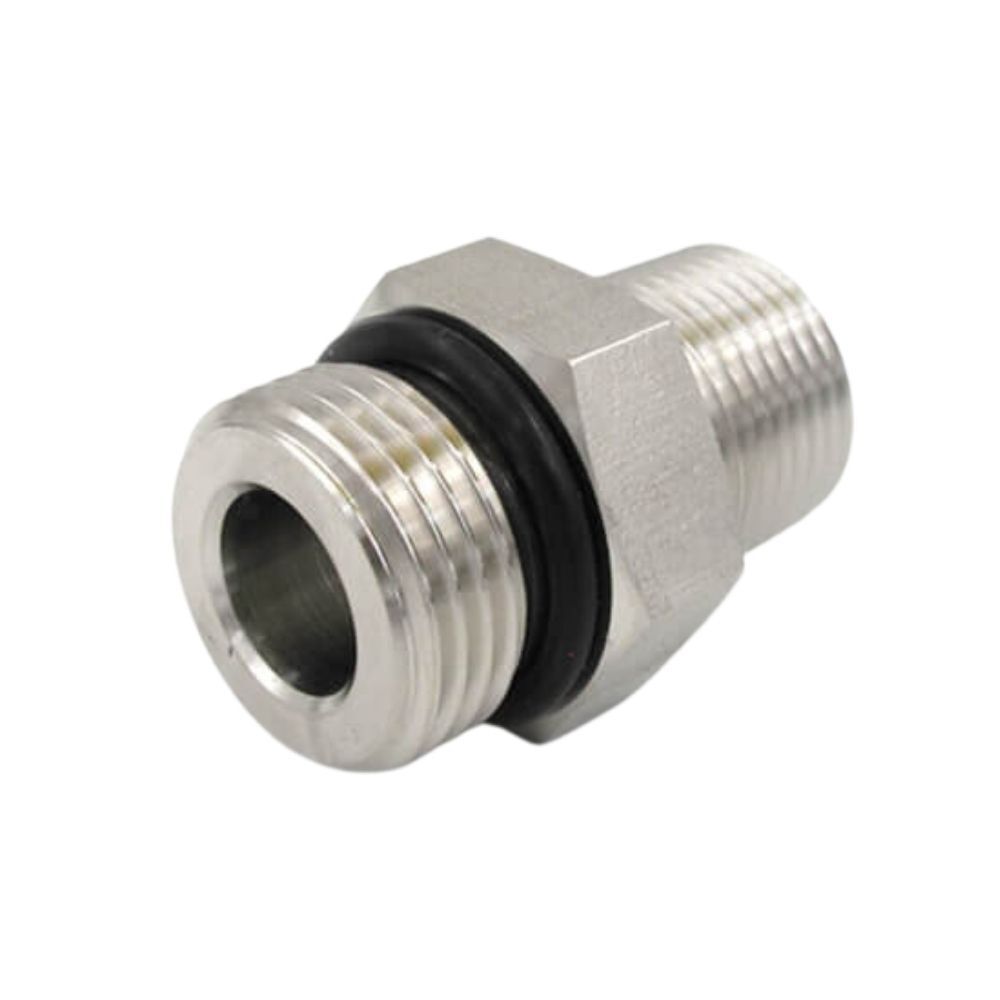

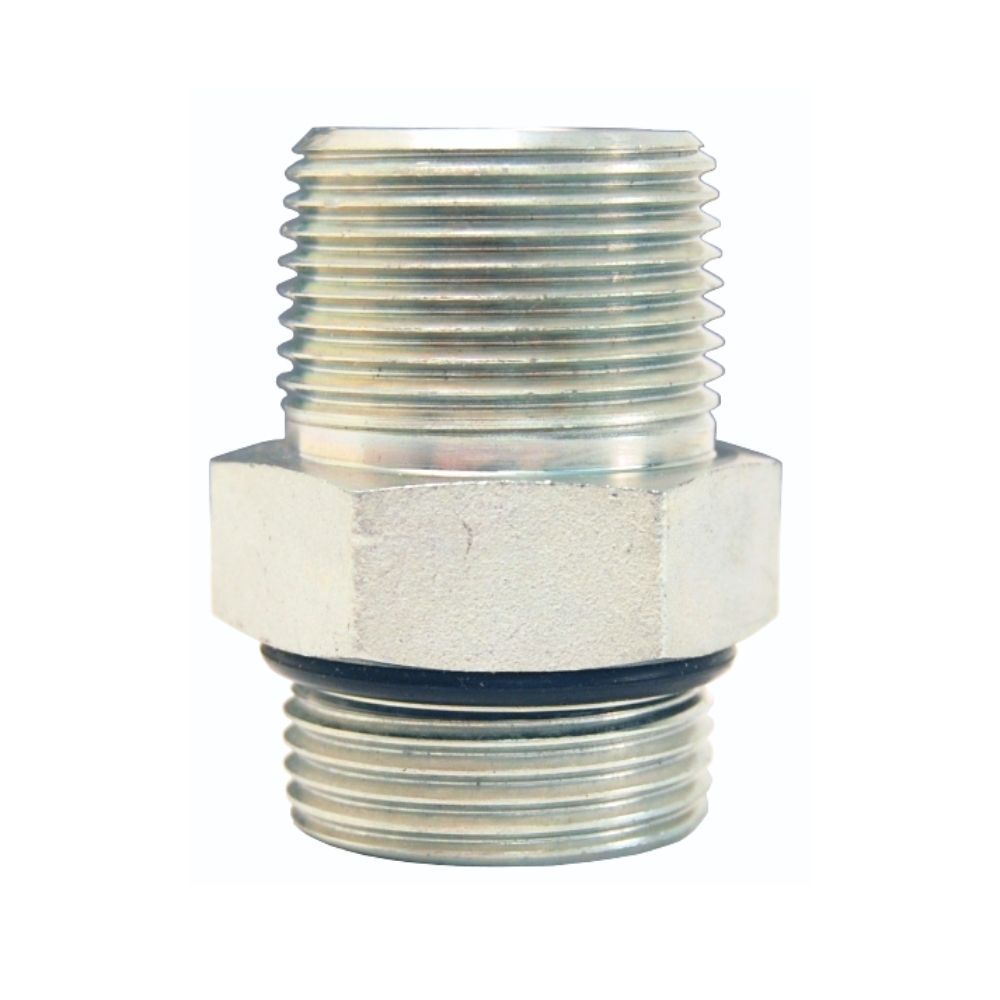

6401 Male NPTF × ORB SAE Adapter Video
This video shows information about 6401 male NPTF to SAE ORB fittings.
SAE adapter commonly used in various industries, such as automotive, construction, agriculture, and industrial equipment, and is typically made from materials that offer high strength, durability, and corrosion resistance.
If you have any questions about SAE hydraulic fittings, please contact us.
