Description

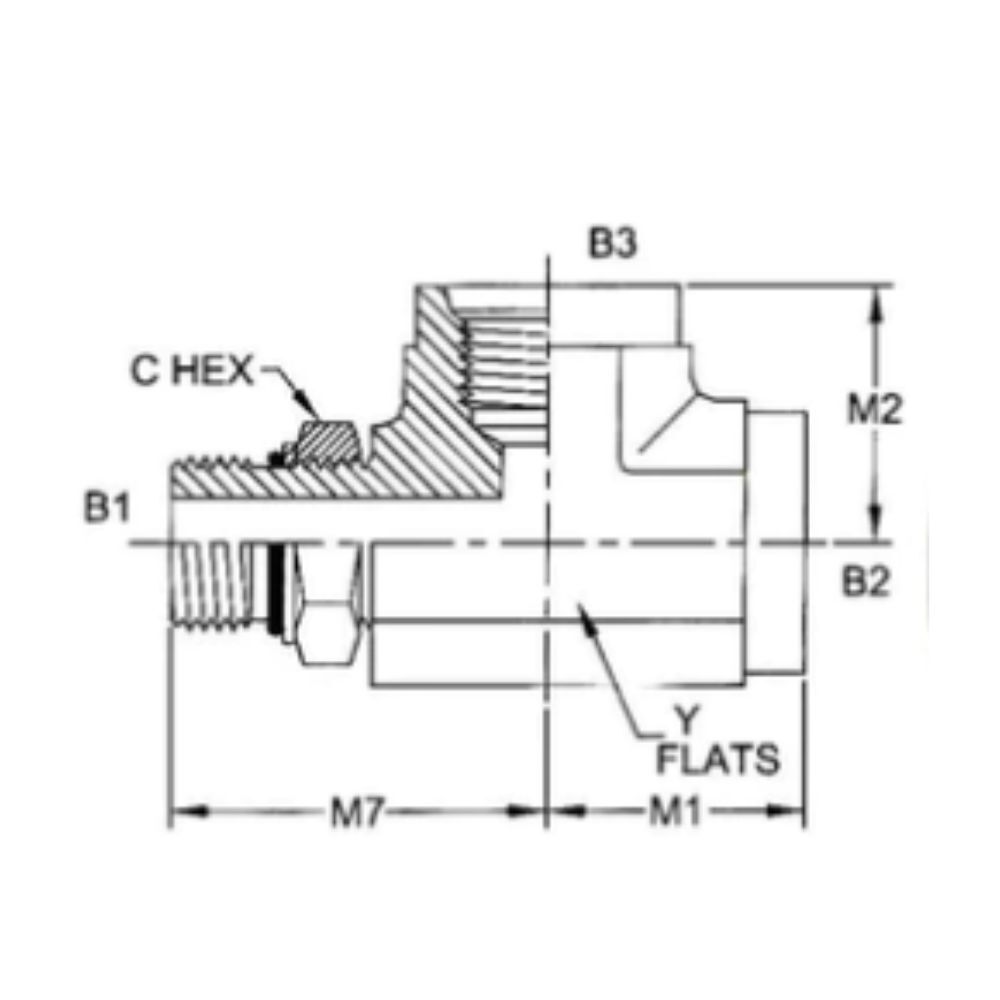

PART | TUBE O.O. | B1 | B2 | B3 | B1 | M7 | M1 | M2 | C | Y |
6835-04-04-04-NWO-FG | 1/4 | 7/16-20 | 7/16-20 | 7/16-20 | 0.172 | 1.23 | 0.63 | 0.63 | 0.563 | 0.750 |
6835-06-06-06-NWO-FG | 3/8 | 9/16-18 | 9/16-18 | 9/16-18 | 0.297 | 1.38 | 0.75 | 0.75 | 0.688 | 0.875 |
6835-08-08-08-NWO-FG | 1/2 | 3/4-16 | 3/4-16 | 3/4-16 | 0.391 | 1.59 | 0.88 | 0.88 | 0.875 | 1.062 |
6835-10-10-10-NWO-FG | 5/8 | 7/8-14 | 7/8-14 | 7/8-14 | 0.484 | 1.81 | 1.02 | 1.02 | 1.000 | 1.062 |
6835-12-12-12-NWO-FG | 3/4 | 1-1/16-12 | 1-1/16-12 | 1-1/16-12 | 0.609 | 2.00 | 1.21 | 1.21 | 1.250 | 1.312 |
6835-16-16-16-NWO-FG | 1 | 1-5/16-12 | 1-5/16-12 | 1-5/16-12 l | 0.844 | 2.25 | 1.33 | 1.33 | 1.500 | 1.625 |
6835 SAE Adapter Fittings-Forged Tee Fitting Video
This video shows information about 6835 SAE forged run tee fitting.
SAE adapter fittings are commonly used in hydraulic fluid systems across various applications, including automotive systems, construction, agriculture, and industrial equipment.
If you have any questions about SAE orb fittings, please contact us.
