Description
PART NO | FB-1 | FB-2 | THREAD-1 | THREAD 2 | A |
6425-02-02 | 1/8 | 1/8 | 5/16-24 | 5/16-24 | |
6425-04-04 | 1/4 | 1/4 | 7/16-20 | 7/16-20 | 1.131 |
6425-06-06 | 3/8 | 3/8 | 9/16-18 | 9/16-18 | 1.261 |
6425-08-08 | 1/2 | 1/2 | 3/4-16 | 3/4-16 | 1.417 |
6425-10-10 | 5/8 | 5/8 | 7/8-14 | 7/8-14 | |
6425-12-12 | 3/4 | 3/4 | 11/16-12 | 11/16-12 | |
6425-16-16 | 1 | 1 | 1-5/16-12 | 1-5/16-12 | 1.850 |
6425-20-20 | 1-1/4 | 1-1/4 | 1-5/8-12 | 1-5/8-12 | 1.850 |
6425-24-24 | 1-1/2 | 1-1/2 | 1-7/8-12 | 1-7/8-12 | 1.846 |
6425-32-32 | 2 | 2 | 2-1/2-12 | 2-1/2-12 |

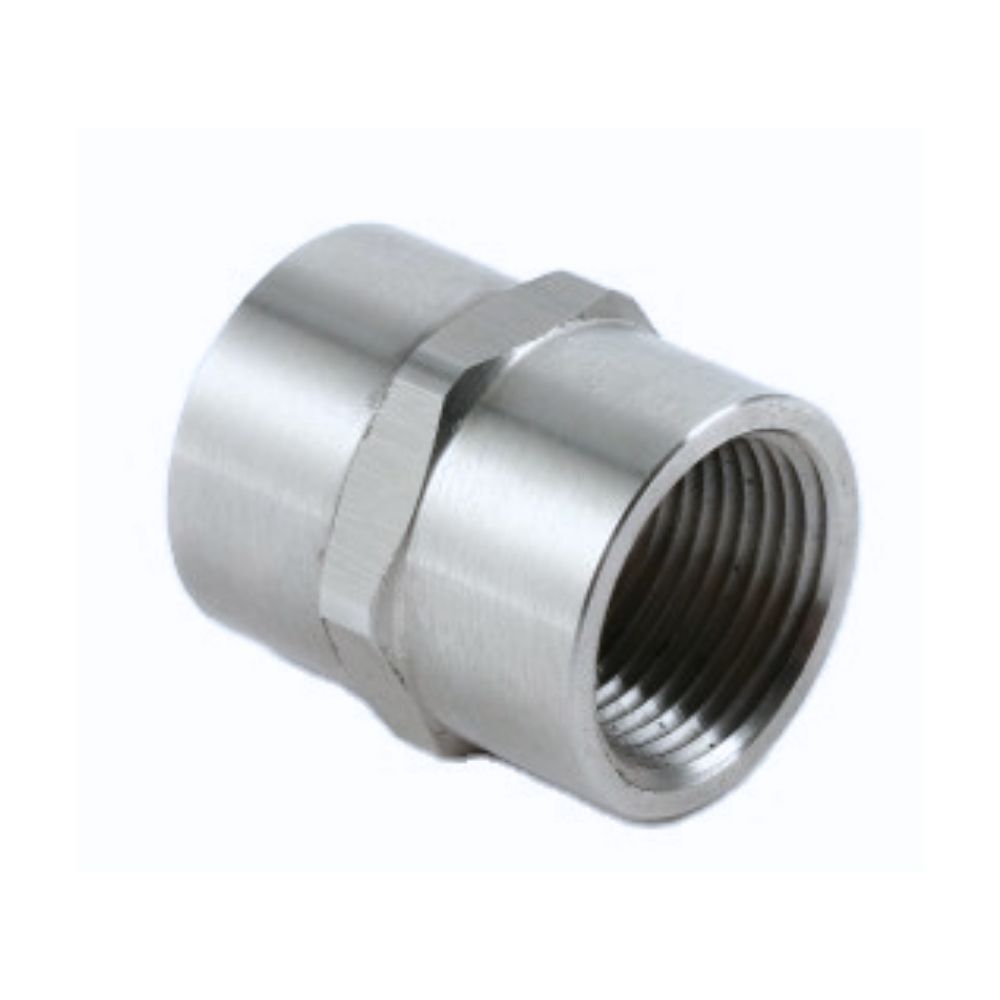

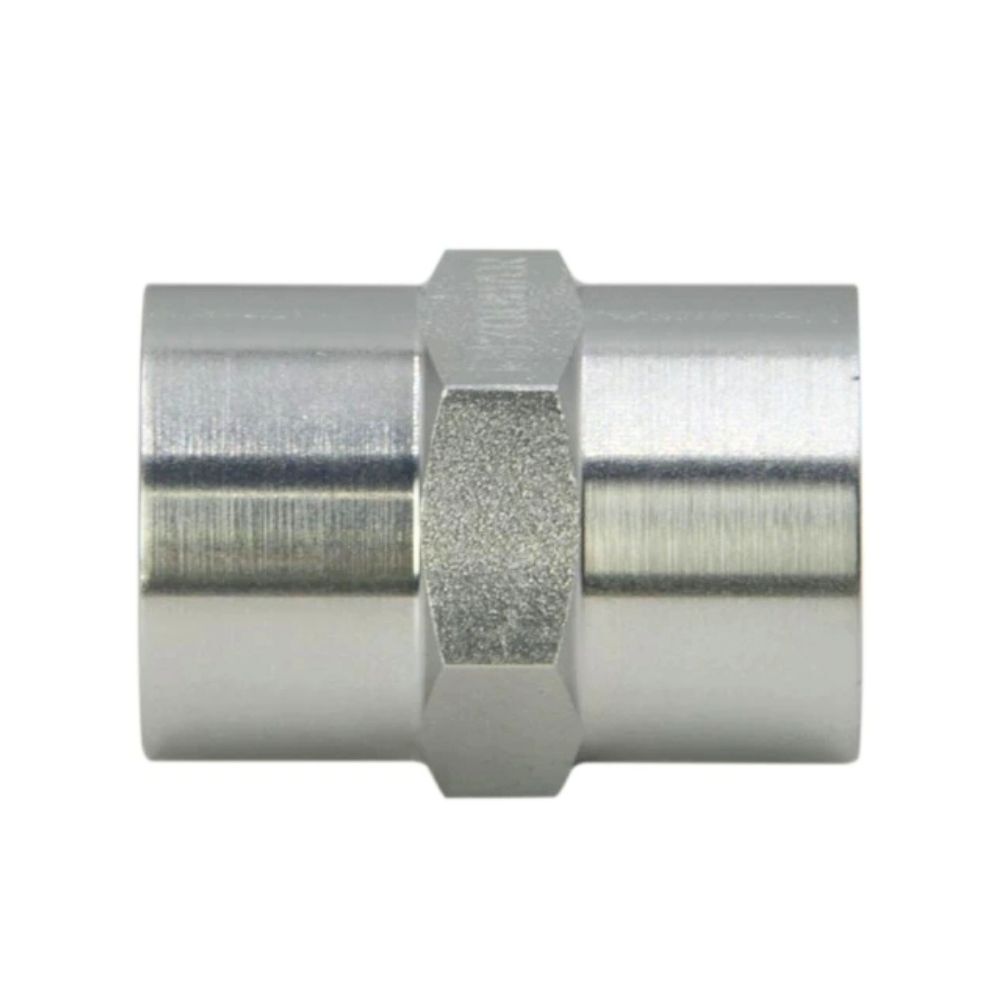

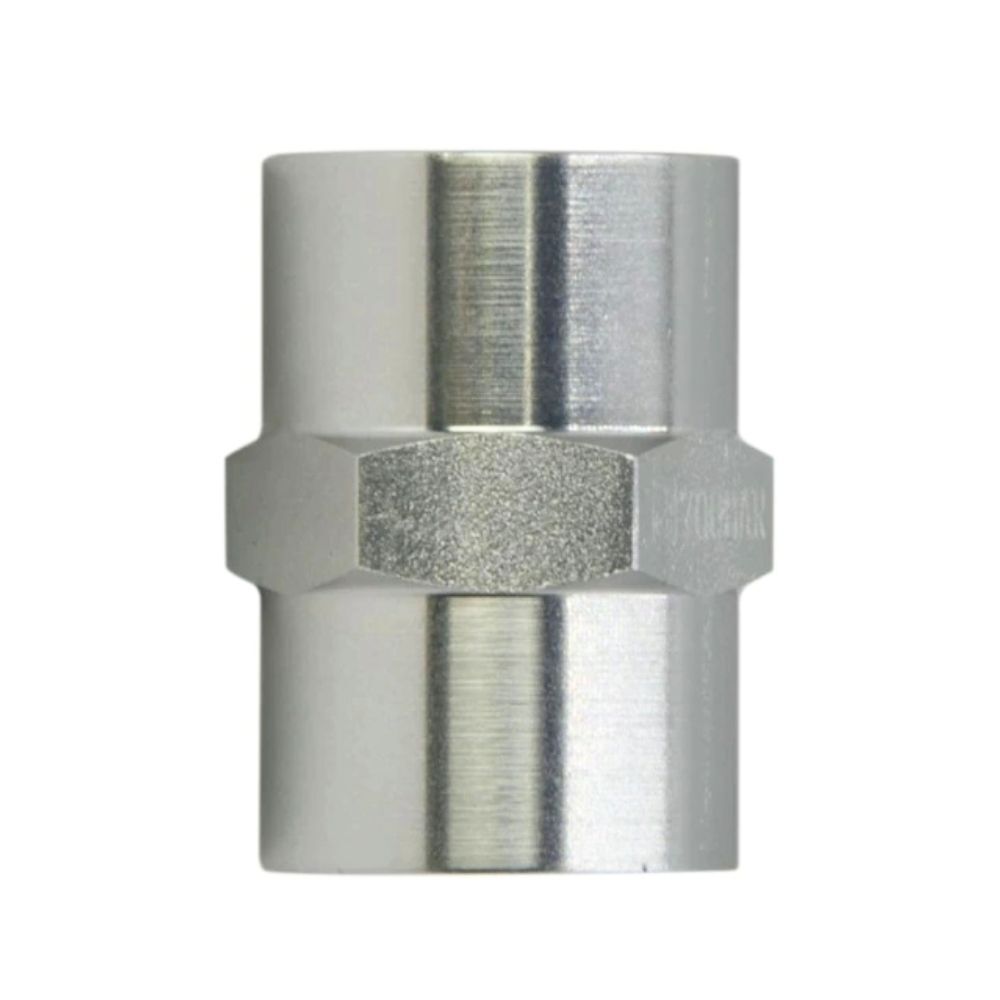

6425 SAE Female Fittings Video
This video shows information about 6425 SAE female fittings.
SAE female fittings are commonly used in hydraulic fluid systems across various applications, including fluid distribution systems, automotive, agriculture, and industrial equipment.
If you have any questions about SAE tube fittings, please contact us.
