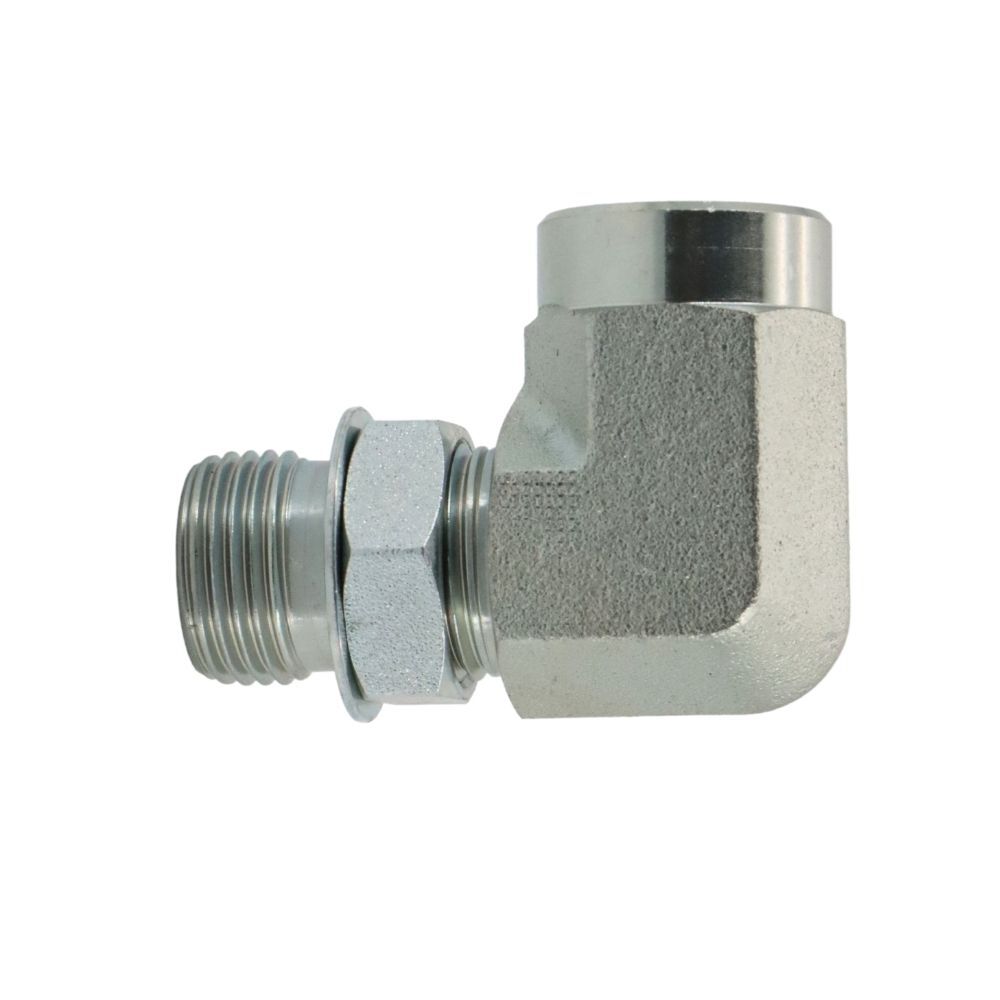

6805 90° Elbow SAE Tube Fitting China Manufacturer-Topa

SAE Tube Fitting

Description:

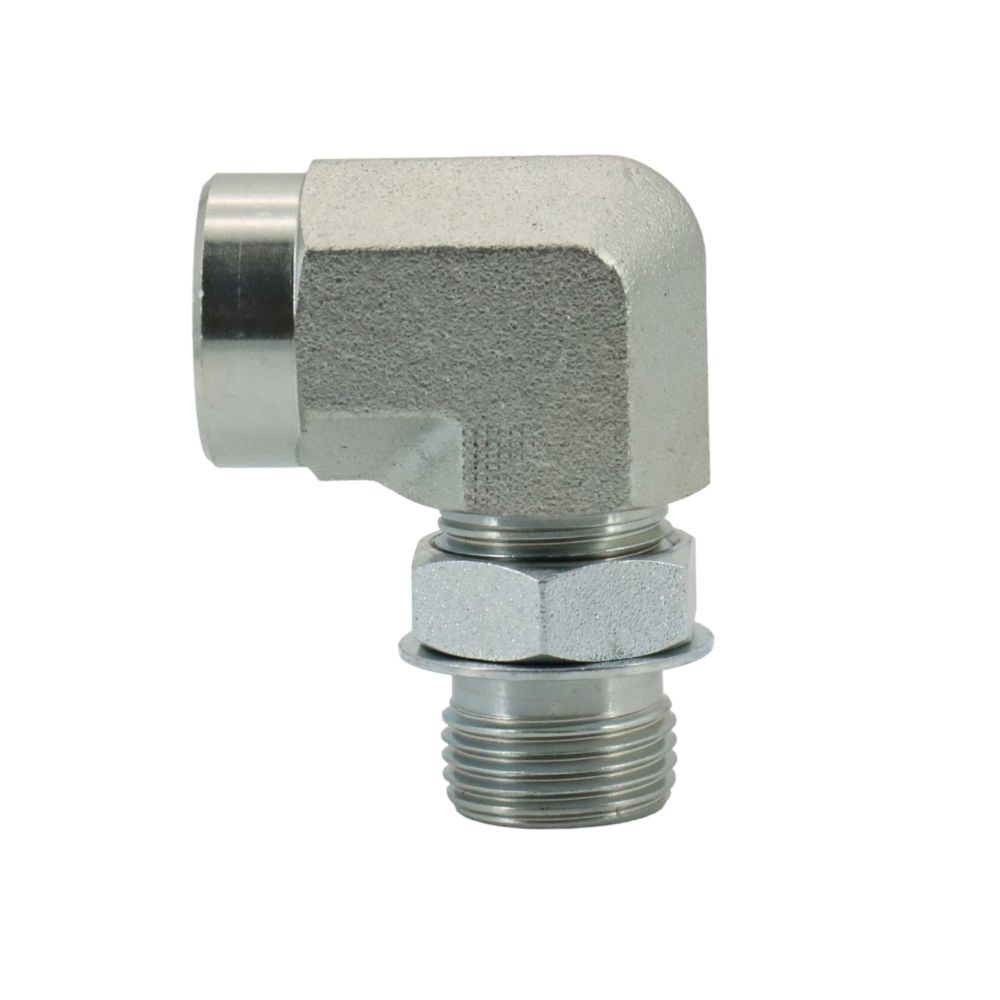

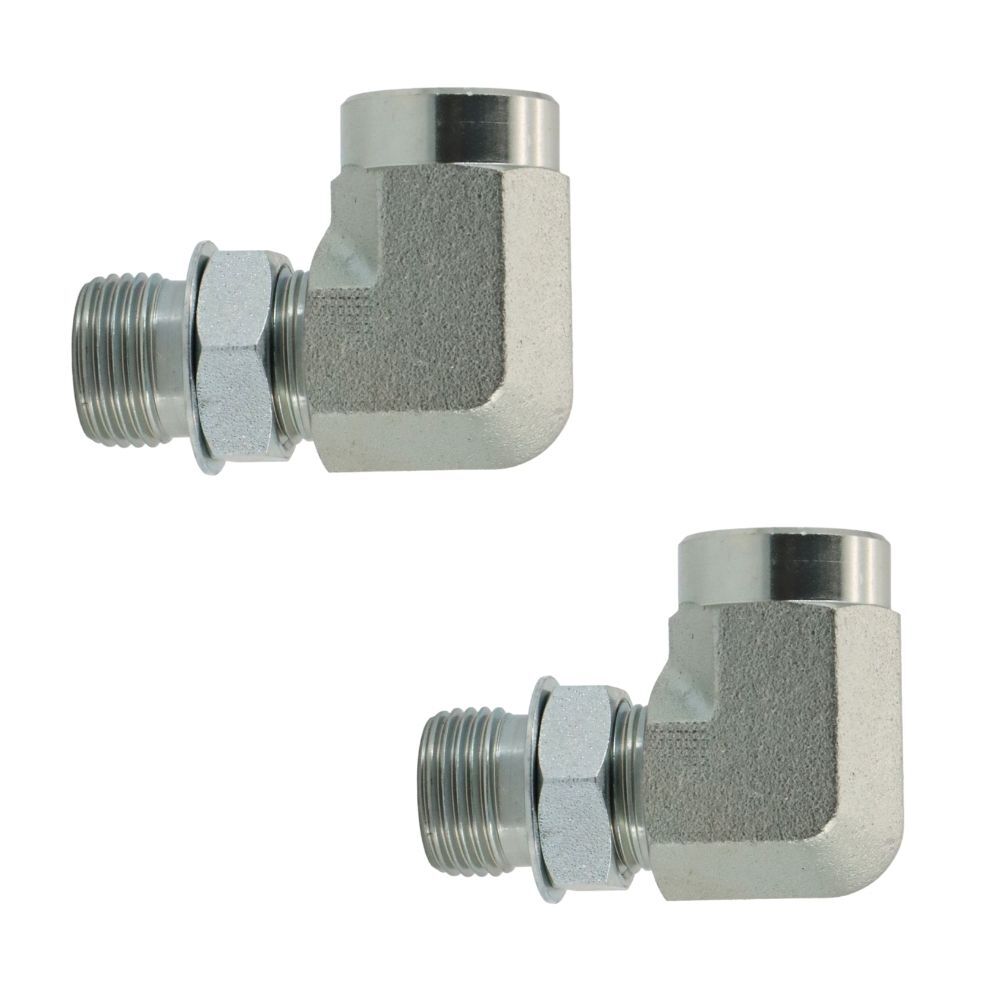

6805 SAE tube fitting has a female NPTF thread and a male SAE ORB thread that can make a strong seal between components.

Female NPTF to male SAE ORB fittings are available in a range of sizes to accommodate different system requirements.

If you have any questions about sae o ring fittings, please contact us.

Features and Benefits:

• Standardization
• Leak prevention
• Versatility
• Customize

Description

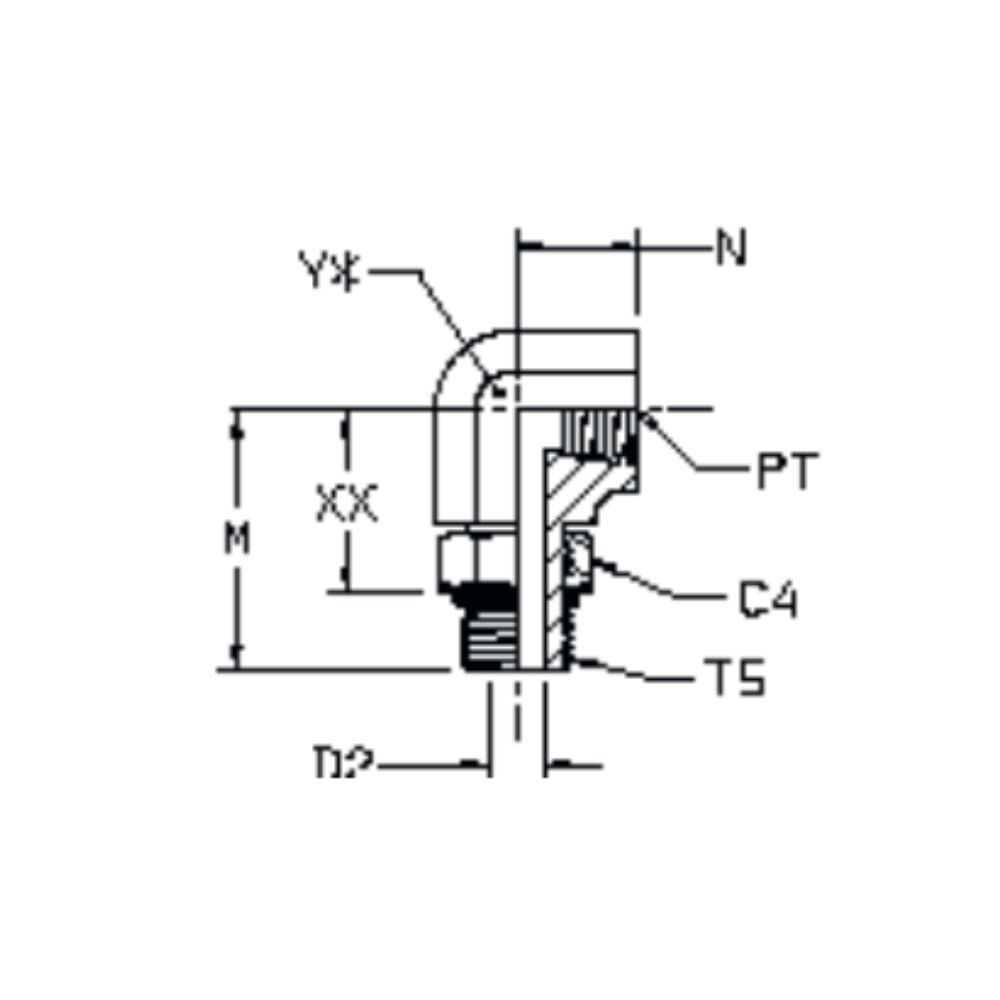

TUBE FITTING PART#	PT PORT THD NPTF	T5 PORT THD UN/UNF-2A	C4 HEX (inch)	D2 DRILL	M (inch)	N (inch)	Y (inch)
6805-6-4	1/4-18	9/16-18	1 1/16	0.297	1.34	0.63	3/4
6805-8-6	3/8-18	3/4-16	7/8	0.391	1.47	0.63	7/8
6805-10-8	1/2-14	7/8-14	1	0.484	1.81	0.75	1 1/16
6805-12-12	3/4-14	1 1/16-12	1 1/4	0.609	2.00	0.81	1 5/16
6805-16-16	1-1 1/2	1 5/16-12	1 1/2	0.844	2.25	1.00	1 5/8

6805 90° Elbow SAE Tube Fitting Video

This video shows information about 6805 SAE tube fitting.

SAE JIC fittings are commonly used in hydraulic fluid systems across various applications, including fluid distribution systems, construction, agriculture, and industrial equipment.

If you have any questions about SAE pipe fittings, please contact us.
