SAE Flare Fittings

Description:

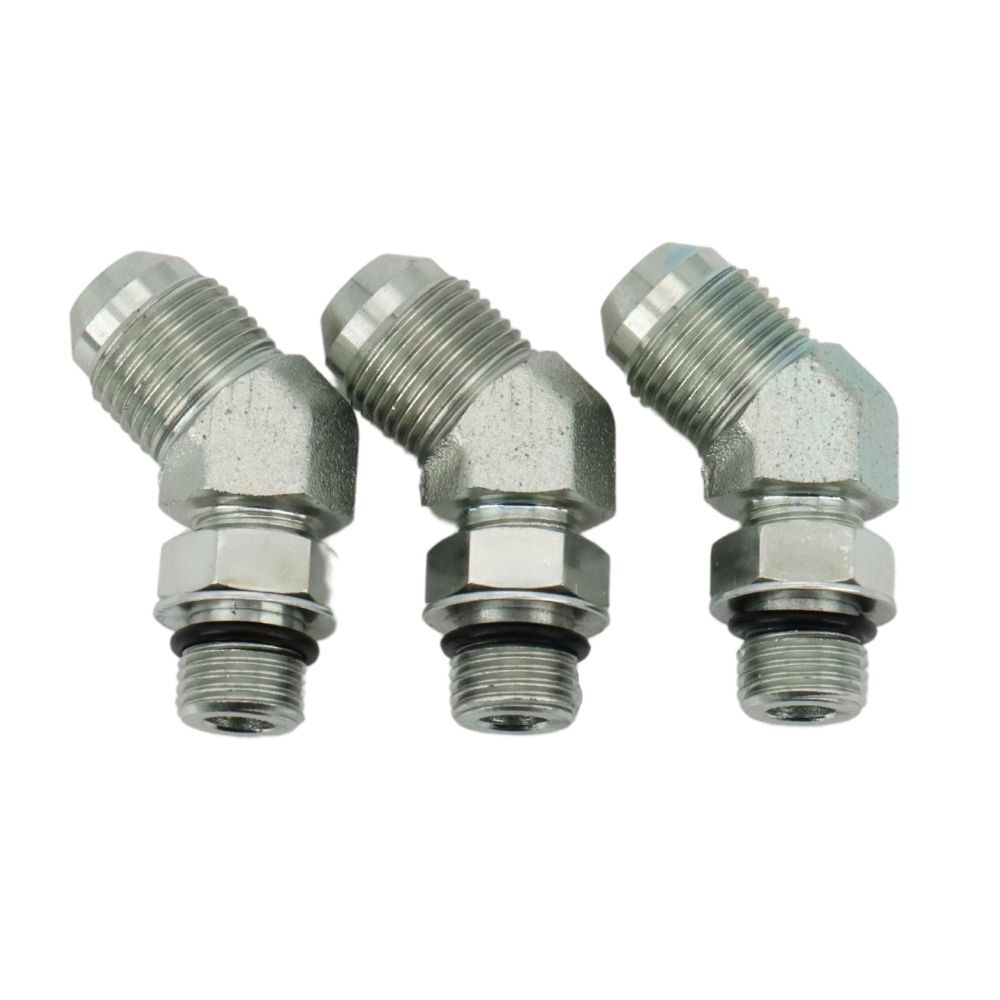

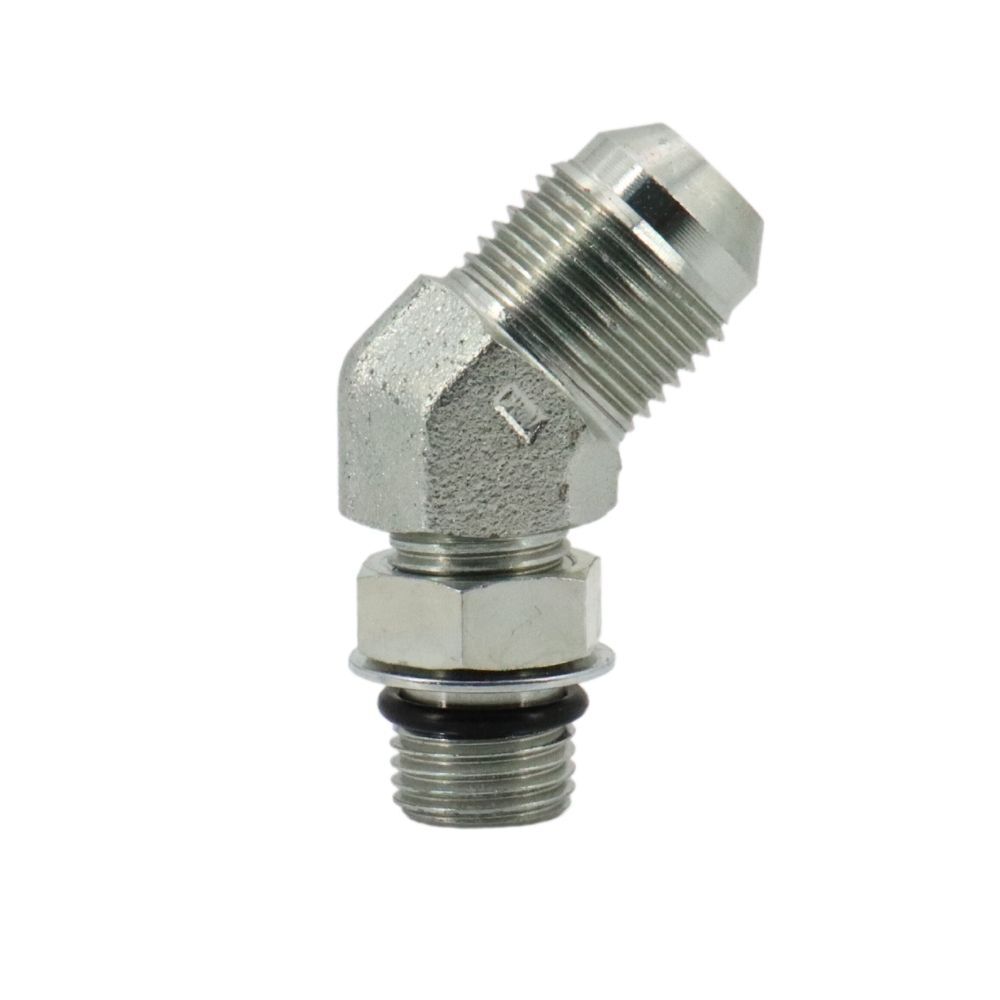

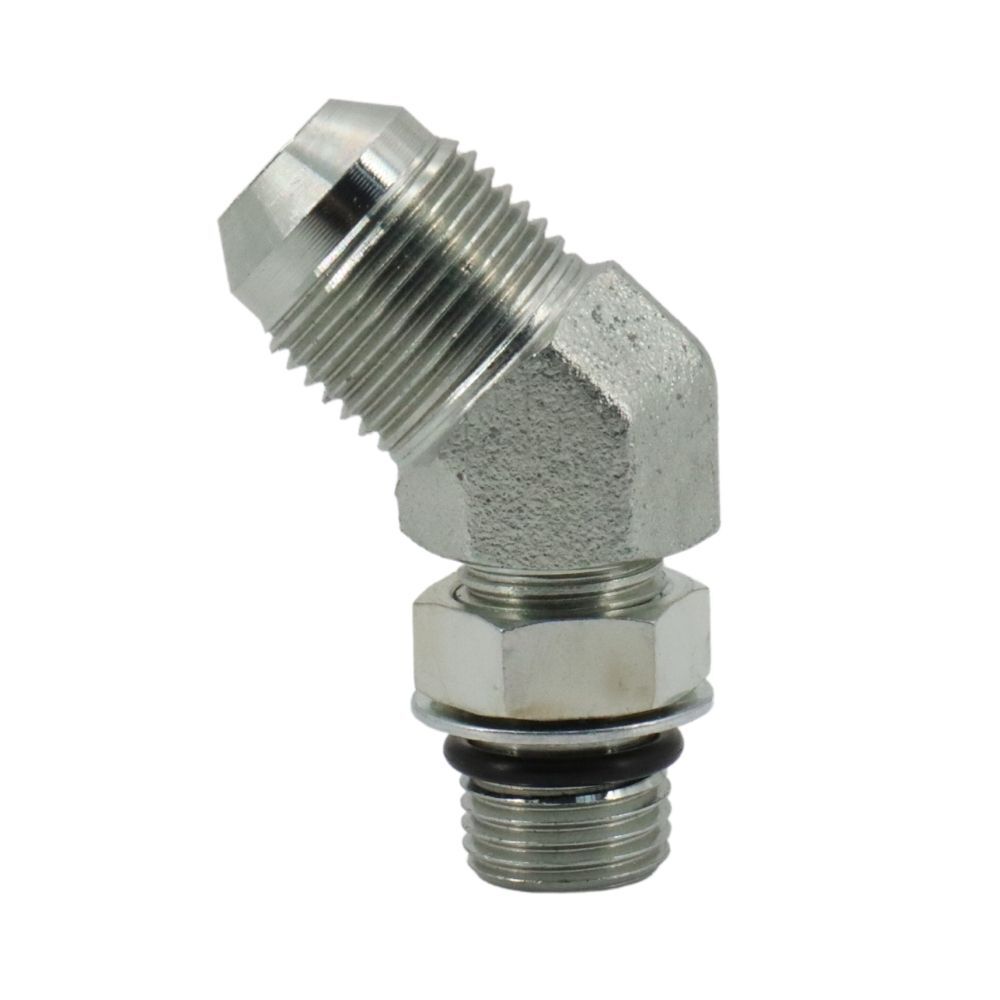

6802 45° elbow SAE JIC to ORB SAE adapter features a male JIC 37-degree flare end and a male SAE ORB straight thread end, with a 45-degree elbow design connecting the two ends.

This unique design enables the fitting to connect pipes or tubes at a 45-degree angle in the hydraulic system.

If you have any questions about male sae fitting, please contact us.

Features and Benefits:

• Standardization
• Leak prevention
• Versatility
• Customize

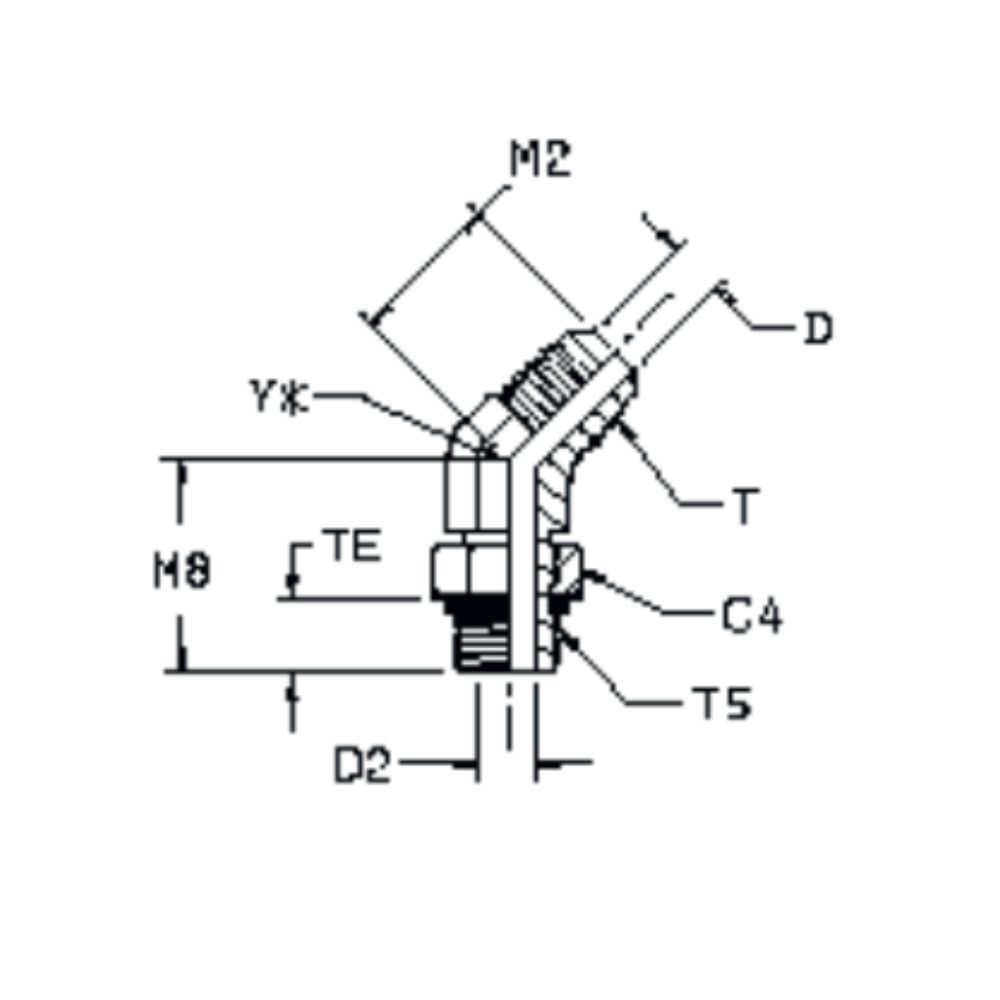

Description

TUBE
FITTING
PART#

TUBE
O.D.
(inch)

T
TUBE END
uN/UNF-2A

T5
PORT THD
UN/UNF-2A

C4
HEX
(inch)

DRILL
(nch)

D2
DRILL
(inch)

M2
(inch)

M8
(inch)

TE
(inch)

Y(inch)

6802-4-4

1/4

7/16-20

7/16-20

9/16

0.172

0.172

0.72

1.05

0.39

7/16

6802-4-6

1/4

7/16-20

9/16-18

11/16

0.172

0.297

0.82

1.14

0.43

9/16

6802-5-5

5/16

1/2-20

1/2-20

5/8

0.234

0.234

0.77

1.05

0.39

9/16

6802-6-6

3/8

9/16-18

9/16-18

11/16

0.297

0.297

0.83

1.14

0.43

9/16

6802-6-4

3/8

9/16-18

7/16-20

9/16

0.297

0.172

0.83

1.08

0.39

9/16

6802-6-8

3/8

9/16-18

3/4-16

718

0.297

0.391

0.86

1.30

0.49

3/4

6802-8-8

1/2

3/4-16

3/4-16

7/8

0.391

0.391

0.98

1.30

0.49

3/4

6802-8-6

12

3/4-16

9/16-18

1 1/16

0.391

0.297

0.98

1.09

0.43

3/4

6802-8-10

1/2

3/14-16

7/8-14

1

0.391

0.484

1.00

1.52

0.56

7/8

6802-8-12

1 1/2

3/4-16

1 1/16-12

1 1/4

0.391

0.609

1.06

1.66

0.65

11/16

6802-10-10

5/8

7/8-14

7/8-14

1

0.484

0.484

1.11

1.52

0.56

7/8

6802-10-8

5/8

78-14

3/4-16

7/8

0.484

0.391

1.11

1.38

0.49

7/8

6802-10-12

5/8

7/8-14

1 1/16-12

1 1/4

0.484

0.609

1.16

1.73

0.65

1 1/16

6802-12-12

3/4

1 1/16-12

1 1/16-12

1 1/4

0.609

0.609

1.28

1.73

0.65

1 1/16

6802-12-10

3/4

1 1/16-12

7/8-14

1

0.609

0.484

1.28

1.58

0.56

1 1/16

6802-12-16

3/4

1 1/16-12

1 5/16-12

1 1/2

0.6o9

0.844

1.42

1.86

0.65

1 5/16

6802-14-14

7/8

1 3/16-12

1 3/16-12

1 3/8

0.718

0.718

1.45

1.86

0.65

1 5/16

6802-16-16

1

1 5/16-12

1 5/16-12

1 1/2

0.844

0.844

1.47

1.86

0.65

1 5/16

6802-16-12

1

1 5/16-12

1 1/16-12

1 1/2

0.844

0.609

1.47

1.86

0.65

1 5/16

6802-16-20

1

1 5/16-12

1 5/8-12

1 7/8

0.844

1.078

1.55

1.91

0.65

1 5/8

6802-20-20

1 1/4

1 5/8-12

1 5/8-12

1 7/8

1.078

1.078

1.59

1.91

0.65

1 5/8

6802-20-16

1 1/4

1 5/8-12

1 5/16-12

1 1/2

1.078

0.844

1.59

1.91

0.65

1 5/8

6802-24-24

1 1/2

1 7/8-12

1 7/8-12

2 1/8

1.312

1.312

1.78

1.91

0.65

1 7/8

6802-32-32

2

2 1/2-12

2 1/2-12

2 3/4

1.781

1.781

2.22

1.86

0.65

2 1/2

6802 45° Elbow SAE Flare Fittings Video

This video shows information about 6802 SAE flare fitting.

SAE flare fittings are commonly used in hydraulic fluid systems across various applications, including construction, agriculture, and industrial equipment.

If you have any questions about sae 37 degree fittings, please contact us.
