Description

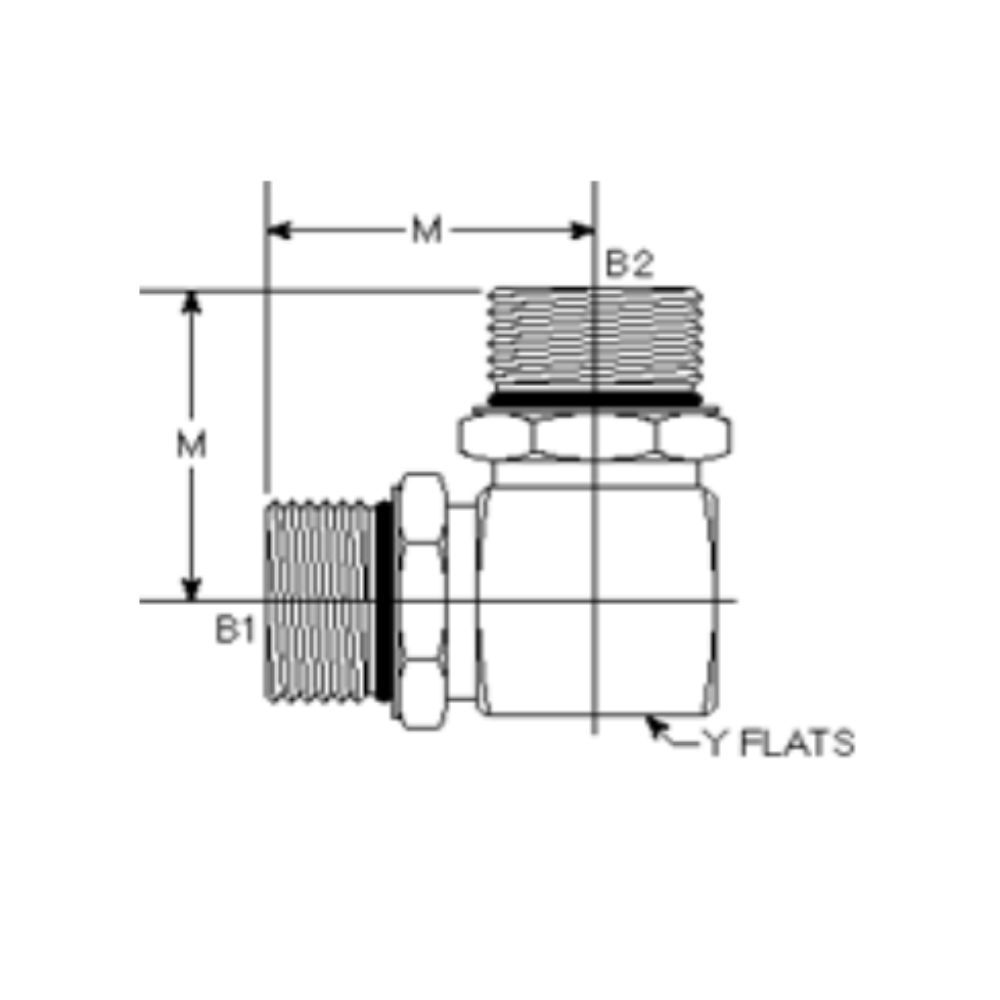

Part# | PORT O.D. | B1 | A2 | M | M.M. | Y | Y | M.M. |
6807-04-04-NWO | 1/4 | 7/16-20 | 7/16-20 | 1.090 | 27.69 | 5/8 | 0.625 | 15.88 |
6807-06-06-NWO | 3/8 | 9/16-18 | 9/16-18 | 1.220 | 30.99 | 1 3/16 | 0.937 | 23.80 |
6807-08-08-NWO | 1/2 | 3/4-16 | 3/4-16 | 1.470 | 37.34 | 1 5/16 | 0.937 | 23.80 |
6807-10-10-NWO | 5/8 | 7/8-14 | 7/8-14 | 1.470 | 37.34 | 1 5/16 | 0.937 | 23.80 |
6807-12-12-NWO | 3/4 | 1 1/16-12 | 1 1/16-12 | 1.590 | 40.39 | 1 1/8 | 1.125 | 28.58 |
6807-16-16-NWO | 1 | 1 5/16-12 | 1 5/16-12 | 1.970 | 50.04 | 1 3/8 | 1.375 | 34.93 |
6807-20-20-NWO | 1 1/4 | 1 5/8-12 | 1 5/8-12 | 2.380 | 60.45 | 1 3/4 | 1.750 | 44.45 |
6807-24-24-NWO | 1 1/2 | 1 7/8-12 | 1 7/8-12 | 2.640 | 67.06 | 2 | 2.000 | 50.80 |

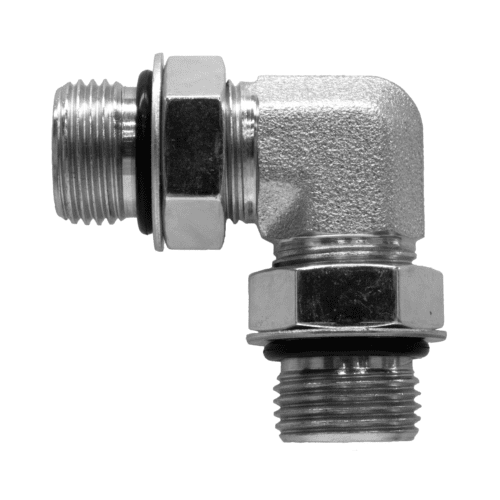

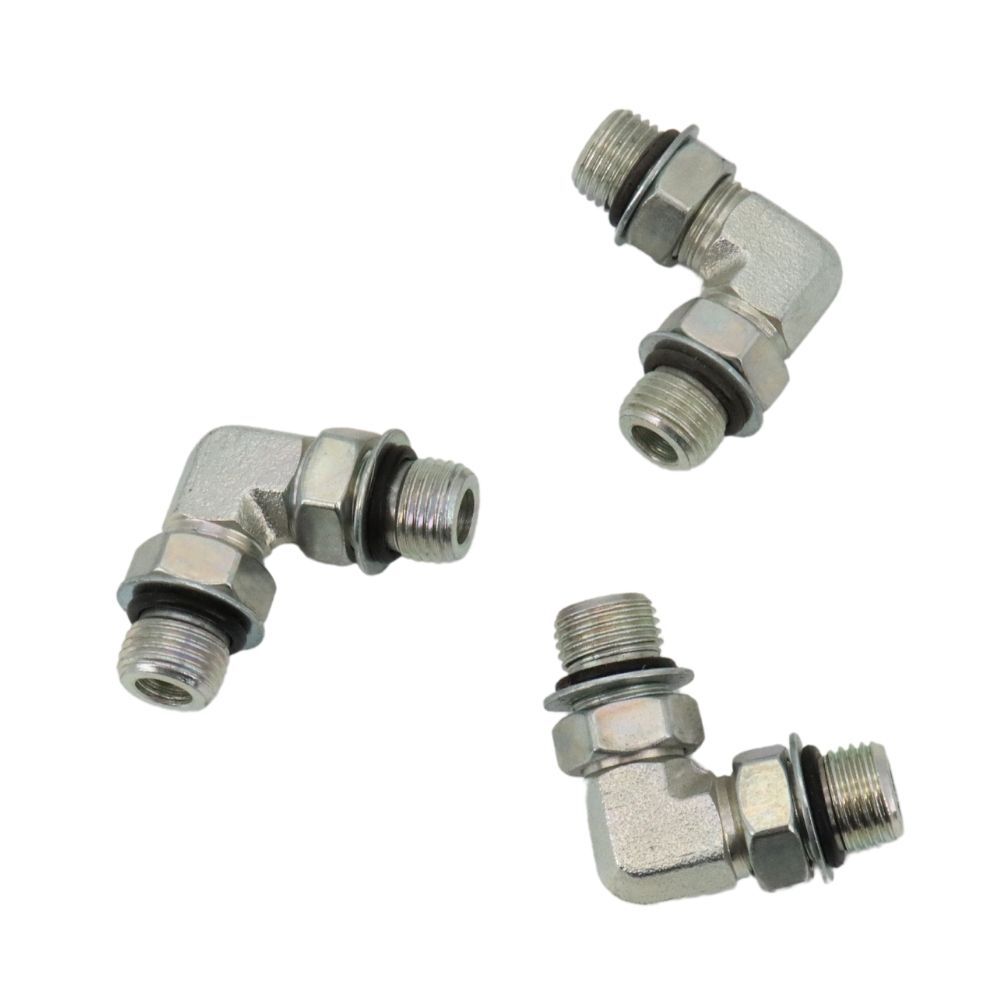

6807 90° Elbow SAE Pipe Fitting Video
This video shows information about 6807 SAE pipe fitting.
SAE pipe fittings are commonly used in hydraulic fluid systems across various applications, including automotive systems, construction, agriculture, and industrial equipment.
If you have any questions about SAE hydraulic fitting, please contact us.
