Description

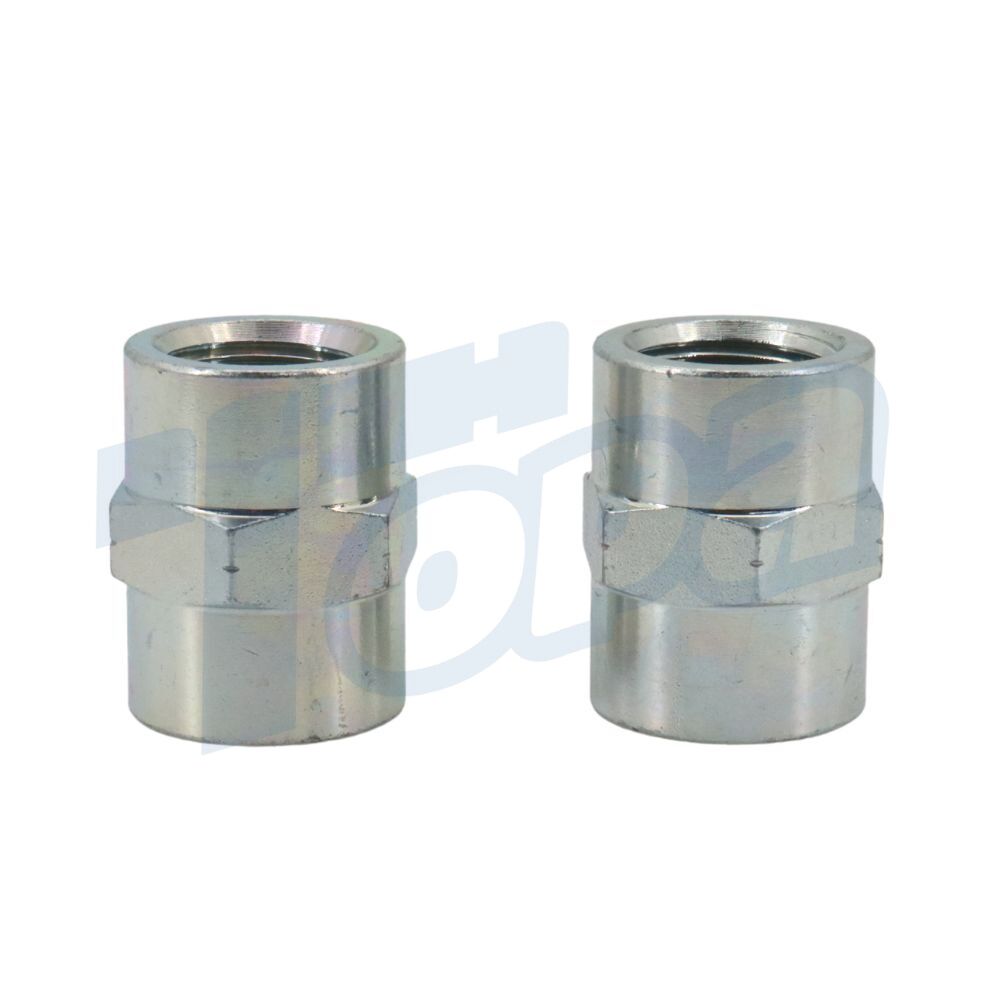

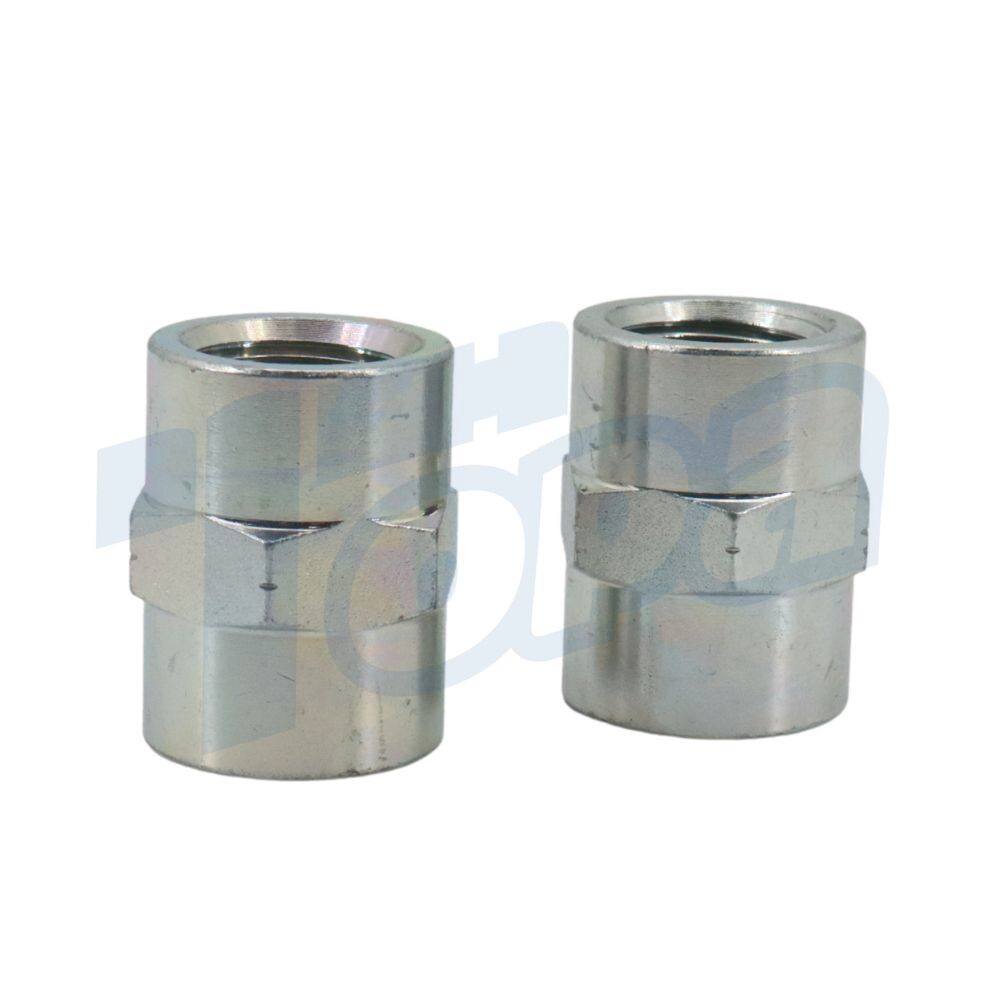

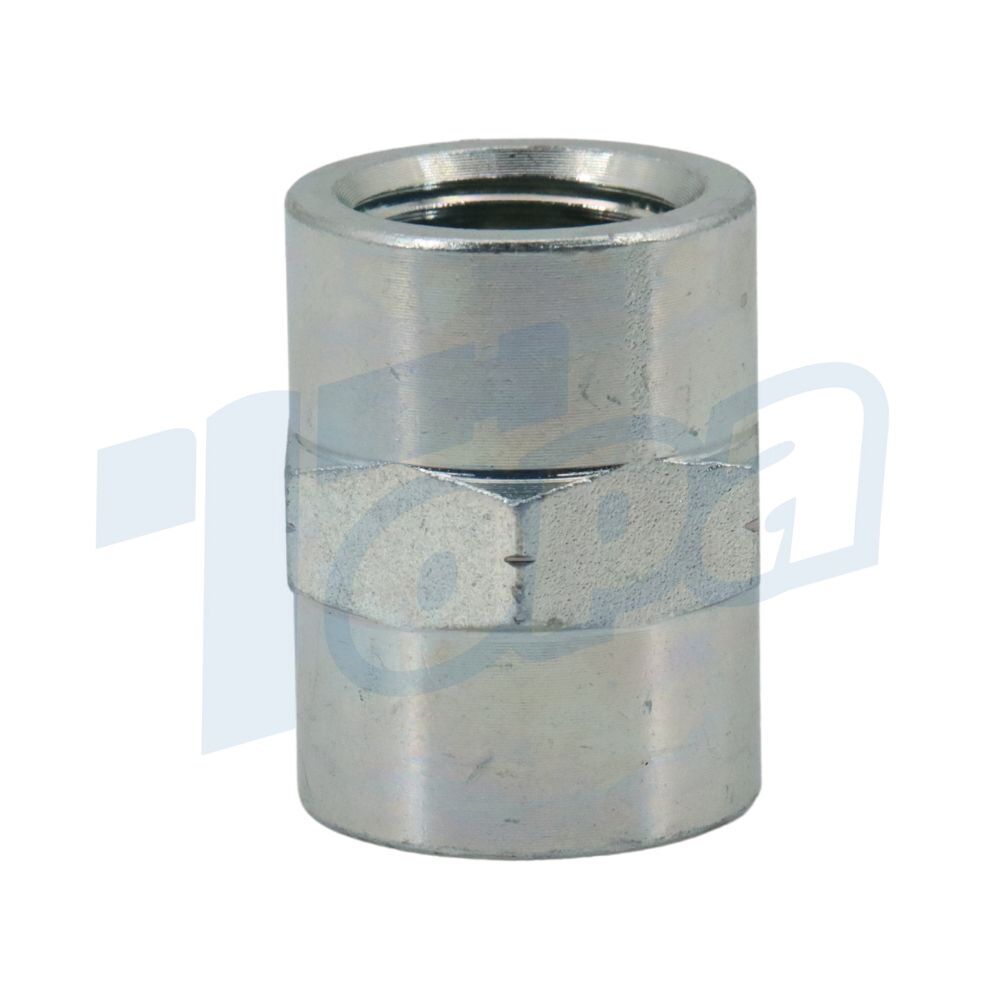

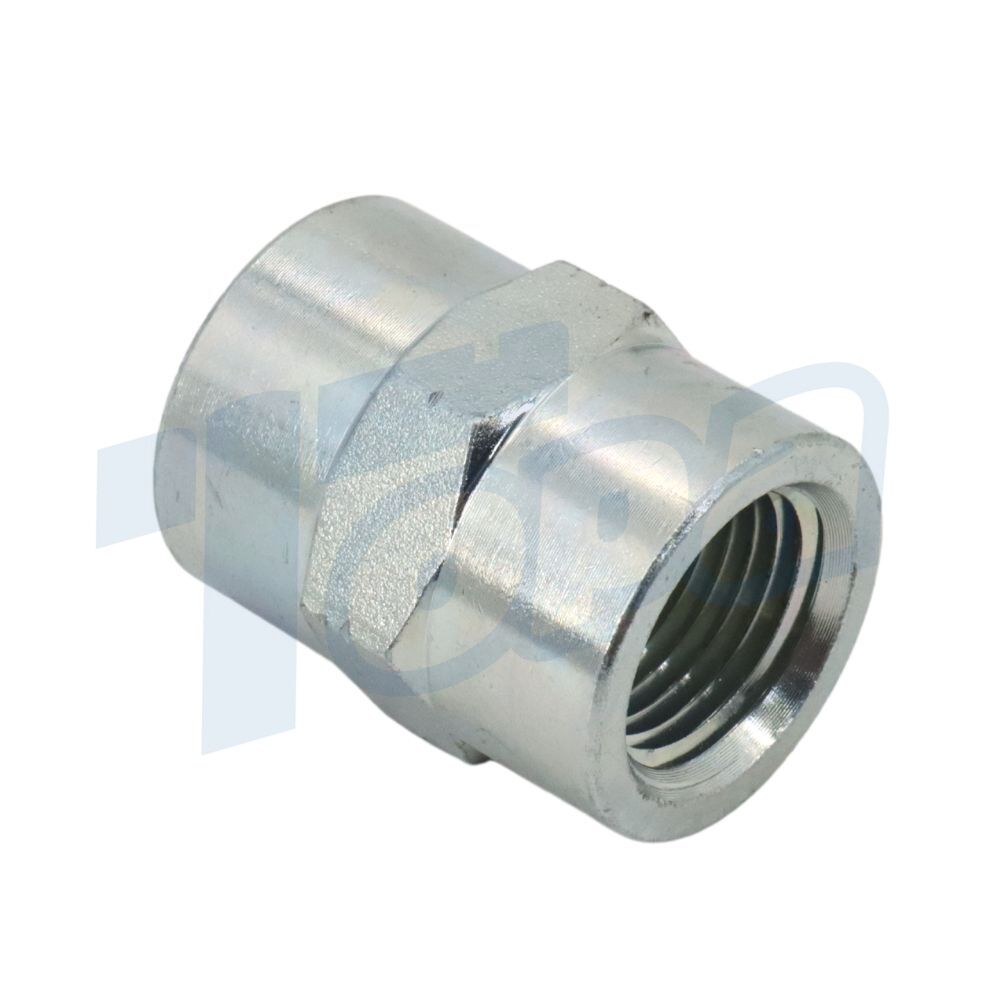

Female NPTF Hydraulic Fittings
5000 Female NPTF pipe couplings have two internal NPTF threads on both ends. And they are used to connect pipes and tubes. Those fittings are made of high-quality metal materials, durable and versatile. So if you have any problems with hydraulic npt fittings, please contact us!

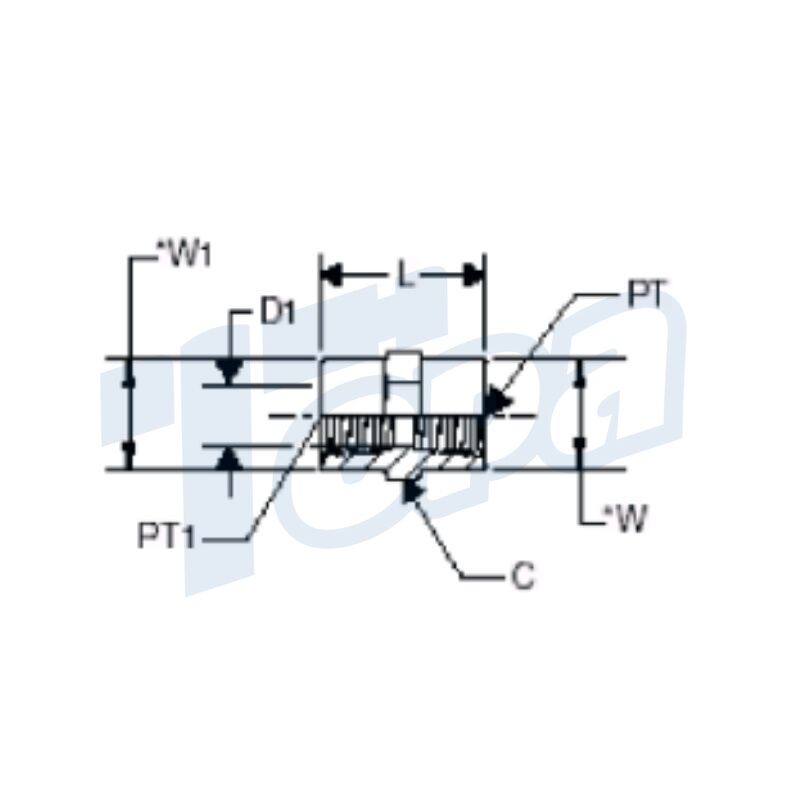

Dimensional Drawings:
TUBE FITTING PART # | PT PORT THD NPTF | PT1 PORT THD NPTF | C HEX (inch) | D1 DRILL (inch) | L (inch) | W (inch) | W1 (inch) |
5000-2-2 | 1/8-27 | 1/8-27 | 5/8 | 0.328 | 0.75 | 0.63 | 0.63 |
5000-2-4 | 1/4-18 | 1/8-27 | 3/4 | 0.328 | 0.94 | 0.75 | 0.63 |
5000-4-4 | 1/4-18 | 1/4-18 | 3/4 | 0.422 | 1.13 | 0.75 | 0.75 |
5000-2-6 | 3/8-18 | 1/8-27 | 7/8 | 0.328 | 1.03 | 0.88 | 0.63 |
5000-4-6 | 3/8-18 | 1/4-18 | 7/8 | 0.422 | 1.13 | 0.88 | 0.75 |
5000-6-6 | 3/8-18 | 3/8-18 | 7/8 | 0.563 | 1.13 | 0.88 | 0.88 |
5000-2-8 | 1/2-14 | 1/8-27 | 1 1/8 | 0.328 | 1.06 | 1.13 | 0.63 |
5000-4-8 | 1/2-14 | 1/4-18 | 1 1/8 | 0.422 | 1.38 | 1.13 | 0.75 |
5000-6-8 | 1/2-14 | 3/8-18 | 1 1/8 | 0.563 | 1.50 | 1.13 | 0.88 |
5000-8-8 | 1/2-14 | 1/2-14 | 1 1/8 | 0.688 | 1.50 | 1.13 | 1.13 |
5000-4-12 | 3/4-14 | 1/4-18 | 1 3/8 | 0.422 | 1.55 | 1.36 | 0.75 |
5000-8-12 | 3/4-14 | 1/2-14 | 1 3/8 | 0.688 | 1.88 | 1.36 | 1.13 |
5000-12-12 | 3/4-14 | 3/4-14 | 1 3/8 | 0.891 | 1.53 | 1.38 | 1.38 |
5000-16-16 | 1-11 1/2 | 1-11 1/2 | 1 5/8 | 1.125 | 1.89 | 1.63 | 1.63 |
5000-8-16 | 1-11 1/2 | 1/2-14 | 1 5/8 | 0.688 | 1.77 | 1.63 | 1.13 |
5000-12-16 | 1-11 1/2 | 3/4-14 | 1 5/8 | 0.891 | 1.77 | 1.63 | 1.38 |
5000-20-20 | 1 1/4-11 1/2 | 1 1/4-11 1/2 | 2 | 1.469 | 1.94 | 2.00 | 2.00 |
5000-16-20 | 1 1/4-11 1/2 | 1-11 1/2 | 2 | 1.125 | 1.94 | 2.00 | 1.63 |
5000-24-24 | 1 1/2-11 1/2 | 1 1/2-11 1/2 | 2 3/8 | 1.703 | 1.94 | 2.38 | 2.38 |
5000-20-24 | 1 1/2-11 1/2 | 1 1/4-11 1/2 | 2 3/8 | 1.469 | 1.93 | 2.37 | 2.37 |
5000-32-32 | 2-11 1/2 | 2-11 1/2 | 2 7/8 | 2.188 | 1.97 | 2.88 | 2.88 |
5000 NPTF Hydraulic Fittings Video
As the best Chinese hydraulic adapters manufacturer, Topa can provide hydraulic fittings in a variety of sizes. Our products can be used in a wide range of hydraulic fluid environments and are resistant to high pressures and temperatures.
With multiple CNC machines in our factory, Topa can manufacture fittings to your exact specifications. Our staff will strictly inspect the quality of the fittings to ensure that the product meets your usage requirements.
If you want more information about npt 90-degree hydraulic fitting, please contact us!
