NPT Hydraulic Fittings Adapters

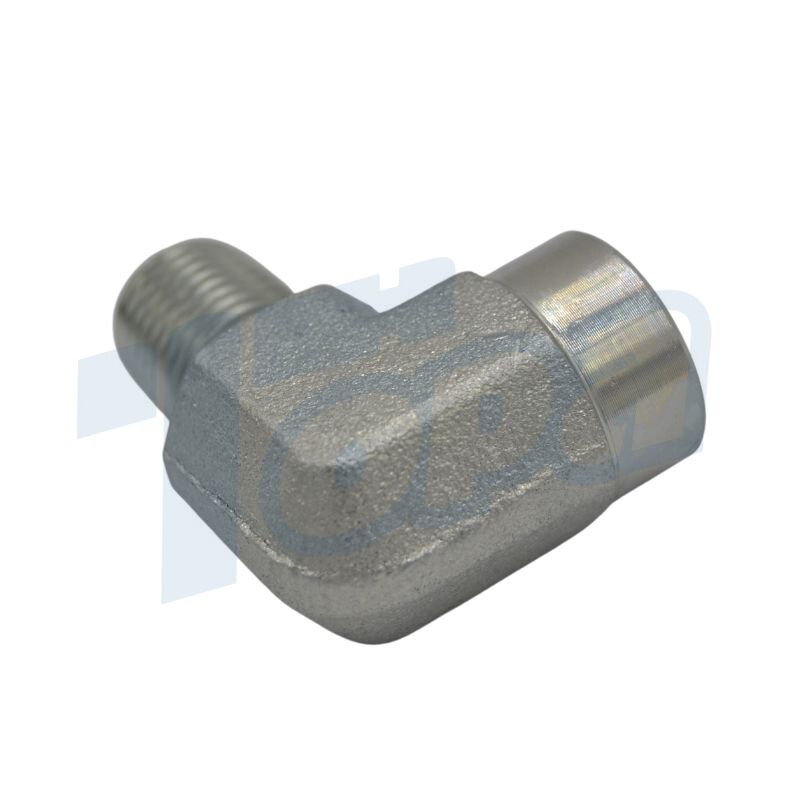

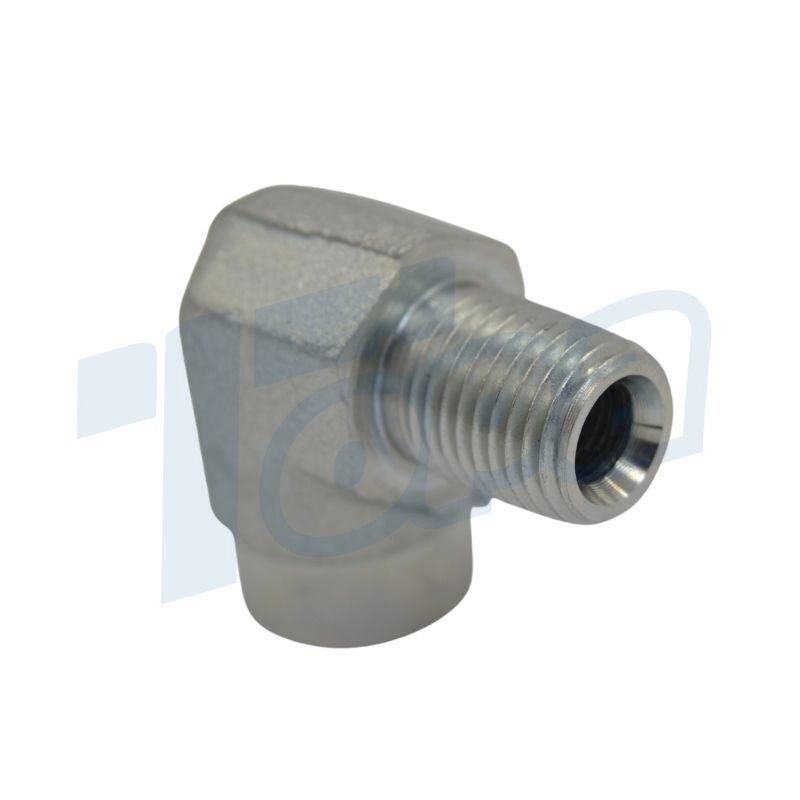

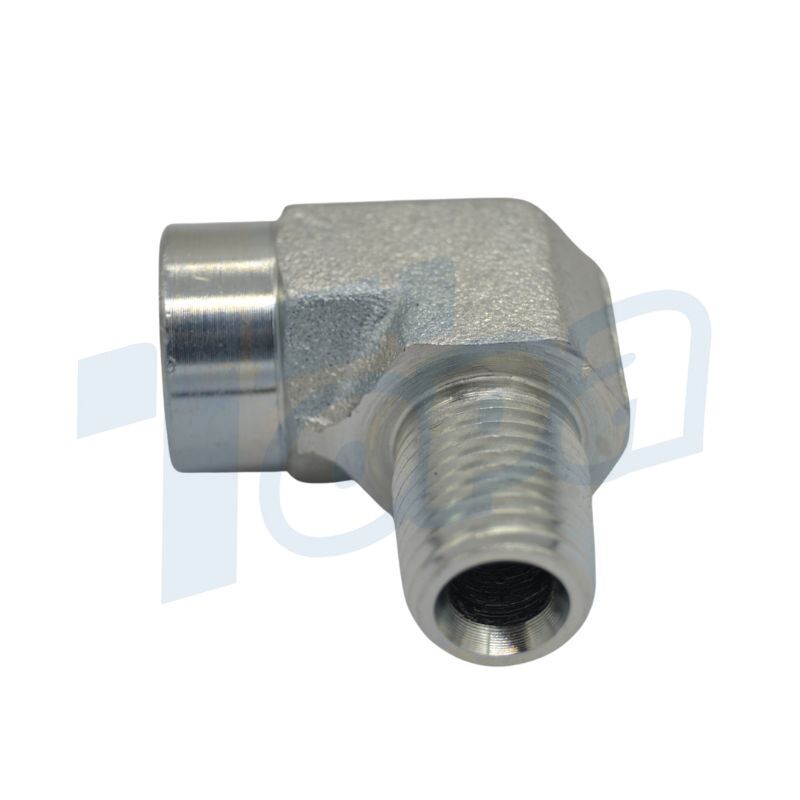

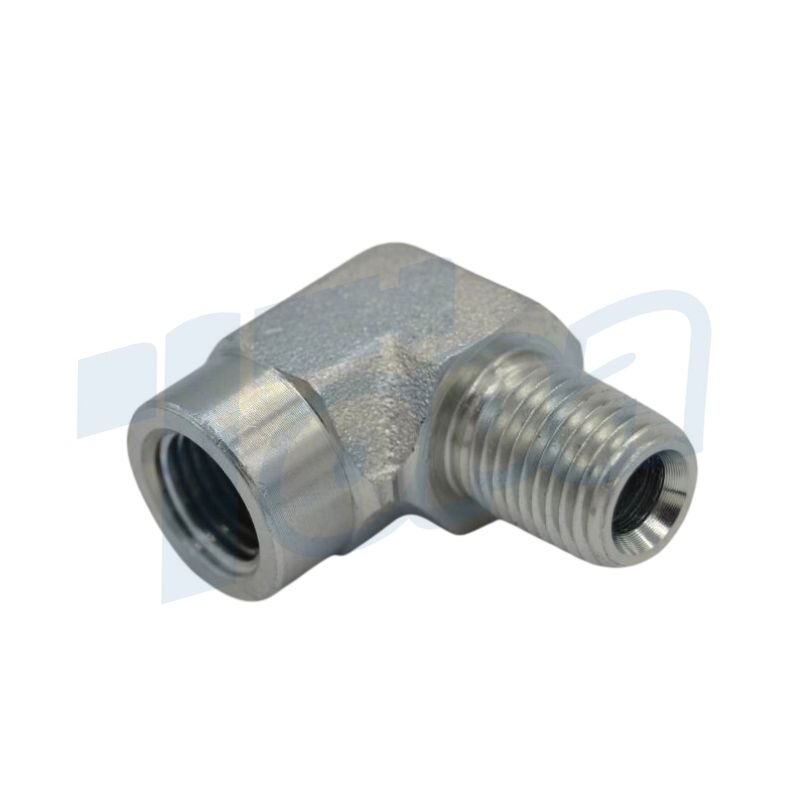

5502 90-degree elbow NPT pipe couplings have a male NPT thread and a female NPT thread on the ends. And they are used to connect pipes and tubes. Those fittings are made of best-quality metal materials, durable and versatile. So if you have any problems with npt adapter hydraulic fittings, please contact us!

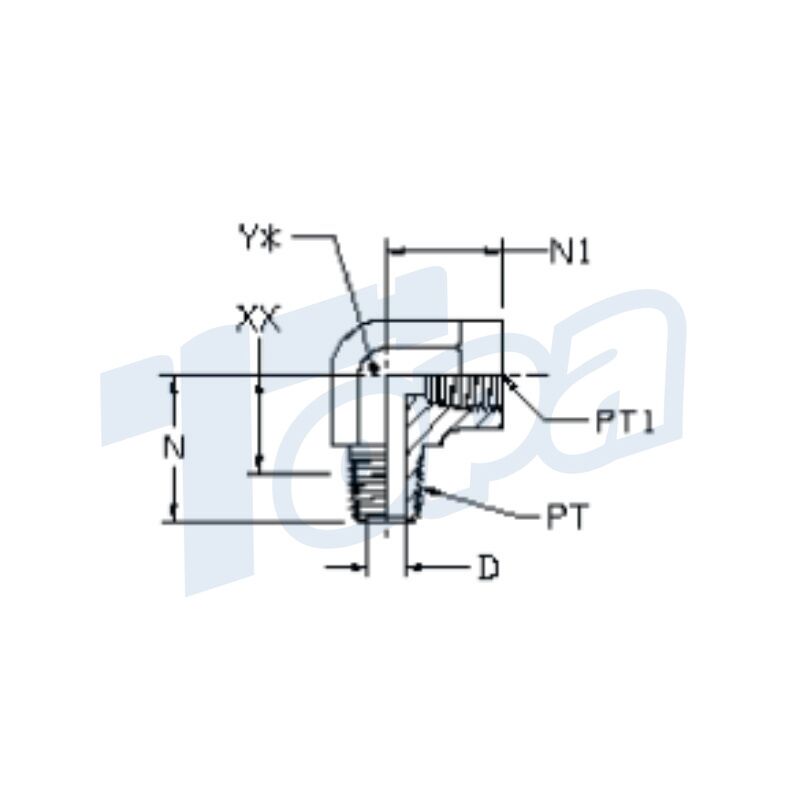

Dimensional Drawings:
TUBE FITTING PART # | PT PORT THD NPTF | PT1 PORT THD NPTF | D DRILL (inch) | N (inch) | N1 (inch) | Y (inch) |
5502-2-2 | 1/8-27 | 1/8-27 | 0.188 | 0.78 | 0.66 | 9/16 |
5502-2-4 | 1/8-27 | 1/4-18 | 0.188 | 0.88 | 0.88 | 9/16 |
5502-4-4 | 1/4-18 | 1/4-18 | 0.281 | 1.09 | 0.88 | 3/4 |
5502-4-2 | 1/4-18 | 1/8-27 | 0.281 | 1.09 | 0.66 | 9/16 |
5502-4-8 | 1/4-18 | 1/2-14 | 0.281 | 1.28 | 1.23 | 11/16 |
5502-4-6 | 1/4-18 | 3/8-18 | 0.281 | 1.22 | 1.01 | 7/8 |
5502-6-6 | 3/8-18 | 3/8-18 | 0.406 | 1.22 | 1.02 | 7/8 |
5502-6-4 | 3/8-18 | 1/4-18 | 0.406 | 1.22 | 0.88 | 3/4 |
5502-6-8 | 3/8-18 | 1/2-14 | 0.406 | 1.28 | 1.23 | 11/16 |
5502-8-8 | 1/2-14 | 1/2-14 | 0.531 | 1.47 | 1.23 | 11/16 |
5502-8-6 | 1/2-14 | 3/8-18 | 0.531 | 1.48 | 1.25 | 7/8 |
5502-8-12 | 1/2-14 | 3/4-14 | 0.531 | 1.59 | 1.36 | 15/16 |
5502-12-12 | 3/4-14 | 3/4-14 | 0.719 | 1.59 | 1.36 | 15/16 |
5502-12-8 | 3/4-14 | 1/2-14 | 0.719 | 1.59 | 1.23 | 11/16 |
5502-16-16 | 1-11 1/2 | 1-11 1/2 | 0.938 | 1.97 | 1.63 | 1 5/8 |
5502-20-20 | 1 1/4-11 1/2 | 1 1/4-11 1/2 | 1.250 | 2.38 | 1.70 | 1 7/8 |
5502-24-24 | 1 1/2-11 1/2 | 1 1/2-11 1/2 | 1.500 | 2.64 | 2.08 | 2 1/2 |
5502 NPT Hydraulic Fittings Adapters Video
As the best Chinese hydraulic adapters manufacturer, Topa can provide hydraulic fittings in a variety of sizes. Our products can be used in a wide range of hydraulic fluid applications and are resistant to high pressures and temperatures.
With multiple CNC machines in our factory, Topa can process fittings to your exact specifications. Our staff will strictly inspect the quality of the fittings to ensure that the product meets your usage requirements.
If you want more information about hydraulic coupler adapters, please contact us!
