Description

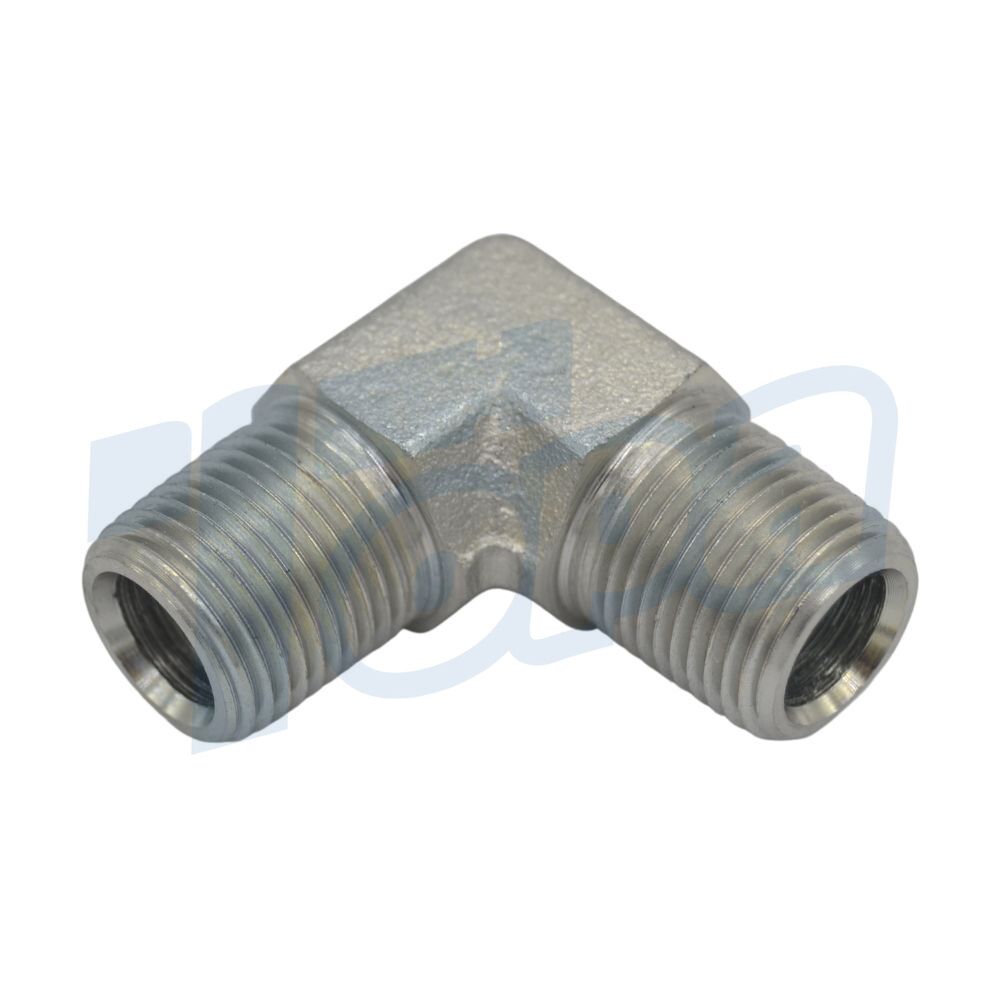

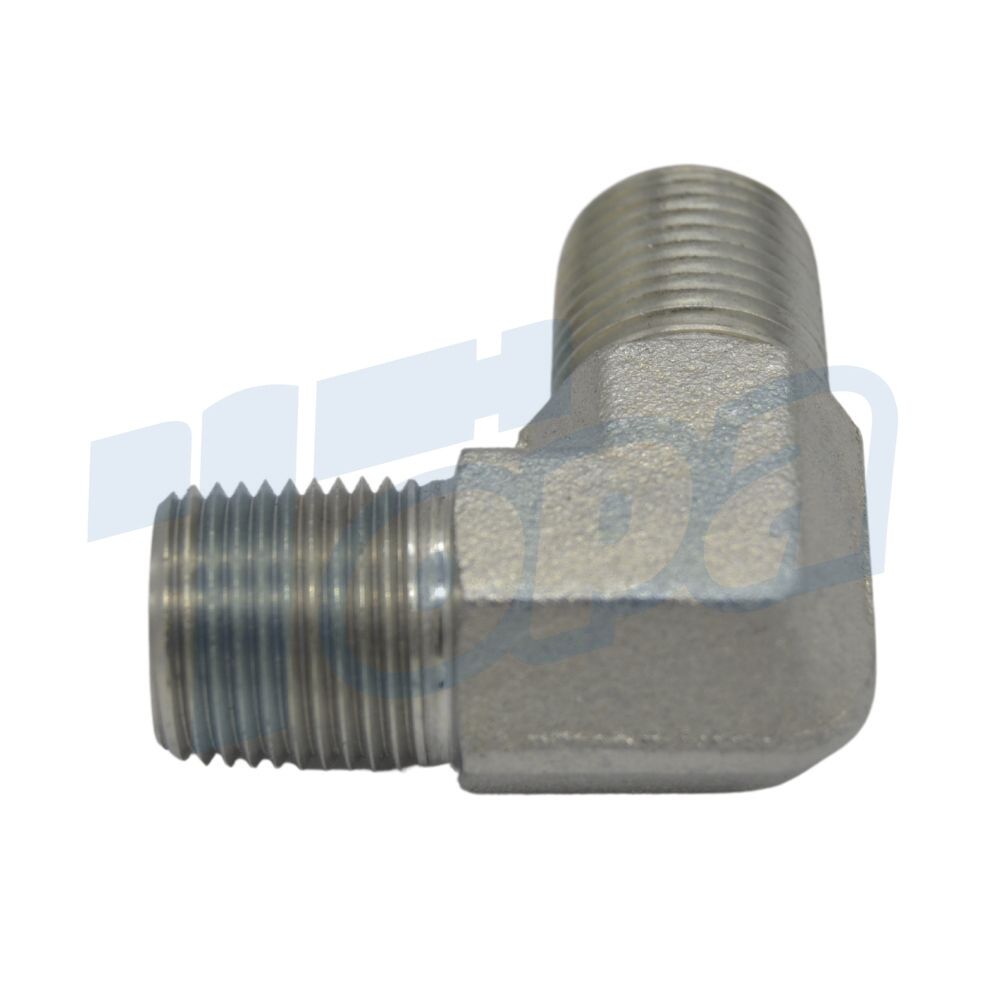

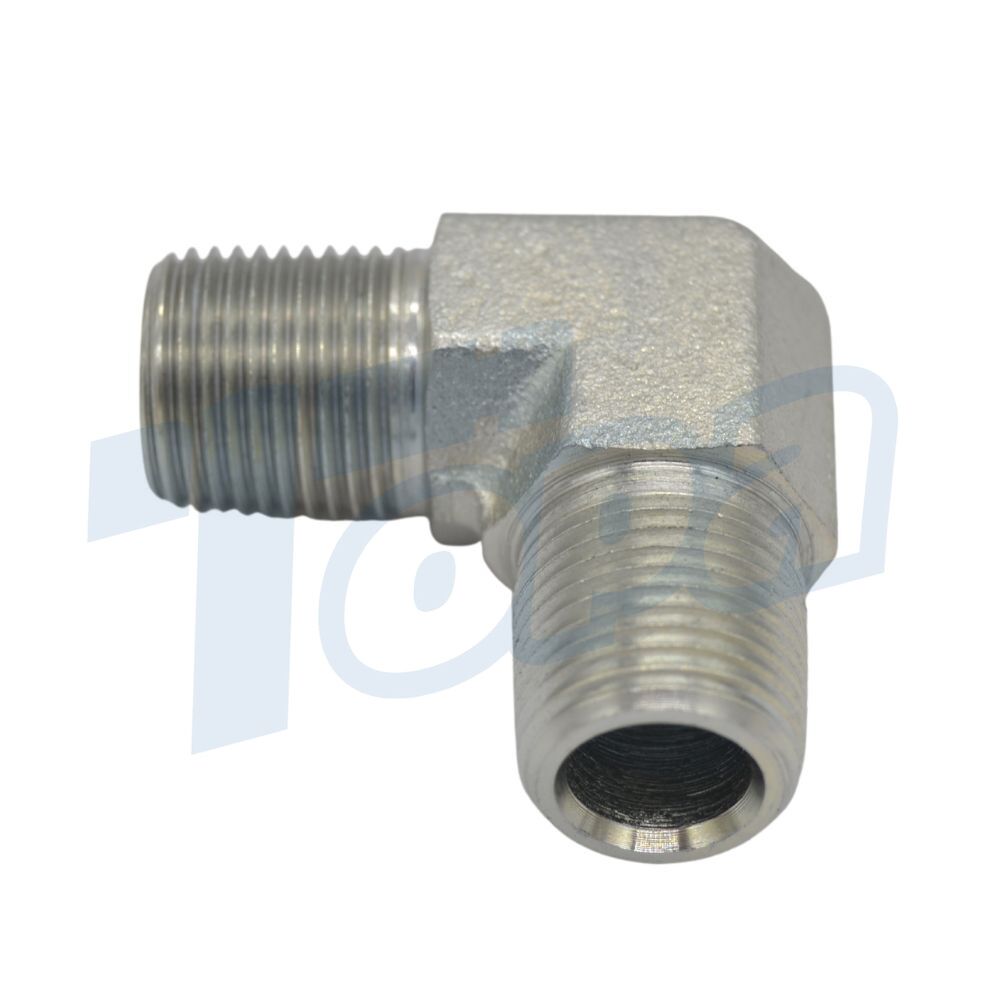

NPT 90 degree Hydraulic Fitting
5500 male NPT elbow fitting has two external NPT threads on both ends. And they are used to connect pipes and tubes. Those fittings are made of high-quality metal materials, durable and versatile. So if you have any problems with hydraulic npt fitting, please contact us!
Dimensional Drawings:
TUBE FITTING PART # | PT PORT THD NPTF | PT1 PORT THD NPTF | D DRILL (inch) | D1 DRILL (inch) | N (inch) | N1 (inch) | Y (inch) |
5500-2-2 | 1/8-27 | 1/8-27 | 0.187 | 0.187 | 0.78 | 0.78 | 7/16 |
5500-4-4 | 1/4-18 | 1/4-18 | 0.281 | 0.281 | 1.09 | 1.09 | 9/16 |
5500-6-6 | 3/8-18 | 3/8-18 | 0.406 | 0.406 | 1.22 | 1.22 | 3/4 |
5500-6-4 | 3/8-18 | 1/4-18 | 0.406 | 0.281 | 1.22 | 1.22 | 3/4 |
5500-8-8 | 1/2-14 | 1/2-14 | 0.531 | 0.531 | 1.47 | 1.47 | 7/8 |
5500-8-6 | 1/2-14 | 3/8-18 | 0.531 | 0.406 | 1.47 | 1.28 | 7/8 |
5500-12-12 | 3/4-14 | 3/4-14 | 0.719 | 0.719 | 1.59 | 1.59 | 11/16 |
5500-12-8 | 3/4-14 | 1/2-14 | 0.719 | 0.531 | 1.59 | 1.47 | 11/16 |
5500-16-16 | 1-11 1/2 | 1-11 1/2 | 0.938 | 0.938 | 1.97 | 1.97 | 1 5/8 |
5500-16-12 | 1-11 1/2 | 3/4-14 | 0.938 | 0.719 | 1.97 | 1.78 | 15/16 |
5500-20-20 | 1 1/4-11 1/2 | 1 1/4-11 1/2 | 1.250 | 1.250 | 2.22 | 2.22 | 1 7/8 |
5500-24-24 | 1 1/2-11 1/2 | 1 1/2-11 1/2 | 1.500 | 1.500 | 2.34 | 2.34 | 1 7/8 |
5500 Elboe NPT90 degree Hydraulic Fitting Video
As the best Chinese hydraulic adapters manufacturer, Topa can provide hydraulic fittings in a variety of sizes. Our hydraulic products can be used in a wide range of hydraulic fluid applications and are resistant to high pressures and temperatures.
Topa has many CNC machines, so we can produce all types of hydraulic adapters. Our staff will strictly inspect the quality of the fittings to ensure that the product meets your usage requirements.
If you want more information about npt hydraulic fitting, please contact us!
