NPT Hydraulic Fitting Adapter

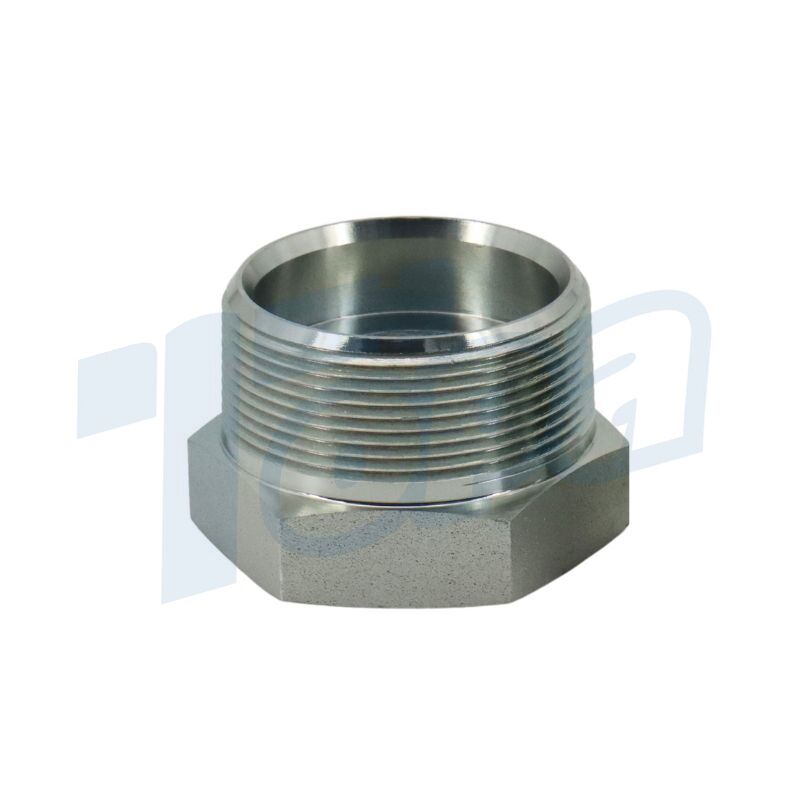

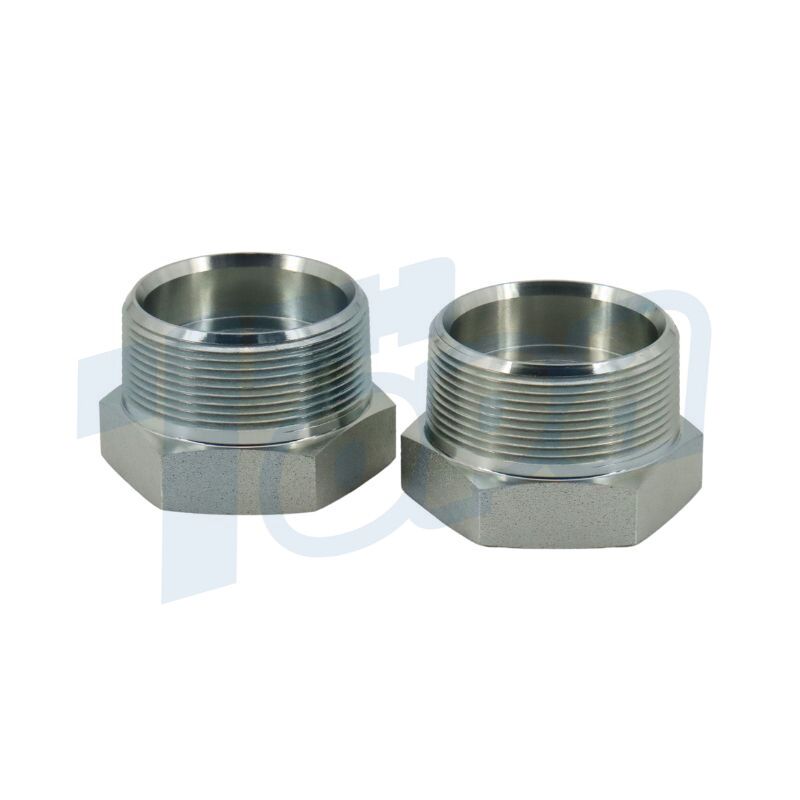

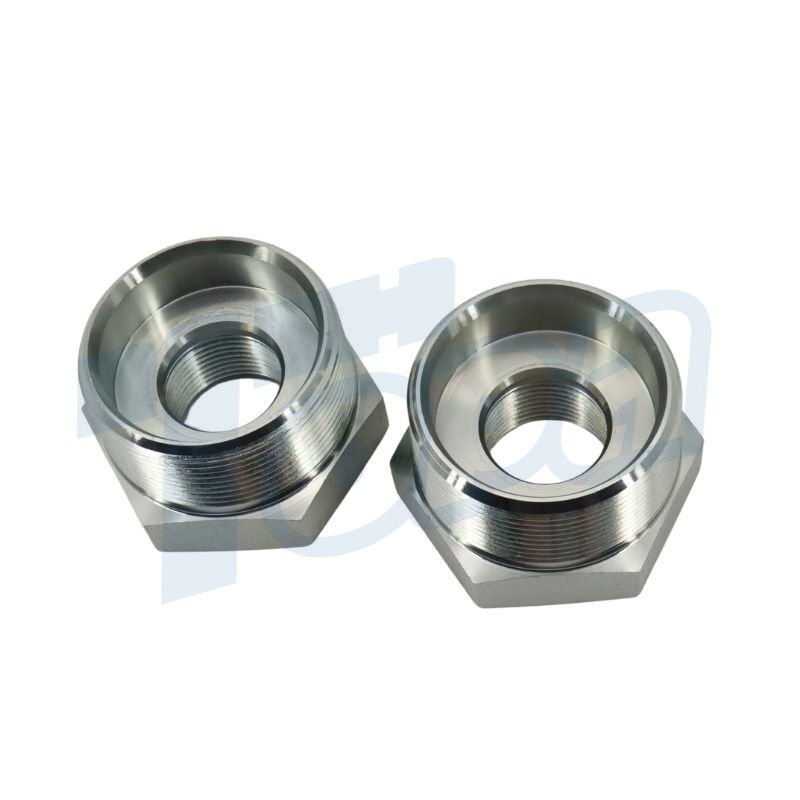

5406 NPTF pipe reducers have an internal NPTF thread on one end, and an external NPT thread on the other end. And they are used to connect pipes and tubes. Those fittings are made of high-quality metal materials, durable and versatile. So if you have any problems with NPT hydraulic hose fitting adapter, please contact us!

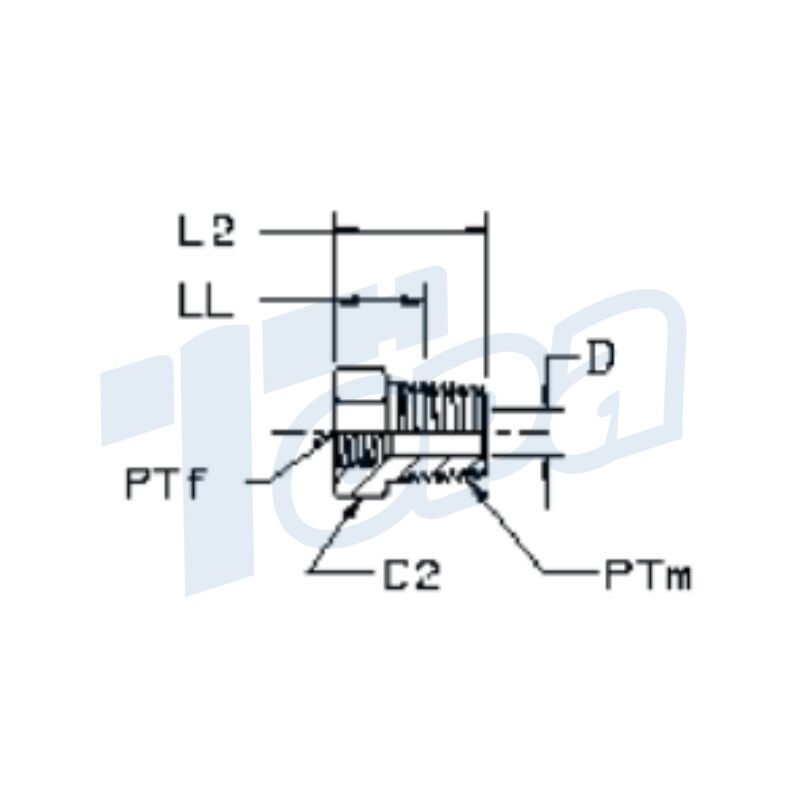

Dimensional Drawings:

TUBE PART # | PTm PORT THD NPTF | PTf PORT THD NPTF | C2 (inch) | D DRILL (inch) | L2(inch) | LL (inch) |
5406-4-2 | 1/4-18 | 1/8-27 | 5/8 | 0.328 | 0.86 | 0.52 |
5406-6-2 | 3/8-18 | 1/8-27 | 3/4 | 0.328 | 0.86 | 0.51 |
5406-6-4 | 3/8-18 | 1/4-18 | 3/4 | 0.422 | 0.86 | 0.51 |
5406-8-2 | 1/2-14 | 1/8-27 | 7/8 | 0.328 | 1.11 | 0.65 |
5406-8-4 | 1/2-14 | 1/4-18 | 7/8 | 0.422 | 1.11 | 0.65 |
5406-8-6 | 1/2-14 | 3/8-18 | 7/8 | 0.563 | 1.11 | 0.65 |
5406-12-2 | 3/4-14 | 1/8-18 | 1 1/8 | 0.328 | 1.17 | 0.69 |
5406-12-4 | 3/4-14 | 1/4-18 | 1 1/8 | 0.422 | 1.17 | 0.69 |
5406-12-6 | 3/4-14 | 3/8-18 | 1 1/8 | 0.563 | 1.17 | 0.69 |
5406-12-8 | 3/4-14 | 1/2-14 | 1 1/8 | 0.688 | 1.17 | 0.69 |
5406-16-2 | 1-11 1/2 | 1/8-18 | 1 3/8 | 0.328 | 1.36 | 0.79 |
5406-16-4 | 1-11 1/2 | 1/4-18 | 1 3/8 | 0.422 | 1.36 | 0.79 |
5406-16-6 | 1-11 1/2 | 3/8-18 | 1 3/8 | 0.563 | 1.36 | 0.79 |
5406-16-8 | 1-11 1/2 | 1/2-14 | 1 3/8 | 0.688 | 1.36 | 0.79 |
5406-16-12 | 1-11 1/2 | 3/4-14 | 1 3/8 | 0.891 | 1.36 | 0.79 |
5406-20-4 | 1 1/4-11 1/2 | 1/4-18 | 1 3/4 | 0.328 | 1.47 | 0.53 |
5406-20-6 | 1 1/4-11 1/2 | 3/8-18 | 1 3/4 | 0.563 | 1.47 | 0.87 |
5406-20-8 | 1 1/4-11 1/2 | 1/2-14 | 1 3/4 | 0.688 | 1.47 | 0.87 |
5406-20-12 | 1 1/4-11 1/2 | 3/4-14 | 1 3/4 | 0.891 | 1.47 | 0.88 |
5406-20-16 | 1 1/4-11 1/2 | 1-111/2 | 1 3/4 | 1.125 | 1.47 | 0.88 |
5406-24-12 | 1 1/2-11 1/2 | 1/4-18 | 2 | 0.328 | 1.52 | 0.92 |
5406-24-6 | 1 1/2-11 1/2 | 3/8-18 | 2 | 0.563 | 1.58 | 0.98 |
5406-24-8 | 1 1/2-11 1/2 | 1/2-14 | 2 | 0.688 | 1.58 | 0.98 |
5406-24-12 | 1 1/2-11 1/2 | 3/4-14 | 2 | 0.891 | 1.58 | 0.98 |
5406-24-16 | 1 1/2-11 1/2 | 1-11 1/2 | 2 | 1.125 | 1.58 | 0.99 |
5406-24-20 | 1 1/2-11 1/2 | 1 1/4-11 1/2 | 2 | 1.469 | 1.58 | 0.99 |
5406-32-8 | 2-11 1/2 | 1/2-14 | 2 1/2 | 0.688 | 1.75 | 1.14 |
5406-32-12 | 2-11 1/2 | 3/4-14 | 2 1/2 | 0.891 | 1.75 | 1.14 |
5406-32-16 | 2-11 1/2 | 1-11 1/2 | 2 1/2 | 1.125 | 1.75 | 1.14 |
5406-32-20 | 2-11 1/2 | 1 1/4-11 1/2 | 2 1/2 | 1.719 | 1.75 | 1.14 |
5406-32-24 | 2-11 1/2 | 1 1/2-11 1/2 | 2 1/2 | 1.719 | 1.75 | 1.14 |
