Male Hydraulic NPT Fittings

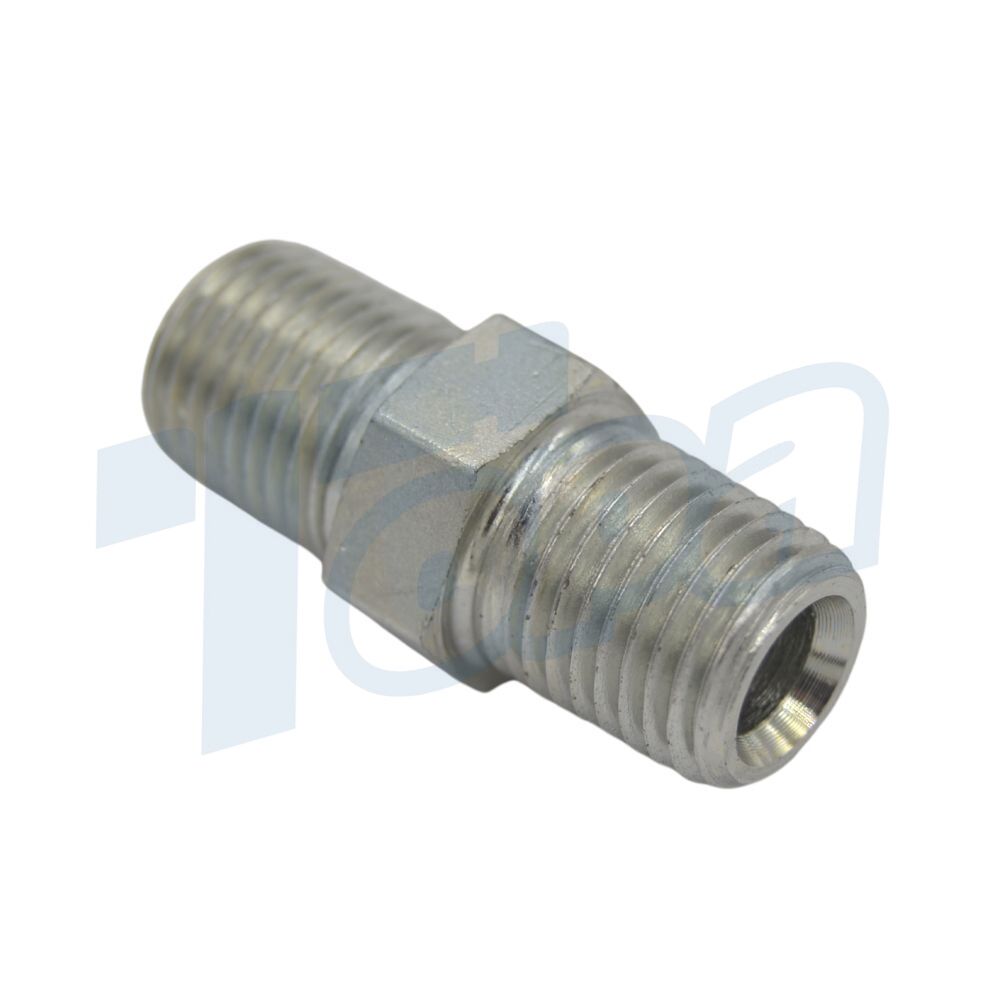

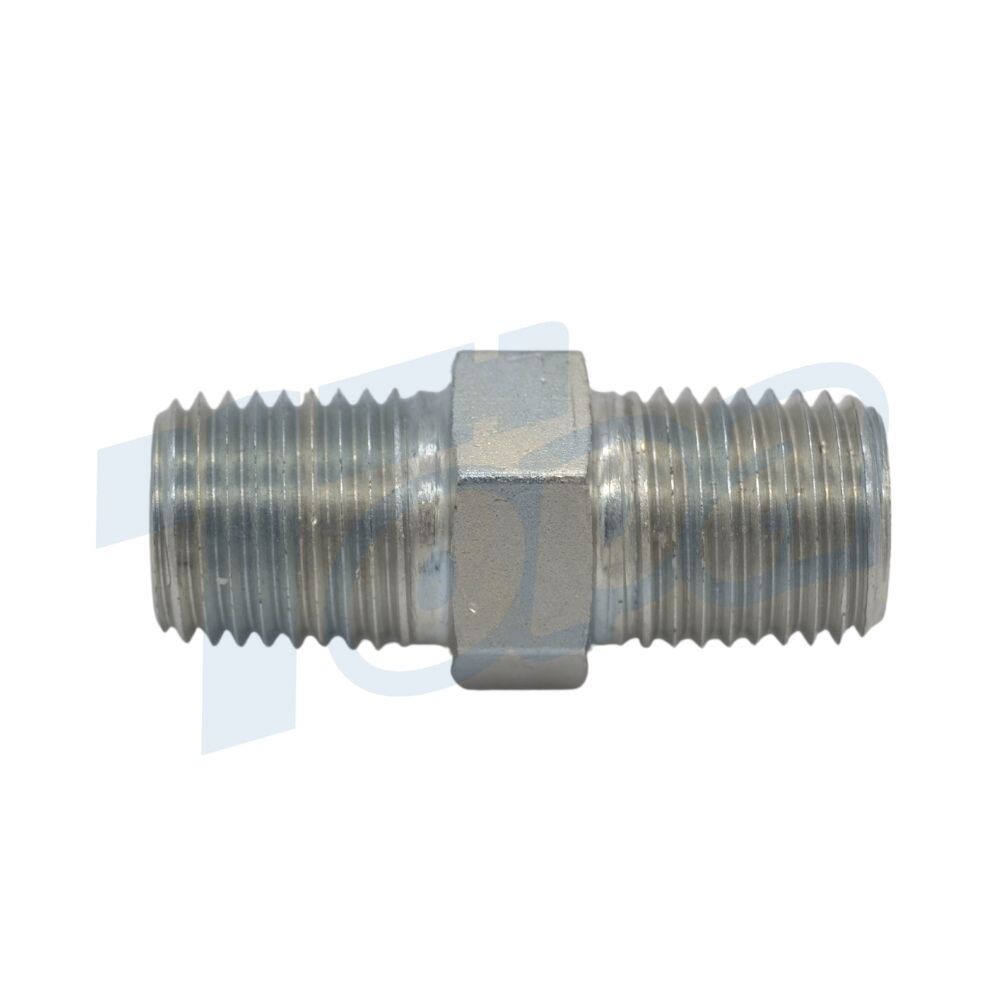

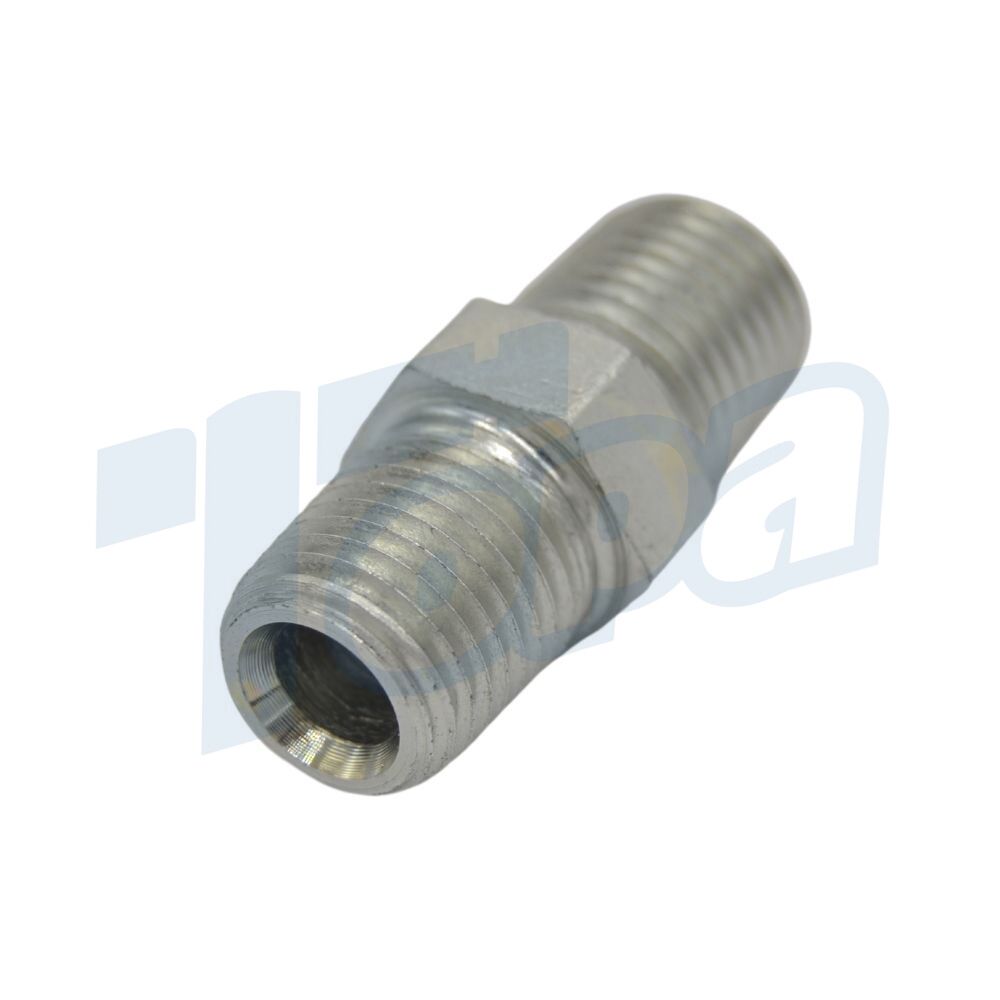

5404 Male hydraulic pipe fittings have two external NPT threads on both ends. And they are used to connect pipes and tubes. Those fittings are made of high-quality metal materials, durable and versatile. So if you have any problems with 90-degree npt hydraulic fittings, please contact us!

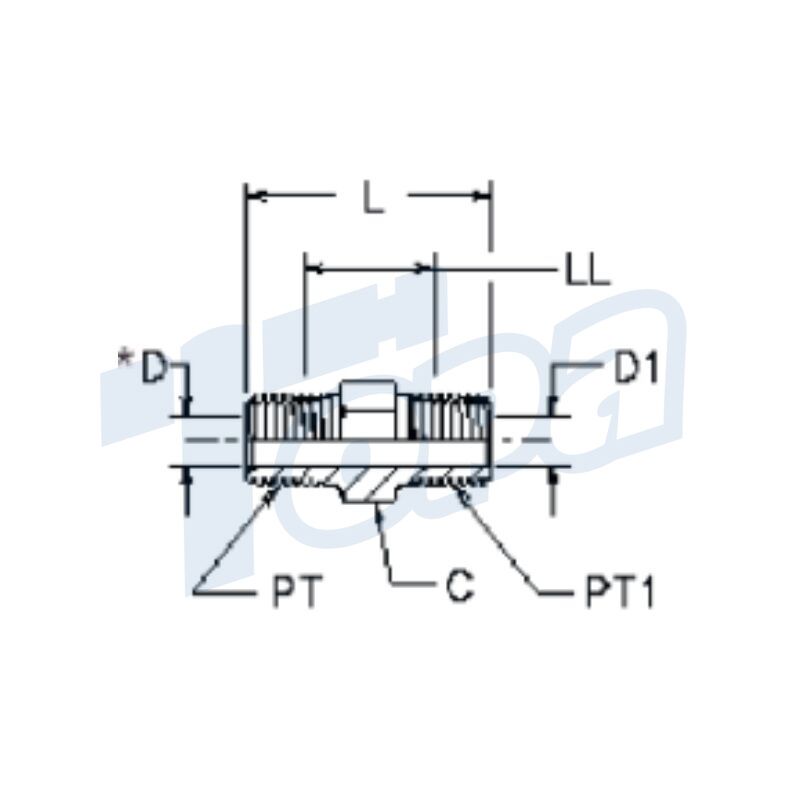

Dimensional Drawings:
TUBE FITTING PART # | PT PORT THD NPTF | PT1 PORT THD NPTF | C HEX (inch) | D DRILL (inch) | D1 DRILL (inch) | L (inch) |
5404-2-2 | 1/8-27 | 1/8-27 | 7/16 | 0.188 | 0.188 | 1.06 |
5404-2-4 | 1/4-18 | 1/8-27 | 5/8 | 0.281 | 0.188 | 1.25 |
5404-4-4 | 1/4-18 | 1/4-18 | 5/8 | 0.281 | 0.281 | 1.45 |
5404-2-6 | 3/8-18 | 1/8-27 | 3/4 | 0.406 | 0.188 | 1.45 |
5404-4-6 | 3/8-18 | 1/4-18 | 3/4 | 0.406 | 0.281 | 1.45 |
5404-6-6 | 3/8-18 | 3/8-18 | 3/4 | 0.406 | 0.406 | 1.45 |
5404-2-8 | 1/2-14 | 1/8-27 | 7/8 | 0.531 | 0.188 | 1.52 |
5404-6-8 | 1/2-14 | 3/8-18 | 7/8 | 0.531 | 0.406 | 1.70 |
5404-4-8 | 1/2-14 | 1/4-18 | 7/8 | 0.531 | 0.281 | 1.70 |
5404-8-8 | 1/2-14 | 1/2-14 | 7/8 | 0.531 | 0.531 | 1.89 |
5404-4-12 | 3/4-14 | 1/4-18 | 1 1/8 | 0.719 | 0.281 | 1.78 |
5404-6-12 | 3/4-14 | 1/4-18 | 1 1/8 | 0.719 | 0.406 | 1.78 |
5404-8-12 | 3/4-14 | 1/2-14 | 1 1/8 | 0.719 | 0.281 | 1.96 |
5404-12-12 | 3/4-14 | 3/4-14 | 1 1/8 | 0.719 | 0.719 | 1.96 |
5404-16-16 | 1-11 1/2 | 1-11 1/2 | 1 3/8 | 0.938 | 0.938 | 2.34 |
5404-4-16 | 1-11 1/2 | 1/4-18 | 1 3/8 | 0.938 | 0.281 | 1.96 |
5404-6-16 | 1-11 1/2 | 3/8-18 | 1 3/8 | 0.938 | 0.406 | 1.96 |
5404-8-16 | 1-11 1/2 | 1/2-14 | 1 3/8 | 0.938 | 0.531 | 2.09 |
5404-12-16 | 1-11 1/2 | 3/4-14 | 1 3/8 | 0.719 | 0.719 | 2.09 |
5404-16-20 | 1 1/4-11 1/2 | 1-11 1/2 | 1 3/4 | 1.250 | 0.938 | 2.45 |
5404-20-20 | 1 1/4-11 1/2 | 1 1/4-11 1/2 | 1 3/4 | 1.250 | 1.250 | 2.48 |
5404-16-24 | 1 1/2-11 1/2 | 1-11 1/2 | 2 | 1.500 | 0.938 | 2.55 |
5404-24-24 | 1 1/2-11 1/2 | 1 1/2-11 1/2 | 2 | 1.500 | 1.500 | 2.61 |
5404-32-32 | 2-11 1/2 | 2-11 1/2 | 2 1/2 | 1.938 | 1.938 | 2.83 |
5404-24-32 | 2-11 1/2 | 11/2-11 1/2 | 2 1/2 | 1.500 | 1.500 | 2.79 |
