NPT Tee Fittings

Description:

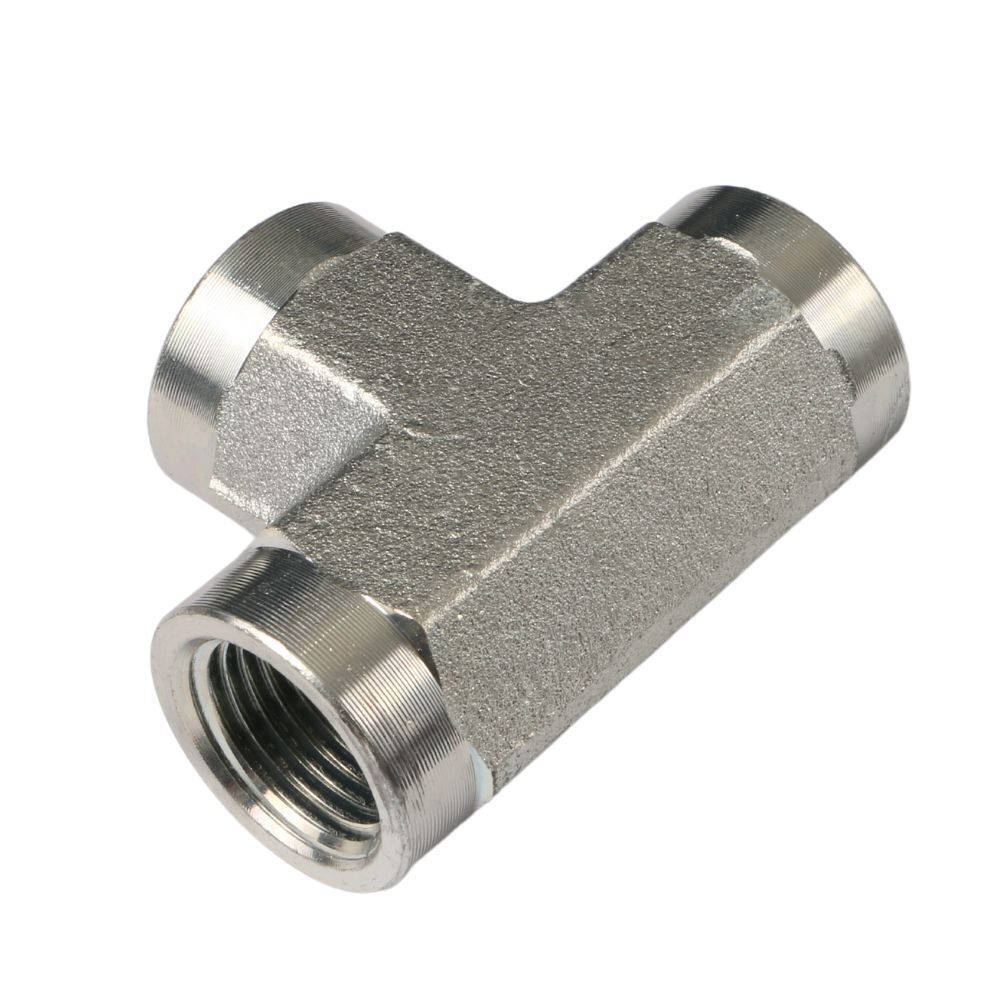

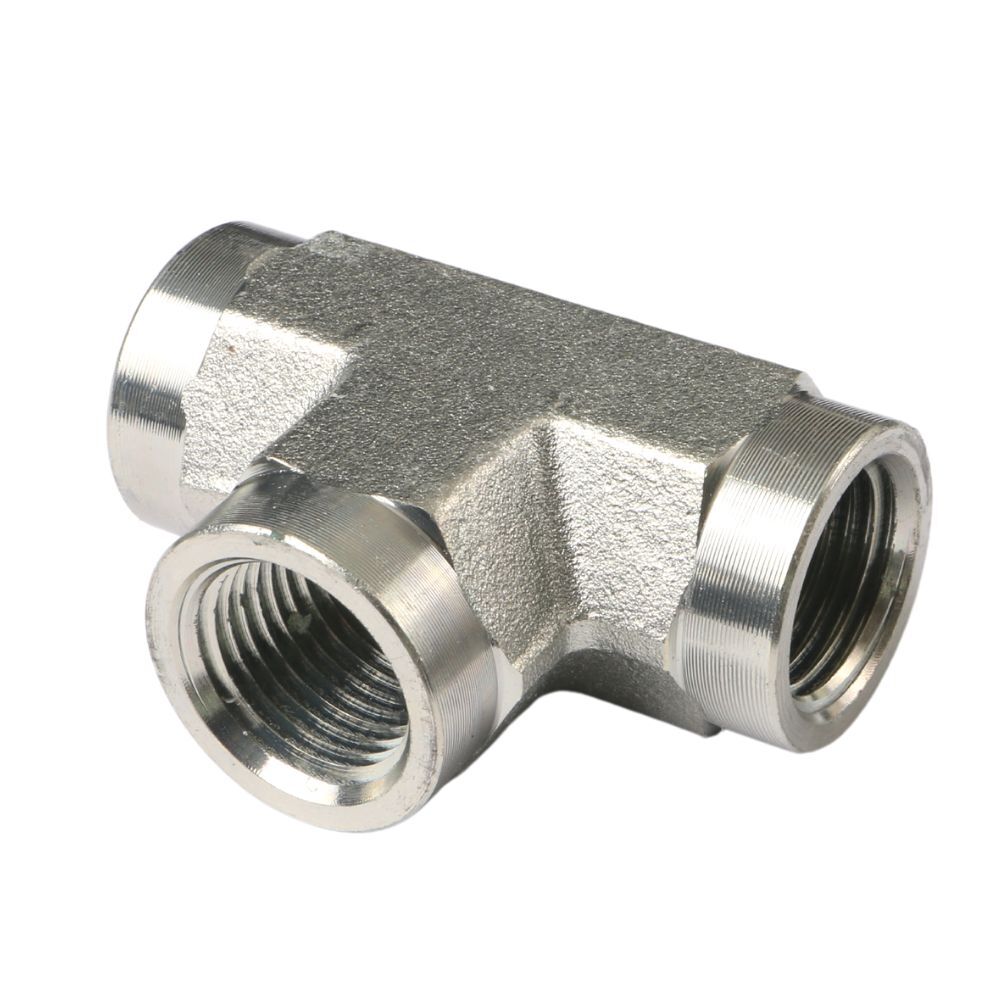

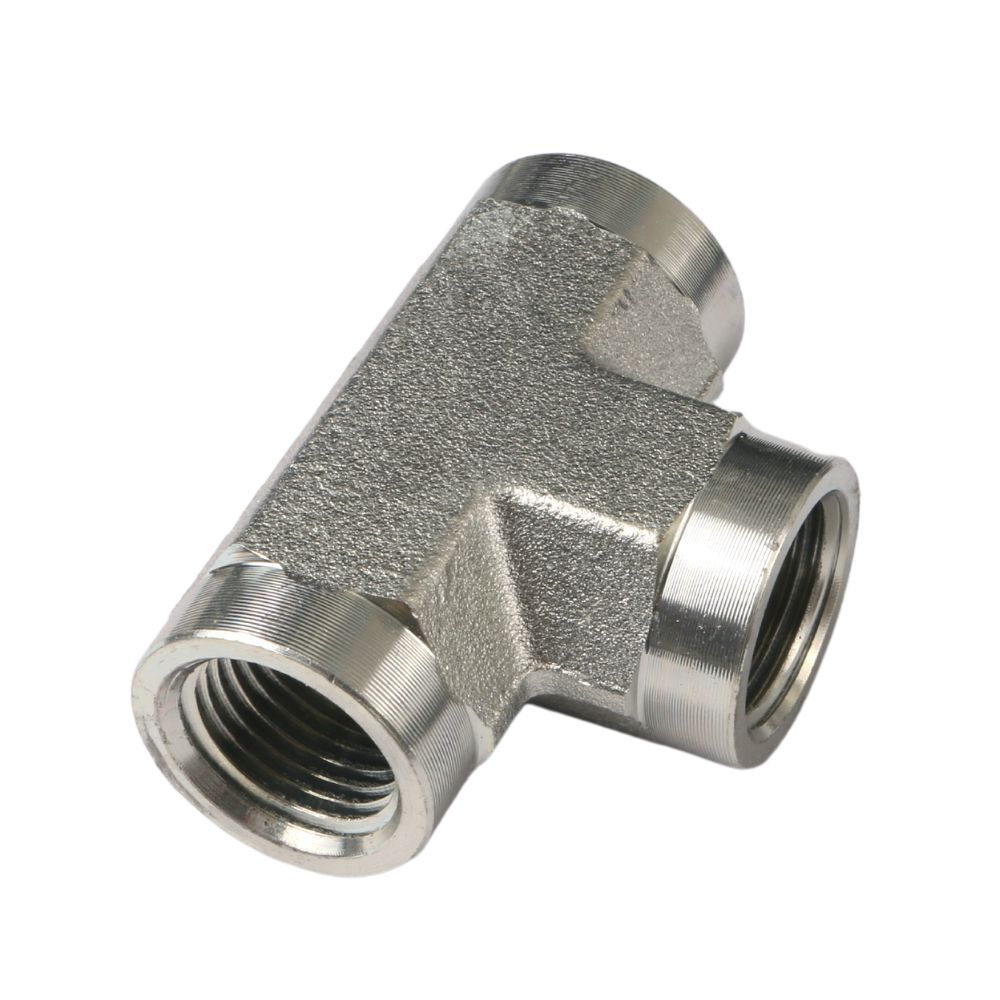

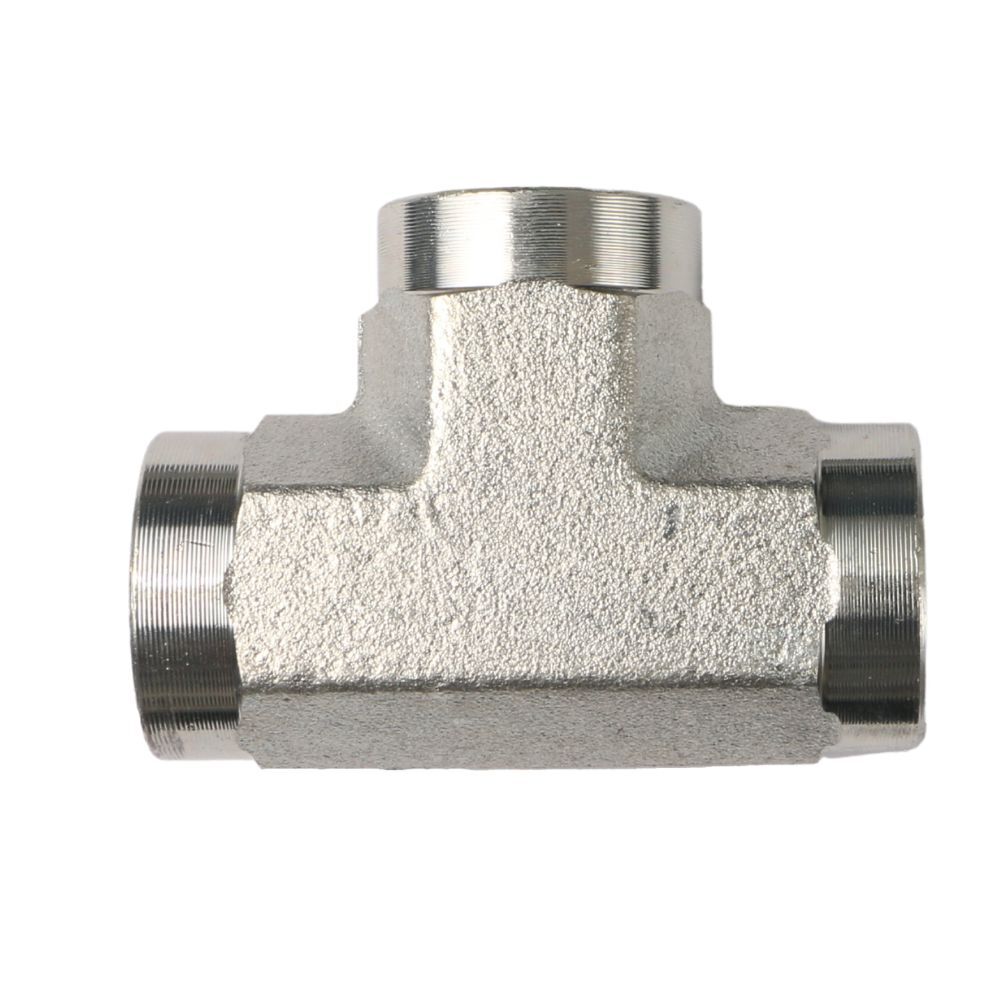

GN hydraulic female NPT tee fitting has three female NPT threads that can connect with male NPT threads.

Female NPT tee fittings come in a variety of sizes to accommodate different pipe diameters and thread sizes.

If you have any questions about the npt female tee fitting, feel free to ask.

Features and Benefits:

• Leak-free
• Reliable
• Free samples
• Customize



Description

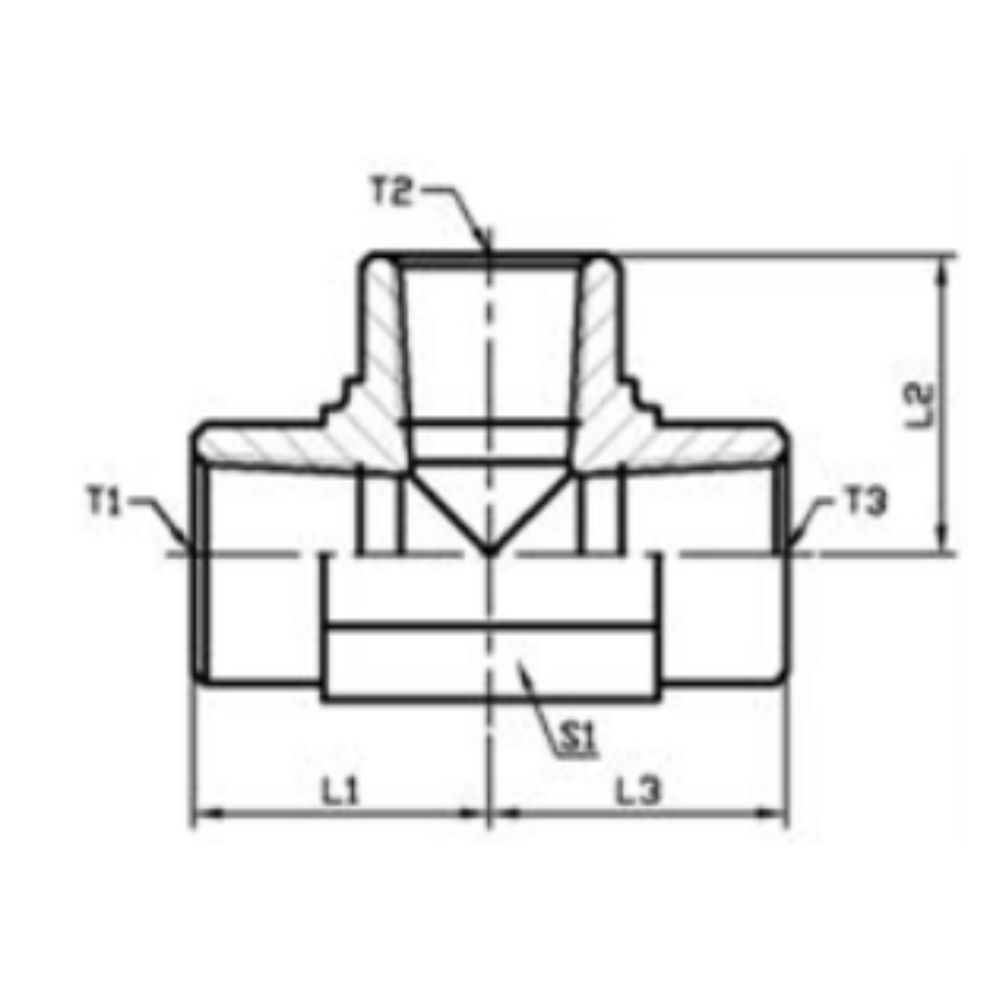

PART  NO.

THREAD

DIMENSIONS

Weight(g)

Working pressure MPa

T1

T2

T3

L1

L2

L3

S1

GN-02

Z1/8"X27

Z1/8"X27

Z1/8"X27

20

20

20

16

48

34.5

GN-04

Z1/4"X18

Z1/4"X18

Z1/4"X18

22.5

22.5

22.5

19

61

21

GN-06

Z3/8"X18

Z3/8"X18

Z3/8"X18

26

26

26

24

112

GN-08

Z1/2"X14

Z1/2"X14

Z1/2"X14

31

31

31

27

133

GN-12

Z3/4"X14

Z3/4"X14

Z3/4"X14

34

34

34

33

194

17

GN-16

Z1"X11.5

Z1"X11.5

Z1"X11.5

42

42

42

41

365

14

GN-20

Z1.1/4X11.5

Z1.1/4X11.5

Z1.1/4"X11.5

48

48

48

50

530

8

GN-24

Z1.1/2X11.5

Z1.1/2X11.5

Z1.1/2"X11.5

53

53

53

60

1027

7

GN-32

Z2"X11.5

Z2"X11.5

Z2"X11.5

62

62

62

70

1202



GN Female NPT Tee Fittings Video

This video shows information about GN female NPT tee fittings.

Typically, NPT hydraulic tee fitting is always applied in hydraulic systems, such as construction applications, pneumatic systems, gasoline and oil transfer systems.

If you have any questions about npt female fitting, please contact us.
