NPT Male Fitting

Description:

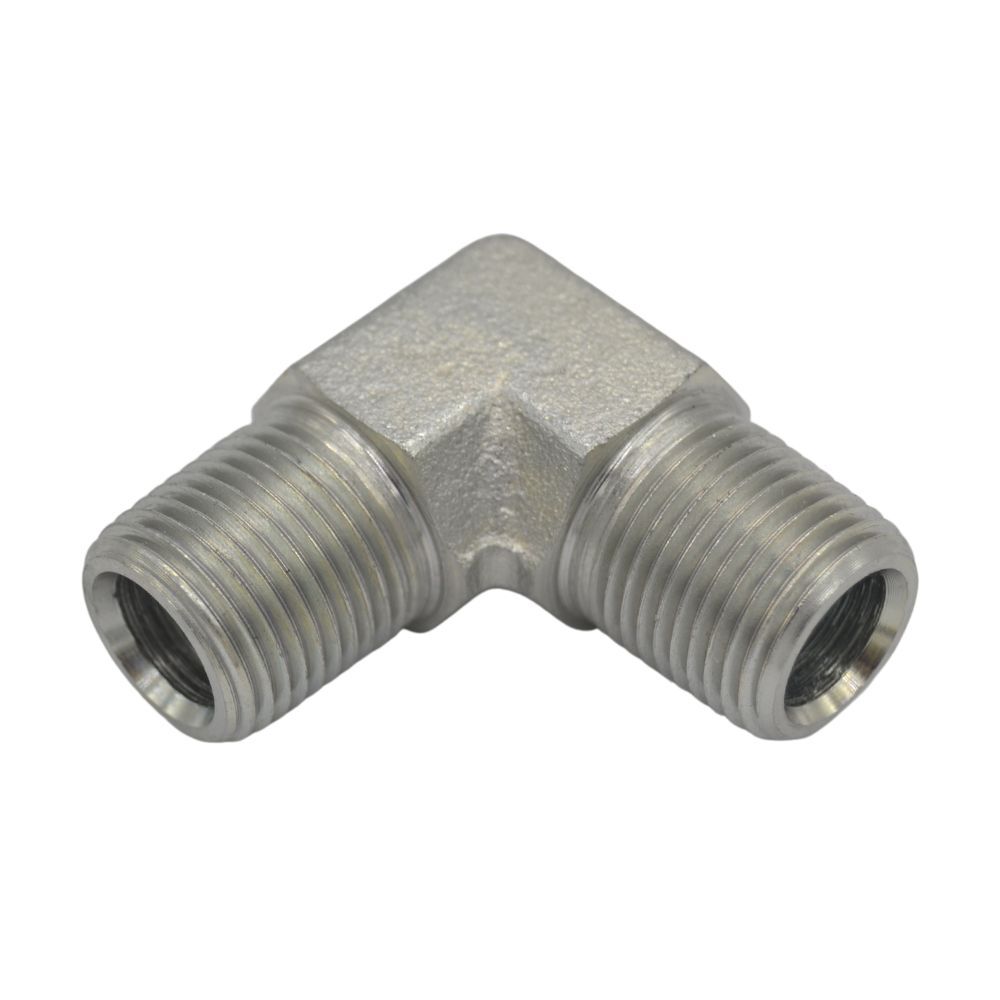

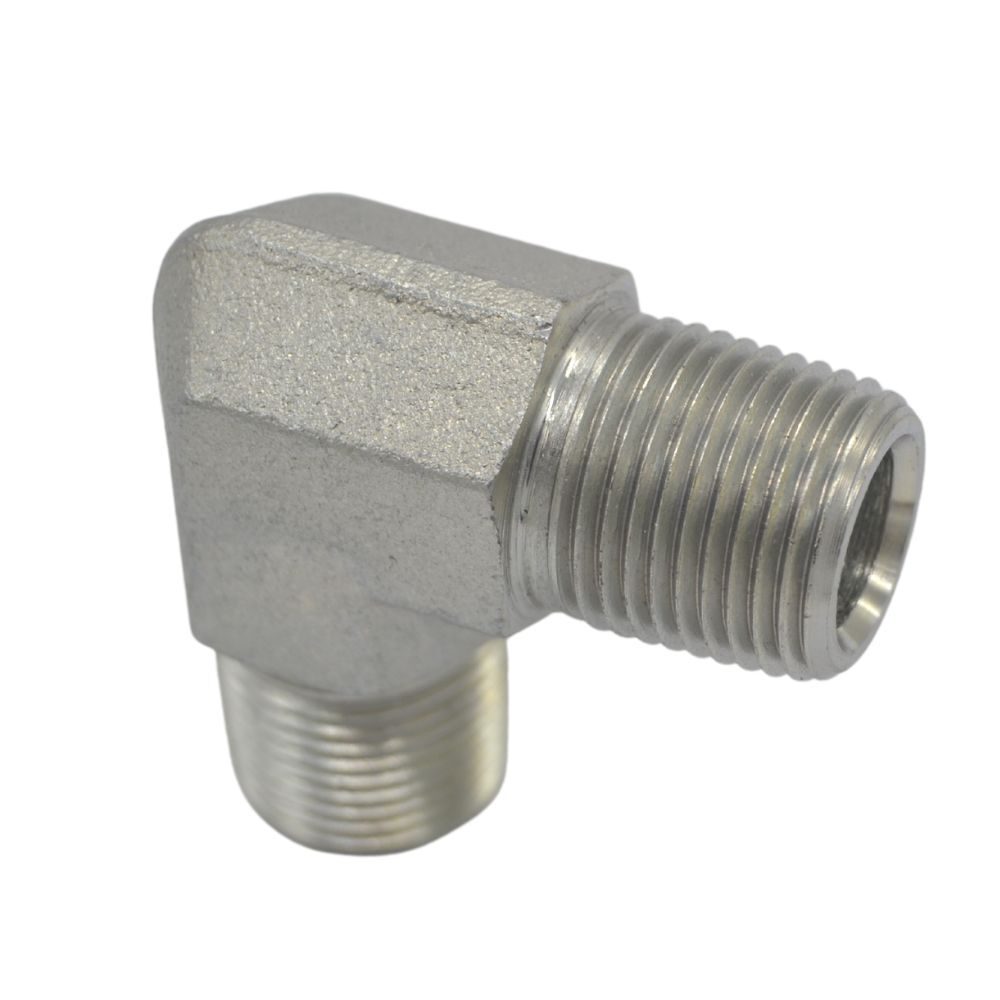

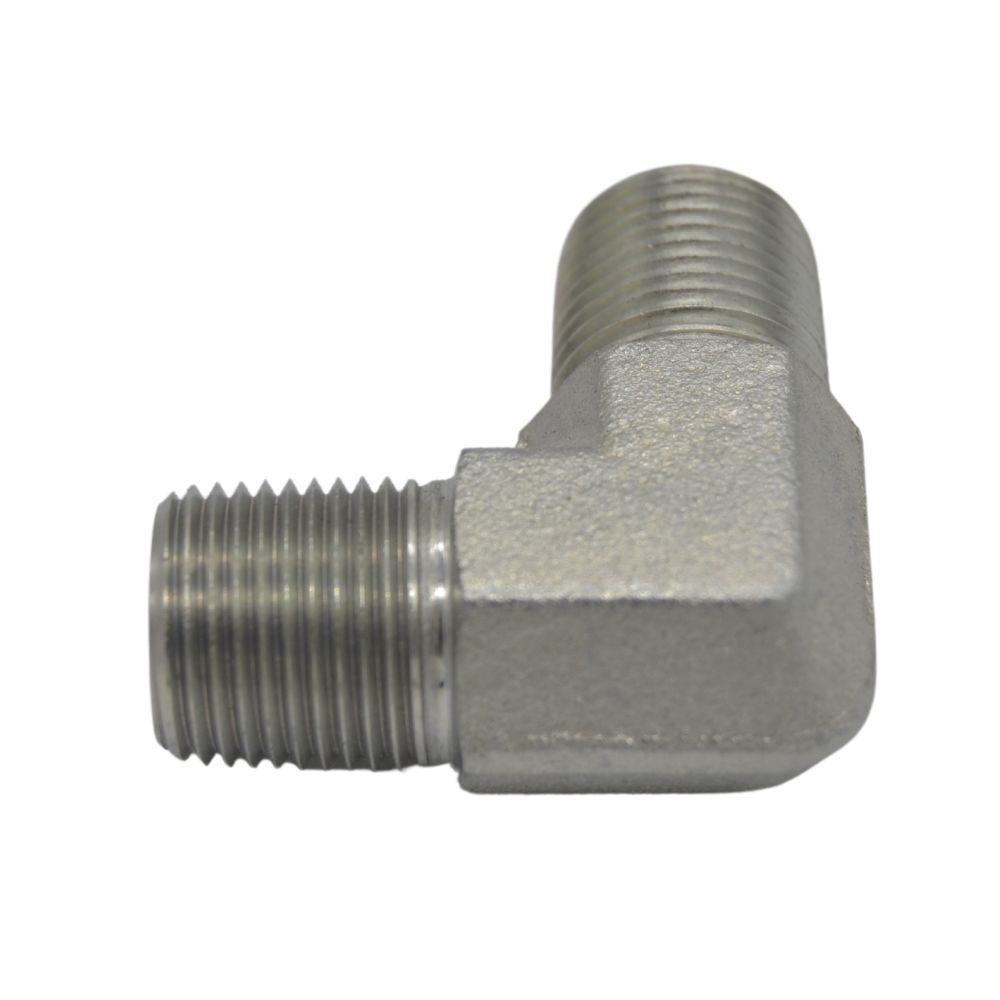

1N9 hydraulic male NPT fitting is a 90-degree elbow adapter that is available in plumbing and hydraulic systems.

The most common sizes for male NPT fittings are 1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″, and 2″.

If you have any questions about the npt adapter fittings, feel free to ask.

Features and Benefits:

• Leak-free
• Reliable
• Free samples
• Customize

Description

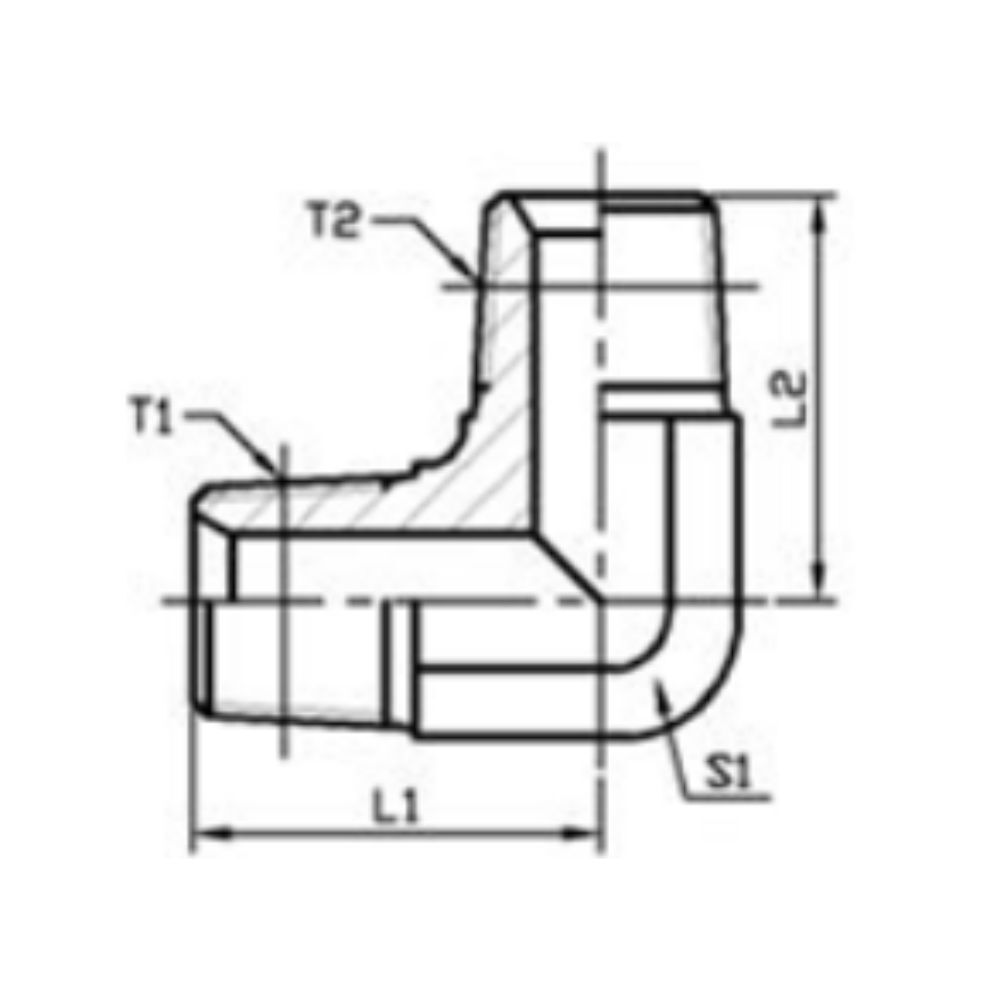

PART NO.	THREAD		DIMENSIONS			WEIGHT(g)	WORKING PRESSURE(MPa)
PART NO.	T1	T2	L1	L2	S1	WEIGHT(g)	WORKING PRESSURE(MPa)
1N9-02	Z1/8＂X27	Z1/8＂X27	21	21	11	21	34.5
1N9-02-04	Z1/8＂X27	Z1/4＂X18	23.5	25.5	14	31	27.5
1N9-04	Z1/4＂X18	Z1/4＂X18	25.5	25.5	14	39	27.5
1N9-04-06	Z1/4＂X18	Z3/8＂X18	28	31	19	58	21
1N9-04-08	Z1/4＂X18	Z1/2＂X14	30.5	36.5	22	86
1N9-06	Z3/8＂X18	Z3/8＂X18	31	31	19	75
1N9-06-08	Z3/8＂X18	Z1/2＂X14	33.8	37.3	22	106
1N9-08	Z1/2＂X14	Z1/2＂X14	37.3	37.3	22	130
1N9-08-12	Z1/2＂X14	Z3/4＂X14	40	44	27	184	17
1N9-12	Z3/4＂X14	Z3/4＂X14	44	44	27	228	17
1N9-12-16	Z3/4＂X14	Z1＂X11.5	46.5	50	33	311	14
1N9-16	Z1＂X11.5	Z1＂X11.5	50	50	33	382	14
1N9-20	Z1.1/4＂X11.5	Z1.1/4＂X11.5	54	54	41	650	8
1N9-24	Z1.1/2＂X11.5	Z1.1/2＂X11.5	63	63	48	948	7
1N9-32	Z2＂X11.5	Z2＂X11.5	68	68	63	1335	5

1N9 90° Elbow NPT Male Fitting Video

This video shows information about 1N9 NPT male fitting.

Typically, NPT hydraulic fitting is always applied in hydraulic systems, such as construction applications, agricultural machinery and manufacturing machinery.

If you have any questions about npt male adapter, please contact us.
