NPT Pipe Fittings

Description:

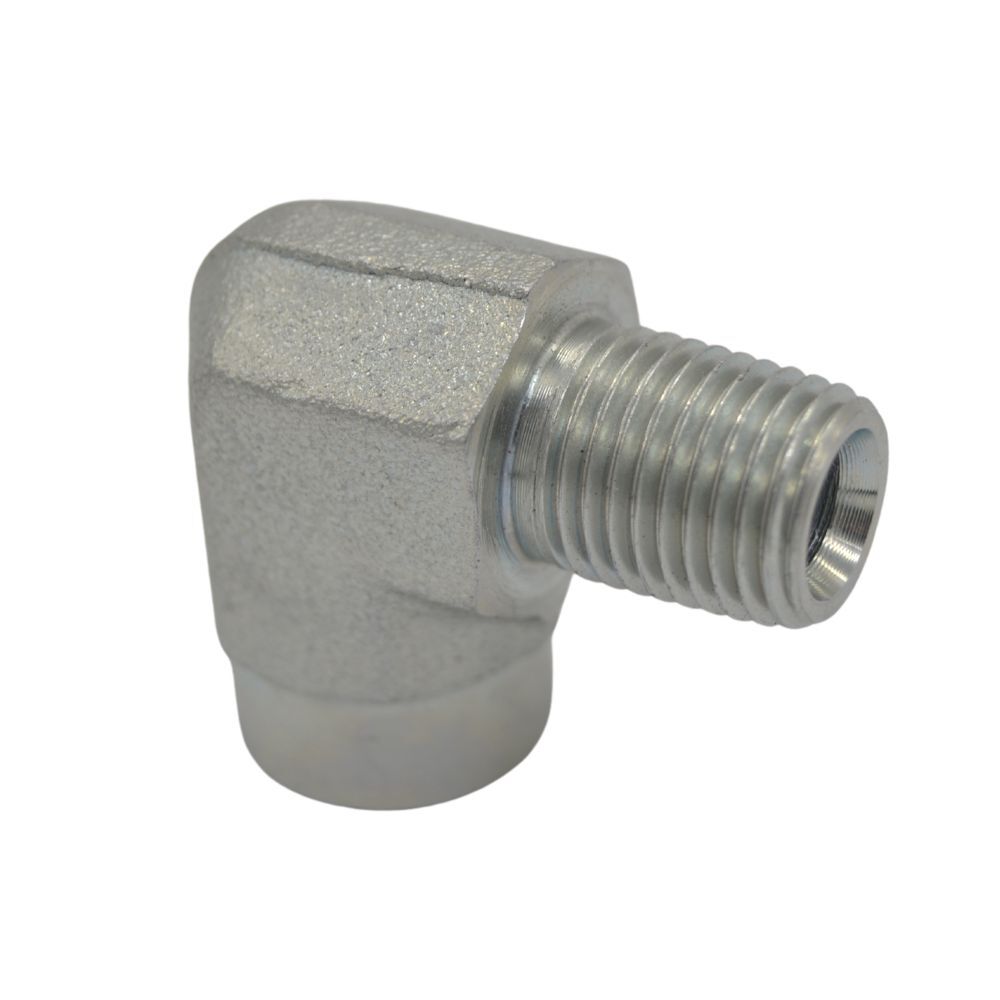

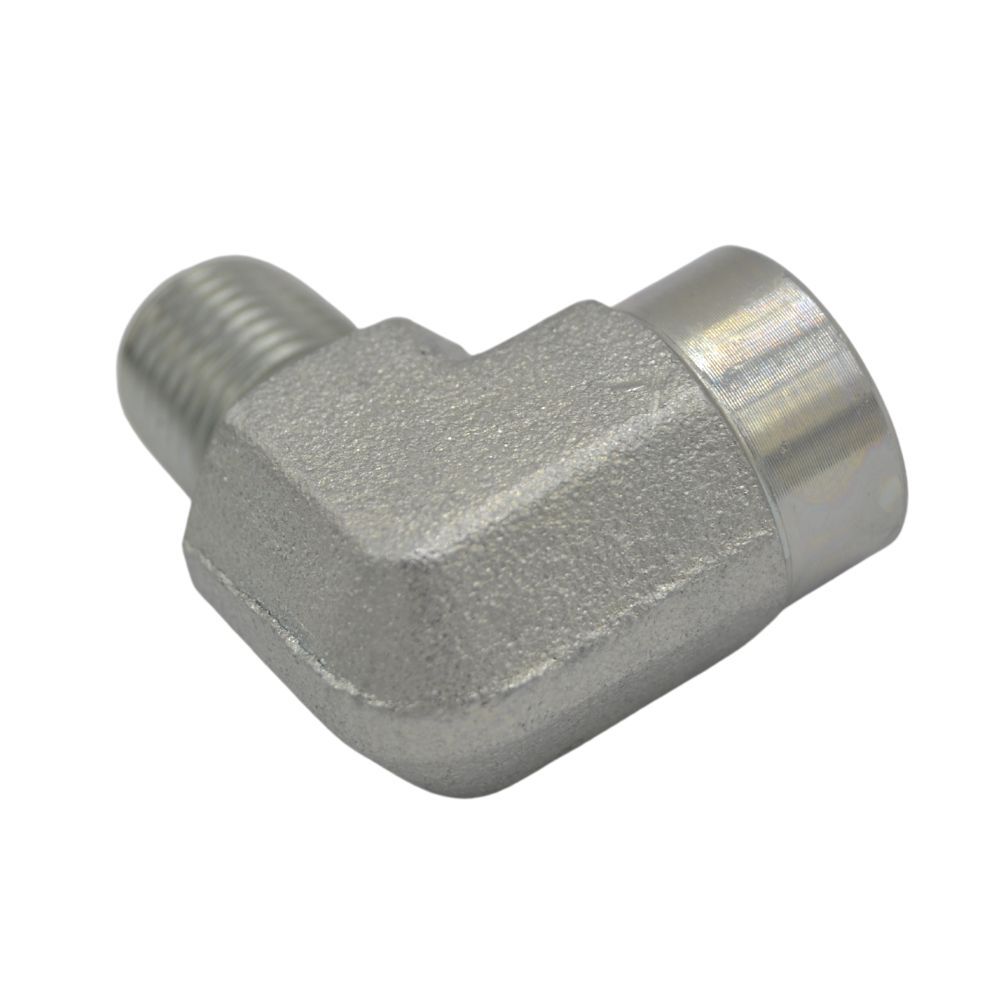

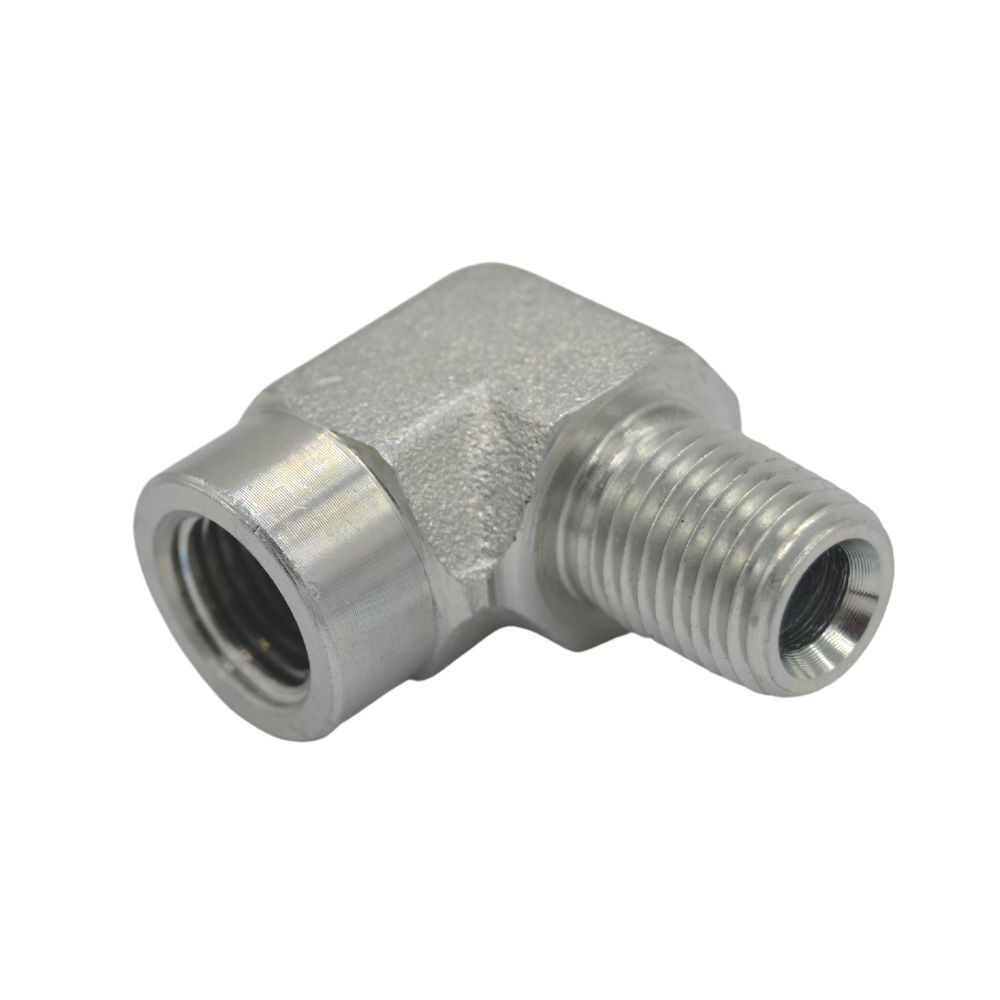

5N9 90° elbow male to female NPT pipe fittings are elbow fittings that can connect pipes and tubes at a right angle.

The 90-degree angle allows for easier installation in tight spaces or where there are obstacles to work around.

If you have any questions about the npt hydraulic fittings, feel free to ask.

Features and Benefits:

• Leak-free
• Reliable
• Free samples
• Customize



Description

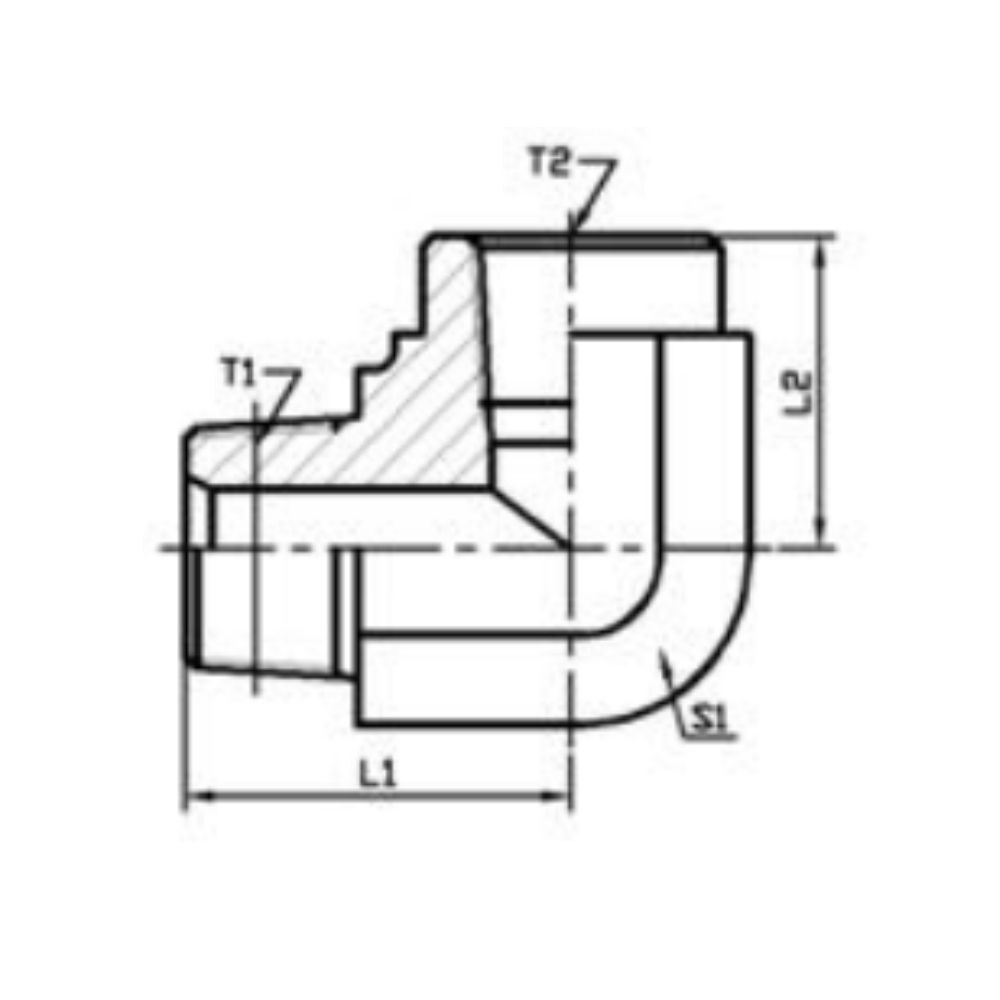

   PART  NO.

THREAD

DIMENSIONS

Weight(g)

Working pressure MPa

T1

T2

L1

L2

S1

5N9-02

Z1/8"X27

Z1/8"X27

24.5

17.8

16

25

34.5

5N9-04

Z1/4"X18

Z1/4"X18

28

22.4

19

40

27.5

5N9-04-06

Z1/4"X18

Z3/8"X18

31

25

24

60

21

5N9-06

Z3/8"X18

Z3/8"X18

33.5

25

24

74

5N9-08

Z1/2"X14

Z1/2"X14

41.2

31.2

30

138

5N9-12-08

Z3/4"X14

Z1/2"X14

45

31.2

30

176

17

5N9-12

Z3/4"X14

Z3/4"X14

45.2

34.5

33

174

5N9-16

Z1"X11.5

Z1"X11.5

54.5

41.1

41

310

14

5N9-20

Z1.1/4"X11.5

Z1.1/4"X11.5

63

43.2

48

458

8

5N9-24

Z1.1/2"X11.5

Z1.1/2"X11.5

71.5

52.8

63

935

7

5N9-32

Z2"X11.5

Z2"X11.5

73.5

62

65

840

5

5N9 90° Male to Female NPT Pipe Fittings Video

This video shows information about 90° male to female NPT pipe fittings.

Typically, NPT hydraulic fitting is always applied in hydraulic systems, such as construction applications, agricultural machinery and manufacturing machinery.

If you have any questions about npt hose fittings, please contact us.
