4N NPT Hydraulic Fittings/ NPT Male Plugs China Wholesaler

NPT Hydraulic Fittings

Description:

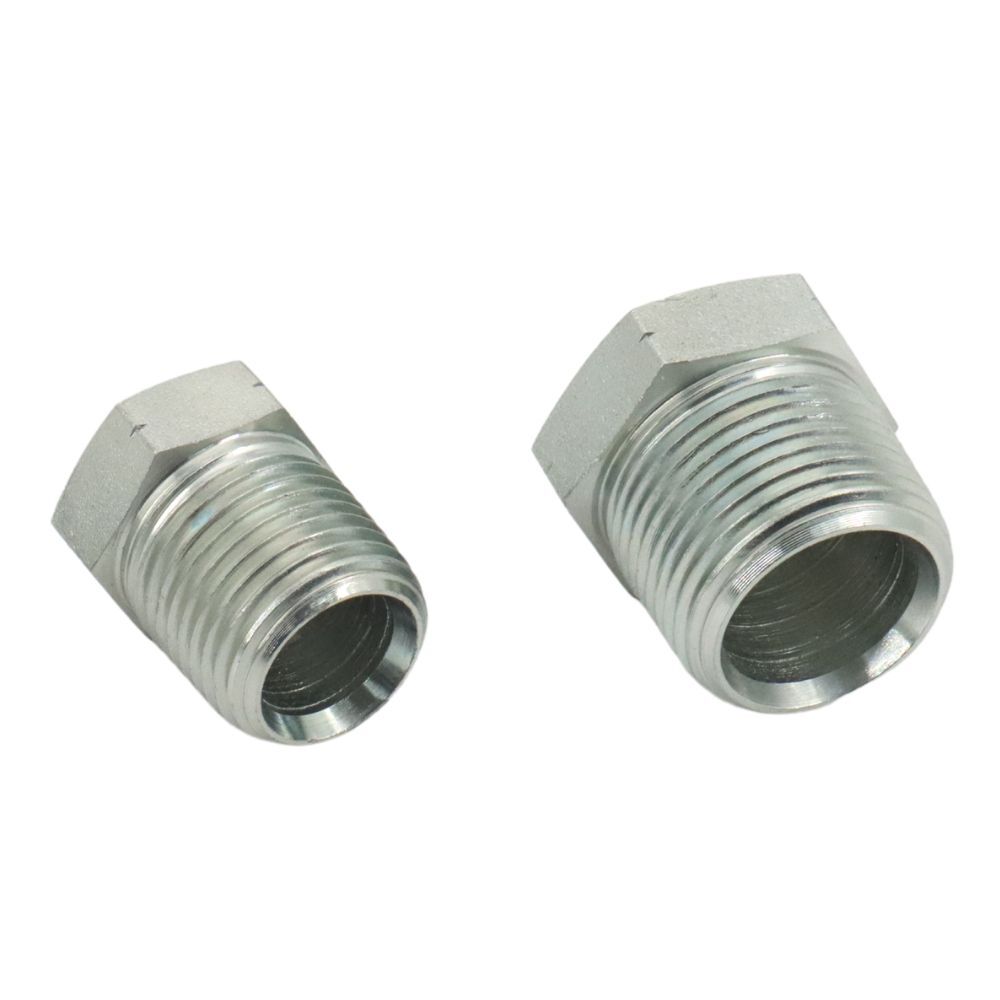

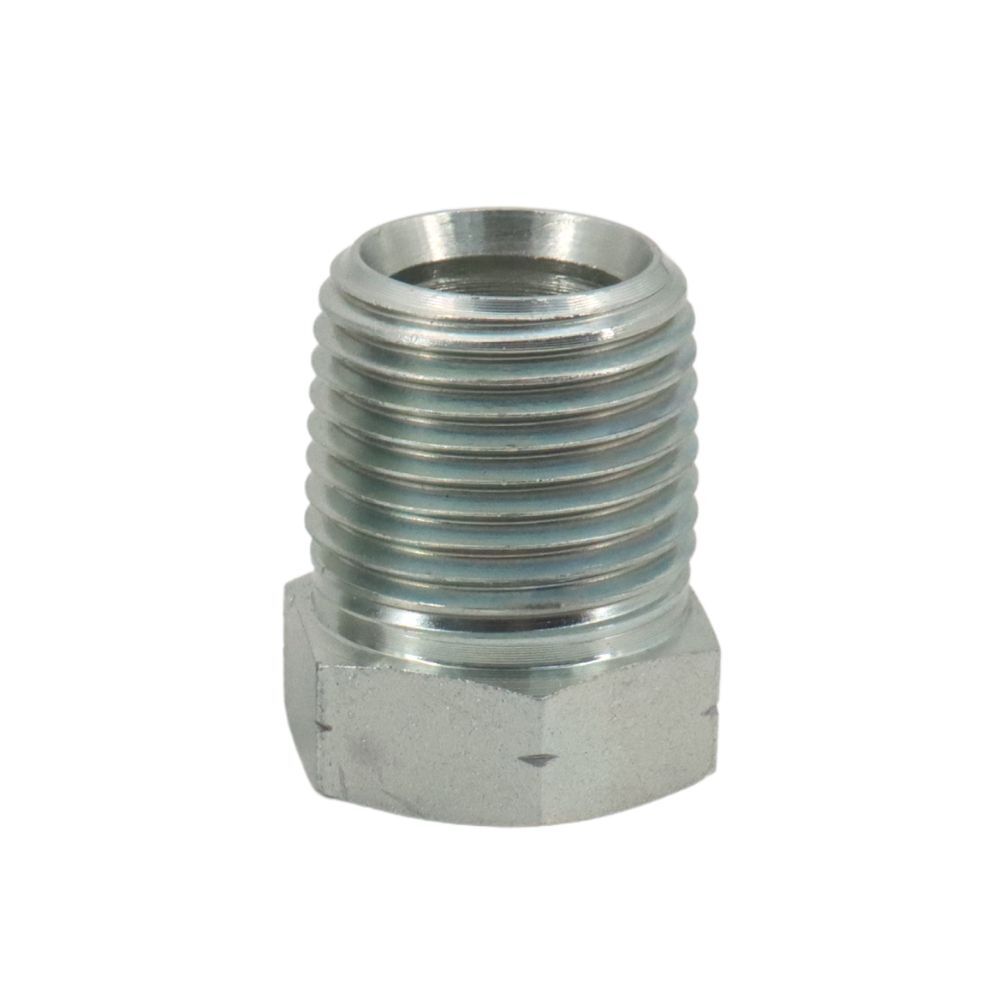

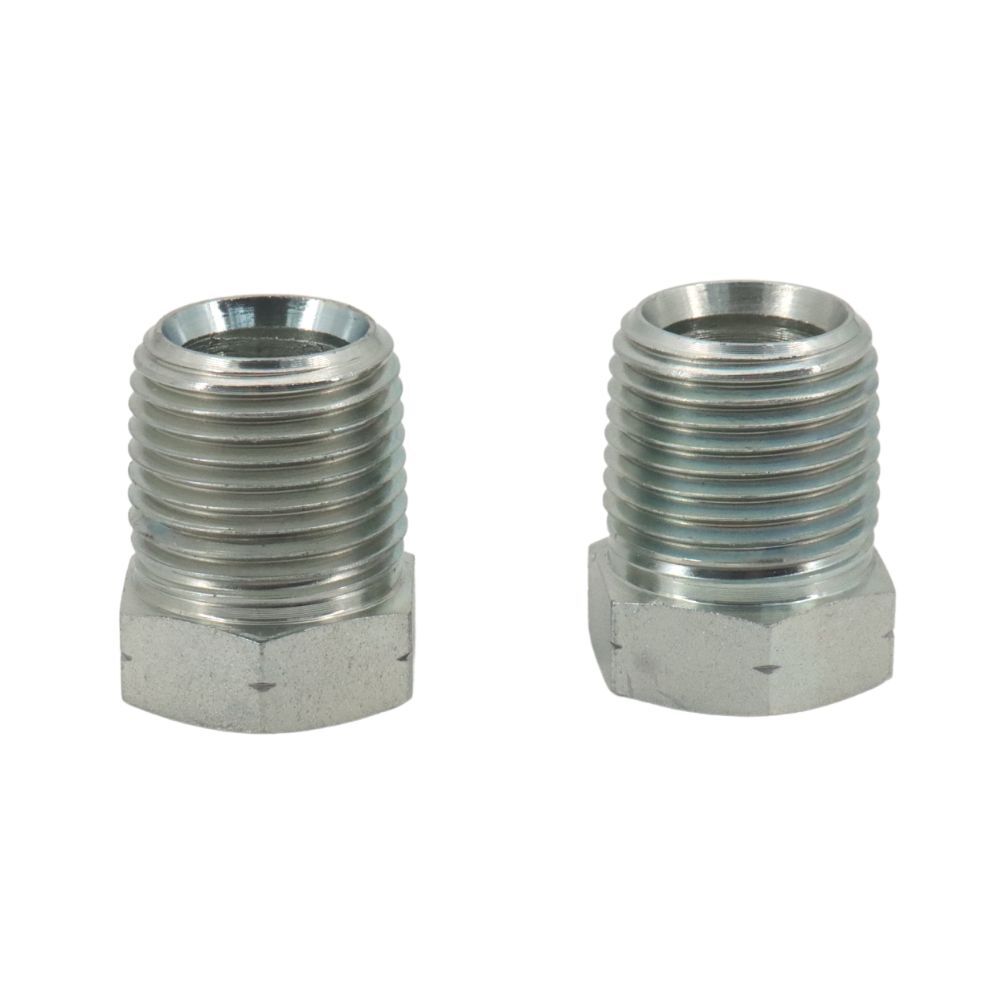

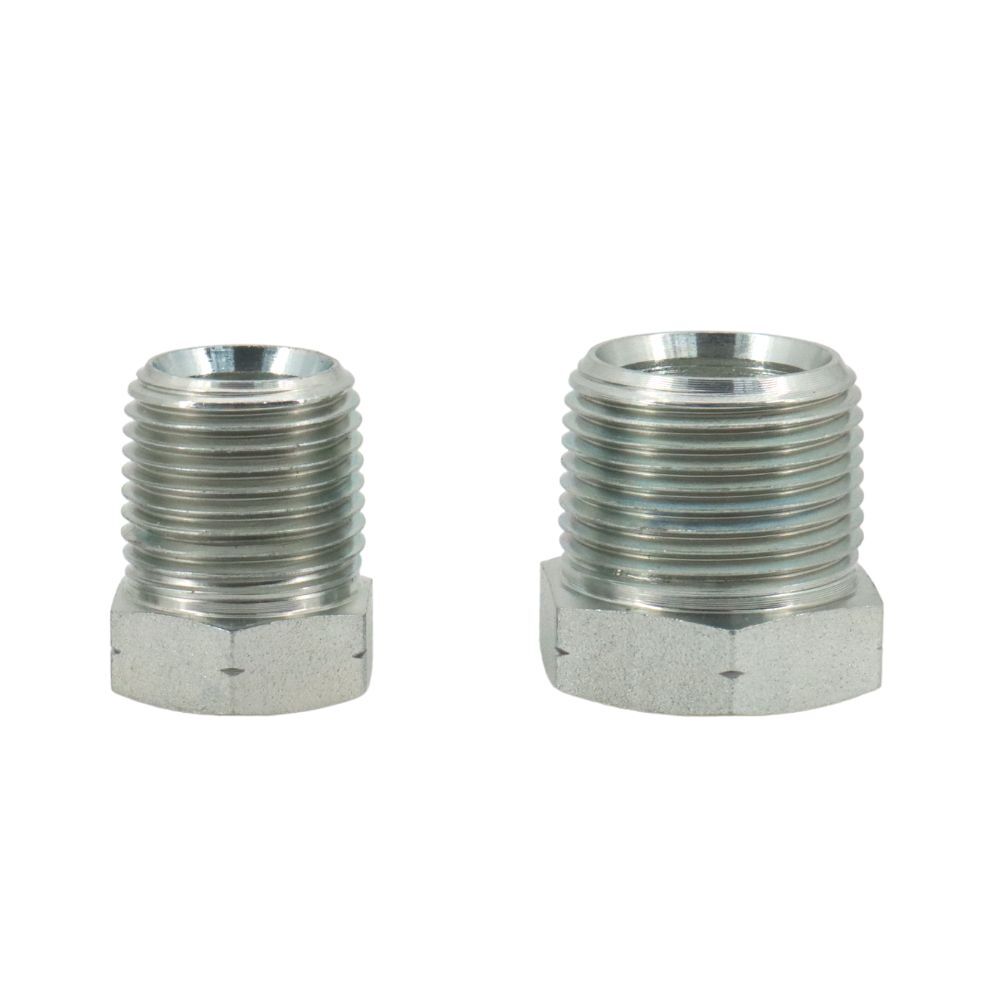

4N NPT plug fitting has an external NPT thread and a hex head that can be tightened or loosened with a wrench or pliers.

The plug fitting is used to seal a connection that is not in use or to block off a pipe or fitting temporarily.

If you have any questions about the npt pipe fitting, feel free to ask.

Features and Benefits:

• Leak-free
• Reliable
• Free samples
• Customize

Description

PART NO.	THREAD	DIMENSIONS			Weight(g)	Working pressure MPa

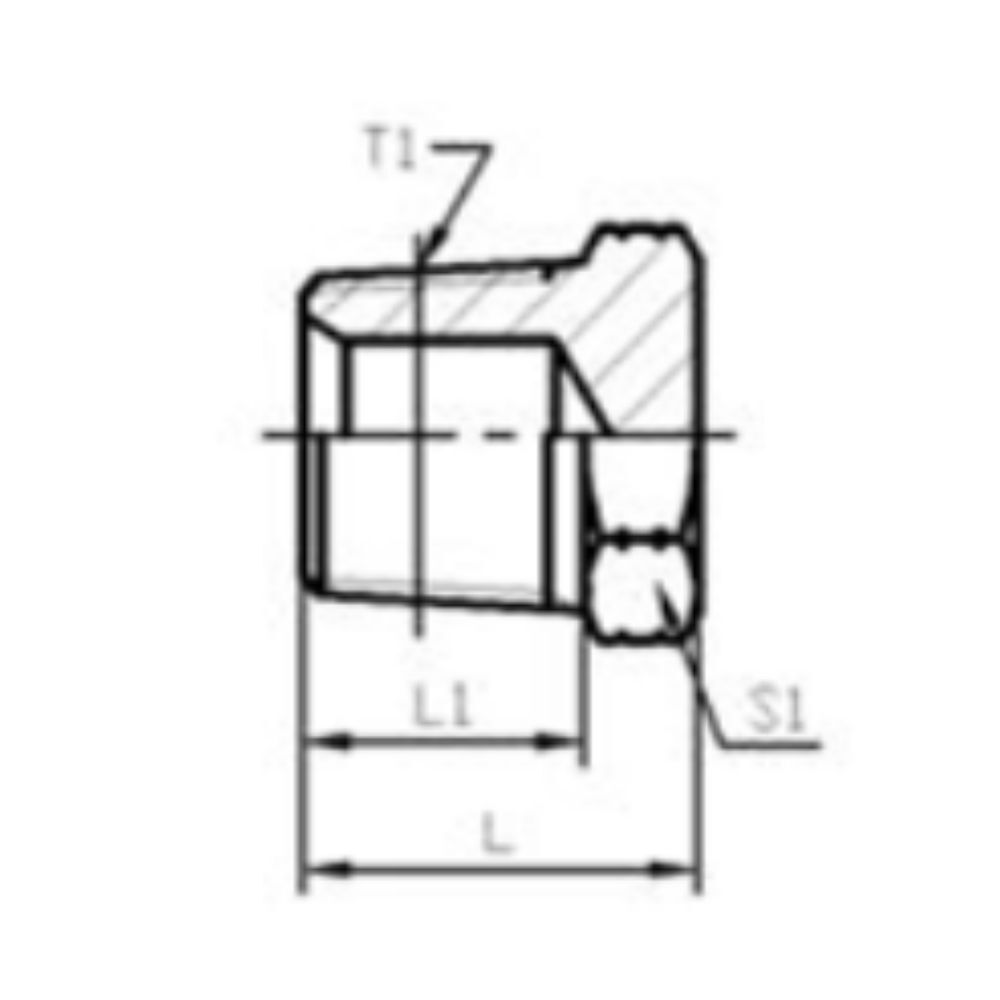

PART NO.	T1	L1	L	S1	Weight(g)	Working pressure MPa
4N-02	Z1/8＂X27	10.5	16	12	10	34.5
4N-04	Z1/4＂X18	15	20	17	20	27.5
4N-06	Z3/8＂X18	16	21	19	30	21
4N-08	Z1/2＂X14	19.5	27	22	56	21
4N-12	Z3/4＂X14	19.5	29.5	27	95	17
4N-16	Z1＂X11.5	25.5	36.5	36	185	14
4N-20	Z1.1/4＂X11.5	26.5	38.5	46	315	8
4N-24	Z1.1/2＂X11.5	27.5	43	50	444	7
4N-32	Z2＂X11.5	27.5	43.5	65	686

4N NPT Hydraulic Fittings/ NPT Plug Video

This video shows information about 4N NPT plug fitting.

Typically, NPT hydraulic fittings are always applied in hydraulic systems, such as construction applications, agricultural machinery and manufacturing machinery.

If you have any questions about npt fuel fittings, please contact us.
