Description
PART NO. | THREAD | DIMENSIONS | WEIGHT(g) | WORKING PRESSURE(MPa) | |||||

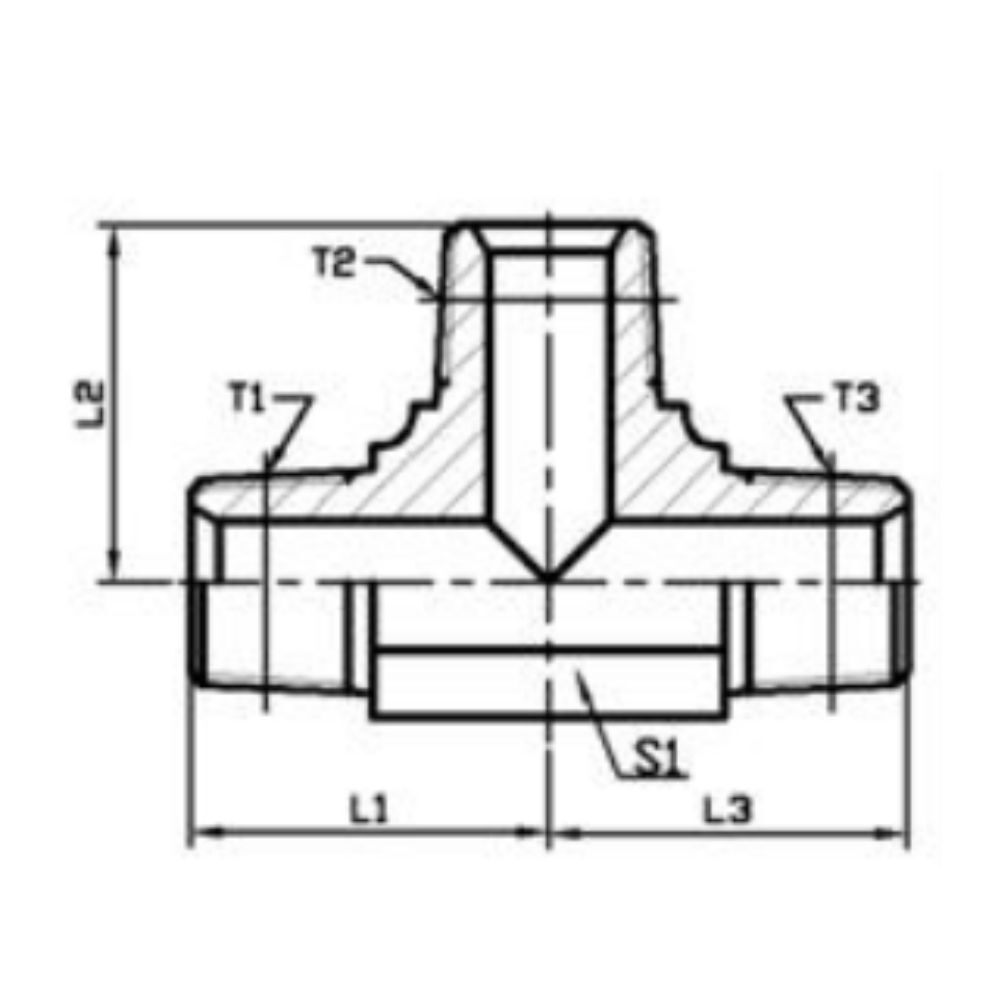

T1 | T2 | T3 | L1 | L2 | L3 | S1 | |||
AN-02 | Z1/8＂X27 | Z1/8＂X27 | Z1/8＂X27 | 21 | 21 | 21 | 11 | 29 | 34.5 |
AN-04 | Z1/4＂X18 | Z1/4＂X18 | Z1/4＂X18 | 25.5 | 25.5 | 25.5 | 14 | 53 | 27.5 |
AN-06 | Z3/8＂X18 | Z3/8＂X18 | Z3/8＂X18 | 31 | 31 | 31 | 19 | 101 | 21 |
AN-08 | Z1/2＂X14 | Z1/2＂X14 | Z1/2＂X14 | 36.7 | 36.7 | 36.7 | 22 | 174 | |
AN-12 | Z3/4＂X14 | Z3/4＂X14 | Z3/4＂X14 | 44 | 44 | 44 | 27 | 309 | 17 |
AN-16 | Z1＂X11.5 | Z1＂X11.5 | Z1＂X11.5 | 50 | 50 | 50 | 33 | 517 | 14 |
AN-20 | Z1.1/4X11.5 | Z1.1/4＂X11.5 | Z1.1/4X11.5 | 54.5 | 54.5 | 54.5 | 41 | 887 | 8 |
AN-24 | Z1.1/2X11.5 | Z1.1/2＂X11.5 | Z1.1/2X11.5 | 59.5 | 59.5 | 59.5 | 48 | 1210 | 7 |

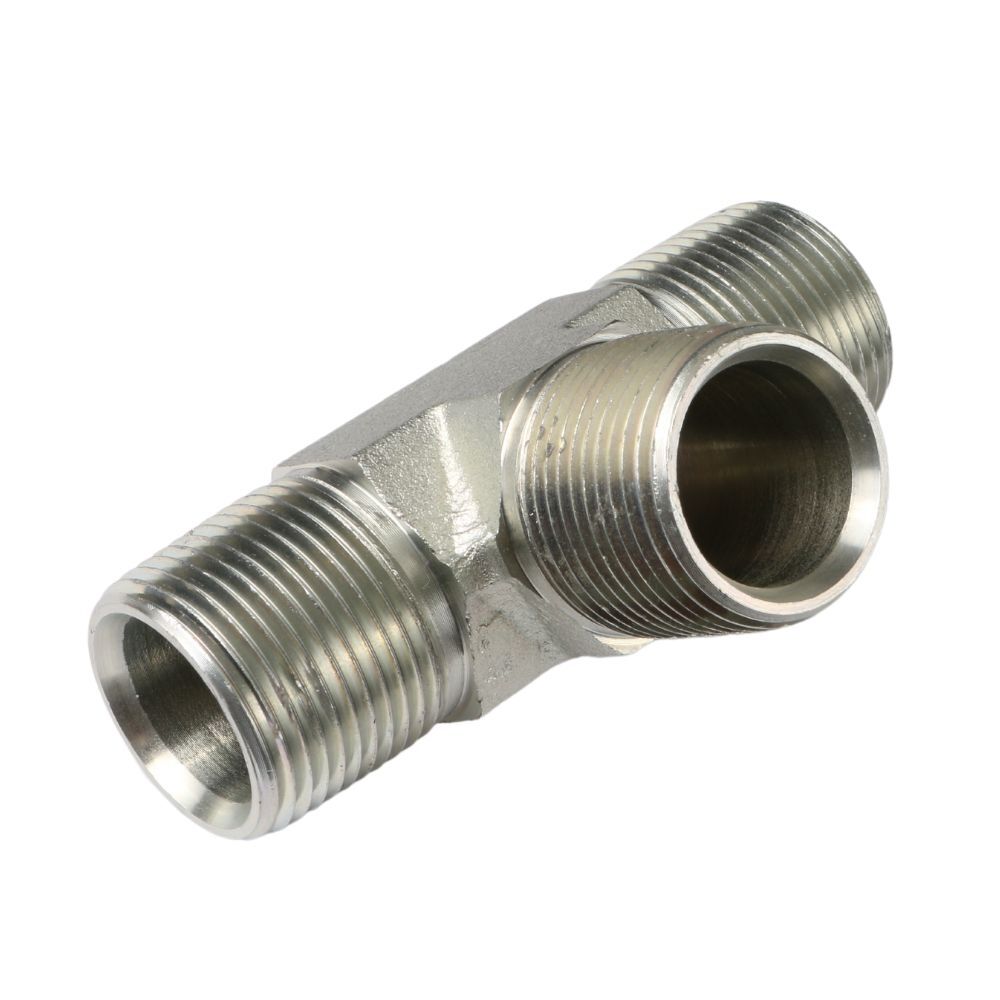

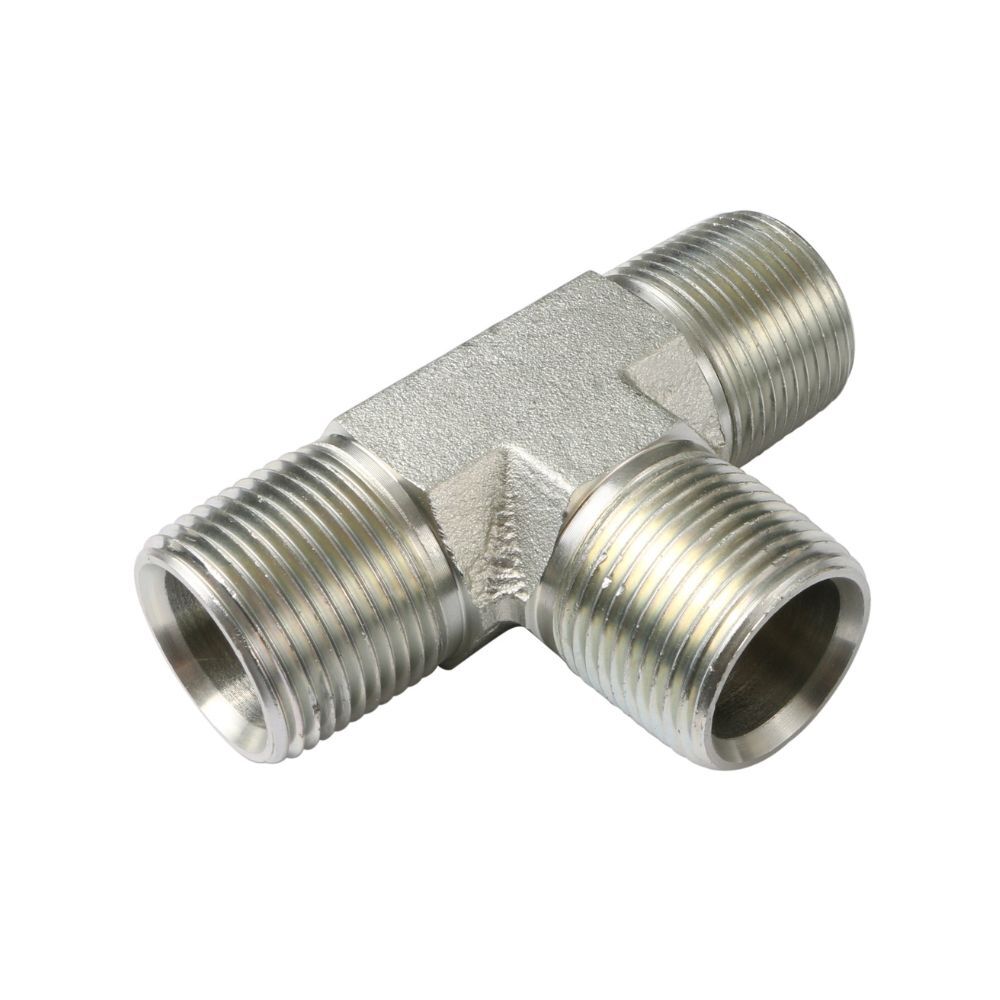

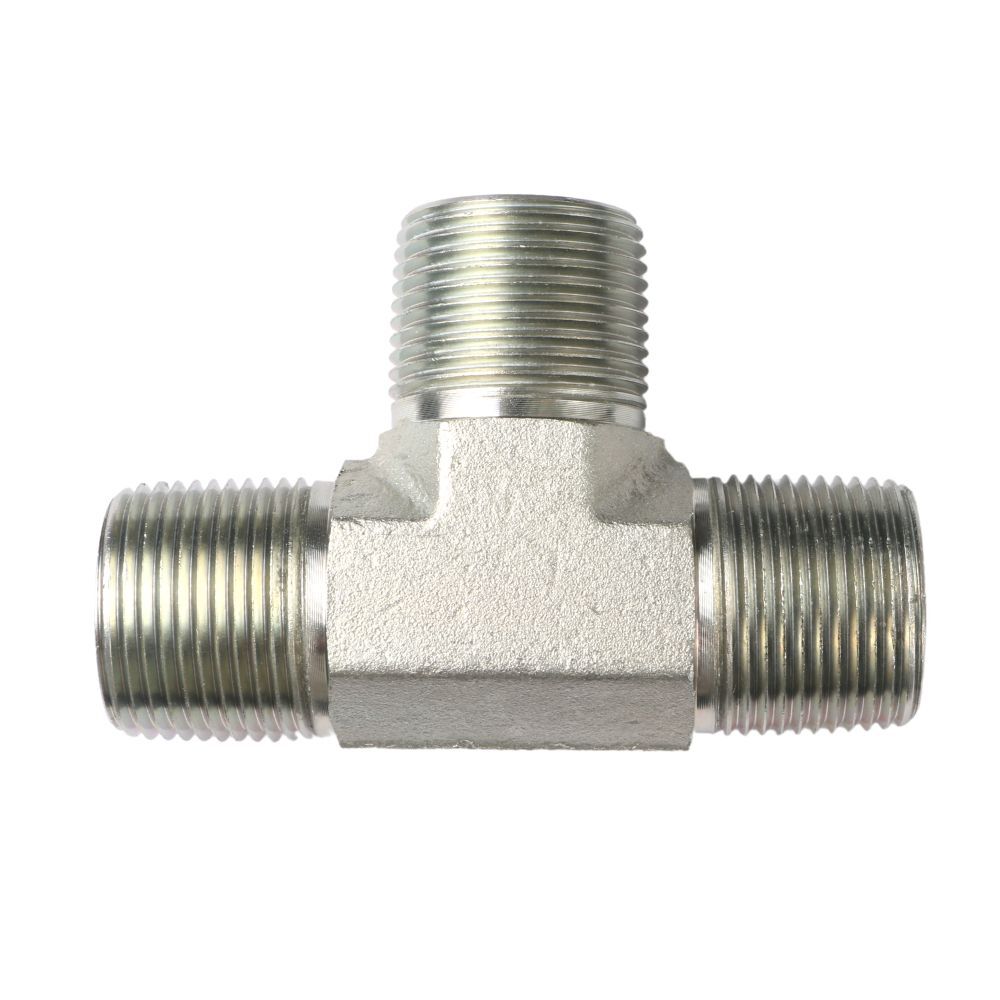

AN Male NPT Tee Fitting Video
This video shows information about AN male NPT tee fitting.
Typically, NPT hydraulic tee fitting is always applied in hydraulic systems, pneumatic systems, gasoline and oil transfer systems.
If you have any questions about npt male tee fitting, please contact us.
