4E Metric Hydraulic Plug-Male O-ring Plug China Supplier

Metric Hydraulic Plug

Description:

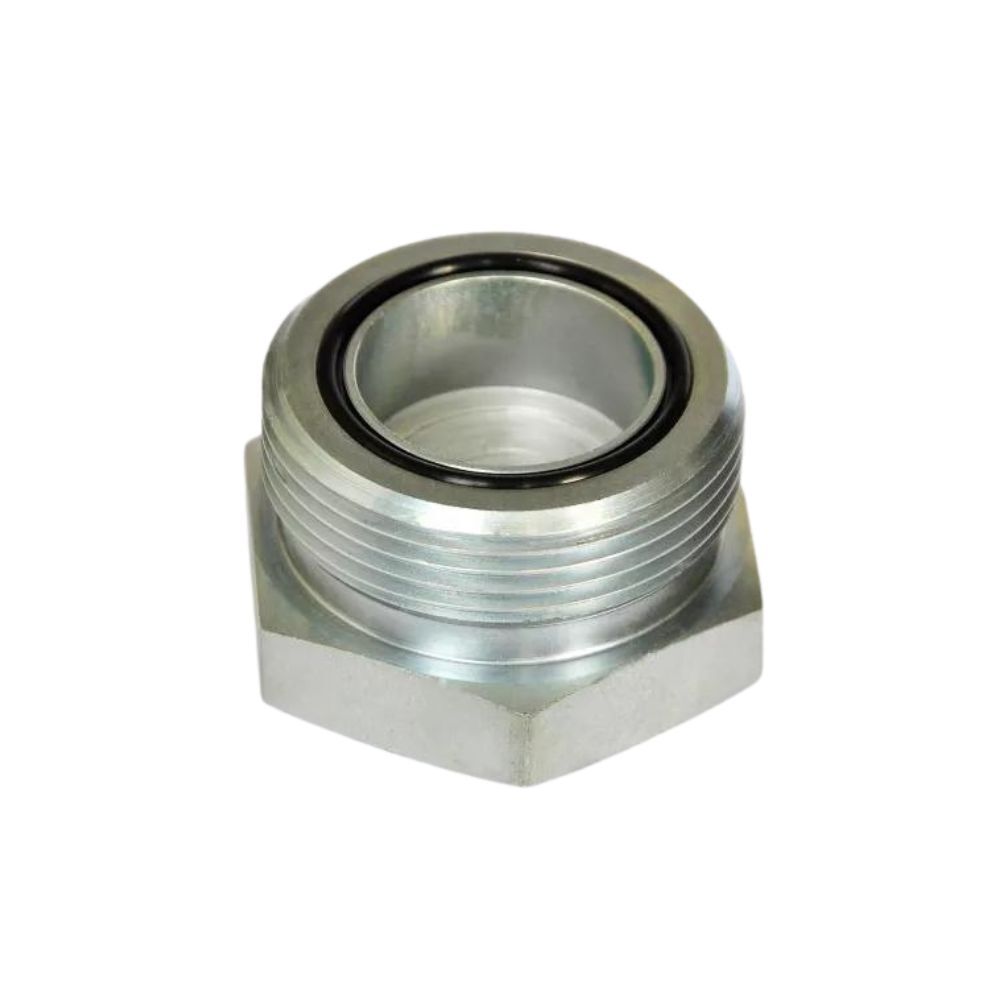

4E male o-ring metric hydraulic plug is a male plug that is designed to fit into a port or opening with a specific metric thread size and seal against the flow of fluid under pressure.

The plug has an o-ring seal that can provide superior leakage protection for hydraulic threads.

Feel free to ask any questions about the male metric pipe plug adapter.

Features and Benefits:

• Leak-free
• Reliable
• Easy to maintain
• Customize

Description

	THREAD	O-RING	DIMENSIONS
PART NO.	E	E	A	L	S1
4E-14	M14X1.5	10X1.9	11	17	17
4E-16	M16X1.5	11X1.9	11	17	17
4E-18	M18X1.5	13X1.9	11	17	19
4E-22	M22X1.5	16X2.4	12	20	24
4E-27	M27X1.5	20X2.4	13	23	30
4E-30	M30X1.5	24X2.4	14	25	32
4E-36	M36X2	30X3.1	16	29	38
4E-39	M39X2	32X3.1	18	31	41
4E-42	M42X2	35X3.1	20	33	46
4E-45	M45X2	38X3.1	21	34	46
4E-52	M52X2	40X3.1	22	37	55
4E-60	M60X2	45X3.1	24	41	65

4E Male O-ring Metric Hydraulic Plug Video

This video shows information about the 4E metric hydraulic plug.

Hydraulic metric adapters have a wide range of fluid applications in various industries where hydraulic systems are used. Such as automotive, agriculture, and construction systems.

If you have any questions about metric thread plug adapter, please contact us.
