Description

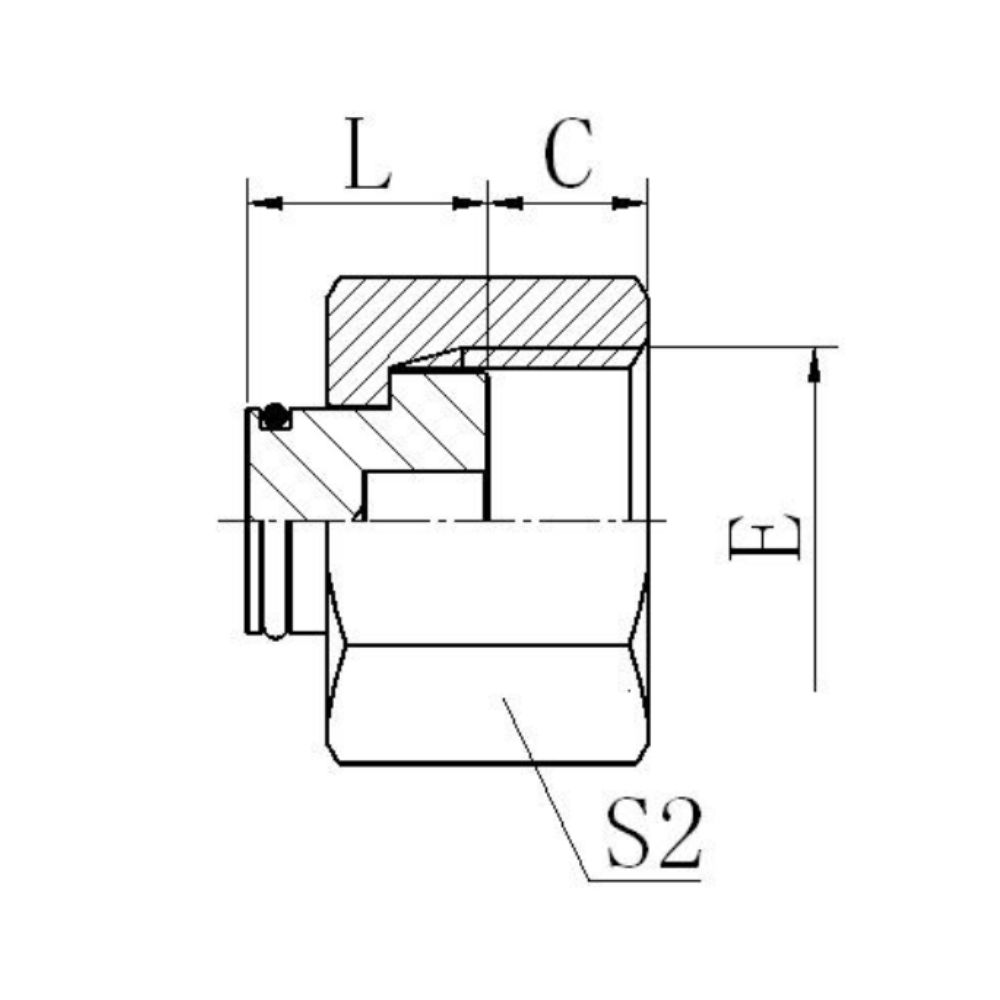

THREAD | DIMENSIONS | |||
PART NO. | E | C | L | S2 |
9E-12 | M12X1.25 | 8 | 10 | 14 |
9E-14 | M14X1.5 | 8.5 | 10.5 | 17 |
9E-16 | M16X1.5 | 8.5 | 11.5 | 19 |
9E-18 | M18X1.5 | 8.5 | 13 | 22 |
9E-22 | M22X1.5 | 10 | 13 | 27 |
9E-27 | M27X1.5 | 10 | 15 | 32 |
9E-30 | M30X1.5 | 11 | 15 | 36 |
9E-36 | M36X2 | 13 | 15.5 | 41 |
9E-39 | M39X2 | 13 | 17.5 | 46 |
9E-42 | M42X2 | 15 | 18.5 | 50 |
9E-45 | M45X2 | 15 | 18.5 | 55 |
9E-52 | M52X2 | 17 | 18.5 | 60+ |

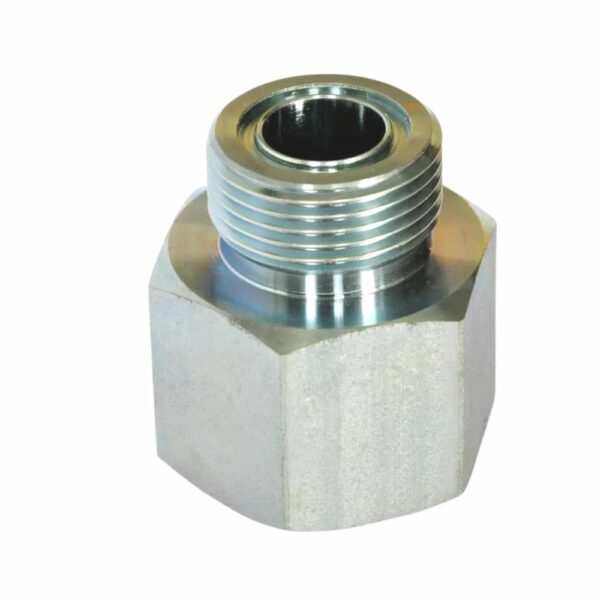

9E Female Face Hydraulic Metric Plugs Video
This video shows information about the 9E hydraulic metric plugs.
Hydraulic metric plug adapters have a wide range of fluid applications in various industries where hydraulic systems are used. Such as automotive, agriculture, and construction systems.
If you have any questions about female straight hydraulic fitting adapter, please contact us.
