Hydraulic Metric Plug

Description:

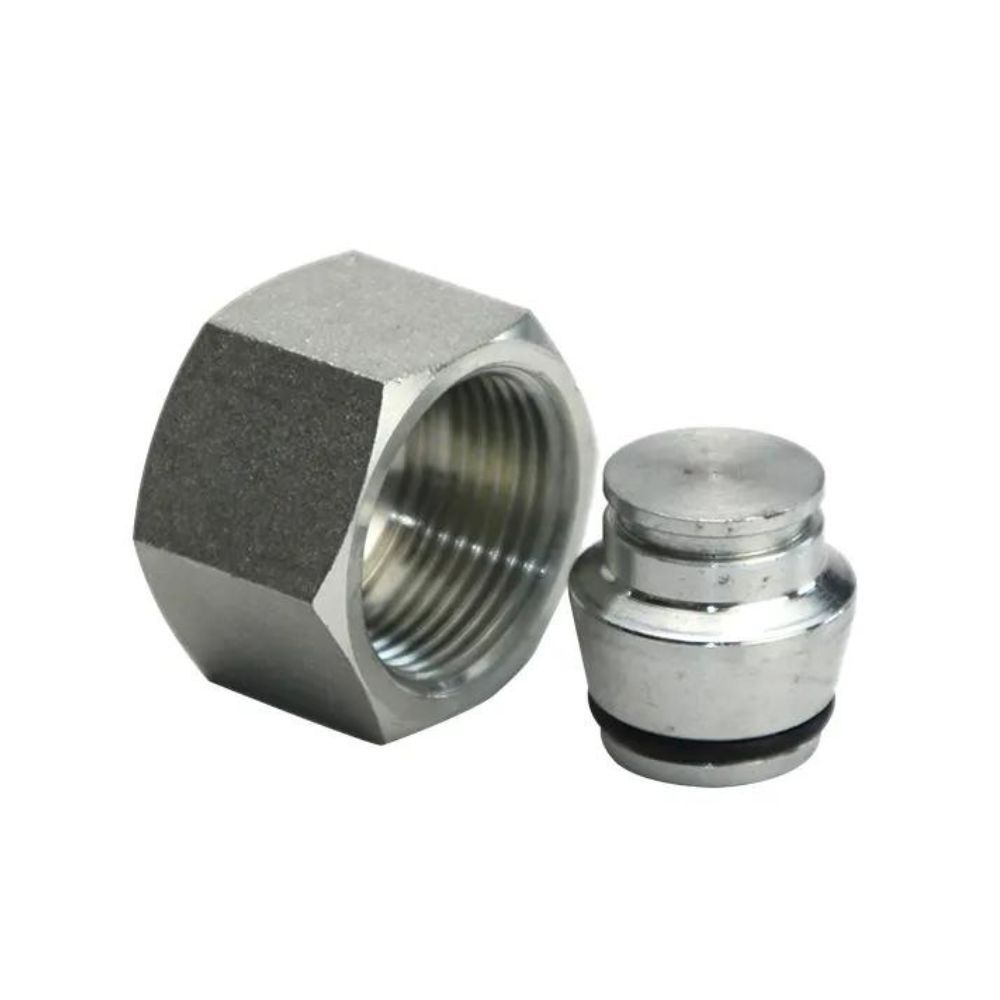

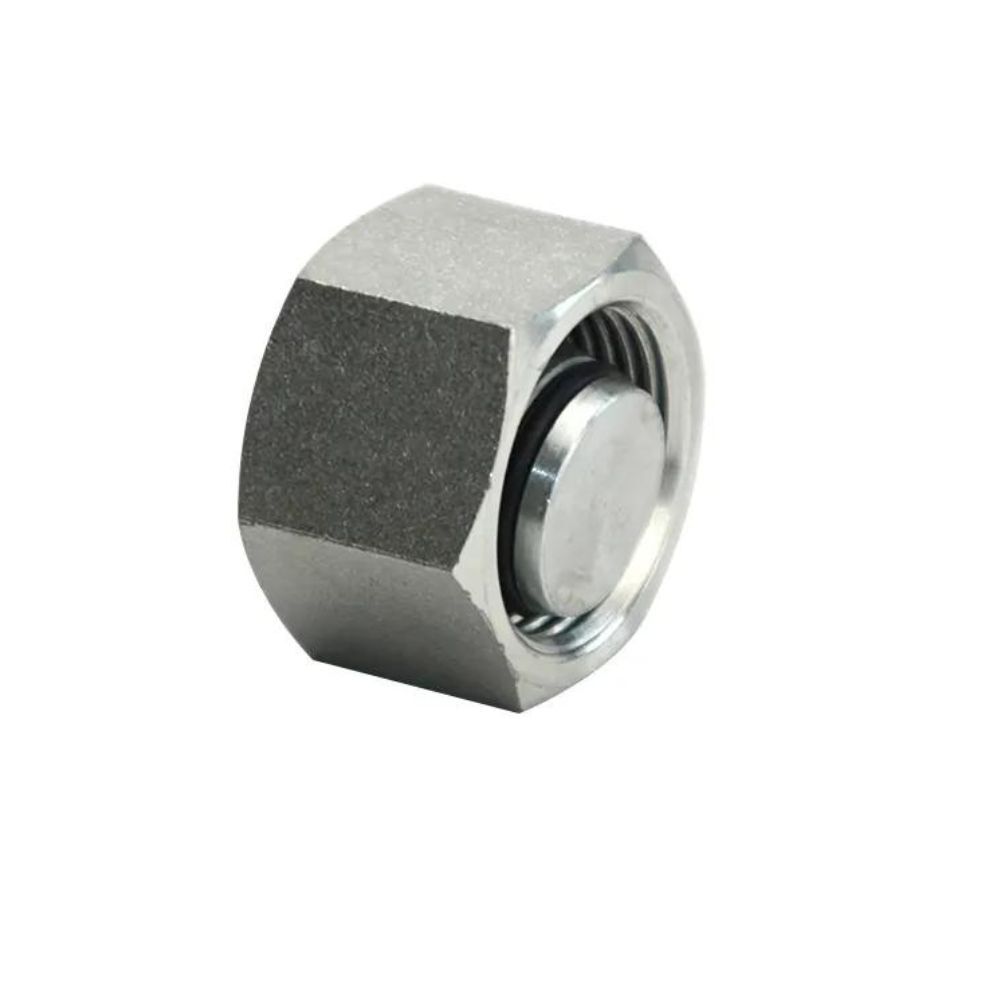

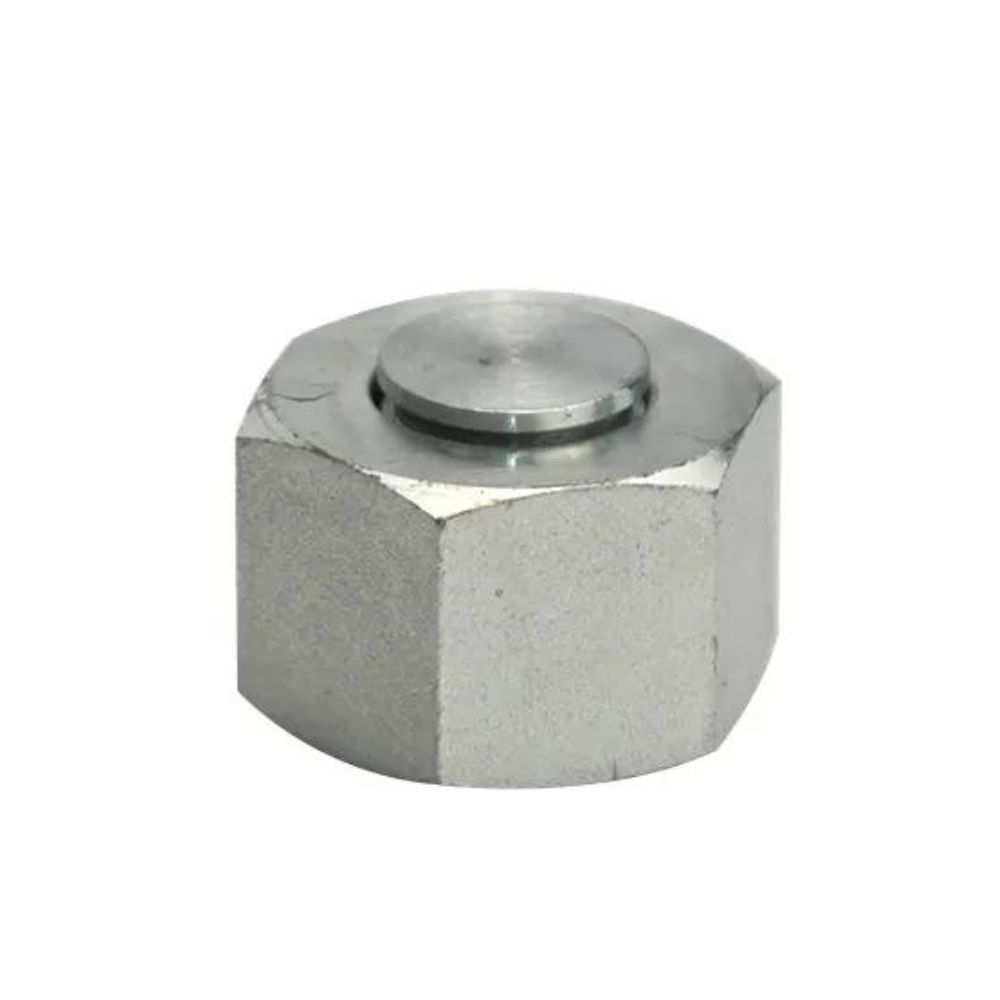

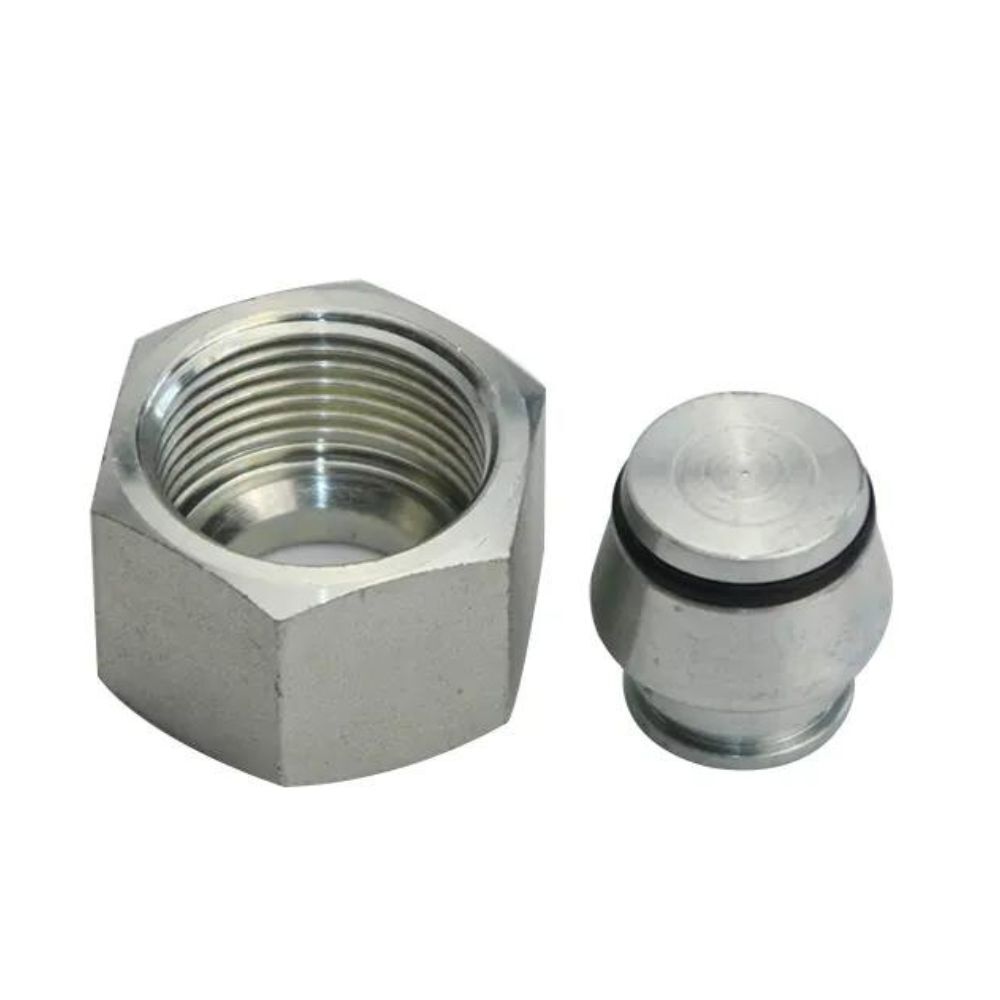

9C/9D female metric hydraulic plug is a 24-degree cone plug designed to fit into a port or opening with a specific metric thread size and seal against fluid flow under pressure.

The plug has a female  24° cone seal that can provide superior leakage protection for hydraulic threads.

Feel free to ask any questions about the female metric thread adapter.

Features and Benefits:

• Leak-free
• Reliable
• Easy to maintain
• Customize



Description



PART  NO.

THREAD

TUBE O.D

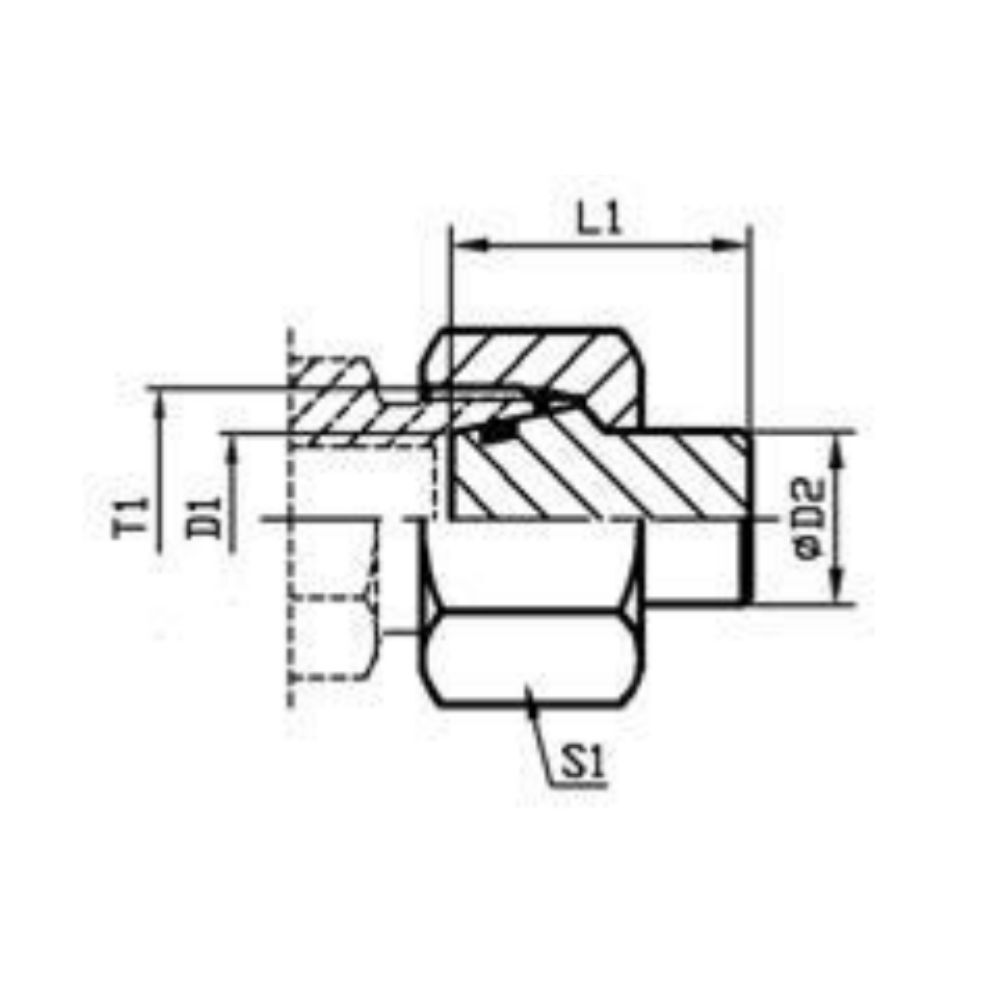

DIMENSIONS

Weight/g

Working pressure(bar)

T1

D1

L1

D2

S1





L

9C-12

M12X1.5

06

18.5

06

14

15

500

9C-14

M14X1.5

08

18.5

08

17

24

500

9C-16

M16X1.5

10

20

10

19

33

500

9C-18

M18X1.5

12

20.5

12

22

46

400

9C-22

M22X1.5

15

20.5

15

27

73

400

9C-26

M26X1.5

18

22.5

18

32

111

400

9C-30

M30X2

22

25

22

36

162

250

9C-36

M36X2

28

25.5

28

41

220

250

9C-45

M45X2

35

30

35

50

376

250

9C-52

M52X2

42

30

42

60

558

250





S

9D-14

M14X1.5

06

18.5

06

17

23

800

9D-16

M16X1.5

08

18.5

08

19

29

800

9D-18

M18X1.5

10

20

10

22

46

800

9D-20

M20X1.5

12

20.5

12

24

55

630

9D-22

M22X1.5

14

22.5

14

27

83

630

9D-24

M24X1.5

16

23.5

16

30

106

630

9D-30

M30X2

20

28.5

20

36

180

420

9D-36

M36X2

25

29

25

46

322

420

9D-42

M42X2

30

30.5

30

50

398

420

9D-52

M52X2

38

33

38

60

647

420

9D/9C Female Hydraulic Metric Plug Video

This video shows information about the 9C/9D hydraulic metric plug.

Hydraulic metric plugs have a wide range of fluid applications in various industries where hydraulic systems are used. Such as automotive, agriculture, and construction systems.

If you have any questions about metric thread plug adapter, please contact us.
