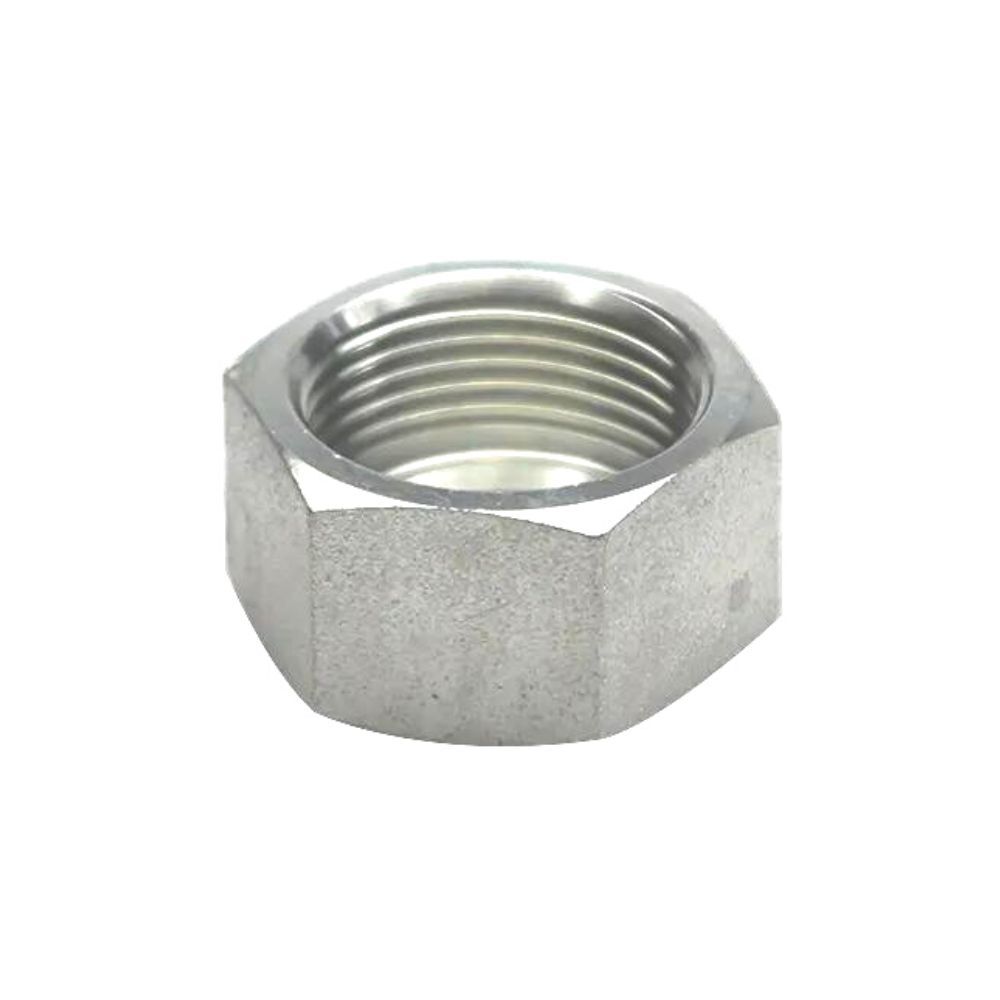

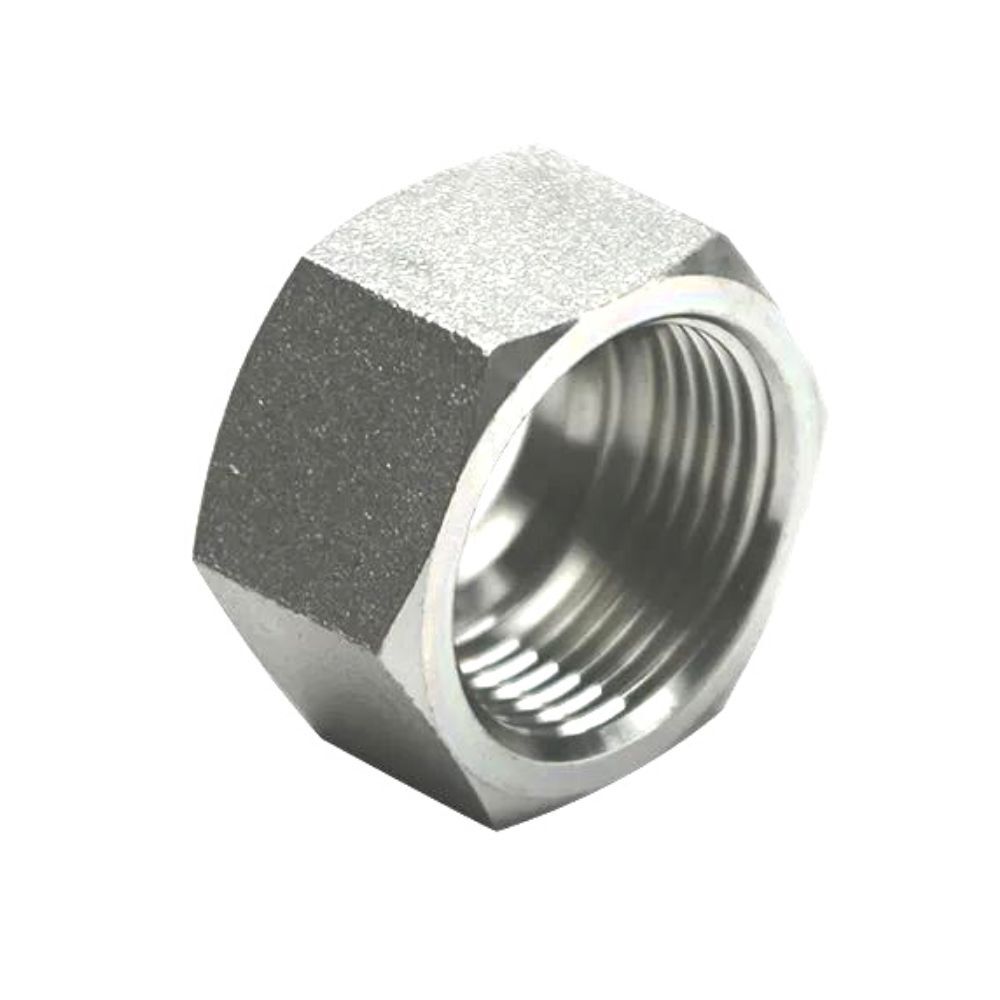

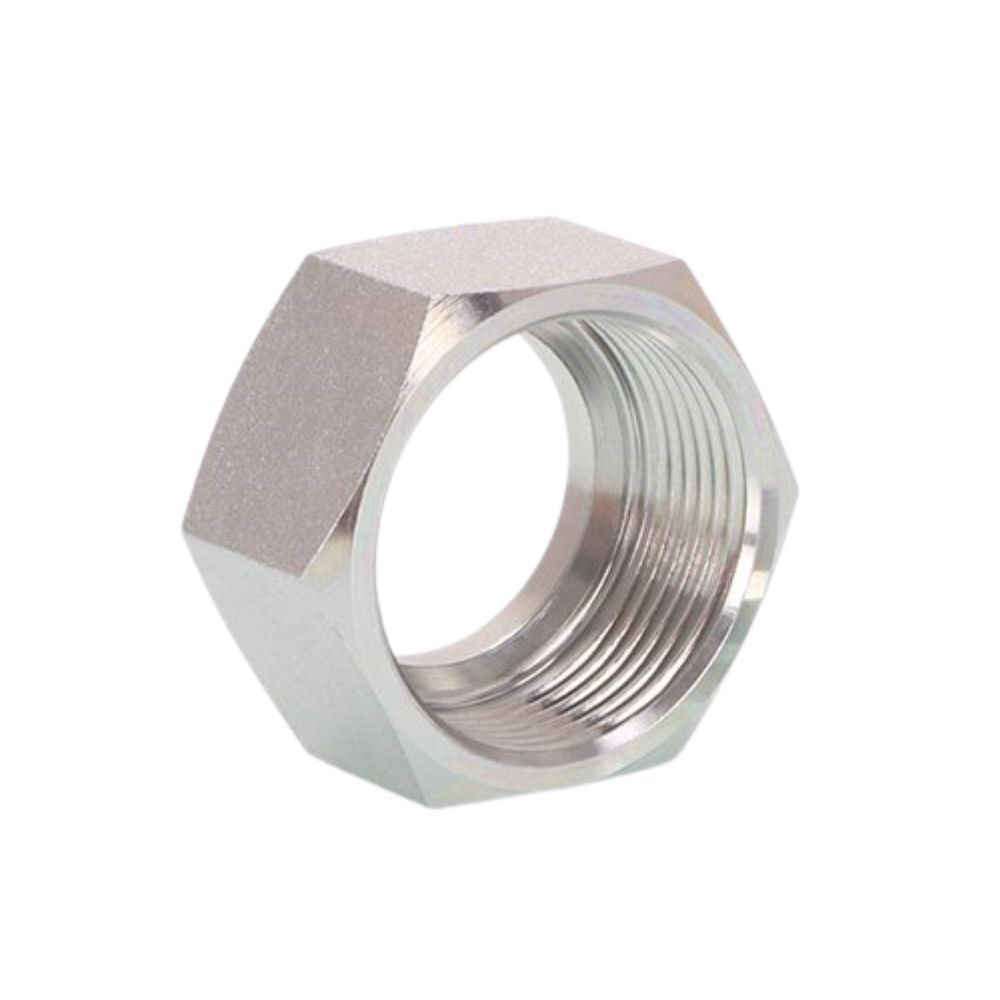

Metric Nut Fitting

Description:

NL/NS metric nut is a type of hydraulic fitting that is commonly used in fluid power systems.

The nut is tightened onto the male metric thread, compressing the cutting ring and securing the tube or pipe in place.

Feel free to ask if you have any questions about the metric hydraulic fitting.

Features and Benefits:

• Leak-free
• Reliable
• Easy to maintain
• Customize



Description

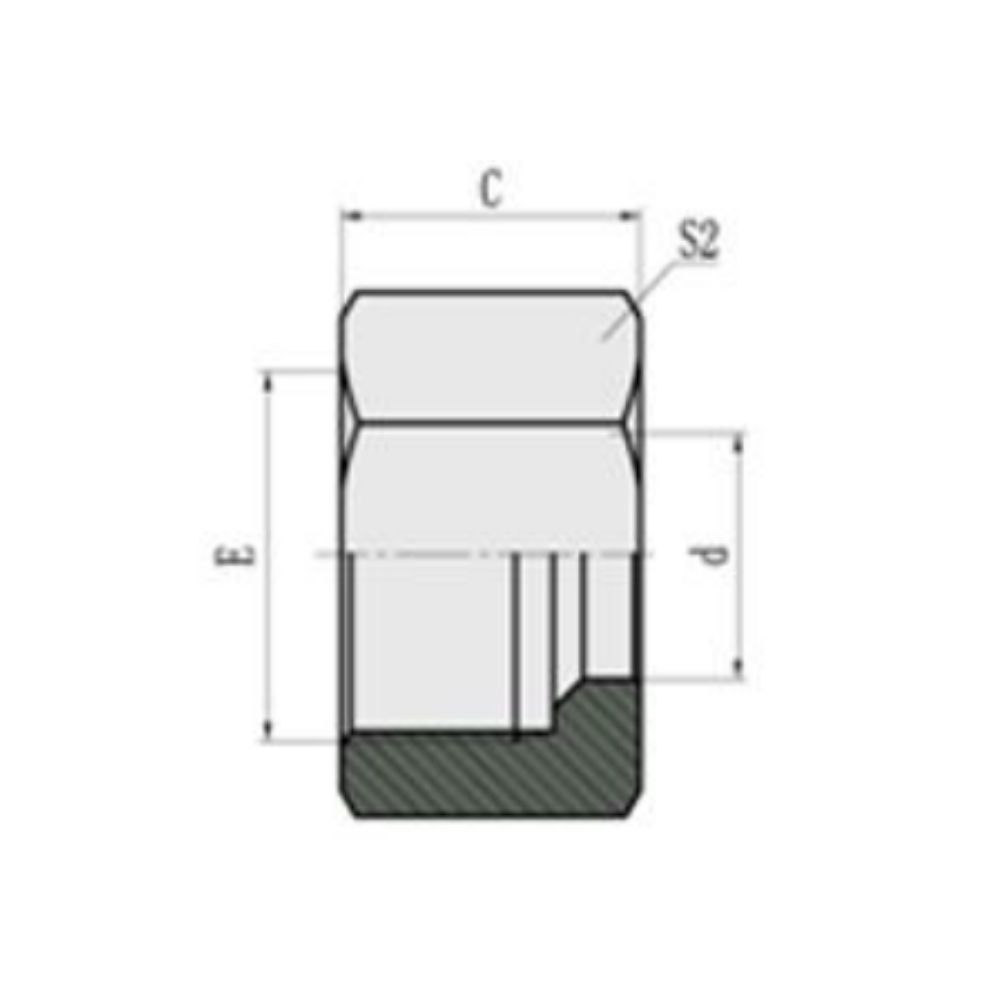

PART NO.

THREAD E

TUBE O.D.

DIMENSIONS

REMARK

C

S2

NL-12

M12*1.5

6

14.5

14







NL

NL-14

M14*1.5

8

14.5

17

NL-16

M16*1.5

10

15.5

19

NL-18

M18*1.5

12

15.5

22

NL-22

M22*1.5

15

17

27

NL-26

M26*1.5

18

18

32

NL-30

M30*2

22

20

36

NL-36

M36*2

28

21

41

NL-45

M45*2

35

24

50

NL-52

M52*2

42

24

60

NL-12

M12*1.5

6

14.5

14







NS

NL-14

M14*1.5

8

14.5

17

NL-16

M16*1.5

10

15.5

19

NL-18

M18*1.5

12

15.5

22

NL-22

M22*1.5

15

17

27

NL-26

M26*1.5

18

18

32

NL-30

M30*2

22

20

36

NL-36

M36*2

28

21

41

NL-45

M45*2

35

24

50

NL-52

M52*2

42

24

60

NL/NS Metric Nut Fitting Video

This video shows information about the NL/NS metric nut fitting.

Metric nuts are available in a variety of materials, including steel, brass, and stainless steel, and are typically plated with a corrosion-resistant coating for added durability.

If you have any questions about hydraulic metric fittings, please contact us.
