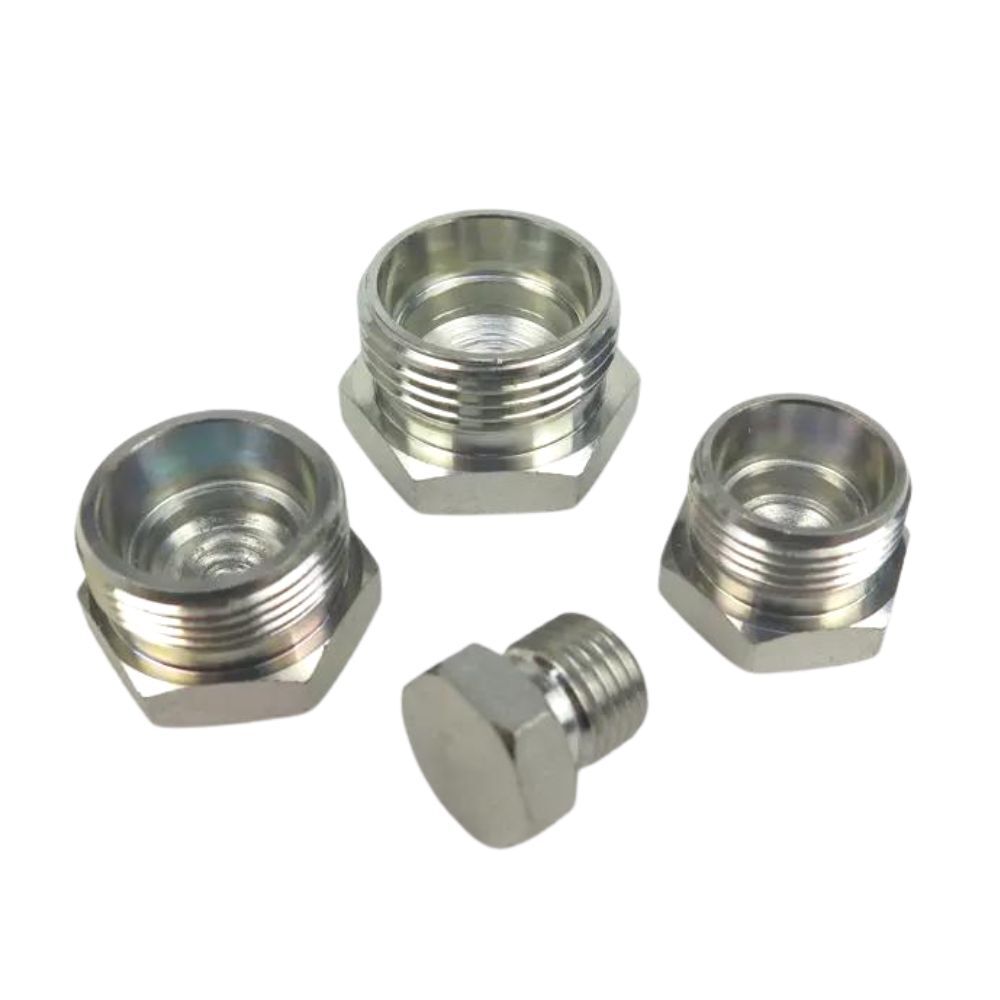

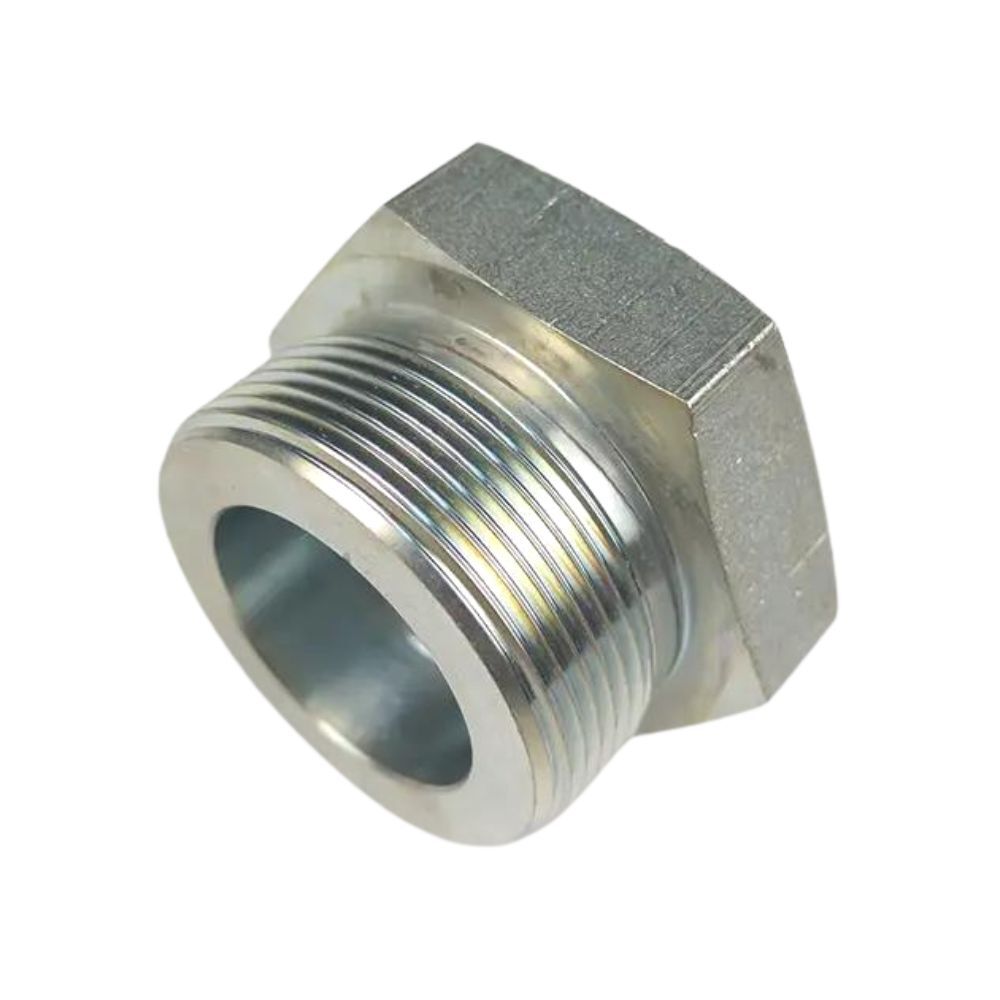

Description

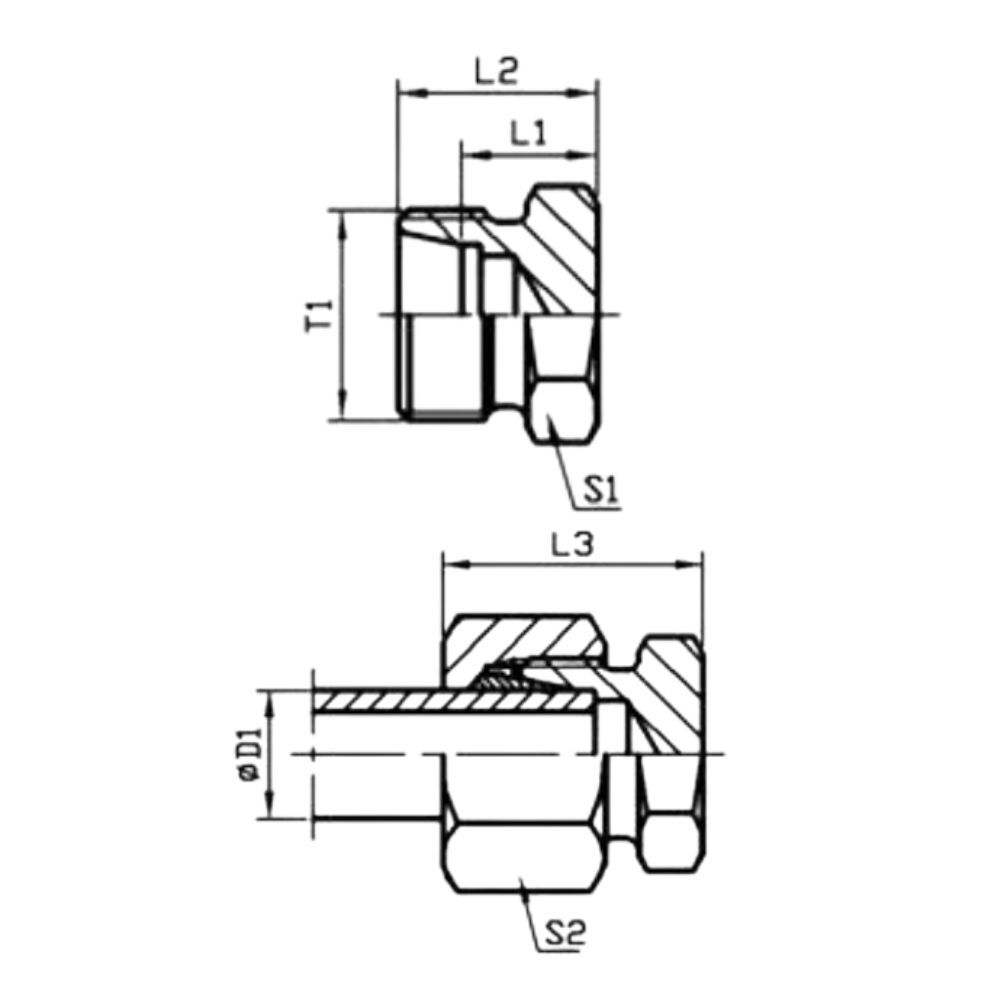

PART NO. | THREAD | TUBE O.D | DIMENSIONS | Weight/g | Working pressure(bar) | |||||
T1 | D1 | L1 | L2 | L3 | S1 | S2 | ||||
L | 4C-12 | M12X1.5 | 06 | 7 | 14 | 22 | 12 | 14 | 8 | 500 |
4C-14 | M14X1.5 | 08 | 8 | 15 | 23 | 14 | 17 | 13 | 500 | |
4C-16 | M16X1.5 | 10 | 9 | 16 | 24 | 17 | 19 | 17 | 500 | |
4C-18 | M18X1.5 | 12 | 10 | 17 | 25 | 19 | 22 | 24 | 400 | |
4C-22 | M22X1.5 | 15 | 11 | 18 | 26 | 24 | 27 | 41 | 400 | |
4C-26 | M26X1.5 | 18 | 11.5 | 19 | 28 | 27 | 32 | 56 | 400 | |
4C-30 | M30X2 | 22 | 13.5 | 21 | 30 | 32 | 36 | 84 | 250 | |
4C-36 | M36X2 | 28 | 14.5 | 22 | 31 | 41 | 41 | 138 | 250 | |
4C-45 | M45X2 | 35 | 14.5 | 25 | 36 | 46 | 50 | 203 | 250 | |
4C-52 | M52X2 | 42 | 16 | 27 | 39 | 55 | 60 | 318 | 250 | |
S | 4D-14 | M14X1.5 | 06 | 11 | 18 | 26 | 14 | 17 | 17 | 800 |
4D-16 | M16X1.5 | 08 | 13 | 20 | 28 | 17 | 19 | 28 | 800 | |
4D-18 | M18X1.5 | 10 | 14.5 | 20 | 29 | 19 | 22 | 33 | 800 | |
4D-20 | M20X1.5 | 12 | 14.5 | 22 | 31 | 22 | 24 | 50 | 630 | |
4D-22 | M22X1.5 | 14 | 16 | 24 | 34 | 24 | 27 | 62 | 630 | |
4D-24 | M24X1.5 | 16 | 15.5 | 24 | 34 | 27 | 30 | 75 | 630 | |
4D-30 | M30X2 | 20 | 17.5 | 28 | 39 | 32 | 36 | 125 | 420 | |
4D-36 | M36X2 | 25 | 20 | 32 | 44 | 41 | 46 | 229 | 420 | |
4D-42 | M42X2 | 30 | 20.5 | 34 | 47 | 46 | 50 | 310 | 420 | |
4D-52 | M52X2 | 38 | 23 | 39 | 54 | 55 | 60 | 805 | 420 | |
4C/4D Bite-Type Plug Metric Pipe Adapter Video
This video shows information about the 4C/4D bite-type plug.
Hydraulic metric pipe adapter has a wide range of fluid applications in various industries where hydraulic systems are used. Such as automotive, agriculture, and construction systems.
If you have any questions about metric thread plug adapter, please contact us.
