Description
NPT Hydraulic Male Adapter

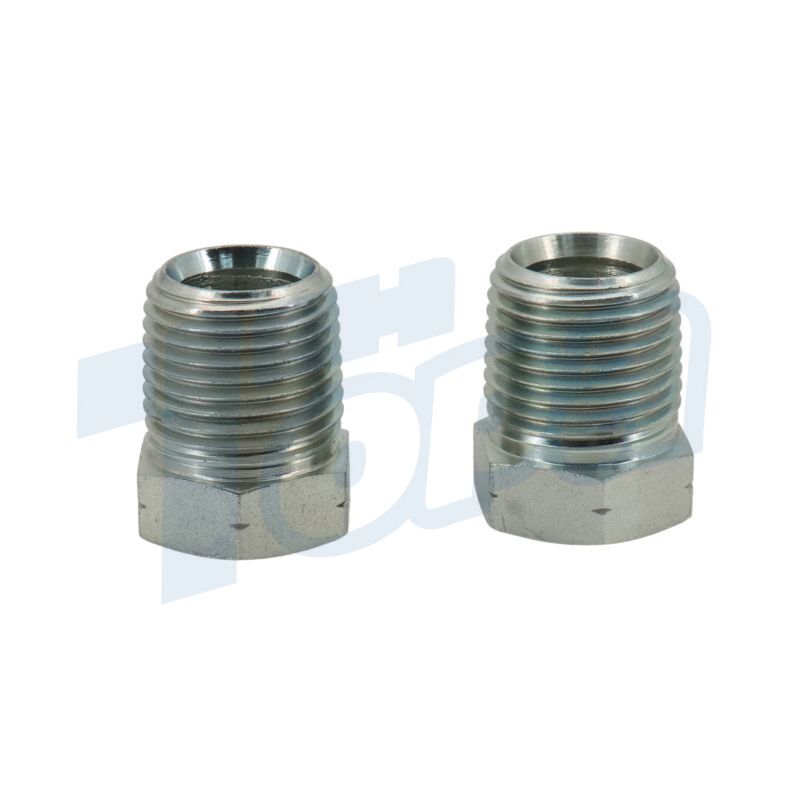

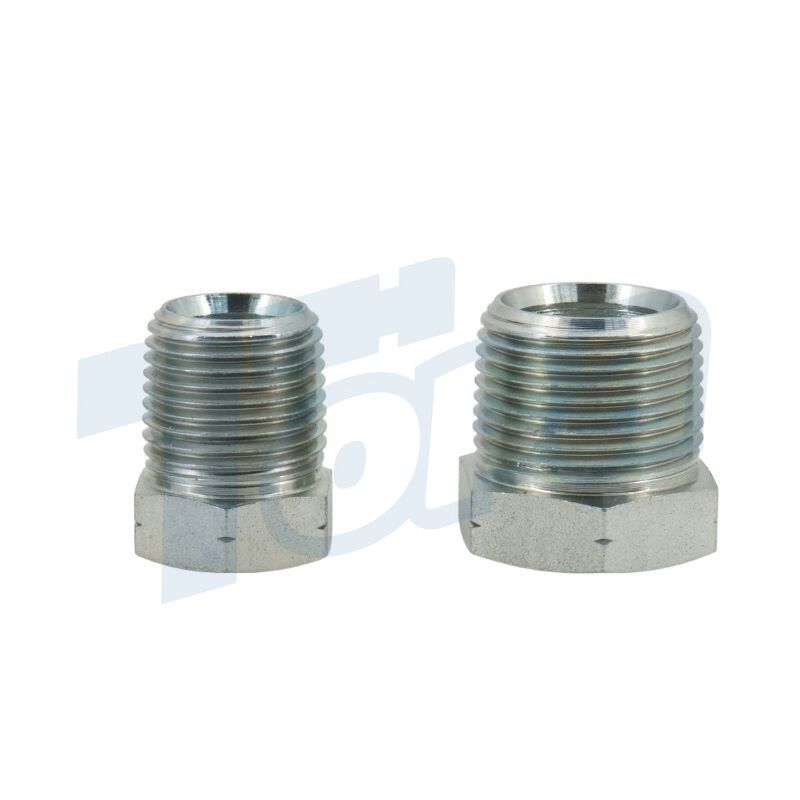

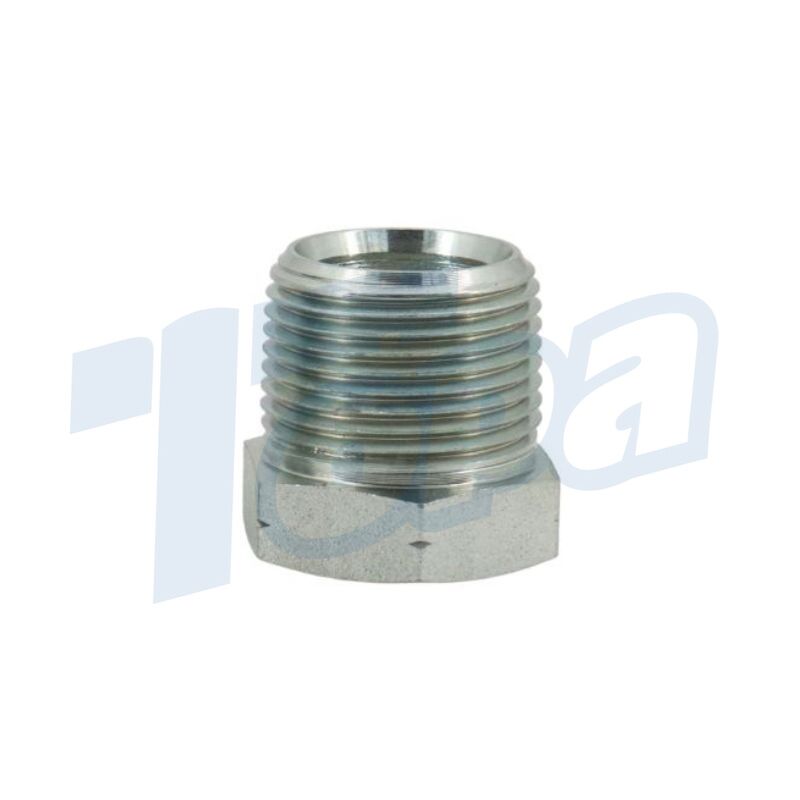

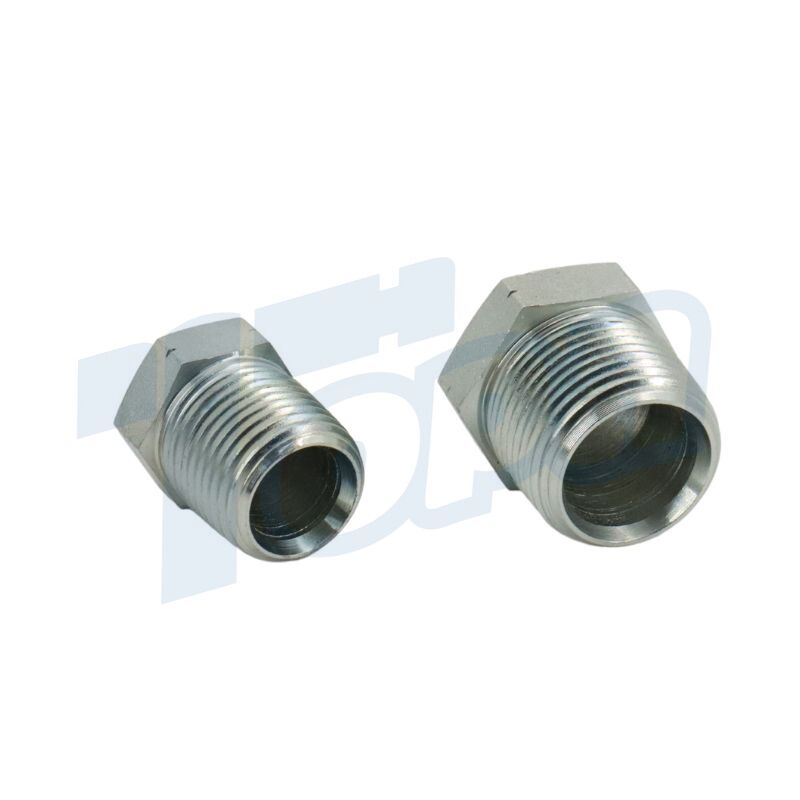

5406P male NPTF pipe plug couplings have an external NPT thread on the end. And they are used to connect hydraulic pipes and tubes. Those fittings are made of high-quality metal materials, durable and versatile. So if you have any problems with npt hydraulic pipe adapters, please contact us!

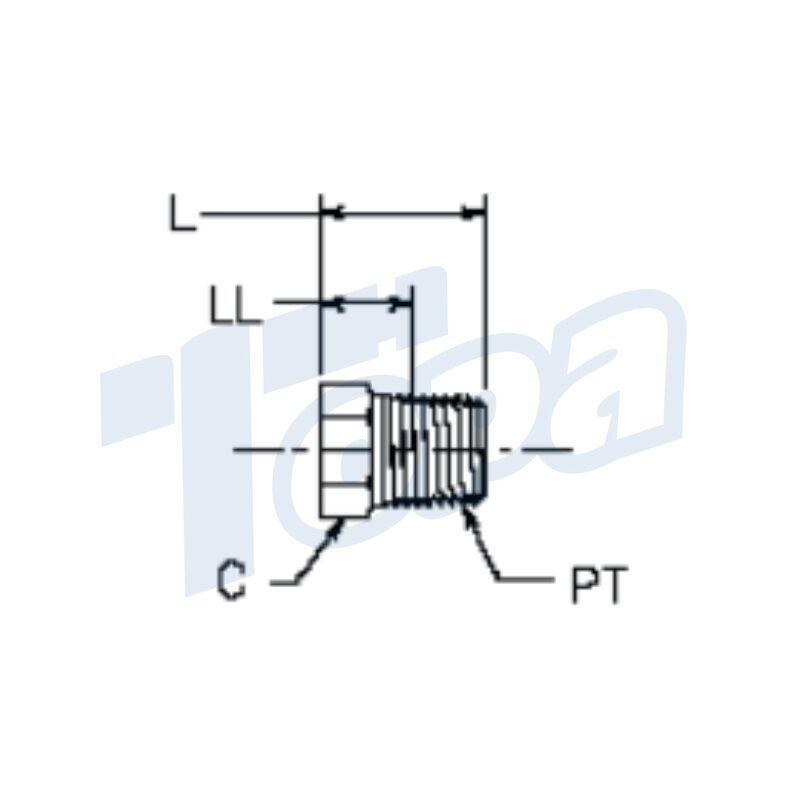

Dimensional Drawings:
TUBE | PT | C | L | LL |
5406P-2 | 1/8-27 | 7/16 | 0.56 | 0.33 |
5406P-4 | 1/4-18 | 9/16 | 0.75 | 0.41 |
5406P-6 | 3/8-18 | 11/16 | 0.78 | 0.43 |
5406P-8 | 1/2-14 | 7/8 | 0.97 | 0.51 |
5406P-12 | 3/4-14 | 11/16 | 1.06 | 0.58 |
5406P-16 | 1-11 1/2 | 1 3/8 | 1.25 | 0.68 |
5406P-20 | 1 1/4-11 1/2 | 1 3/4 | 1.41 | 0.82 |
5406P-24 | 1 1/2-11 1/2 | 2 | 1.50 | 0.86 |
5406P-32 | 2-11 1/2 | 2 1/2 | 1.69 | 1.08 |
5406P Hydraulic Male Adapter Video
As the best Chinese hydraulic male adapters manufacturer, Topa can provide hydraulic fittings in a variety of sizes. Our products can be used in a wide range of hydraulic fluid environments and are resistant to high pressures and temperatures.
With multiple CNC machines in our factory, Topa can manufacture fittings to your exact specifications. Our staff will strictly inspect the quality of the fittings to ensure that the product meets your usage requirements.
If you want more information about npt hydraulic swivel adapter, please contact us!
