Description

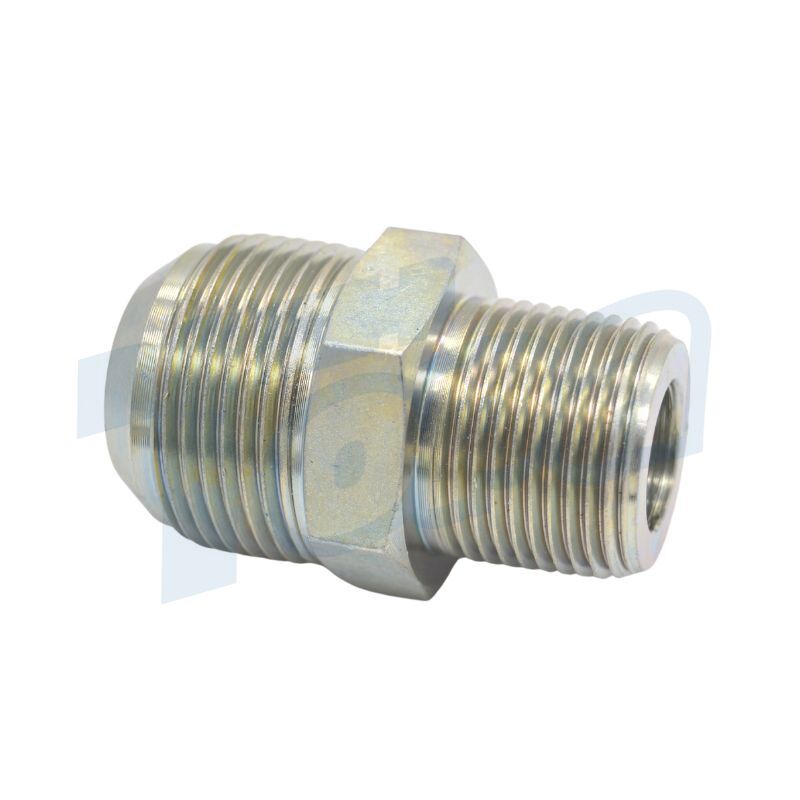

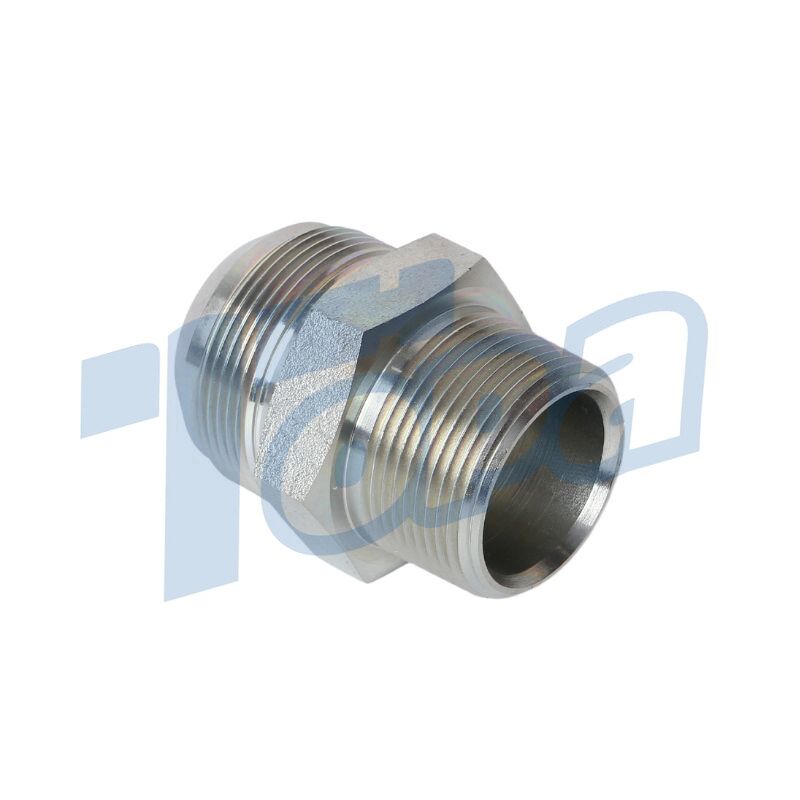

37° Male JIC to Male Pipe End Hydraulic Fitting

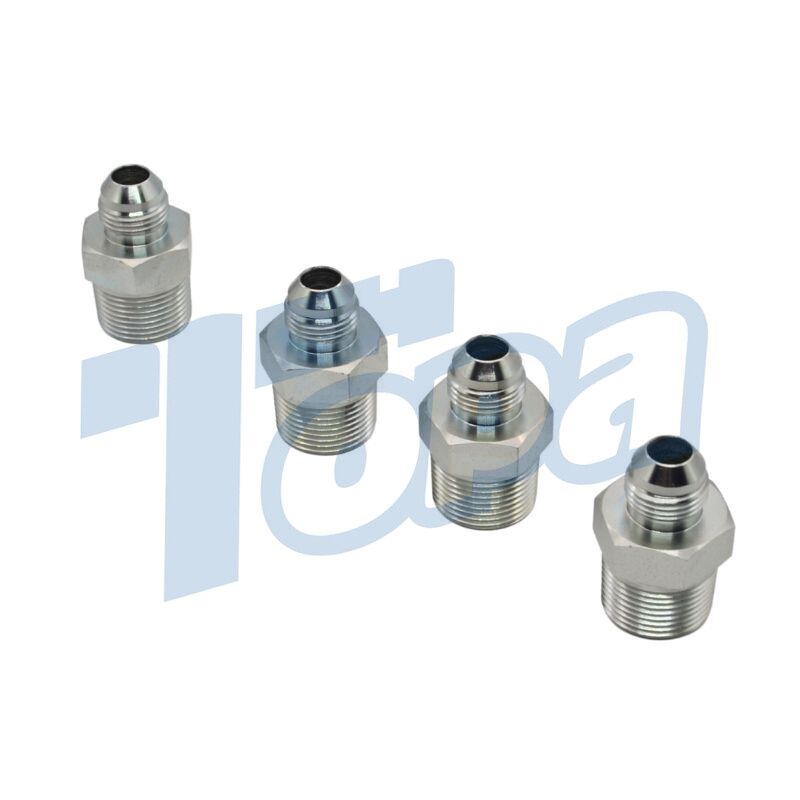

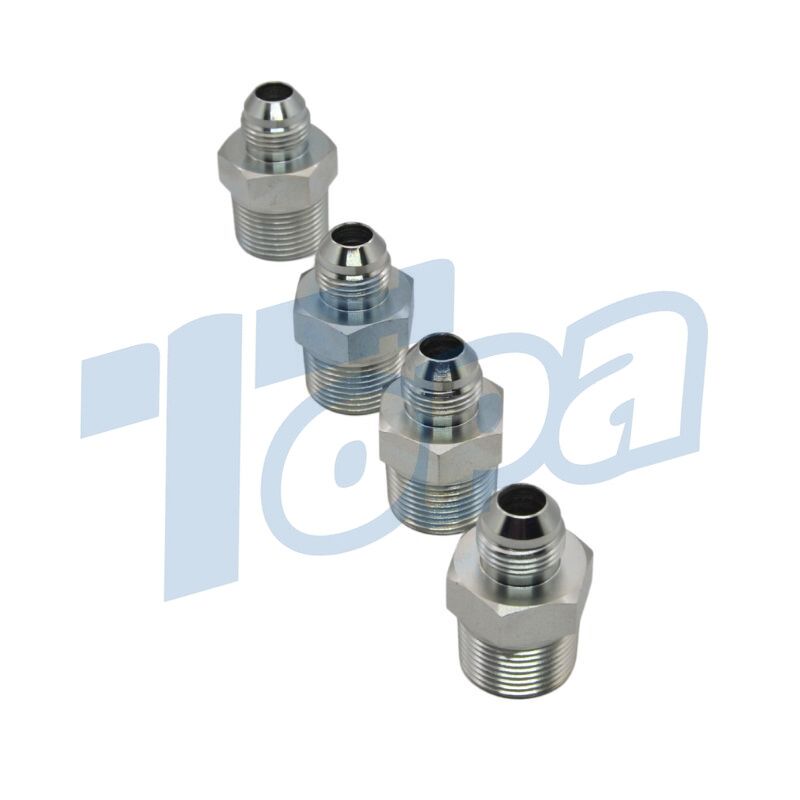

2404 JIC hydraulic adapters with male 37° flare seal on one end and male NPT thread on the other end. They are made of high-quality metal materials, corrosion resistance, and high-pressure resistance. Topa can provide all sizes and materials of JIC hydraulic steel fittings, please contact us for more information!

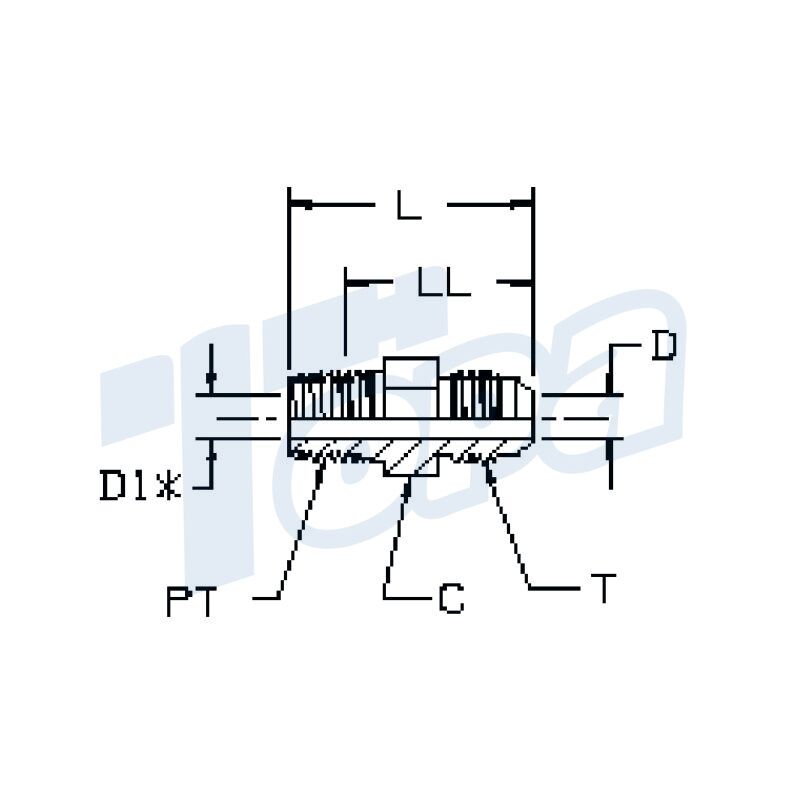

Dimensional Drawings:
TUBE FITTING PART # | TUBE O.D. (inch) | T TUBE END UN/UNF-2A | PT PORT THD NPTF | C HEX (inch) | D DRILL inch) | D1 DRILL (inch) | L (inch) |
2404-2-2 | 1/8 | 5/16-24 | 1/8-27 | 7/16 | 0.062 | 0.188 | 1.11 |
2404-3-2 | 3/16 | 3/8-24 | 1/8-27 | 7/16 | 0.125 | 0.188 | 1.14 |
2404-4-2 | 1/4 | 7/16-20 | 1/8-27 | 1/2 | 0.172 | 0.188 | 1.22 |
2404-4-4 | 1/4 | 7/16-20 | 1/4-18 | 9/16 | 0.172 | 0.281 | 1.42 |
2404-4-6 | 1/4 | 7/16-20 | 3/8-18 | 3/4 | 0.172 | 0.406 | 1.44 |
2404-4-8 | 1/4 | 7/16-20 | 1/2-14 | 7/8 | 0.172 | 0.531 | 1.69 |
2404-5-2 | 5/16 | 1/2-20 | 1/8-27 | 9/16 | 0.234 | 0.188 | 1.22 |
2404-5-4 | 5/16 | 1/2-20 | 1/4-18 | 9/16 | 0.234 | 0.281 | 1.42 |
2404-5-6 | 5/16 | 1/2-20 | 3/8-18 | 3/4 | 0.234 | 0.406 | 1.44 |
2404-6-4 | 3/8 | 9/16-18 | 1/4-18 | 5/8 | 0.297 | 0.281 | 1.43 |
2404-6-2 | 3/8 | 9/16-18 | 1/8-27 | 5/8 | 0.297 | 0.188 | 1.24 |
2404-6-6 | 3/8 | 9/16-18 | 3/8-18 | 3/4 | 0.297 | 0.406 | 1.44 |
2404-6-8 | 3/8 | 9/16-18 | 1/2-14 | 7/8 | 0.297 | 0.531 | 1.69 |
2404-6-12 | 3/8 | 9/16-18 | 3/4-14 | 1 1/8 | 0.297 | 0.719 | 1.75 |
2404-8-6 | 1/2 | 3/4-16 | 3/8-18 | 13/16 | 0.391 | 0.406 | 1.53 |
2404-8-2 | 1/2 | 3/4-16 | 1/8-27 | 13/16 | 0.391 | 0.188 | 1.34 |
2404-8-4 | 1/2 | 3/4-16 | 1/4-18 | 13/16 | 0.391 | 0.281 | 1.53 |
2404-8-8 | 1/2 | 3/4-16 | 1/2-14 | 7/8 | 0.391 | 0.531 | 1.78 |
2404-8-12 | 1/2 | 3/4-16 | 3/4-14 | 1 1/8 | 0.391 | 0.719 | 1.85 |
2404-8-16 | 1/2 | 3/4-16 | 1-11 1/2 | 1 3/8 | 0.391 | 0.938 | 2.05 |
2404-10-8 | 5/8 | 7/8-14 | 1/2-14 | 1 5/16 | 0.484 | 0.531 | 1.89 |
2404-10-6 | 5/8 | 7/8-14 | 3/8-18 | 1 5/16 | 0.484 | 0.406 | 1.70 |
2404-10-12 | 5/8 | 7/8-14 | 3/4-14 | 1 1/8 | 0.484 | 0.719 | 1.95 |
2404-12-12 | 3/4 | 1 1/16-12 | 3/4-14 | 1 1/8 | 0.609 | 0.719 | 2.06 |
2404-12-6 | 3/4 | 1 1/16-12 | 3/8-18 | 1 1/8 | 0.609 | 0.406 | 1.88 |
2404-12-8 | 3/4 | 1 1/16-12 | 1/2-14 | 1 1/8 | 0.609 | 0.531 | 2.06 |
2404-12-16 | 3/4 | 1 1/16-12 | 1-1 11/2 | 1 3/8 | 0.609 | 0.938 | 2.25 |
2404-12-20 | 3/4 | 1 1/16-12 | 1 1/4-1 11/2 | 1 11/16 | 0.609 | 1.25 | 2.36 |
2404-14-12 | 7/8 | 1 3/16-12 | 3/4-14 | 1 1/4 | 0.718 | 0.719 | 2.09 |
2404-16-16 | 1 | 1 5/16-12 | 1-1 11/2 | 1 3/8 | 0.844 | 0.938 | 2.30 |
2404-16-8 | 1 | 1 5/16-12 | 1/2-14 | 1 3/8 | 0.844 | 0.531 | 2.11 |
2404-16-12 | 1 | 1 5/16-12 | 3/4-14 | 1 3/8 | 0.844 | 0.719 | 2.11 |
2404-16-20 | 1 | 1 5/16-12 | 1 1/4-11 1/2 | 1 11/16 | 0.844 | 1.250 | 2.41 |
2404-16-24 | 1 | 1 5/16-12 | 1 1/2-11 1/2 | 2 | 0.844 | 1.500 | 2.50 |
2404-20-20 | 1/4 | 1 5/8-12 | 1 1/4-11 1/2 | 1 11/16 | 1.078 | 1.250 | 2.45 |
2404-20-16 | 1 1/4 | 1 5/8-12 | 1-11 1/2 | 1 11/16 | 1.078 | 0.938 | 2.42 |
2404-20-24 | 1 1/4 | 1 5/8-12 | 1 1/2-11 1/2 | 2 | 1.078 | 1.500 | 2.55 |
2404-24-24 | 1 1/2 | 1 7/8-12 | 1 1/2-11 1/2 | 2 | 1.312 | 1.500 | 2.67 |
2404-24-16 | 1 1/2 | 1 7/8-12 | 1-11 1/2 | 2 | 1.312 | 0.938 | 2.62 |
2404-24-20 | 1 1/2 | 1 7/8-12 | 1 1/4-11 1/2 | 2 | 1.312 | 1.250 | 2.66 |
2404-24-32 | 1 1/2 | 1 7/8-12 | 2-11 1/2 | 2 5/8 | 1.312 | 1.312 | 2.86 |
2404-32-32 | 2 | 2 1/2-12 | 2-11 1/2 | 2 5/8 | 1.781 | 1.938 | 3.11 |
2404-32-24 | 2 | 2 1/2-12 | 1 1/2-11 1/2 | 2 5/8 | 1.781 | 1.500 | 3.08 |
2404 JIC Hydraulic Adapters Video
As a hydraulic adapters manufacturer, Topa can supply hydraulic adapters in various sizes. Our products can be used in multiple hydraulic fluid environments, and are resistant to high pressure and high temperature.
Topa’s factory has several CNC machining machines to produce fittings strictly according to your data. Our fittings will undergo strict quality inspection to ensure the product meets your usage requirements.
If you still want information about JIC hydraulic hoses fittings, please contact us!
