Compression Brass Fitting

Description:

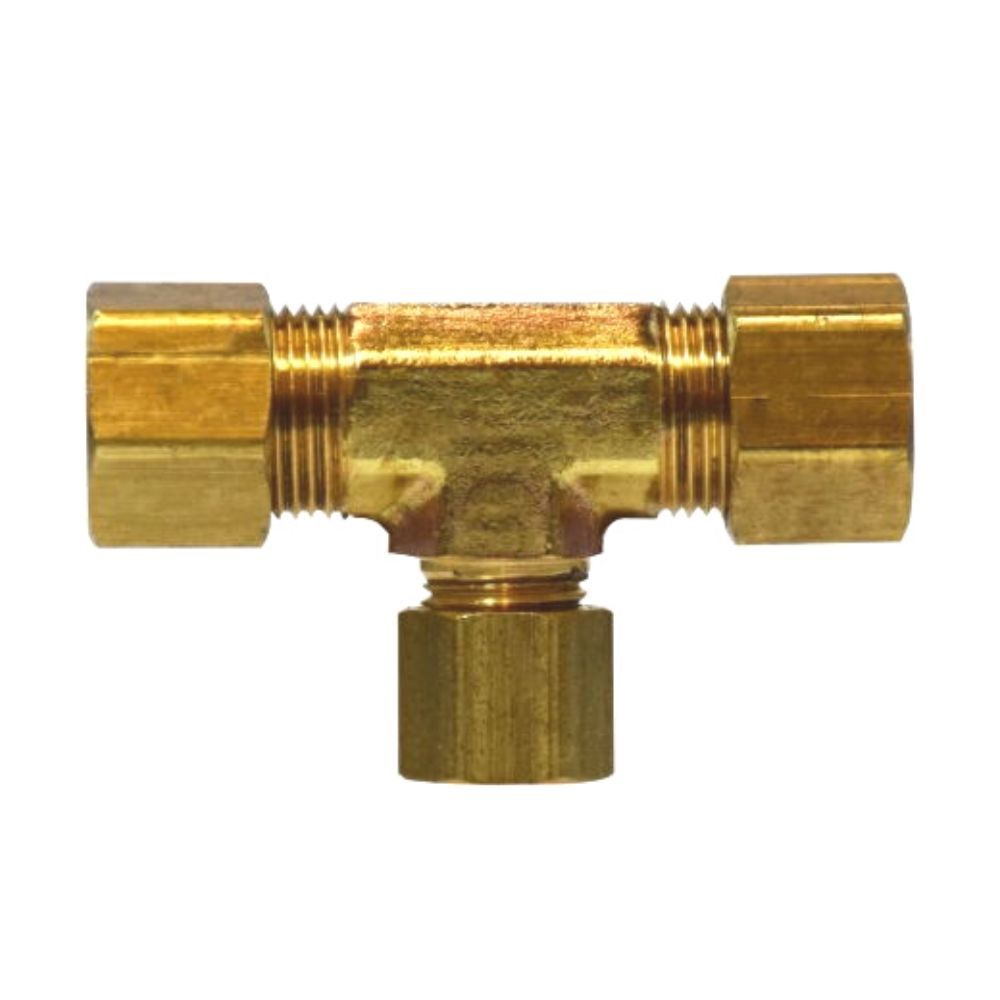

The reducing union tee is a T-shape brass compression tee that is used to create a tight seal between different sizes of pipes.

It is suitable for a variety of applications, such as irrigation systems, central heating systems, and other fluid systems.

If you have any questions about the compression tee brass fittings, feel free to ask.

Features and Benefits:

• Lead-free
• Reusable
• Easy to assemble
• Strong seal

Description

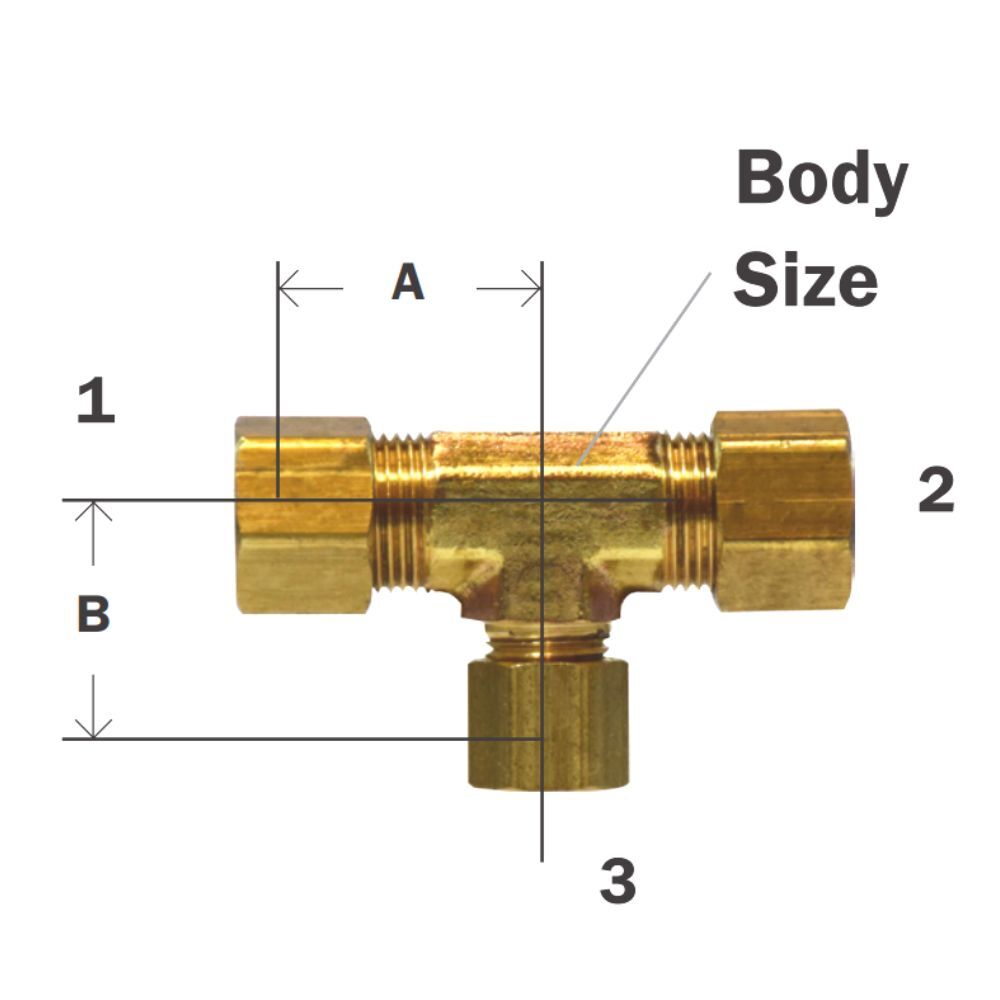

Part #	Size 1 x 2 x 3	A	B	Body Size	Approx. Wt. Lbs.
18-114	1/4” x 1/4” x 1/8”	0.62	0.59	0.38	0.09
18-110	1/4” x 1/4” x 3/8”	0.69	0.75	0.50	0.14
18-111	3/8” x 1/4” x 1/4”	0.75	0.69	0.50	0.12
18-115	3/8” x 3/8” x 1/4”	0.75	0.69	0.50	0.14
18-116	1/2” x 1/2” x 1/4”	0.94	0.81	0.59	0.16
18-117	1/2” x 1/2” x 3/8”	0.94	0.81	0.59	0.24
18-118	5/8” x 5/8” x 3/8”	1.06	0.94	0.69	0.28
18-119	5/8” x 5/8” x 1/2”	1.06	1.06	0.69	0.30

Compression Brass Fitting-Forged Reducing Tee Video

This video shows information about compression brass fitting-forged reducing tee.

Brass forged reducing tees are available in a variety of sizes and can be used with a wide range of pipe materials, including copper, brass, and plastic.

If you have any questions about brass compression reducing tee, please contact us.
