compression brass fitting-union elbow

Brass Compression Elbow-Union Elbow

Brass Compression Union Elbow

Brass Compression Elbow

Description:

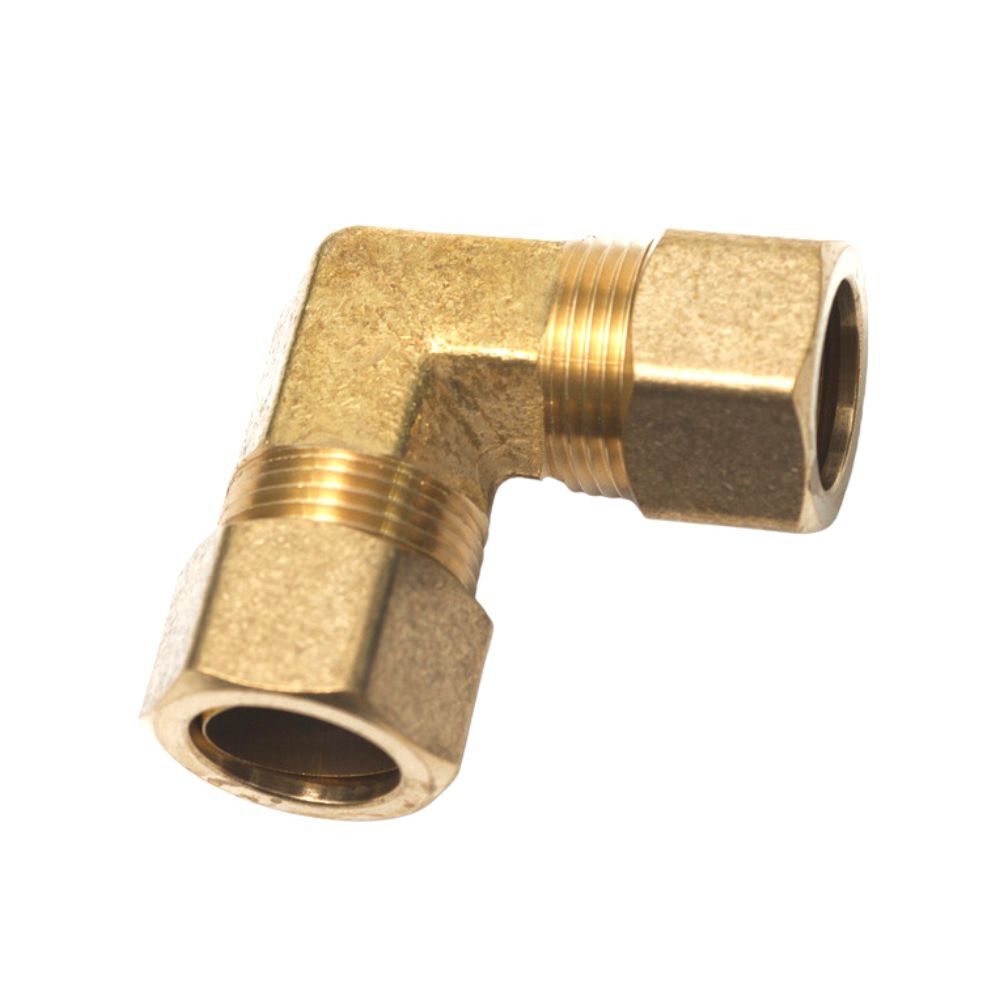

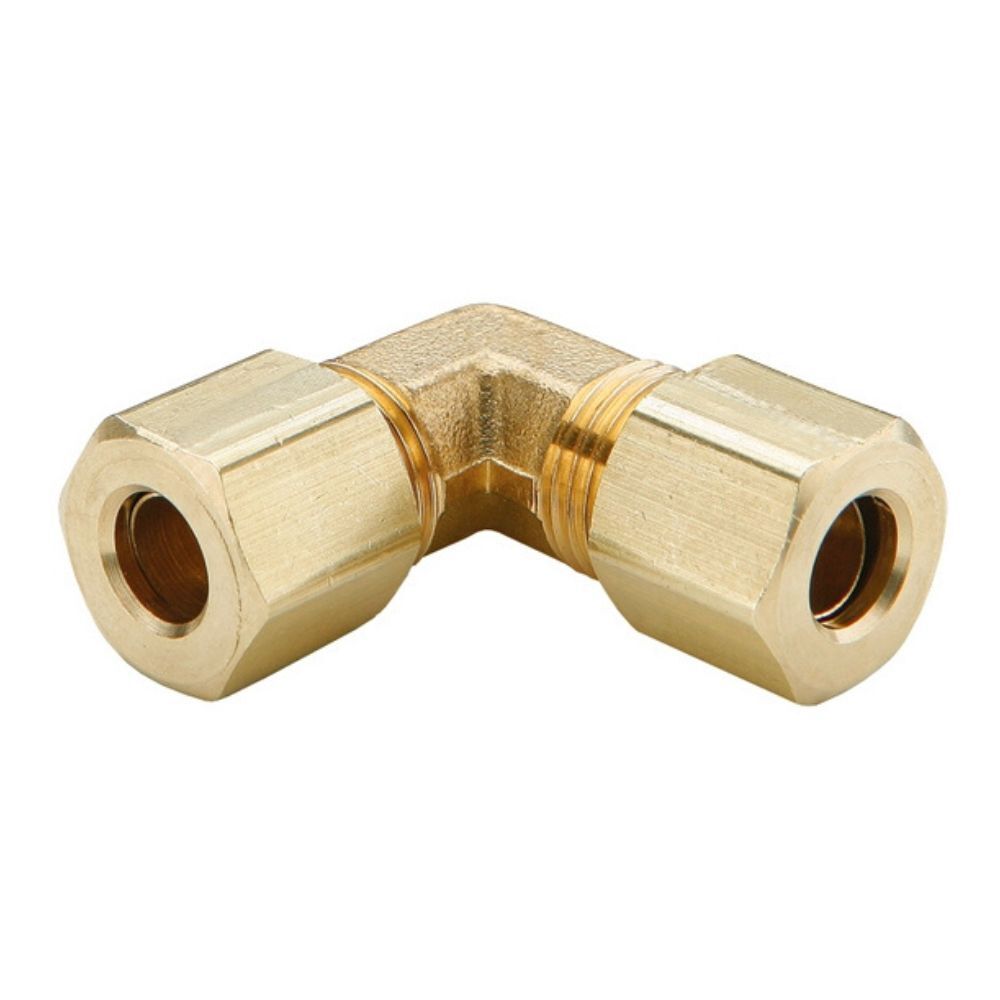

A brass compression union elbow is a type of compression plumbing fitting used to connect two pipes at an angle, typically 90 degrees.

The elbow shape of the fitting allows for a change in direction of the flow of water or other fluids in the pipes.

If you have any questions about the brass compression elbow fitting, feel free to ask.

Features and Benefits:

• Lead-free
• Reusable
• Easy to assemble
• Strong seal

Categories: Brass, Compression, Elbow 90° , Products Tags: Brass, Compression, Elbow 90°

Description

Description

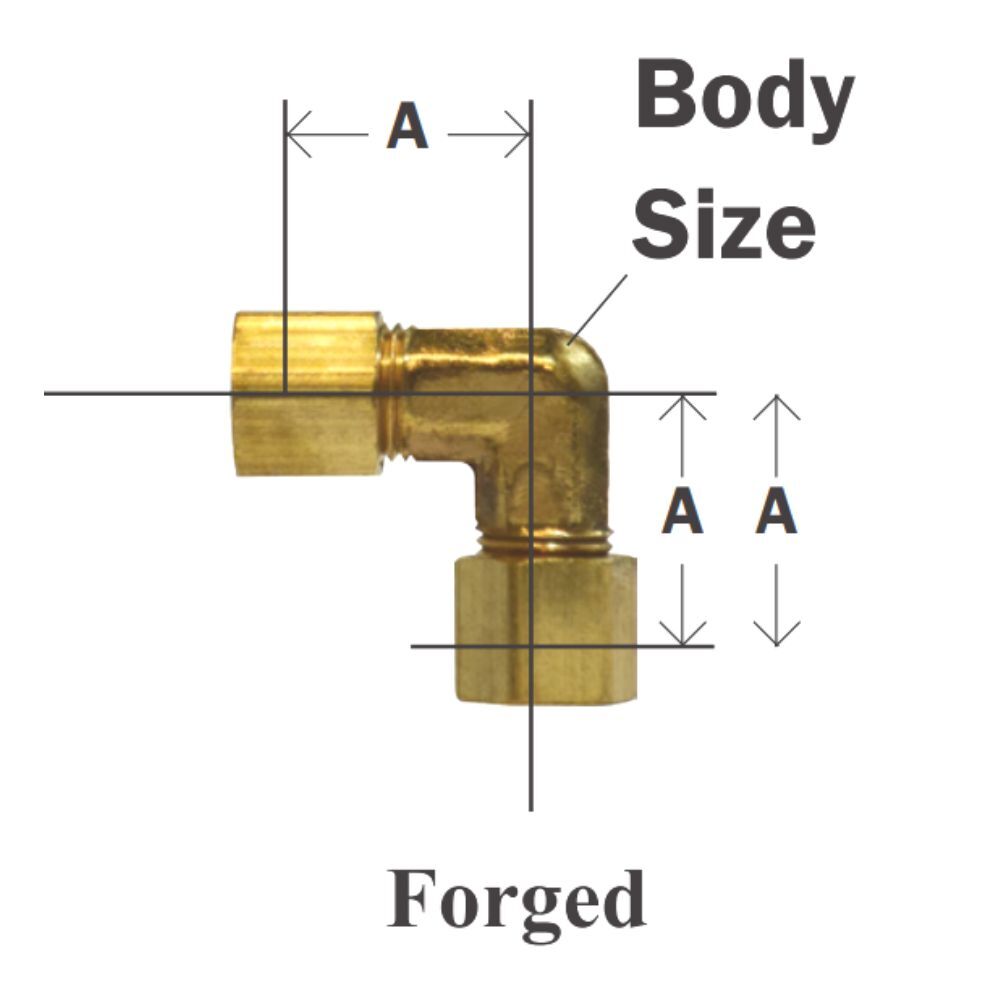

Part #	Size	A	Body Size	Approx. Wt. Lbs.
18-122B*	1/8”	0.62	0.35	0.04
18-123	3/16”	0.61	0.37	0.06
18-124	1/4”	0.66	0.38	0.08
18-125	5/16”	0.69	0.47	0.09
18-126	3/8”	0.72	0.43	0.12
18-127	1/2”	0.94	0.59	0.19
18-128	5/8”	1.06	0.72	0.26
18-129	3/4”	1.19	0.94	0.48
18-130	7/8”	1.25	0.94	0.44

Brass Compression Elbow-Union Elbow Video

This video shows information about brass compression elbow-union elbow.

Brass union elbows are available in a variety of sizes and can be used with a wide range of pipe materials, including copper, brass, and plastic.

If you have any questions about brass elbow compression fittings, please contact us.
