Brass Compression Tee-Union Tee China Supplier-Topa

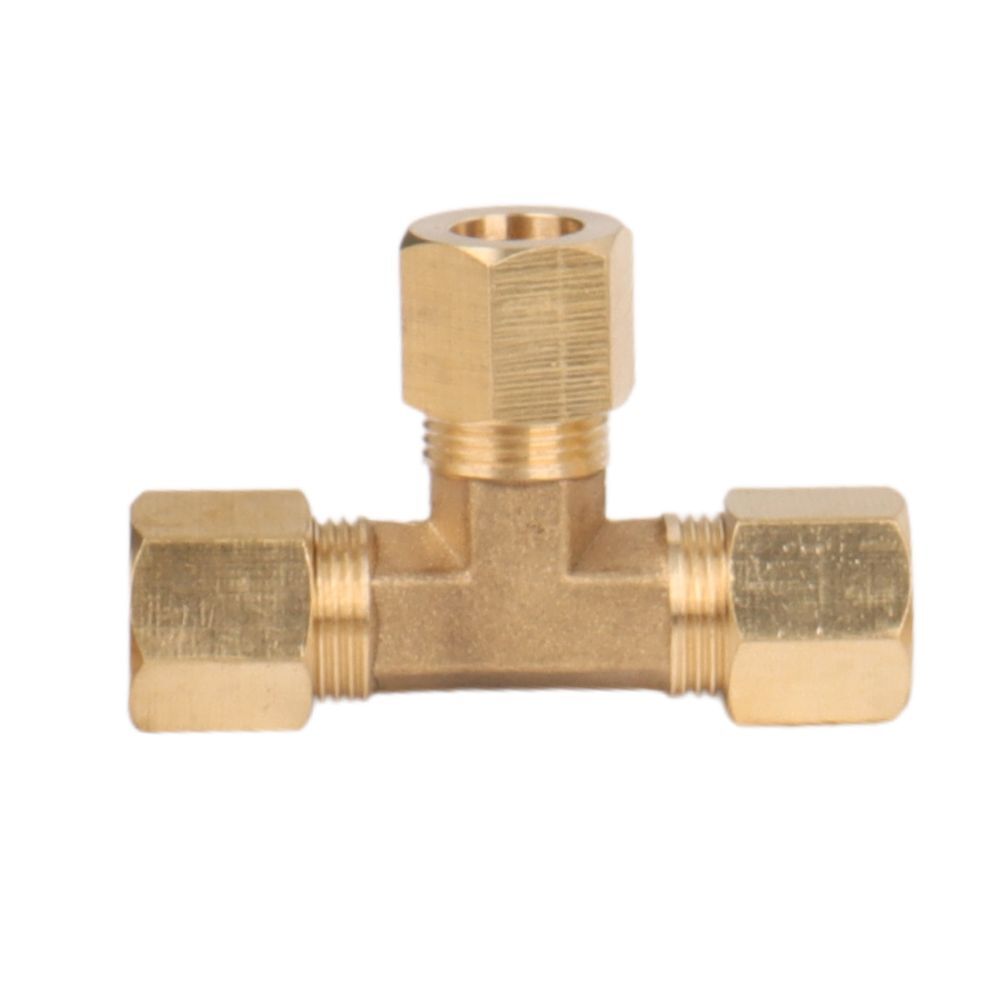

Brass Compression Tee

Description:

The union tee is a T-shape brass compression tee that is used to create a tight seal between three pipes.

It is suitable for a variety of applications, such as irrigation systems, central heating systems, and other fluid systems.

If you have any questions about the brass compression tee fittings, feel free to ask.

Features and Benefits:

• Lead-free
• Reusable
• Easy to assemble
• Strong seal

Description

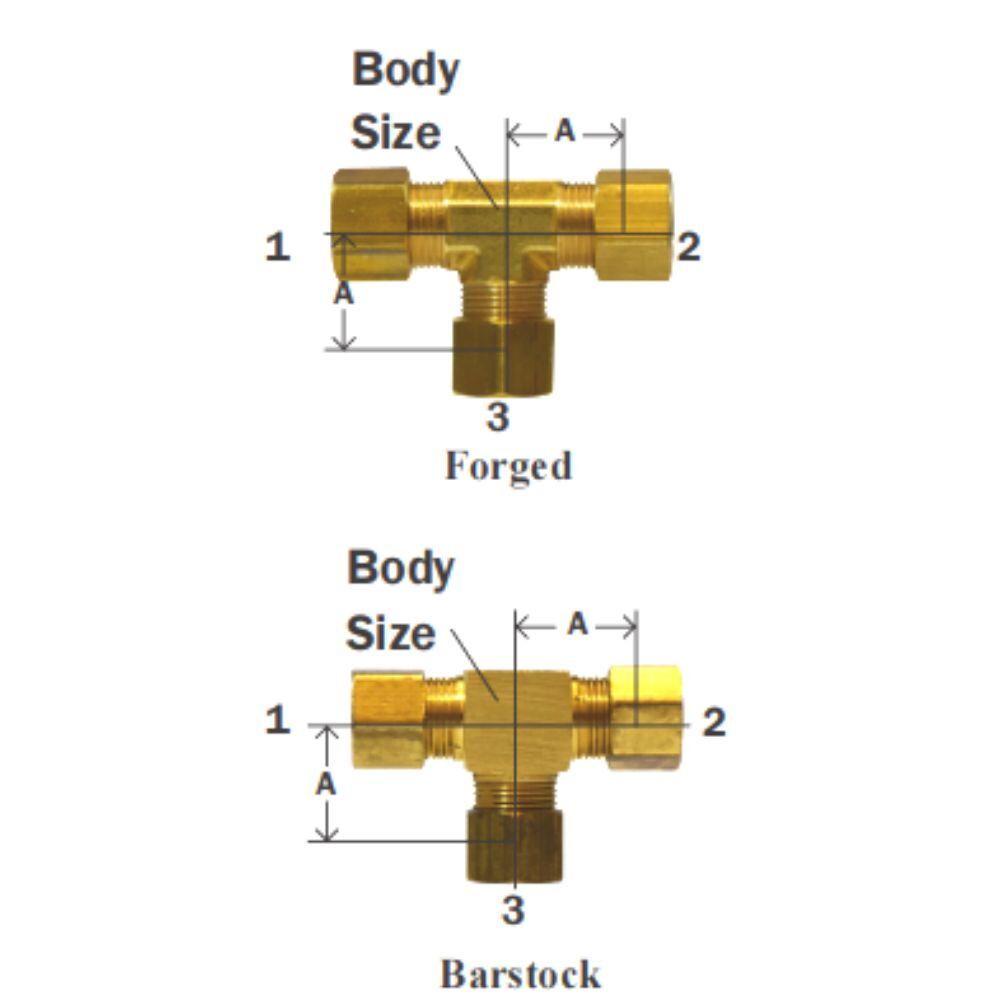

Part #	Size	A	Body Size	Approx. Wt. Lbs.
18-101	1/8”	0.61	0.37	0.04
18-101B*	1/8”	0.62	0.33	0.04
18-102	3/16”	0.59	0.36	0.08
18-102B*	3/16”	0.60	0.38	0.08
18-103	1/4”	0.63	0.36	0.10
18-103B*	1/4”	0.62	0.49	0.10
18-104	5/16”	0.72	0.50	0.13
18-104B*	5/16”	0.60	0.50	0.14
18-105	3/8”	0.75	0.50	0.16
18-105B*	3/8”	0.73	0.59	0.16
18-106	1/2”	0.94	0.59	0.22
18-106B*	1/2”	0.94	0.69	0.24
18-107	5/8”	1.06	0.69	0.28
18-108	3/4”	1.22	0.88	0.32
18-109	7/8”	1.25	0.94	0.34

Brass Compression Tee-Union Tee Video

This video shows information about brass compression tee-union tee.

Brass compression union tees are available in a variety of sizes and can be used with a wide range of pipe materials, including copper, brass, and plastic.

If you have any questions about brass tee compression fittings, please contact us.
