Brass Compression Union-Reducing Union China Factory-Topa

Brass Compression Union

Description:

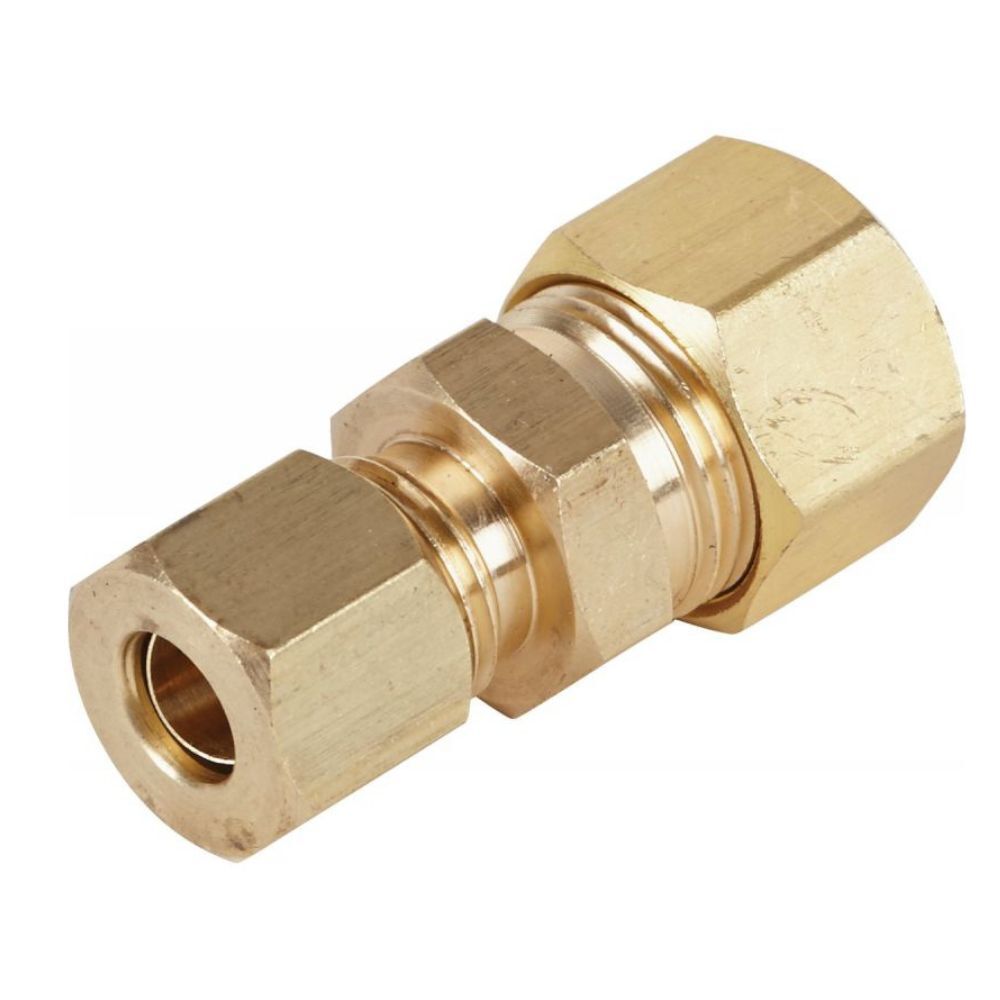

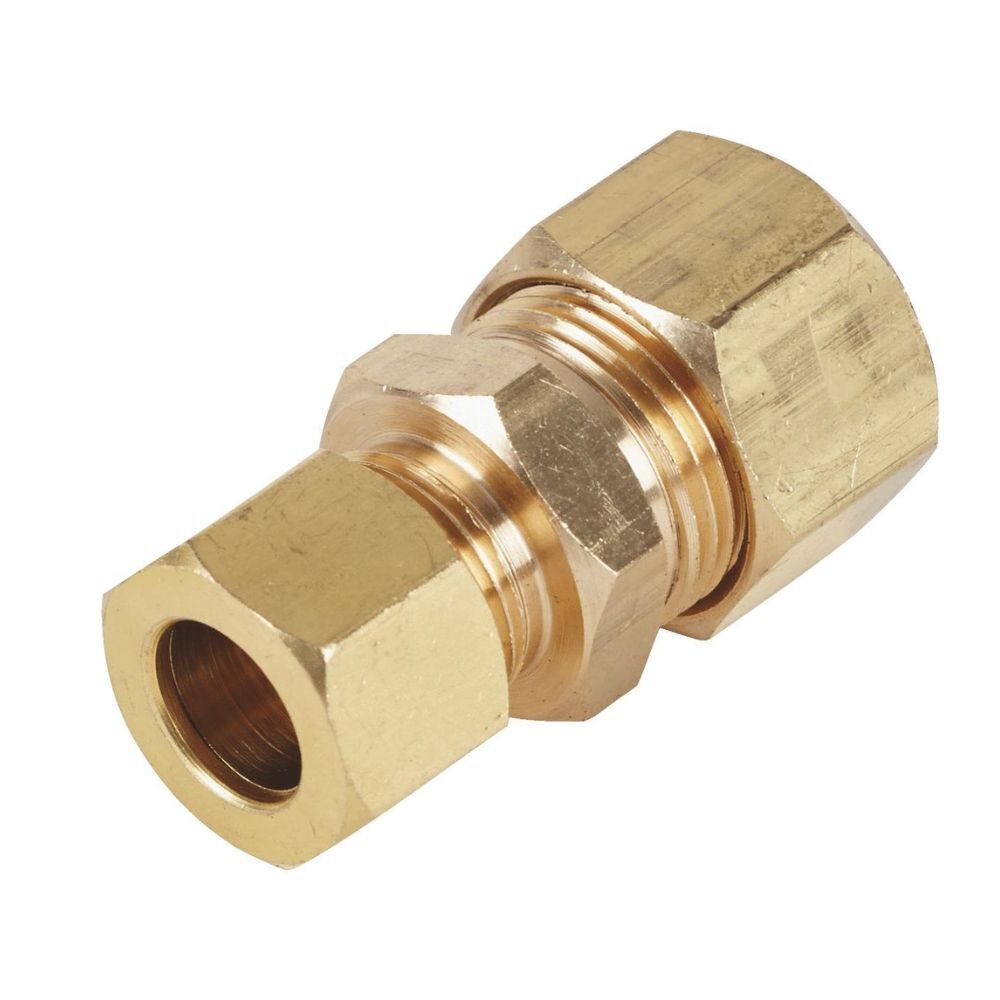

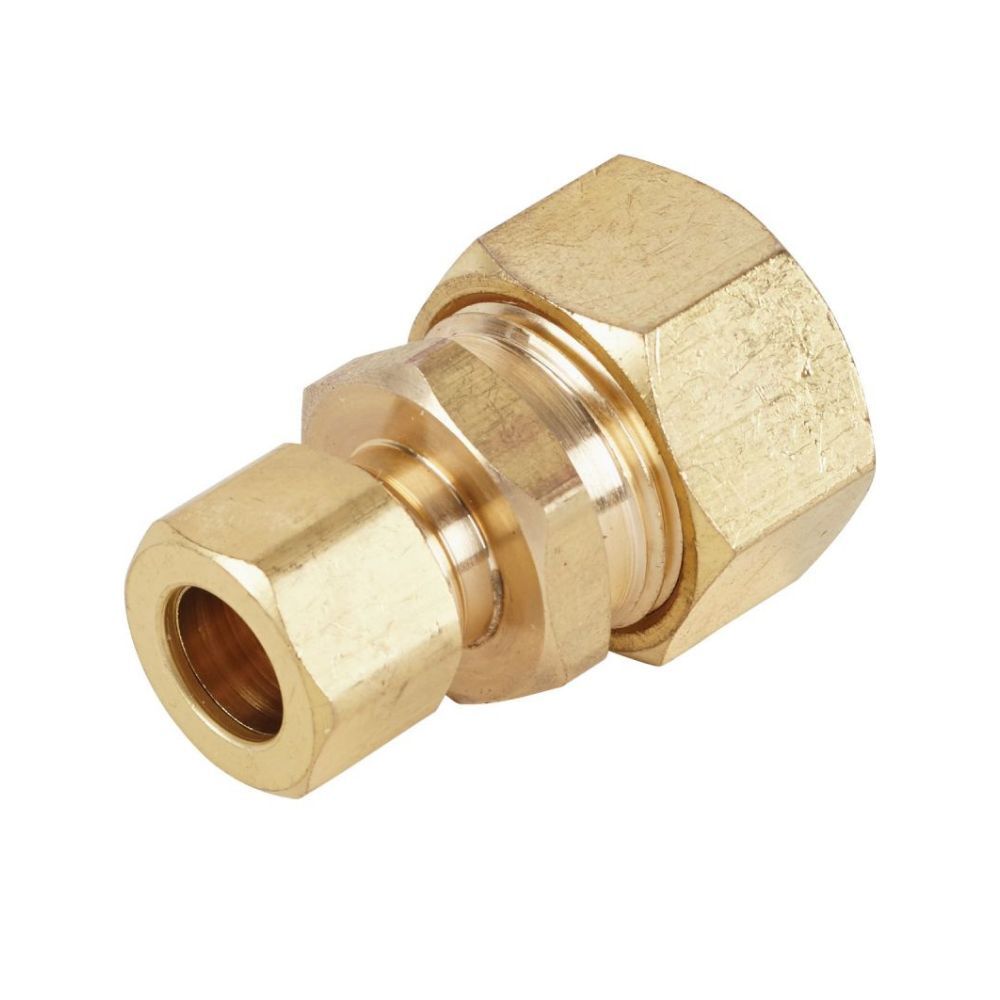

The reducing union is made up of three parts: the compression nut, the compression ring, and a central body.

The brass compression reducing union fitting has two different size ends that are used to connect two different sizes of pipes together.

If you have any questions about the brass union compression fittings, feel free to ask.

Features and Benefits:

• Lead-free
• Reusable
• Easy to assemble
• Strong seal

Description

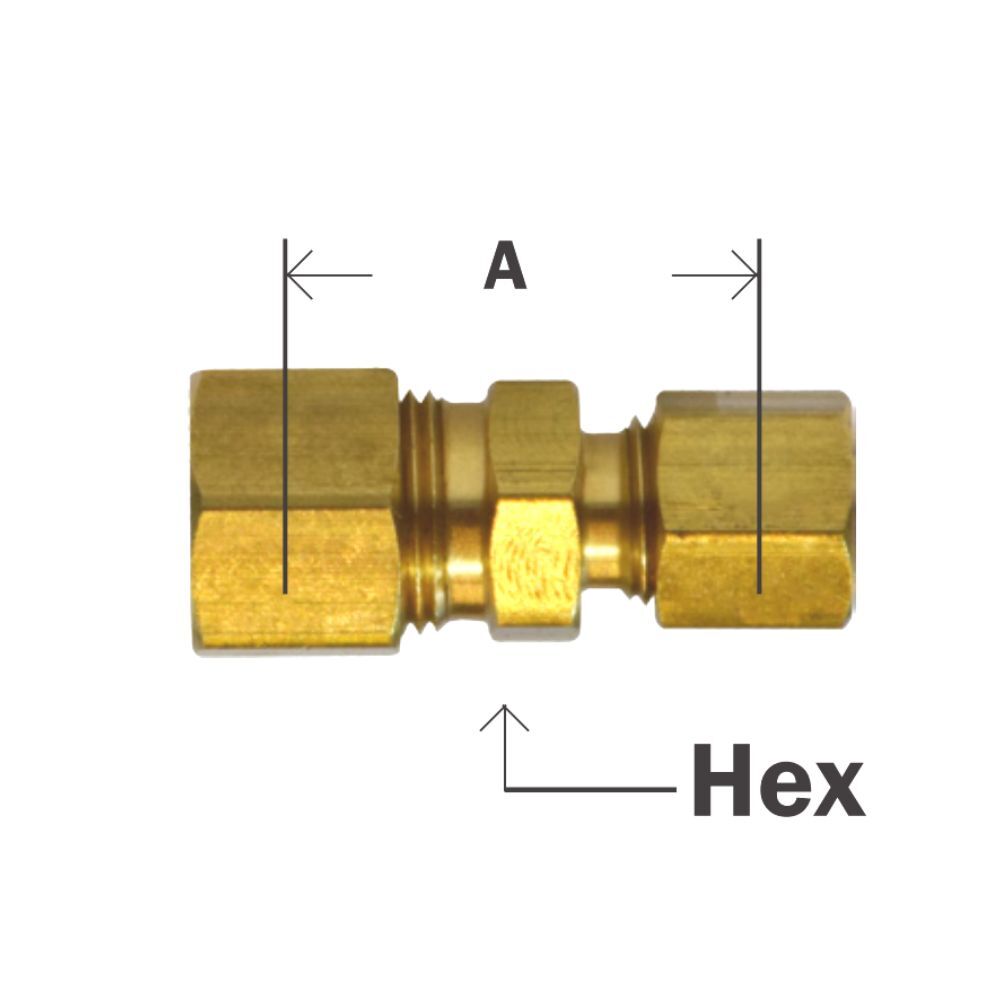

Part #	Size	A	Hex	Approx. Wt. Lbs.
18-076	1/4” x 1/8”	0.73	0.44	0.04
18-077	1/4” x 3/16”	0.78	0.44	0.06
18-078	5/16” x 1/4”	0.81	0.50	0.06
18-079	3/8” x 1/4”	0.90	0.56	0.10
18-080	3/8” x 5/16”	0.94	0.56	0.10
18-081	1/2” x 3/8”	1.03	0.68	0.12
18-082	5/8” x 3/8”	1.03	0.81	0.15
18-084	7/8” x 5/8”	1.23	1.18	0.20

Brass Compression Union-Reducing Union Video

This video shows information about brass compression union-reducing union.

Brass compression reducing unions are available in a variety of sizes to accommodate different pipe or tube diameters. They are also used in automotive and industrial applications such as connecting brake and air lines.

If you have any questions about brass compression union fitting, please contact us.
