Brass Compression Couplings

Description:

A brass compression ball check coupling is a type of plumbing fitting that combines a check valve and a coupling in one unit. It is used to prevent the backflow of fluids and to join two pipes together.

When fluid flows through the coupling, the ball inside the coupling body is pushed open, allowing the fluid to flow through.

If you have any questions about the brass adapter compression, feel free to ask.

Features and Benefits:

• Lead-free
• Reusable
• Easy to assemble
• Strong seal

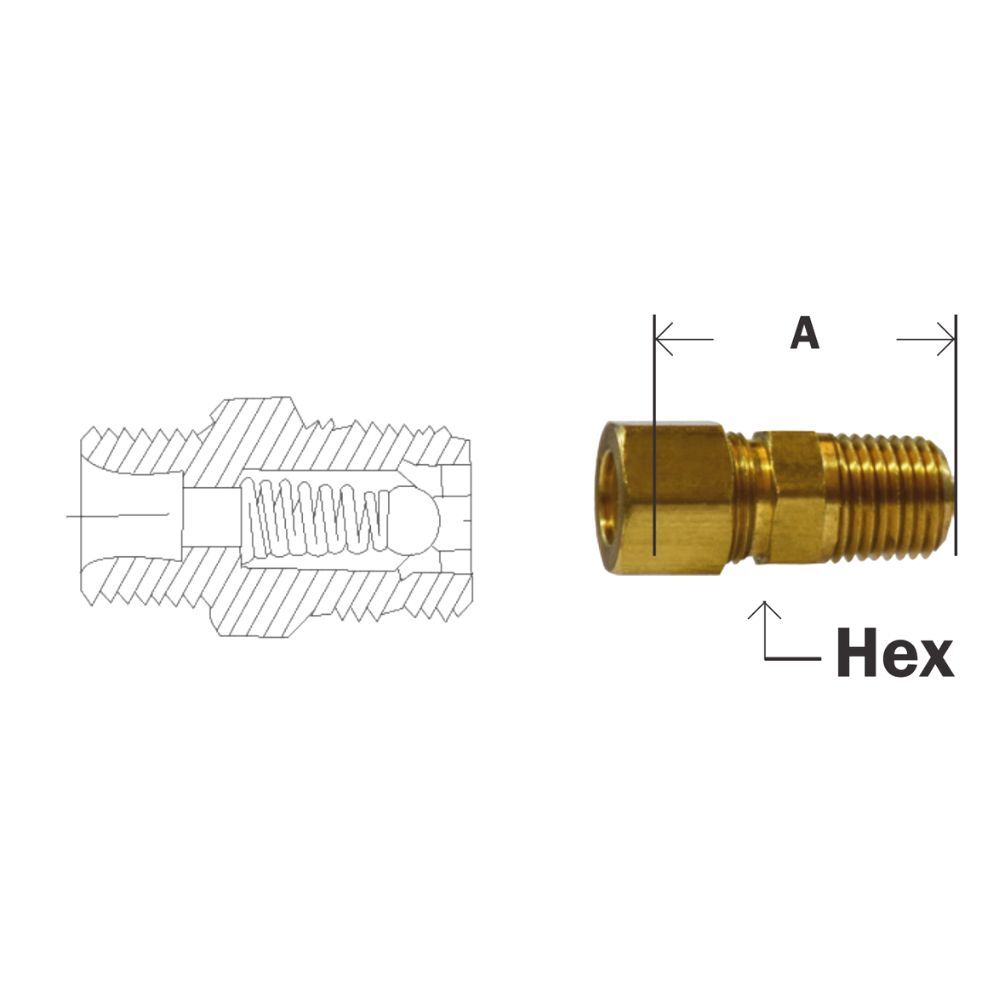

Description

Part #

Tube OD x Male NPTF

A

Hex

Approx. Wt. Lbs.

18-092

1/8” x 1/8”

0.78

0.44

0.04

18-094

1/4” x 1/8”

0.88

0.44

0.04

18-096

3/8” x 1/4”

1.16

0.56

0.08

Brass Compression Couplings-Ball Check Valve Adapter Video

This video shows information about brass compression couplings-ball check valve adapter.

Brass ball check valves are available in a variety of sizes and can be used with a wide range of pipe materials, including copper, brass, and plastic. And they are commonly used in plumbing applications where backflow prevention is necessary, such as in irrigation systems, sump pumps, and water treatment systems.

If you have any questions about brass compression adapter, please contact us.
