Description
DN | Inch | Inside | Wire | Outside | Working- pressure | Test- pressure | Burst- pressure | Bend Radius | ||
mm | inch | dash | mm | mm | mm | bar | psi | bar | bar | mm |
5 | 3/16 | -3 | 4.8 | 11.1 | 13.4 | 415 | 6020 | 830 | 1650 | 90 |
6.3 | 1/4 | -4 | 6.4 | 12.7 | 15.0 | 400 | 5800 | 800 | 1600 | 100 |
8 | 5/16 | -5 | 7.9 | 14.3 | 16.6 | 350 | 5075 | 700 | 1400 | 115 |
10 | 3/8 | -6 | 9.5 | 16.7 | 19.0 | 330 | 4785 | 660 | 1320 | 130 |
12.5 | 1/2 | -8 | 12.7 | 19.8 | 22.2 | 275 | 3990 | 550 | 1100 | 180 |
16 | 5/8 | -10 | 15.9 | 23.0 | 25.4 | 250 | 3625 | 500 | 1000 | 200 |
19 | 3/4 | -12 | 19.0 | 27.0 | 29.3 | 215 | 3120 | 430 | 850 | 240 |
25 | 1 | -16 | 25.4 | 34.9 | 38.0 | 165 | 2400 | 330 | 650 | 300 |
31.5 | 1-1/4 | -20 | 31.8 | 44.5 | 48.3 | 125 | 1820 | 250 | 500 | 420 |
38 | 1-1/2 | -24 | 38.1 | 50.8 | 54.6 | 90 | 1310 | 180 | 360 | 500 |
51 | 2 | -32 | 50.8 | 63.5 | 67.3 | 80 | 1160 | 160 | 320 | 630 |
64 | 2-1/2 | -40 | 63.5 | 72 | 76 | 40 | 580 | 80 | 160 | 770 |
76 | 3 | -48 | 76 | 86 | 90 | 30 | 435 | 60 | 120 | 930 |
90 | 3-1/2 | -56 | 89 | 100 | 104 | 25 | 360 | 50 | 100 | 1100 |
102 | 4 | -64 | 102 | 113 | 117 | 15 | 220 | 30 | 60 | 1250 |
Features

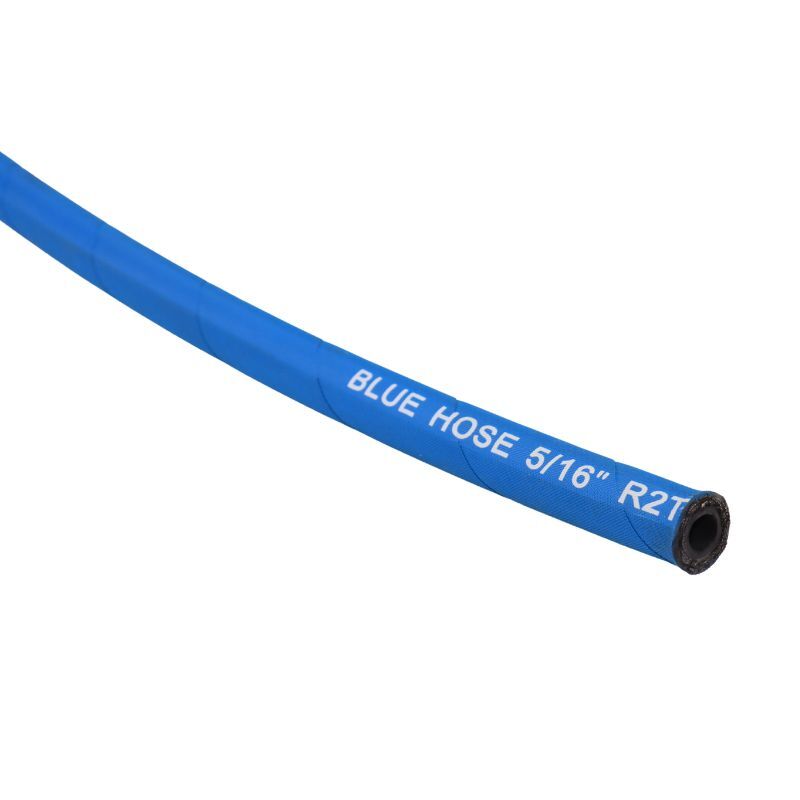

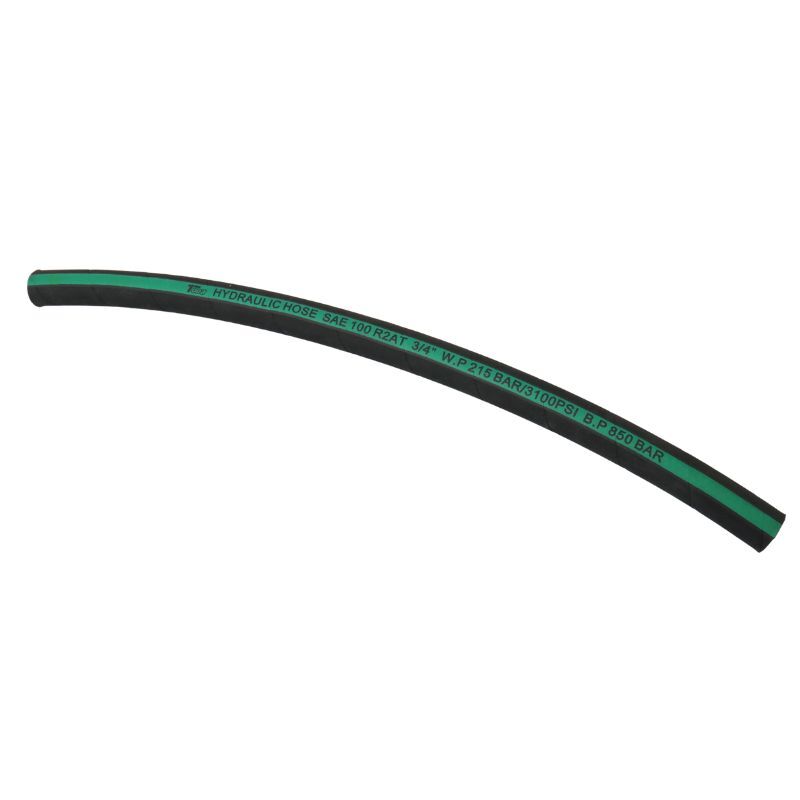

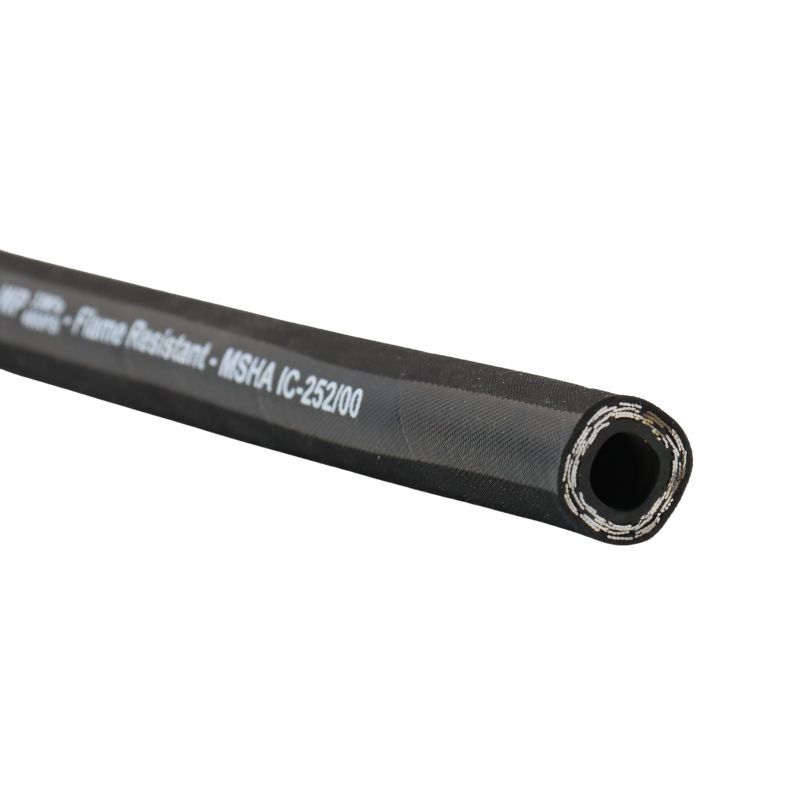

Topa’s SAE 100R2 hydraulic hose meets the international standards SAE J517-100 R2AT， EN 853-2SN, and ISO 1436, having excellent performance. It also has the advantages of freight savings， wide variety, and no skiving required, and can be used for mobile equipment, hydraulic equipment in the plant, and farm tractor. It is suitable for transporting petroleum-based fluids, water-glycol emulsions, and water-oil emulsions, and can be used with the xxxx1 -xx-xx Series fitting manufactured by Topa.
SAE 100R2 Hydraulic Hose Video
This video shows information about SAE 100R2 hydraulic hose.

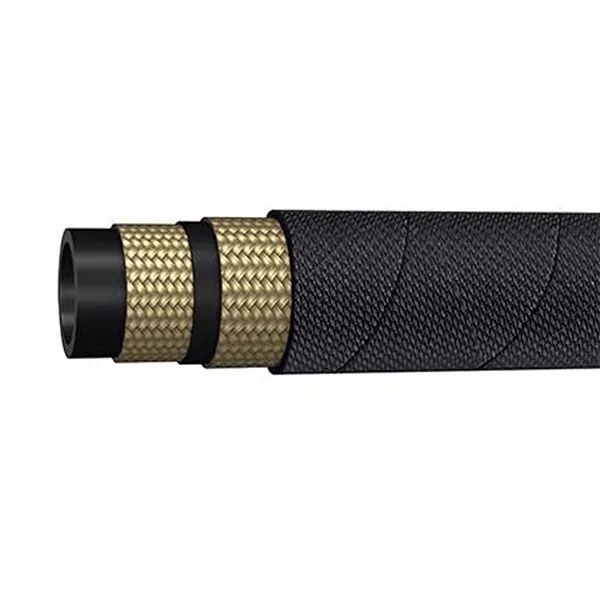

SAE 100R2 hydraulic hose consists of three parts: an inner tube of oil-resistant synthetic rubber, reinforcement of two high tensile steel wire braids, and an outer cover of abrasion And weather resistant synthetic rubber. Topa’s SAE 100R2 hydraulic hoses with excellent performance to keep your work running smoothly.
If you have any questions about SAE 100R2 hydraulic hoses, please contact us.
